Introduzzjoni
Welcome to the instruction manual for your Generic replacement carburetor, designed for Craftsman Snow Thrower Model 247.888741. This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your new carburetor. Please read these instructions carefully before proceeding with any installation or service to ensure safe and effective use.
Prodott Overview
This carburetor is a direct replacement component engineered to match the factory specifications of the original part in Craftsman Snow Thrower Model 247.888741. It is designed for reliable performance and easy installation, restoring optimal fuel delivery to your snow thrower's engine.
- Direct replacement for Craftsman Snow Thrower Model 247.888741, matching original factory specifications.
- Engineered to meet original carburetor dimensions and performance standards.

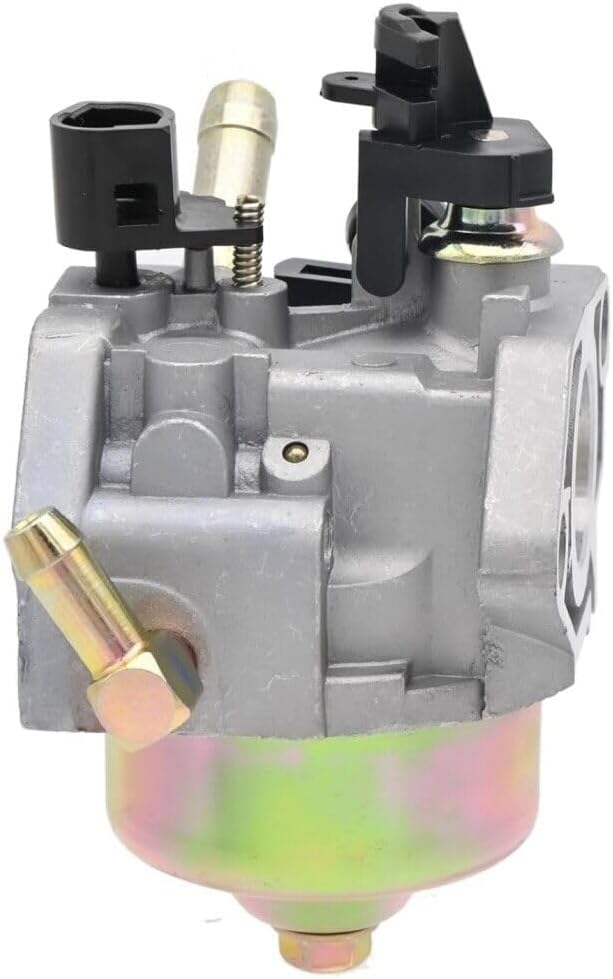

- Complete carburetor assembly as pictured, ready for installation.
- Manufactured for quality assurance, ensuring perfect fit and long-lasting, reliable performance.
- Designed for quick installation without requiring additional parts for performance restoration.
Istruzzjonijiet għall-installazzjoni
Is-Sigurtà l-Ewwel: Before beginning any installation, ensure the snow thrower's engine is cool, the spark plug wire is disconnected to prevent accidental starting, and the fuel tank is drained or the fuel line is clamped. Wear appropriate safety gear, including gloves and eye protection.
- Preparazzjoni: Gather necessary tools, including screwdrivers, wrenches, and pliers. Have a clean workspace.
- Neħħi l-Assemblea tal-Filtru tal-Arja: Carefully detach the air filter housing and air filter to access the carburetor.
- Skonnettja l-Linja tal-Fjuwil: Locate the fuel line connected to the carburetor. Use pliers to remove the clamp and gently pull the fuel line off. Be prepared for residual fuel to spill; have a container ready.
- Skonnettja l-Konnessjonijiet: Identify and carefully disconnect any throttle and choke linkages or springs attached to the old carburetor. Note their positions for reassembly.
- Neħħi l-Boltijiet tal-Immuntar: Unscrew the bolts or nuts that secure the carburetor to the engine manifold.
- Neħħi l-Karburatur il-Qadim: Carefully pull the old carburetor away from the engine. Ensure all gaskets are removed.
- Installa Karburatur Ġdid: Place new gaskets (if supplied) onto the manifold studs. Position the new carburetor onto the studs, ensuring it seats correctly.
- Karburatur Sikur: Reinstall the mounting bolts or nuts and tighten them securely, but do not overtighten.
- Erġa' Qabbad il-Konnessjonijiet: Reattach all throttle and choke linkages and springs to their correct positions on the new carburetor.
- Erġa' qabbad il-Linja tal-Fjuwil: Attach the fuel line to the new carburetor's inlet and secure it with the clamp.
- Erġa' installa l-Assemblea tal-Filtru tal-Arja: Reattach the air filter and its housing.
- Kontrolli Finali: Double-check all connections, ensuring they are secure. Reconnect the spark plug wire.
It is recommended that installation be performed by a qualified technician if you are unfamiliar with engine repair.
Prinċipji Operattivi
After successful installation, the carburetor's primary function is to mix air and fuel in the correct ratio for combustion in the engine.
- Kunsinna tal-Fjuwil: Fuel flows from the tank, through the fuel line, and into the carburetor's float bowl.
- Dħul ta' l-Arja: Air enters the carburetor through the air filter.
- Taħlit: Inside the carburetor, the air and fuel are precisely mixed as air passes through the venturi, creating a vacuum that draws fuel from the float bowl through jets.
- Bidu tal-Magna: The choke mechanism enriches the fuel mixture for cold starts. Once the engine warms up, the choke should be disengaged.
- Kontroll tat-throttle: The throttle plate regulates the amount of air-fuel mixture entering the engine, controlling engine speed.
Ensure the snow thrower's fuel tank contains fresh, clean fuel appropriate for the engine type.
Manutenzjoni
Regular maintenance of your carburetor and fuel system is crucial for optimal snow thrower performance and longevity.
- Kwalità tal-Fjuwil: Always use fresh, clean, and stabilized fuel. Stale or contaminated fuel is a leading cause of carburetor issues.
- Filtru tal-Fjuwil: Inspect and replace the fuel filter regularly according to your snow thrower's manufacturer recommendations. A clogged fuel filter can restrict fuel flow to the carburetor.
- Filtru tal-Arja: Keep the air filter clean to ensure proper air intake. A dirty air filter can cause a rich fuel mixture and poor engine performance.
- Ħażna: Before long-term storage, drain the fuel tank and run the engine until it stops from lack of fuel, or use a fuel stabilizer to prevent gum and varnish buildup in the carburetor.
- Tindif Esterni: Keep the exterior of the carburetor clean from dirt and debris.
Issolvi Problemi Kwistjonijiet Komuni
If your snow thrower experiences issues after carburetor replacement, consider the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-magna ma tixgħelx | No fuel, incorrect choke setting, clogged fuel filter, spark plug issue. | Check fuel level, ensure choke is set correctly for starting, inspect/replace fuel filter, check spark plug. |
| Il-magna taħdem ħażin jew tieqaf | Dirty fuel, air leak, incorrect idle adjustment, clogged jet. | Drain and replace fuel, check for loose connections/gaskets, adjust idle screw, clean carburetor jets (professional service recommended). |
| Tnixxija tal-fjuwil mill-karburatur | Loose connections, damaged gasket, faulty float needle. | Tighten fuel line connections, replace gaskets, inspect float and needle valve. |
If issues persist after attempting these solutions, it is advisable to consult a qualified small engine technician.
Speċifikazzjonijiet
- Tip ta' Prodott: Karburatur ta' Sostituzzjoni
- Kompatibilità: Craftsman Snow Thrower Model 247.888741
- Ditta: Ġeneriċi
- ASIN: B0FSJKG98H

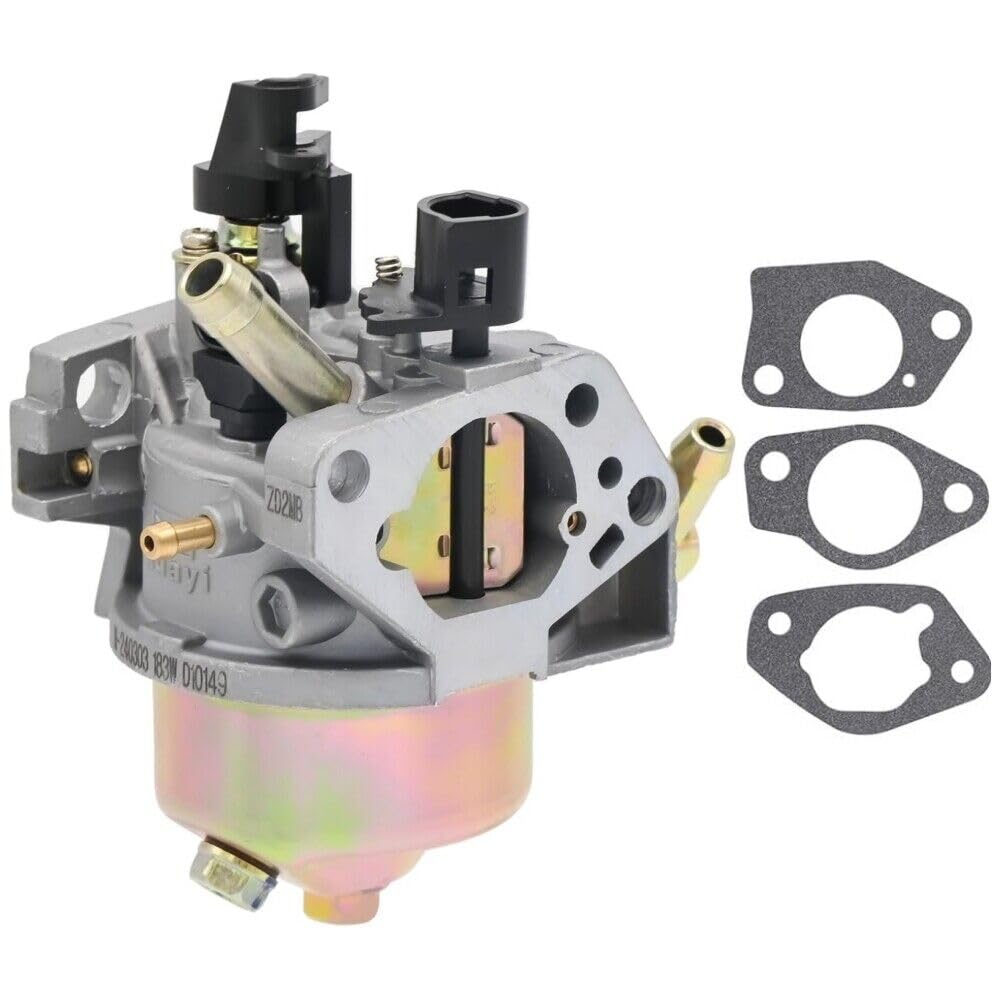

- Il-pakkett jinkludi: 1x Carburetor Kit (as pictured)
Informazzjoni dwar Garanzija
For specific warranty details regarding this Generic replacement carburetor, please refer to the product listing on the retailer's website or contact the seller directly. Warranty terms may vary.
Appoġġ għall-Klijent
If you require further assistance or have questions not covered in this manual, please contact the seller through the platform where the purchase was made. For technical issues related to your snow thrower's engine, it is recommended to consult a certified service technician.
