HOLDLAMP ZQ02356US Mini Moving Head DJ Light

Introduzzjoni

The HOLDLAMP ZQ02356US Mini Moving Head DJ Light is a versatile stage lighting fixture designed for dynamic lighting effects. It features 7 x 50W RGBW LEDs, offering both beam and wash capabilities with 4-in-1 color mixing. This manual provides essential information for the safe and effective setup, operation, and maintenance of your device.

X'hemm fil-Kaxxa

Meta tiftaħ il-pakkett, jekk jogħġbok kun żgur li l-oġġetti kollha elenkati hawn taħt huma preżenti u f'kundizzjoni tajba:

• 1X moving head dj lights
• 1X Power Cord
• 1X Hook Accessory
• 1X Manwal għall-Utent

Setup Istruzzjonijiet

Follow these steps to set up your moving head light:

1. Spakkjar: Carefully remove the light fixture and all accessories from the packaging.
2. Pjazzament: Position the light on a stable, flat surface or securely mount it using the provided hook accessory. Ensure adequate ventilation around the unit.
3. Konnessjoni tal-Enerġija: Connect the power cord to the 'POWER IN' port on the rear of the fixture and then to a suitable power outlet (AC100-240V, 50/60Hz).
4. Konnessjoni DMX (Mhux obbligatorja): For DMX control, connect a 3-pin DMX cable from your DMX controller to the 'DMX IN' port. If linking multiple units, connect from 'DMX OUT' of the first unit to 'DMX IN' of the next.
5. L-Ewwel Tixgħil: Flip the ON/OFF switch to power on the device. The LCD display will illuminate.

Vidjo ta' Dimostrazzjoni tas-Setup

This video demonstrates the unpacking and connection of the 7X50W Moving Head Lights, including power and DMX cables, and the bow mount installation.

Modi Operattivi

The HOLDLAMP ZQ02356US offers multiple control modes to suit various applications:

• Modalità Awtomatika: The light runs through pre-programmed sequences without external input.
• Voice Control Mode (Sound Activated): The light reacts to ambient sound or music, synchronizing effects with the beat.
• Modalità DMX: Provides precise control over all functions using a DMX512 controller, allowing for customized light shows.
• Modalità Kaptan-Skjav: Multiple units can be linked, with one acting as the master to control the others, ensuring synchronized effects.

Operating Mode Demonstration Video

This video demonstrates how to set the DJXFLI 90W RGBW Moving Head Light to Auto Mode, Sound Mode, and Master/Slave Mode using the control panel, and how to select DMX channels.

Karatteristiċi Ewlenin

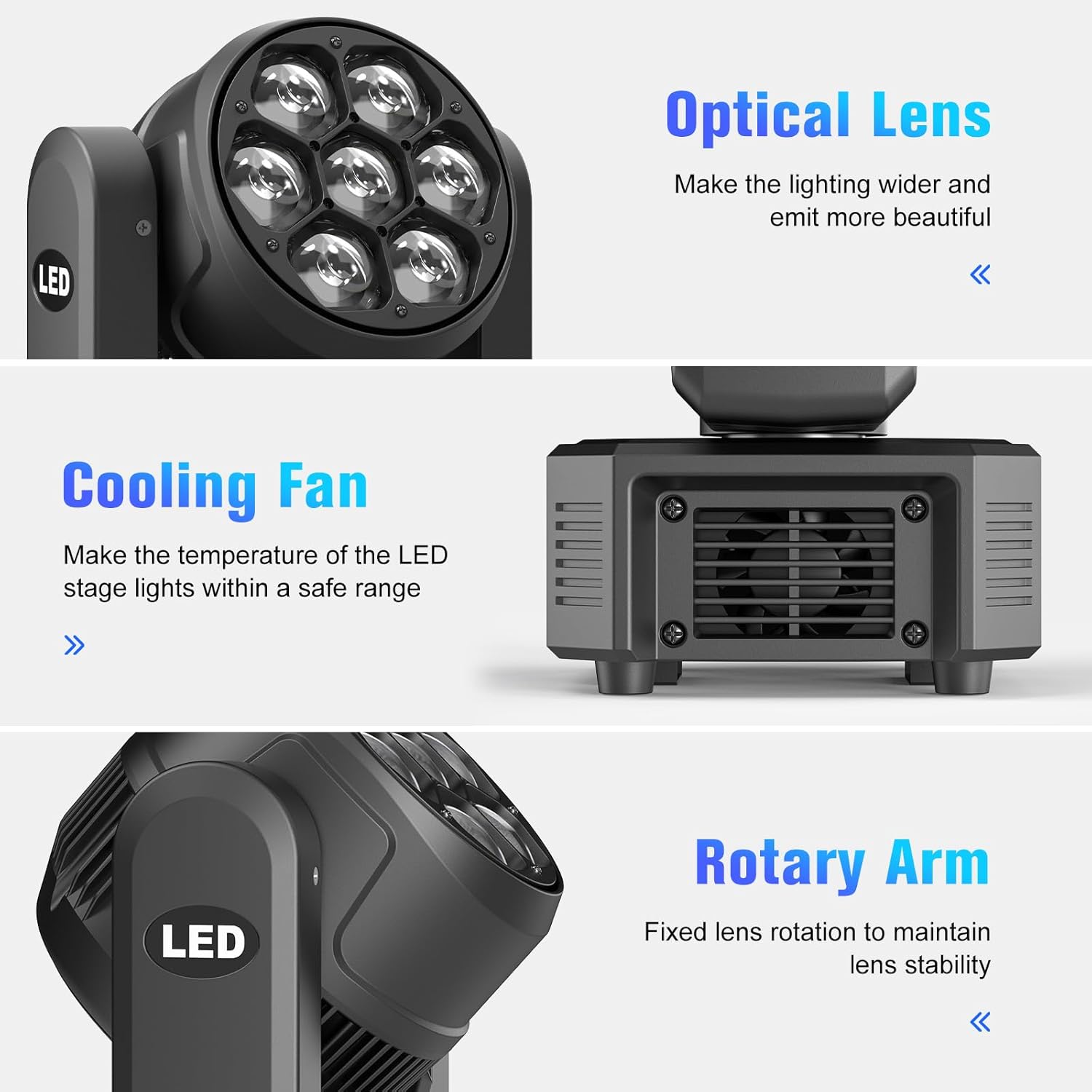

• Powerful Light Source & Rich Colors: Equipped with 7 x 50W RGBW LEDs (350W rated power), offering a light angle of 4.5°-45° for high brightness and pure color.
• Multiple Effects: Features dyeing, beam, vortex, kaleidoscope, electronic linear focus, and single point control for diverse stage effetti.
• Constant Current Motherboard Technology: Ensures stable and efficient operation, improving reliability and light continuity.
• Dissipazzjoni effiċjenti tas-sħana: Constructed with flame-retardant and high-temperature resistant plastic material, enhancing product safety and longevity.
• Dynamic Movement: Offers 540° pan (X-axis) and 255° tilt (Y-axis) movement for broad coverage.

Effect Demonstration Video

This video showcases the various lighting effects of the Moving Head Light LED 19x15W RGBW, including pan, tilt, zoom, color mixing, strobe, and kaleidoscope effects.

This video demonstrates the zoom and RGB halo ring effects of the Moving Head Light, showcasinil-kapaċitajiet tad-dawl dinamiku tiegħu.

Speċifikazzjonijiet

Manutenzjoni

To ensure the longevity and optimal performance of your HOLDLAMP ZQ02356US Mini Moving Head DJ Light, regular maintenance is recommended:

• Tindif: Naddaf regolarment il-parti ta' barraasing and optical lenses with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• Ventilazzjoni: Kun żgur li l-fetħiet tal-ventilazzjoni jkunu ħielsa mit-trab u l-fdalijiet biex tevita li jisħnu żżejjed.
• Spezzjoni tal-Cable: Periodically check all power and DMX cables for any signs of wear or damage. Replace damaged cables immediately.
• Ħażna: When not in use, store the fixture in a dry, dust-free environment, preferably in its original packaging or a protective case.

Issolvi l-problemi

If you encounter any issues with your light fixture, refer to the following common troubleshooting steps:

• Ebda Qawwa: Check the power cord connection, the power outlet, and the unit's ON/OFF switch. Verify the fuse on the rear panel is intact and replace if blown.
• Ebda Ħruġ tad-Dawl: Ensure the dimmer setting is not at 0%. Check the selected operating mode.
• No DMX Control: Verify DMX cable connections are secure and correctly oriented (DMX IN to DMX OUT). Check the DMX address setting on the fixture and your controller. Ensure the DMX controller is functioning correctly.
• Moviment Erratiku: Reset the fixture by powering it off and on. Check for any obstructions to the moving head.
• Is-sħana żejda: Ensure proper ventilation around the unit. Clean any dust from the cooling fan and vents.

Garanzija u Appoġġ

For warranty information, please refer to the terms and conditions provided at the time of purchase or contact HOLDLAMP customer support. If you require technical assistance or have questions not covered in this manual, please contact the manufacturer or your retailer for support.

Manufacturer: Shenzhen Zhuoqiong Technology Co., Ltd.
