HOLDLAMP 14x6 RGBW LED Par Stage Manwal għall-Utent Dawl

1. Introduzzjoni

Thank you for choosing the HOLDLAMP 14x6 RGBW LED Par Stage Light. This manual provides essential information for the safe and efficient operation of your device. Please read these instructions carefully before use and retain them for future reference.

2. Karatteristiċi tal-prodott

• High-Performance Lighting: Equipped with 14 units of 6W 4-in-1 RGBW LED bulbs, capable of creating vibrant multi-color lighting effects.
• Modi Operattivi Multipli: Features Normal, Flash, Fade, Auto, and Sound-activated modes for versatile lighting control.
• Kontroll mill-bogħod: All functions can be easily controlled via the included wireless remote, allowing adjustments to color, brightness, and mode.
• DMX512 Support: Compatible with the DMX512 protocol for advanced control and integration with professional lighting setups.
• Installazzjoni versatili: Designed for easy installation on floors, tables, walls, or ceilings, suitable for various event settings.

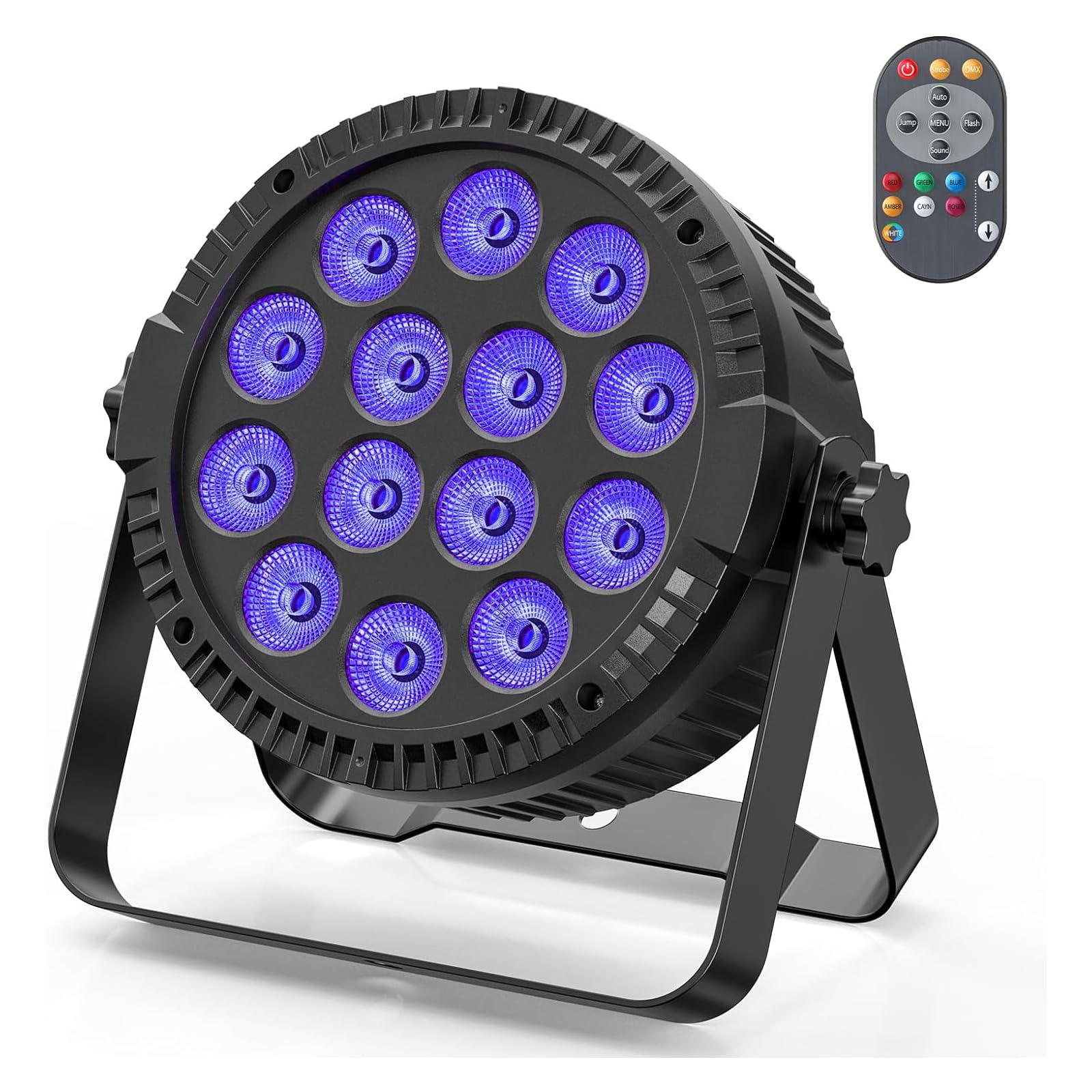

Image: The HOLDLAMP 14x6 RGBW LED Par Stage Light displaying its full range of RGBW colors.

Image: Multiple HOLDLAMP LED Par Lights illuminating a space with different color combinations.

3. X'hemm fil-Kaxxa

Meta tiftaħ il-pakkett, jekk jogħġbok kun żgur li l-oġġetti kollha elenkati hawn taħt huma preżenti u f'kundizzjoni tajba:

• 1 x HOLDLAMP 14x6 RGBW LED Par Light
• 1 x Kontroll mill-bogħod
• 1 x Kurduni tal-Enerġija
• 2 x parentesi
• 2 x Viti
• 1 x Manwal għall-Utent

Immaġni: Il-komponenti kollha huma inklużi fil-pakkett tal-prodott.

4. Setup

Follow these steps to set up your HOLDLAMP LED Par Stage Dawl:

1. Ippakkja: Neħħi bir-reqqa l-komponenti kollha mill-imballaġġ.
2. Immuntar: Attach the provided brackets to the sides of the light using the screws. The brackets allow for versatile positioning.
3. Pjazzament: Position the light on a stable surface (floor, table) or securely mount it to a wall or ceiling using appropriate hardware (not included for wall/ceiling mounting). Ensure the light is stable and will not fall. The adjustable angle feature allows you to direct the light as needed.
4. Konnessjoni tal-Enerġija: Connect the power cord to the 'POWER IN' port on the back of the light and then to a suitable power outlet.
5. Qawwa Inizjali Mixgħula: The light will power on and typically enter an automatic mode.

Image: Product dimensions and key features like the cooling fan and 360° adjustable angle.

5. Modi Operattivi

The HOLDLAMP LED Par Stage Light offers several operating modes, which can be selected via the remote control or the control panel on the back of the unit.

• Modalità Normali: Provides static color illumination.
• Modalità Flash: The lights flash on and off at a set or adjustable speed.
• Modalità Fade: Colors smoothly transition from one to another.
• Modalità Awtomatika: Cycles through various pre-programmed lighting patterns and colors automatically.
• Modalità tal-Ħoss: The lights react to ambient sound or music, changing patterns and colors in sync with the audio.

Image: The back panel with power interface, LCD display, DMX In/Out, and the remote control with various function buttons.

6. DMX Function

The HOLDLAMP LED Par Stage Light supports the DMX512 protocol, allowing for professional control over lighting effects. Connect the light to your DMX controller using standard DMX cables (not included) via the DMX IN and DMX OUT ports on the back of the unit. Refer to your DMX controller's manual for specific programming instructions. The light typically uses 4 or 8 DMX channels.

7. Kontroll mill-bogħod

The included remote control provides convenient access to all light functions. Ensure the remote has a working battery (1 C type battery required, not included) and is pointed towards the front of the light for optimal response. Functions include:

• Swiċċ mixgħul / mitfi: Jixgħel jew jitfi d-dawl.
• Modalità Strobe: Activates the flash mode.
• Modalità DMX: Switches to DMX control.
• Modalità AUTO: Activates automatic program cycling.
• Jump Change: Jiċċikla bejn il-kuluri b'tranżizzjonijiet f'daqqa.
• Agħżel il-Funzjoni: Navigates through various functions.
• Modalità Flash: Activates flash mode.
• Ħoss Attiv: Enables sound-activated mode.
• RGB Monochrome Choice: Selects individual Red, Green, Blue, or White colors.
• Adjust Speed/Sensitivity: Controls the speed of flash/jump modes and the sensitivity of sound mode.

Image: Close-up of the remote control with labeled buttons for various functions.

8. Speċifikazzjonijiet

9. Manutenzjoni

To ensure the longevity and optimal performance of your LED Par Stage Light, follow these maintenance guidelines:

• Tindif: Regularly wipe the exterior of the light with a soft, dry cloth. For stubborn dirt, use a slightly damp drapp u mbagħad nixxef sew. Tużax kimiċi ħarxa jew prodotti tat-tindif li joborxu.
• Kura tal-Lenti: Keep the LED lenses clean to maintain light output quality. Use a soft, lint-free cloth specifically designed for optics.
• Ventilazzjoni: Ensure the cooling fan and ventilation openings are free from dust and obstructions to prevent overheating.
• Ħażna: When not in use, store the light in a dry, dust-free environment, preferably in its original packaging or a protective case.
• Spezzjoni tal-Cable: Periodically check the power cord and DMX cables for any signs of damage. Replace damaged cables immediately.

10 Issolvi l-problemi

If you encounter issues with your HOLDLAMP LED Par Stage Light, refer to the following common problems and solutions:

• Ebda Qawwa:
  • Iċċekkja jekk il-korda tal-enerġija huwiex imqabbad sew kemm mad-dawl kif ukoll mas-sokit tal-enerġija.
  • Kun żgur li l-iżbokk tad-dawl huwa funzjonali.
• Ebda Ħruġ tad-Dawl:
  • Verify the light is powered on.
  • Check the selected operating mode; some modes might appear off if not actively changing.
  • If using DMX, ensure the DMX signal is active and correctly configured.
• Il-Kontroll mill-bogħod ma Jirrispondix:
  • Ensure the remote control has a fresh battery and is inserted correctly.
  • Point the remote directly at the front of the light.
  • Remove any obstructions between the remote and the light.
• Sound Mode Not Working:
  • Ensure the sound mode is selected.
  • Increase the volume of the music or sound source.
  • Adjust the sound sensitivity setting on the remote or control panel.

Jekk il-problema tippersisti wara li tipprova dawn il-passi, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

11. Informazzjoni dwar is-Sigurtà

Jekk jogħġbok osserva l-prekawzjonijiet tas-sigurtà li ġejjin:

• This device is for indoor use only. Do not expose to rain or moisture.
• Ensure proper ventilation to prevent overheating. Do not block any ventilation openings.
• Do not look directly into the light source when the device is operating, as it may cause eye strain or damage.
• Always disconnect the power supply before cleaning or servicing the unit.
• Żomm l-apparat 'il bogħod minn materjali li jaqbdu.
• Il-persunal kwalifikat biss għandu jwettaq tiswijiet.

12. Garanzija u Appoġġ

The HOLDLAMP 14x6 RGBW LED Par Stage Light comes with a standard manufacturer's warranty. For detailed warranty information, product support, or service inquiries, please refer to the contact information provided with your purchase or visit the official HOLDLAMP websit.
