1. Prodott Aktarview
The NCVI Hands-Free Wearable Breast Pump is designed for convenience and efficiency, allowing mothers to express milk discreetly and comfortably. Its compact, one-piece design fits seamlessly under a bra, making it suitable for use at home, work, or on the go.
- Invisible & Comfortable Design: Semi-circular body for a perfect fit under the bra, offering discreet and lightweight use.
- Customizable Efficiency: Features 4 modes and 9 adjustable suction levels to mimic a baby's natural sucking rhythm, ensuring efficient and comfortable pumping.
- Karatteristiċi faċli għall-utent: Equipped with a closed system to prevent backflow, ensuring hygiene. An indicator light displays current mode and level settings. The device automatically shuts off after 30 minutes to prevent over-pumping.
- Ultra-Convenient Power: A full charge provides approximately 140 minutes of operation, sufficient for 4-5 pumping sessions. Parts in contact with the body are made of soft, food-grade silicone for safety.
- Aċċessorji inklużi: Comes with 24mm flange and 21mm flange inserts, a bra buckle, USB cable, and milk storage bags to fit various needs.
2. Komponenti tal-Prodott
The NCVI Wearable Breast Pump consists of several key components designed for easy assembly and cleaning. Below is an overview of the parts included in your package.
This image displays the complete set of components included with your NCVI Breast Pump, such as the breast pump units, 21mm flange inserts, bra adjustment buckles, user manual, charging cables, and breast milk storage bags.
A visual breakdown of the main components: 1. 24mm Flange, 2. Milk Collector, 3. Duckbill Valve, 4. Diaphragm, 5. Motor. Understanding these parts is crucial for assembly and cleaning.
Daqs tal-ħanek
Choosing the correct flange size is essential for comfortable and efficient pumping. The NCVI pump includes both 24mm flanges and 21mm flange inserts to accommodate different nipple sizes.
Use the provided nipple measurement tool to determine your ideal flange size. Proper sizing ensures optimal suction and comfort.

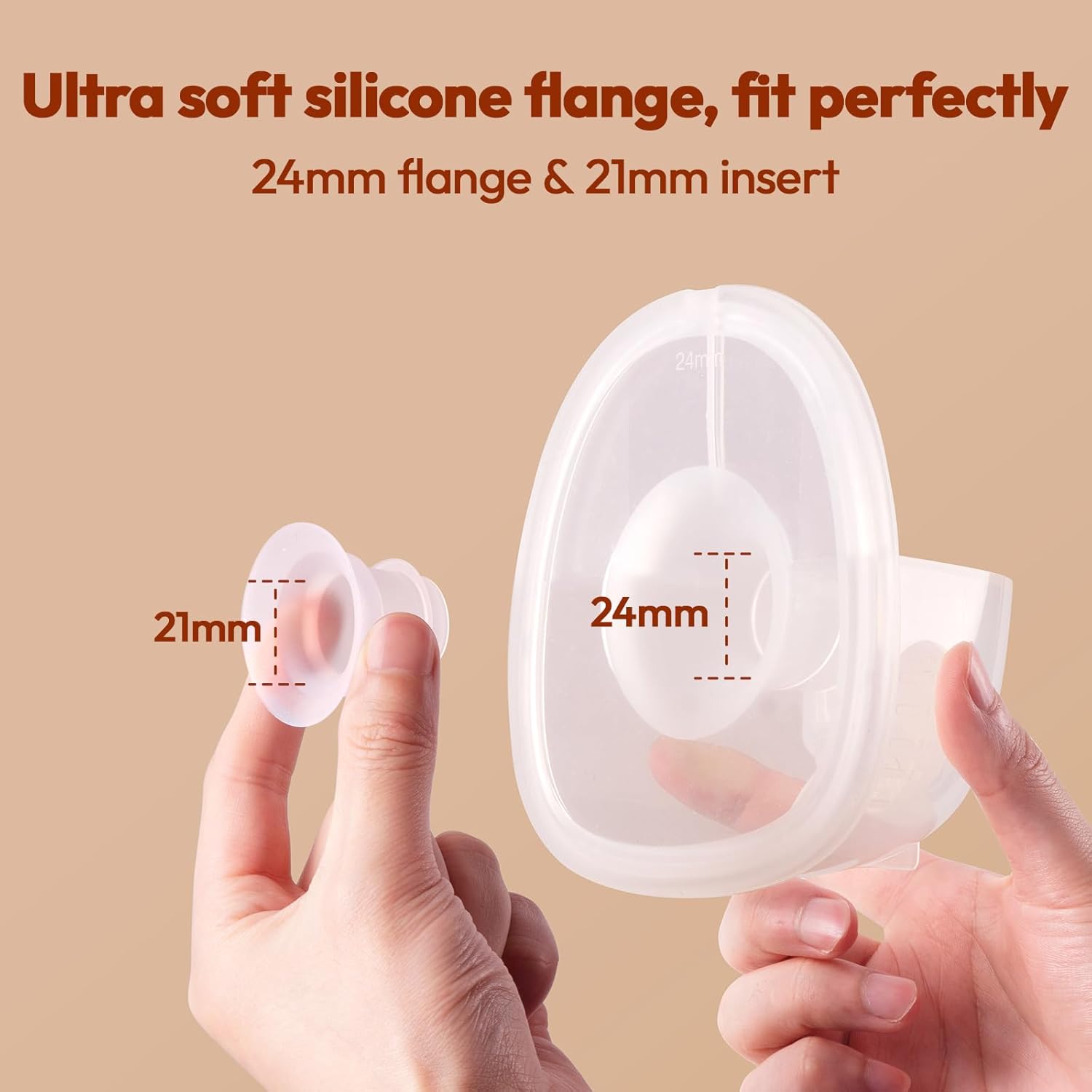

This image illustrates the 24mm flange and the smaller 21mm insert, demonstrating how they fit together to provide a customized fit.
3. Setup u Assemblea
Before first use, ensure all washable parts are cleaned and sterilized. Follow these steps to assemble your NCVI Wearable Breast Pump.
- Daħħal il-Valv Duckbill: Gently push the duckbill valve into the milk collector.
- Place Silicone Diaphragm: Carefully place the silicone diaphragm into the milk collector, ensuring it sits flat.
- Waħħal il-Flanġ: Align the flange with the milk collector and press firmly around the edges to create a tight seal. Ensure the flange cut aligns with the milk collector cut.
- Installa l-Mutur: Place the motor unit securely onto the assembled milk collector and flange.
This diagram visually guides you through the assembly process, from installing the duckbill valve to attaching the motor.
A proper seal between the flange and milk collector is critical to prevent leaks and ensure effective suction. This image highlights the connection points.
Installazzjoni Video
Video 3.1: How to Install NCVI Breast Pump 8111
This video provides a detailed visual guide on how to correctly assemble your NCVI breast pump, ensuring all parts are properly connected for optimal performance.
4. Istruzzjonijiet Operattivi
The NCVI Wearable Breast Pump offers multiple modes and suction levels to personalize your pumping experience. The intuitive controls on the motor unit allow for easy adjustment.
Modes and Levels
The pump features 4 distinct modes and 9 adjustable suction levels. Experiment to find the combination that best suits your comfort and milk flow.
This graphic illustrates the four available modes: Multitronic, Massage, Suck Simulate, and Express, each with 9 adjustable suction levels for personalized pumping.
The LED display on the motor unit clearly shows the current mode, suction level, and battery status, allowing for easy monitoring during use.
Recommended Pumping Combinations
| Mode Combination | Għan |
|---|---|
| 2 Mins Massage Mode → Suck Simulate Mode | Gently Express Breastmilk |
| 2 Mins Massage Mode → Express Mode | Pain-Free Pumping |
| 2 Mins Multitronic Mode → Express Mode | Fast Empty Breastmilk |
| Multitronic Mode → Express Mode | Most Stimulation and Max Suction |
Tip: Adjust modes and suction levels based on your individual comfort and breastfeeding situation.
Usage Videos
This video demonstrates a typical evening pumping session using the NCVI Wearable Breast Pump 8111, showcasing its hands-free convenience.
A user shares their personal experience with the NCVI Breast Pump 8111, highlighting its features and benefits during daily use.
5. Tindif u Manutenzjoni
Proper cleaning and maintenance are crucial for the hygiene and longevity of your breast pump. All parts that come into contact with breast milk should be cleaned after each use.
Disassembly and Washing
- Disassemble all parts that come into contact with milk (flange, milk collector, duckbill valve, diaphragm).
- Wash parts in warm soapy water for 3-5 minutes.
- Sanitize by boiling water or steaming in a sanitizing pot for 5-10 minutes.
- Wipe off any water or allow parts to air dry completely before reassembly.
Importanti: Do not wash the pump motor or tubing. These are non-washable parts.
The pump features a closed system with a silicone diaphragm and duckbill valve to prevent milk from flowing back into the motor, ensuring hygiene.
Follow these three simple steps to safely pour expressed breast milk from the collector into a storage container or bottle.
6 Issolvi l-problemi
If you encounter any issues with your NCVI Wearable Breast Pump, please refer to the following common troubleshooting tips:
- Ġbid insuffiċjenti: Ensure all parts are correctly assembled and tightly sealed. A loose connection, especially between the flange and milk collector, can lead to reduced suction. Check the duckbill valve and diaphragm for proper placement and any damage.
- Tnixxija tal-Ħalib: Verify that the flange is securely attached to the milk collector and that the silicone diaphragm is correctly seated. Improper assembly is a common cause of leakage.
- Il-pompa ma tixgħelx: Ensure the battery is fully charged. Connect the pump to the USB charging cable and allow it to charge for at least 2 hours before first use or if it has been depleted.
- Storbju mhux tas-soltu: While the pump is designed to be ultra-quiet, excessive or unusual noise might indicate a part is not correctly assembled or is damaged. Disassemble, inspect, and reassemble all parts.
If problems persist after following these steps, please contact NCVI customer support for further assistance.
7. Speċifikazzjonijiet
- Numru tal-Mudell: AM8111
- Dimensjonijiet tal-Prodott: 5.91 x 3.27 x 7.8 pulzieri
- Piż: 1.1 Liri
- Batterija: 1 batterija tal-polimer tal-litju (inkluża)
- Sors tal-Enerġija: Mħaddma bil-batterija
- Tip ta' Materjal: BPA Ħieles
- Livell ta' Storbju: 39.99 Deċibel
- Karatteristiċi Speċjali: Hands-Free Usage, Lightweight, Rechargeable, Timer, Wearable
8. Garanzija u Appoġġ
For warranty information, product support, or any questions regarding your NCVI Hands-Free Wearable Breast Pump, please refer to the contact details provided in your product packaging or visit the official NCVI website. Ensure to keep your purchase receipt for warranty claims.
