MEIWELL RC-911R Remote Control Instruction Manual

1. Prodott Aktarview

The MEIWELL RC-911R is a dedicated replacement remote control designed for specific Onkyo AV Receiver Speaker models. It provides full functionality for compatible devices without requiring any programming or setup.

1.1 Kontenut tal-Pakkett

• 1 x RC-911R Remote Control
• 2 x Batteriji AAA

2. Installazzjoni u Setup

2.1 Installazzjoni tal-batterija

The remote control requires two AAA batteries for operation. The batteries are included in the package.

1. Sib il-kompartiment tal-batterija fuq wara tal-kontroll remot.
2. Slide the battery compartment cover downwards to open.
3. Insert two AAA batteries, ensuring correct polarity (+ u -) kif indikat ġewwa l-kompartiment.
4. Żerżaq l-għatu tal-kompartiment tal-batterija lura f'postu sakemm tikklikkja sew.

This image displays the RC-911R remote control and the two AAA batteries included for its operation.

3. Istruzzjonijiet Operattivi

3.1 Funzjonalità Bażika

The MEIWELL RC-911R remote control is pre-programmed for compatible Onkyo AV Receiver Speaker models. No additional programming or pairing is required. Simply install the batteries, and the remote is ready for use.

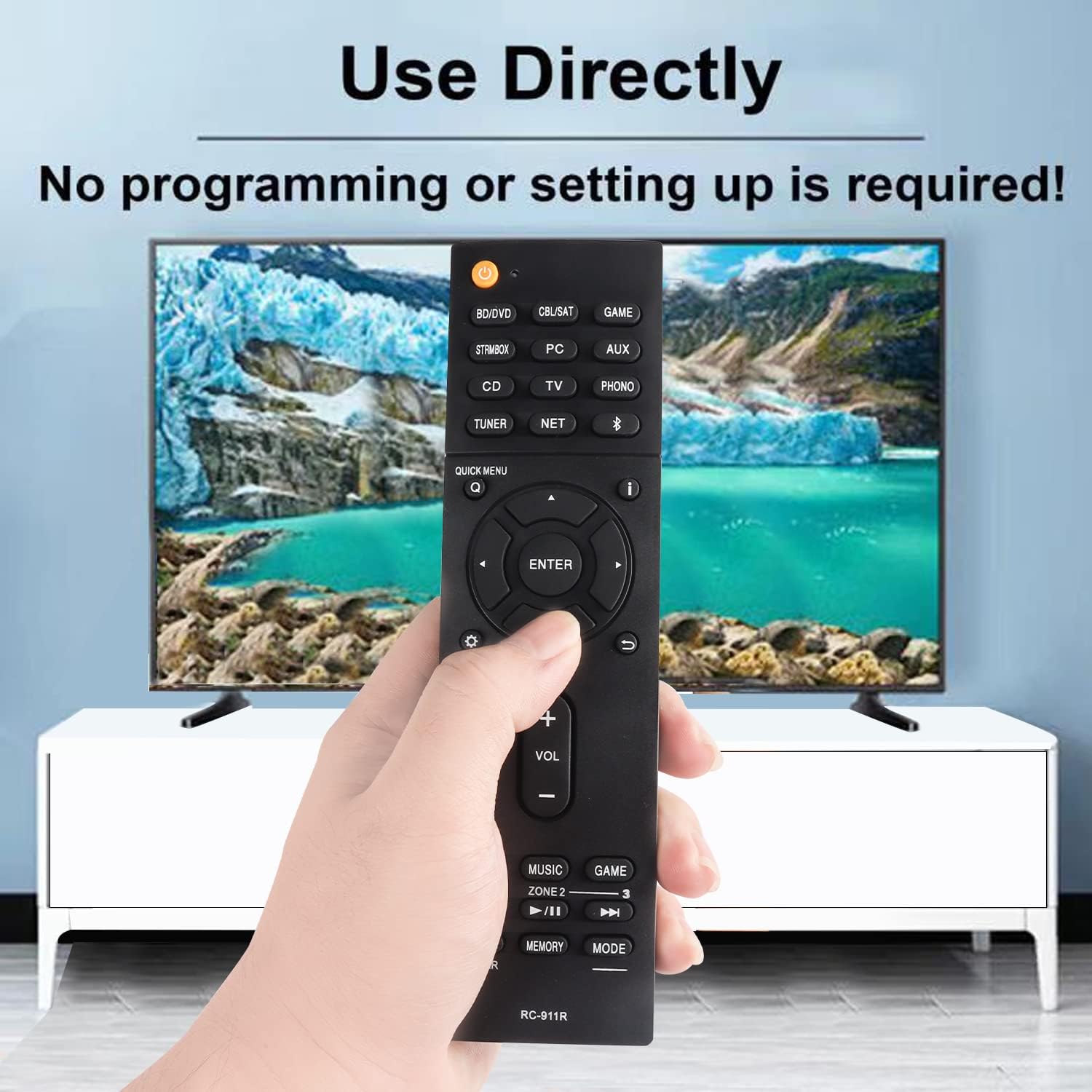

This image illustrates the remote control being used directly with a television, emphasizing that no programming is needed.

3.2 Karatteristiċi tal-Kontroll mill-Bogħod

The RC-911R remote control is designed with durable ABS material and features soft, responsive buttons. It transmits a strong infrared signal for reliable operation, powered by an upgraded smart chip for stable performance.

This image showcases the key features of the remote control, including its durable construction, comfortable buttons, and strong signal transmission.

This image highlights the internal technology of the remote, featuring an upgraded smart chip for stable performance.

3.3 It-Tqassim u l-Funzjonijiet tal-Buttuni

The remote control features a standard layout for Onkyo AV receivers, including input selectors, navigation controls, volume adjustments, and playback functions. Familiarize yourself with the button placement for optimal use.

Din l-immaġni tipprovdi dettalji views of the remote control's buttons, including input selection, navigation, volume, and media playback controls.

4. Compatible Onkyo AV Receiver Speaker Models

This remote control is specifically designed to be compatible with the following Onkyo AV Receiver Speaker models:

• HT-R695
• TX-NR656
• TX-RZ610
• TX-NR555
• TX-RZ710
• TX-RZ810
• TX-NR757
• TX-RZ720
• TX-NR676
• TX-NR676E
• TX-NR686
• TX-NR585
• TX-NR575
• TX-NR575E

5. Kura u Manutenzjoni

• Tindif: Uża drapp artab u niexef biex tnaddaf il-kontroll remot. Tużax prodotti tat-tindif likwidi jew materjali li joborxu, għax jistgħu jagħmlu ħsara lill-wiċċ jew lill-komponenti interni.
• Sostituzzjoni tal-batterija: Ibdel il-batteriji meta l-prestazzjoni tar-remote tiddegrada jew jieqaf jirrispondi. Dejjem ibdel iż-żewġ batteriji fl-istess ħin b'oħrajn ġodda tal-istess tip (AAA).
• Ħażna: Store the remote control in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries if storing for extended periods (e.g., several months) to prevent potential leakage and damage to the remote.

6 Issolvi l-problemi

6.1 Il-Kontroll mill-Bogħod Mhux Jirrispondi

• Iċċekkja Batteriji: Ensure batteries are inserted correctly with the correct polarity. Replace with fresh AAA batteries if necessary. Low or dead batteries are a common cause of non-responsiveness.
• Linja tal-Vista: Ensure there is a clear, unobstructed line of sight between the remote control's infrared emitter and the AV receiver's infrared sensor. Objects, furniture, or even strong light sources can block the signal.
• Distanza: Operate the remote within a reasonable distance from the receiver. While infrared remotes typically work across a room, excessive distance can weaken the signal.
• Qawwa tar-riċevitur: Confirm that the Onkyo AV receiver is powered on and functioning correctly. The remote cannot control a device that is off or malfunctioning.

6.2 Tħaddim Intermittenti

• This may indicate low battery power. Replace the batteries with new ones.
• Ensure no strong light sources (like direct sunlight or certain types of fluorescent lights) are interfering with the infrared signal. These can sometimes cause interference.

7. Speċifikazzjonijiet Tekniċi

8. Garanzija u Appoġġ

For specific warranty details or technical support regarding your MEIWELL RC-911R remote control, please refer to the product packaging or contact the manufacturer, MEIWELL, directly.
