UNIVERSALBLUE Inclined Glass Range Hood 90 cm

Introduzzjoni

This manual provides essential information for the safe and efficient operation of your UNIVERSALBLUE Inclined Glass Range Hood. Please read it thoroughly before installation and use, and keep it for future reference.

Immaġni: Quddiem view of the UNIVERSALBLUE 90 cm Inclined Glass Range Hood in white and stainless steel.

Informazzjoni dwar is-Sigurtà

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons. This appliance is intended for domestic use only.

• Ensure the power supply matches the rating label on the appliance.
• Tħallix lit-tfal iħaddmu l-apparat.
• Naddaf il-filtri tal-grass regolarment biex tevita perikli tan-nar.
• Aċċerta ruħek li jkun hemm ventilazzjoni adegwata fil-kamra meta l-kappa tal-estrazzjoni tintuża simultanjament ma' apparati tal-gass jew apparati oħra li jaħarqu l-fjuwil.
• Skonnettja l-apparat mill-provvista tal-enerġija qabel it-tindif jew il-manutenzjoni.

Setup u Installazzjoni

Proper installation is crucial for the performance and safety of your range hood. It is recommended that installation be performed by a qualified technician.

Dimensjonijiet u Approvazzjoni

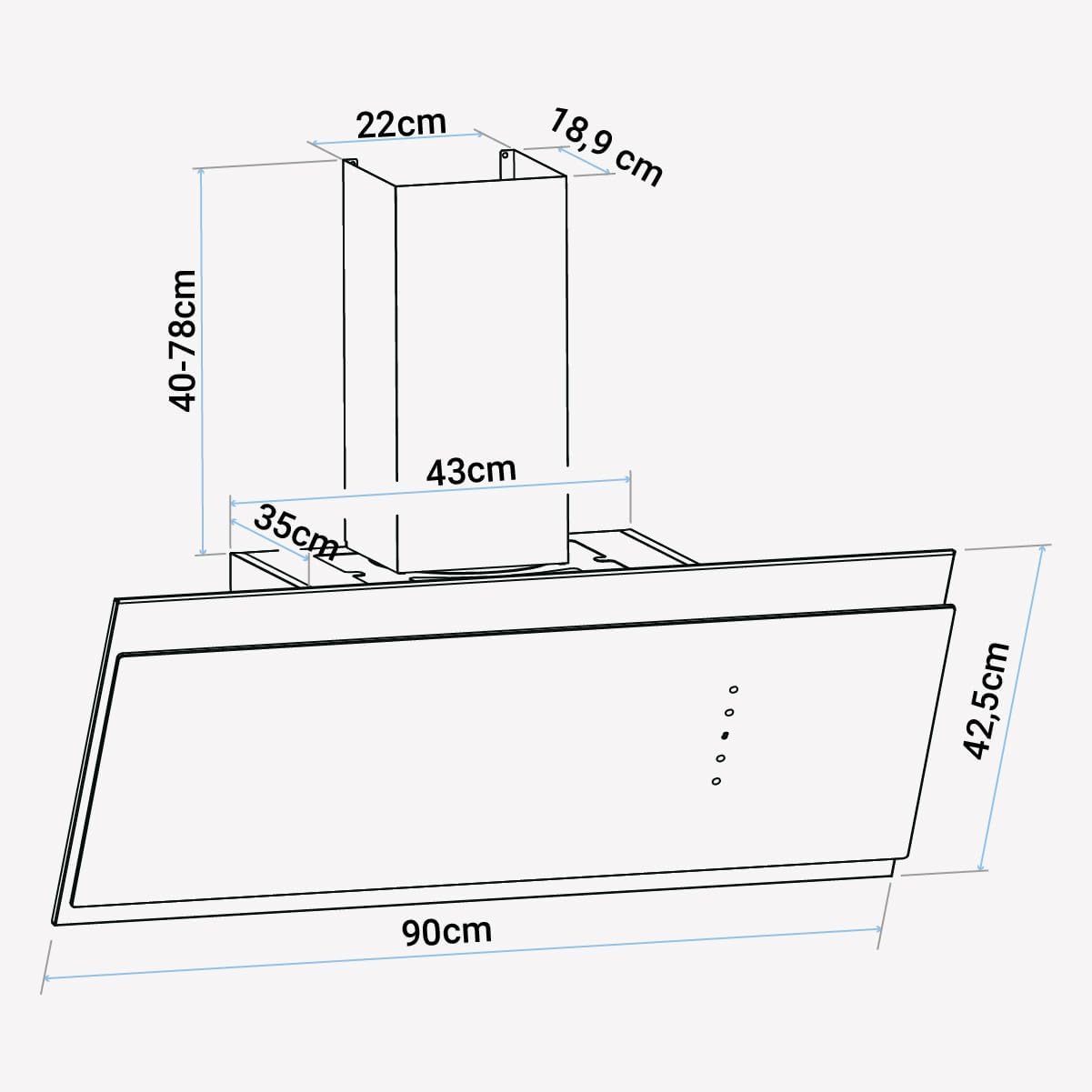

Image: Technical diagram illustrating the dimensions of the range hood, including width (90cm), height, and depth, along with chimney measurements.

Refer to the dimension diagram for precise measurements. Ensure sufficient clearance between the cooking surface and the bottom of the range hood as per local building codes and manufacturer recommendations (typically 65-75 cm for electric hobs and 75-85 cm for gas hobs).

Immuntar tal-Barnuża

1. Mark the mounting points on the wall according to the provided template or measurements.
2. Drill holes and insert wall plugs suitable for your wall type.
3. Waħħal il-parentesi tal-immuntar mal-ħajt.
4. Carefully lift the hood and hang it onto the mounting bracket.
5. Connect the exhaust ducting to the hood's outlet. Ensure the ducting is as short and straight as possible for optimal performance.
6. Install the decorative chimney sections, if applicable.

Konnessjoni elettrika

Connect the range hood to a grounded electrical outlet. Ensure the electrical installation complies with all local regulations. If in doubt, consult a qualified electrician.

Istruzzjonijiet Operattivi

Your UNIVERSALBLUE range hood features intuitive touch controls for easy operation.

Immaġni: Dettaljata view of the touch-sensitive control panel, showing icons for power, speed settings, and light.

Funzjonijiet tal-Panew tal-Kontroll

For optimal performance, select a fan speed appropriate for the amount of steam and odors generated during cooking. Use higher speeds for frying or grilling, and lower speeds for simmering.

Manutenzjoni u Tindif

Manutenzjoni regolari tiżgura l-lonġevità u l-effiċjenza tal-kappa tal-forn tiegħek.

Tindif ta 'barra

Imsaħ l-uċuħ ta’ barra b’ċarruta ratba dampened with mild detergent. Do not use abrasive cleaners or corrosive detergents, as they can damage the stainless steel and glass finishes.

Cleaning/Replacing Grease Filters

The aluminum grease filters should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to maintain optimal suction power and prevent grease buildup.

Image: A hand demonstrating how to open the inclined glass panel to reveal the aluminum grease filters inside the hood.

1. Kun żgur li l-kappa tkun mitfija u skonnettjata mill-provvista tal-enerġija.
2. Open the inclined glass panel to access the filters.
3. Release the filter clips and carefully remove the aluminum filters.
4. Clean the filters by hand with warm soapy water or in a dishwasher.
5. Ħalli l-filtri jinxfu kompletament qabel ma terġa' tinstallahom.
6. Replace the filters by aligning them with the slots and securing the clips.

Replacement filters are available from UNIVERSALBLUE authorized dealers.

Sostituzzjoni tad-Dawl LED

The hood is equipped with a 2W LED light. If replacement is needed, contact UNIVERSALBLUE customer support or a qualified technician.

Issolvi l-problemi

Qabel ma tikkuntattja lis-servizz tal-konsumatur, jekk jogħġbok iċċekkja l-kwistjonijiet u s-soluzzjonijiet komuni li ġejjin:

Speċifikazzjonijiet

Technical details for the UNIVERSALBLUE Inclined Glass Range Hood (Model: 6080-UBCA2005-2).

• Numru tal-Mudell: 6080-UBCA2005-2
• Tip: Inclined Decorative Range Hood
• Kulur: Abjad
• Tip ta 'Finish: Stainless Steel, Ħġieġ
• Wisa': 90 ċm
• Qawwa tal-ġbid: 700 m³/h
• Qawwa: 230 Watts
• Voltage: 230 Volts
• Livell ta' Storbju: 66 dB
• Veloċitajiet: 3
• Dawl: 1 x 2W LED Lamp
• Tip ta' filtru: Aluminum (removable and dishwasher safe)
• Timer: 9-15 minutes auto-off
• Klassi tal-Effiċjenza tal-Enerġija: A
• Piż tal-oġġett: 14.08 Kilogrammi
• Dimensjonijiet tal-pakkett: 95.5 x 55.5 x 42.5 ċm

Garanzija u Appoġġ

UNIVERSALBLUE products are designed for durability and performance. For warranty information, technical support, or spare parts, please refer to the warranty card included with your product or visit the official UNIVERSALBLUE websit.

Informazzjoni ta' Kuntatt:

• Ditta: UNIVERSALBLUE
• Websit: www.universalblue.es (Jekk jogħġbok iċċekkja għall-kuntatti ta' appoġġ reġjonali)
• Mudell: 6080-UBCA2005-2

When contacting support, please have your model number and purchase date ready.
