Tiandy TC-NR4008M7-S2 8-Channel 1080P NVR Instruction Manual

1. Introduzzjoni

This manual provides detailed instructions for the installation, operation, and maintenance of your Tiandy TC-NR4008M7-S2 Network Video Recorder (NVR). This NVR is designed for IP surveillance systems, supporting up to 8 channels at 1080P resolution, and features advanced video analysis and smart recording capabilities. It is ONVIF compatible, ensuring broad compatibility with various IP cameras.

Jekk jogħġbok aqra dan il-manwal bir-reqqa qabel ma tuża l-prodott biex tiżgura tħaddim xieraq u sikur.

2. Informazzjoni dwar is-Sigurtà

To prevent electrical hazards and ensure safe operation, observe the following precautions:

• Do not disassemble the equipment yourself. Disassembly and maintenance of the equipment must be carried out by qualified professionals.
• Ensure the NVR is connected to a grounded power source to prevent electric shock.
• Avoid exposing the NVR to moisture, rain, or extreme temperatures.
• Timblokkax il-fetħiet tal-ventilazzjoni. Kun żgur li jkun hemm fluss tal-arja adegwat madwar l-unità.
• Use only the power adapter supplied with the NVR.

Stampa 2.1: Rear panel of the NVR showing various ports and a caution label. The label warns against self-disassembly due to electrical hazard and states that maintenance should be performed by professionals.

3. Prodott Aktarview

The Tiandy TC-NR4008M7-S2 NVR is a robust solution for managing your IP surveillance cameras. Key features include:

• Input b'8 Kanal: Supports up to 8 IP camera channels.
• Riżoluzzjoni 1080P: Records video at up to 1080P resolution.
• Ħażna: Accommodates two 3.5-inch SATA hard drives, each up to 4TB (hard drives not included).
• Outputs tal-Vidjo: HDMI and VGA for local display.
• Portijiet USB: Two USB ports for mouse and data backup.
• Karatteristiċi Avvanzati: Video Analysis and Smart Recording capabilities.
• Konnettività: Port Ethernet għal konnessjoni man-netwerk.
• Awdjo & Allarm: Supports audio input/output and alarm functions.
• Kompatibilità ONVIF: Ensures interoperability with ONVIF-compliant IP cameras.

3.1 Panel ta 'Quddiem

Stampa 3.1: Quddiem view of the Tiandy TC-NR4008M7-S2 NVR. The front panel typically includes status indicators and the brand logo.

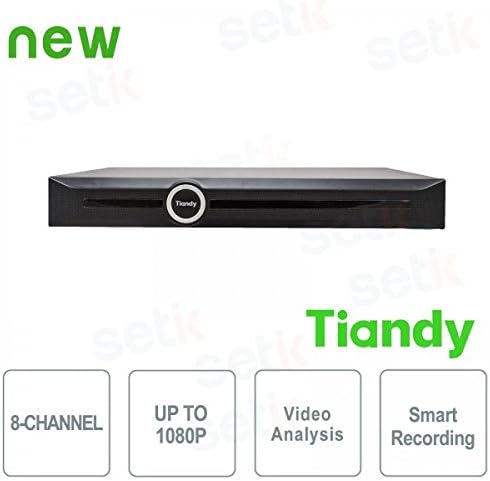

Stampa 3.2: Quddiem view of the Tiandy NVR with graphical indicators for 8-Channel support, Up to 1080P resolution, Video Analysis, and Smart Recording.

3.2 Panel ta 'wara

The rear panel provides all necessary connection ports for the NVR:

• Input ta' Enerġija: Għall-konnessjoni tal-adapter tal-enerġija.
• Port Ethernet: RJ45 port for network connection to IP cameras and the internet.
• Ħruġ HDMI: Għall-konnessjoni ma' monitor HDMI jew TV.
• Ħruġ VGA: Għall-konnessjoni ma' monitor VGA.
• Portijiet USB: Two USB ports for mouse connection and external storage.
• Awdjo In/Out: Għall-konnessjoni ta 'apparati awdjo esterni.
• Dħul/Ħruġ tal-Allarm: For connecting external alarm devices.

Stampa 3.3: Detailed rear panel of the NVR, illustrating the layout of the power input, Ethernet port, HDMI, VGA, USB ports, audio, and alarm connections.

4. Setup

4.1 Installazzjoni tal-Hard Drive

The NVR supports two 3.5-inch SATA hard drives (not included). It is recommended to use surveillance-grade hard drives for optimal performance and reliability. To install:

1. Itfi l-NVR u skonnettja l-kejbils kollha.
2. Remove the NVR's cover by unscrewing the retaining screws.
3. Mount the hard drives into the designated bays using the provided screws.
4. Connect the SATA data and power cables from the NVR motherboard to the hard drives.
5. Ibdel l-għatu u waħħalha bil-viti.

Nota: SSDs may not have dedicated mounting slots and might require alternative securing methods if used.

4.2 Konnessjonijiet Inizjali

1. Qabbad monitor mal-port tal-ħruġ HDMI jew VGA tal-NVR.
2. Qabbad il-maws USB inkluż ma' wieħed mill-portijiet USB tal-NVR.
3. Qabbad l-NVR man-netwerk tiegħek billi tuża kejbil Ethernet.
4. Connect the power adapter to the NVR and then to a power outlet.
5. Ixgħel l-NVR.

4.3 First-Time Configuration

Mal-ewwel boot, l-NVR jiggwidak permezz ta' wizard tas-setup inizjali. Dan tipikament jinkludi:

• Issettjar tal-password tal-amministratur.
• Formatting the installed hard drives.
• Network settings configuration (DHCP or static IP).
• Issettjar tal-ħin u d-data.
• Adding IP cameras (the NVR should be able to recognize and connect to ONVIF-compatible cameras).

5. Joperaw

5.1 Ħaj View

After successful setup, you can access the live view of your connected cameras through the NVR's local interface. The live view is designed to be fluid and responsive.

5.2 Konfigurazzjoni tar-Reġistrazzjoni

L-NVR jappoġġja diversi modi ta' reġistrazzjoni:

• Reġistrazzjoni Kontinwa: Rekords 24/7.
• Reġistrazzjoni ta 'Sejbien tal-Moviment: Jirrekordja biss meta l-kameras jiskopru moviment.
• Reġistrazzjoni Skedata: Records during specific time periods.
• Reġistrazzjoni ta 'allarm: Jirreġistra meta jiġi attivat avveniment ta' allarm.

Access the recording settings through the NVR's menu to configure your preferred recording schedule and modes for each channel.

5.3 Video Analysis and Smart Recording

The NVR includes advanced video analysis features. These can be configured to trigger recordings or alarms based on specific events, such as line crossing, intrusion detection, or object removal. Smart Recording optimizes storage by adjusting recording parameters based on event types.

5.4 Aċċess Remot (Applikazzjoni Mobbli)

The NVR supports remote viewing and management via a mobile application, such as 'Easy Live Plus'. To use the app:

1. Download the 'Easy Live Plus' app from your smartphone's app store.
2. Irreġistra kont u illoggja.
3. Add your NVR to the app using its serial number or QR code.

Nota: While the app provides remote access, some users have reported limitations in its functionality and configuration options compared to the local NVR interface. It is recommended to configure detailed settings directly on the NVR.

6. Manutenzjoni

6.1 Ġestjoni tal-Hard Drive

Regularly check the status of your hard drives through the NVR's storage management menu. You may need to:

• Format Hard Drives: If you install new drives or encounter recording issues, formatting can resolve problems. This will erase all data on the drive.
• Replace Hard Drives: If a hard drive fails or reaches its end of life, replace it following the installation steps in Section 4.1.

6.2 Aġġornamenti tas-Software

Periodically check the Tiandy official website for firmware updates. Firmware updates can improve performance, add new features, and fix bugs. Follow the instructions provided with the firmware update package carefully.

6.3 Tindif

Keep the NVR clean and free from dust. Use a soft, dry cloth to wipe the exterior. Ensure ventilation openings are not obstructed by dust buildup. Do not use liquid cleaners directly on the unit.

7 Issolvi l-problemi

Din it-taqsima tindirizza kwistjonijiet komuni li tista’ tiltaqa’ magħhom bl-NVR tiegħek.

7.1 L-ebda Ħruġ tal-Vidjo

• Check if the monitor is properly connected to the HDMI or VGA port.
• Kun żgur li l-monitor ikun mixgħul u ssettjat għas-sors tad-dħul korrett.
• Verify that the NVR is powered on and its status indicators are normal.

7.2 Kwistjonijiet ta' Reġistrazzjoni

• No Recordings: Check if hard drives are installed, formatted, and healthy. Verify recording schedules and motion detection settings.
• Is-Settings Mhux Sejrin Jiġu Salvati: If settings revert to default, especially after using the mobile app, try configuring settings directly on the NVR's local interface. Ensure the NVR's firmware is up to date.
• Kwalità ta' Reġistrazzjoni Fqira: Check camera resolution settings and NVR recording parameters. Ensure sufficient bandwidth for IP cameras.

7.3 Network and Remote Access Problems

• Ensure the Ethernet cable is securely connected to the NVR and your router/switch.
• Verify network settings (IP address, gateway, DNS) on the NVR.
• For remote access, ensure your NVR has internet access and port forwarding (if required by your network setup) is correctly configured on your router.
• If using the mobile app, ensure the app is updated to the latest version.

7.4 NVR Not Powering On

• Check the power cable connection to the NVR and the power outlet.
• Kun żgur li l-adapter tal-enerġija qed jaħdem sew.
• Ipprova żbokk tad-dawl differenti.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information, please refer to the warranty card included with your product or contact your point of purchase. For technical support, please contact Tiandy customer service or your authorized dealer. Ensure you have your product model number (TC-NR4008M7-S2) and purchase details available when seeking support.
