Hilti TE500-AVR Demolition Hammer

1. Introduzzjoni u Prodott Fuqview

The Hilti TE500-AVR Demolition Hammer is a powerful and efficient tool designed for various chiseling and demolition tasks. It features a best-in-class power-to-weight ratio, making it highly effective for demanding applications. Equipped with Active Vibration Reduction (AVR), this tool significantly enhances user comfort and productivity by minimizing vibration during operation. The chisel can be adjusted to 12 different positions, providing easy access in tight spaces and versatility for various working angles. A lock-on switch is included for continuous chiseling, reducing user fatigue during extended use.

This package includes the TE500-AVR tool along with essential chisels: one TE-YP SM 36 pointed chisel and one TE-YP FM 36 flat self-sharpening chisel, ensuring you have the right accessories for immediate use.

Figure 1: The Hilti TE500-AVR Demolition Hammer, showcasing its robust red and black design with the main handle and auxiliary handle.

2. Istruzzjonijiet tas-Sigurtà

Always adhere to general power tool safety guidelines and specific instructions for demolition hammers to prevent injury and ensure safe operation.

• Tagħmir Protettiv Personali (PPE): Always wear safety glasses, hearing protection, and heavy-duty gloves. A dust mask is recommended when working in dusty environments.
• Sigurtà taż-Żona tax-Xogħol: Keep the work area clean and well-lit. Do not operate the tool in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Sigurtà Elettrika: Ensure the power cord is in good condition and avoid using the tool in wet conditions. Always use a ground fault circuit interrupter (GFCI) when operating in damp postijiet.
• Biċċa tax-Xogħol Sikura: Always secure the material being worked on. Do not hold the workpiece by hand.
• Qabda xierqa: Maintain a firm grip on both the main and auxiliary handles. Be prepared for sudden torque reactions.
• Evita li tlaħħaq iżżejjed: Żomm livell tajjeb u bilanċ f'kull ħin.
• Manutenzjoni tal-Għodda: Regularly inspect the tool for damage. Do not use if the power cord, plug, or any other part is damaged.
• Vibration Exposure: Despite Active Vibration Reduction, prolonged use can still cause vibration-related injuries. Take regular breaks and use anti-vibration gloves.
• Kontroll tat-Trab: Demolition generates dust. Use appropriate dust extraction systems and ensure good ventilation.

3. Kontenut tal-Pakkett

Upon opening the package, verify that all components are present and undamaged. The Hilti TE500-AVR Demolition Hammer Performance Package typically includes:

• Hilti TE500-AVR Demolition Hammer Unit
• 1 x TE-YP SM 36 Pointed Chisel (Self-sharpening)
• 1 x TE-YP FM 36 Flat Chisel (Self-sharpening)
• Kaxxa tal-Ġarr Robusta

Figure 2: The Hilti TE500-AVR Demolition Hammer alongside its durable red carrying case, as typically included in the performance package.

4. Setup

1. Spezzjoni Inizjali: Before each use, inspect the tool, power cord, and chisels for any signs of damage or wear. Do not use the tool if any part is compromised.
2. Attaching the Chisel:
   • Kun żgur li l-għodda hija skonnettjata mis-sors tal-enerġija.
   • Clean the shank of the chisel and the tool's chuck to remove any dust or debris.
   • Insert the chisel into the chuck until it clicks into place. Pull on the chisel to ensure it is securely locked.
3. Adjusting Chisel Position: The TE500-AVR allows for 12 different chisel positions.
   • To adjust, rotate the chisel to the desired angle. The chuck mechanism allows for easy rotation without needing to remove the chisel.
4. Konnessjoni mal-Enerġija: Plug the tool into a standard 120-volt AC outlet. Ensure the outlet is properly grounded and, if working in damp conditions, connected to a GFCI.

Figura 3: Ġenb view of the Hilti TE500-AVR Demolition Hammer, highlighting the adjustable auxiliary handle and the robust chuck for chisel attachment.

5. Istruzzjonijiet Operattivi

1. Nibda l-Għodda:
   • Żomm l-għodda sew biż-żewġ idejn.
   • Press the trigger switch to start the hammering action.
2. Using the Lock-on Switch: For continuous chiseling operations, engage the lock-on switch. This allows the tool to operate without constant pressure on the trigger, reducing user fatigue. To disengage, press the trigger switch again.
3. Demolition Technique:
   • Apply moderate pressure to the tool. Excessive force is not necessary and can reduce efficiency and increase wear.
   • Allow the tool's hammering action to do the work.
   • Work systematically, breaking material into manageable pieces.
4. Active Vibration Reduction (AVR): The TE500-AVR is equipped with Hilti's Active Vibration Reduction system. This technology significantly reduces tool vibration, improving user comfort and allowing for longer operating periods. While AVR is highly effective, it is still recommended to take regular breaks to minimize exposure to vibration.
5. Twaqqaf l-Għodda: Release the trigger switch. If the lock-on switch is engaged, press the trigger switch once more to disengage it and stop the tool. Always unplug the tool from the power source when not in use or before performing any adjustments or maintenance.

6. Manutenzjoni

Regular maintenance ensures the longevity and optimal performance of your Hilti TE500-AVR Demolition Hammer.

• Tindif: After each use, clean the tool thoroughly. Remove dust and debris from ventilation slots using compressed air. Wipe down the exterior with a damp drapp. Tużax kimiċi ħarxa jew solventi.
• Chisel Care: Keep chisels clean and sharp. The included chisels are self-sharpening, but inspect them for excessive wear or damage. Replace worn chisels to maintain efficiency.
• Manutenzjoni taċ-Ċokk: Periodically clean the tool chuck to ensure smooth insertion and removal of chisels. A small amount of grease can be applied to the chisel shank before insertion to reduce wear.
• Spezzjoni tal-kurdun: Regularly inspect the power cord for cuts, fraying, or damage. A damaged cord must be replaced by a qualified technician.
• Ħażna: Store the tool in its original carrying case in a dry, secure location, away from direct sunlight and extreme temperatures. Keep it out of reach of children.
• Servizzi Professjonali: For internal maintenance or repairs, always contact authorized Hilti service centers. Unauthorized repairs can void the warranty and pose safety risks.

7 Issolvi l-problemi

This section addresses common issues you might encounter with your Hilti TE500-AVR Demolition Hammer. For problems not listed here, or if solutions do not resolve the issue, contact Hilti customer support.

8. Speċifikazzjonijiet

Key technical specifications for the Hilti TE500-AVR Demolition Hammer:

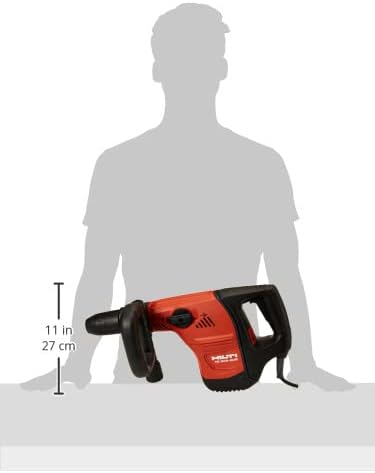

Figure 4: The Hilti TE500-AVR Demolition Hammer with approximate dimensions indicated, providing a visual reference for its size.

9. Garanzija u Appoġġ

For detailed information regarding the warranty coverage for your Hilti TE500-AVR Demolition Hammer, please refer to the warranty card included with your purchase or visit the official Hilti websit. It-termini u l-kundizzjonijiet tal-garanzija jistgħu jvarjaw skont ir-reġjun u d-data tax-xiri.

Should you require technical assistance, spare parts, or professional servicing, please contact Hilti customer support directly. You can find contact information on the official Hilti website or through your authorized Hilti dealer. When contacting support, please have your product model number (TE500-AVR / 3484551) and serial number (if applicable) ready for faster service.

For additional resources and product information, visit the official Hilti websit: www.hilti.com
