pengenalan
Thank you for choosing the PURPLE LEAF 13' x 15' Hardtop Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your new gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Image: Fully assembled PURPLE LEAF 13' x 15' Hardtop Gazebo with curtains, situated next to a swimming pool.
Maklumat Keselamatan
Langkah-langkah Keselamatan Penting:
- Always assemble this product on a flat, stable surface.
- Secure the gazebo to a stable foundation to prevent tipping.
- Keep children and pets away from the gazebo during assembly and disassembly.
- Do not use the gazebo in windy conditions or during severe weather.
- Ensure all connections are tight and secure before and after each use.
- Periksa gazebo secara berkala untuk sebarang tanda haus atau kerosakan.
Kandungan Pakej
Before beginning assembly, verify that all parts are present and undamaged. Refer to the detailed parts list provided in your separate assembly guide. Key components include:
- Aluminum Frame Components (posts, beams)
- Galvanized Steel Roof Panels
- Curtains (160g/sqm PU fire-retardant fabric)
- Mesh Screens (260 GSM Textilene netting)
- Hardware Kit (stainless steel screws, bolts, washers, etc.)
- Alat Pemasangan (jika disertakan)
Persediaan dan Perhimpunan
Assembly of this gazebo requires at least two adults. Follow the step-by-step instructions in the dedicated assembly manual provided with your product. Ensure you have adequate space and all necessary tools before starting.
Pertimbangan Perhimpunan Utama:
- Pembinaan Rangka: The gazebo features a sturdy, powder-coated aluminum frame. Assemble the frame components according to the numerical and alphabetical labels.
- Post Stability: The 4.7" x 4.7" thick posts provide enhanced stability. Ensure they are correctly oriented and securely fastened.
- Pemasangan Bumbung: The double galvanized steel roof panels are designed for durability. Pay close attention to the alignment and sealing of each panel to ensure waterproof performance.
- Water Gutter System: The integrated water gutter design directs rainwater efficiently through the four corners, preventing accumulation and protecting curtains.
- Pengikat Selamat: Utilize the provided stainless steel screws for all connections to resist corrosion and ensure long-term stability. The pre-drilled base allows for secure anchoring to your patio or lawn.

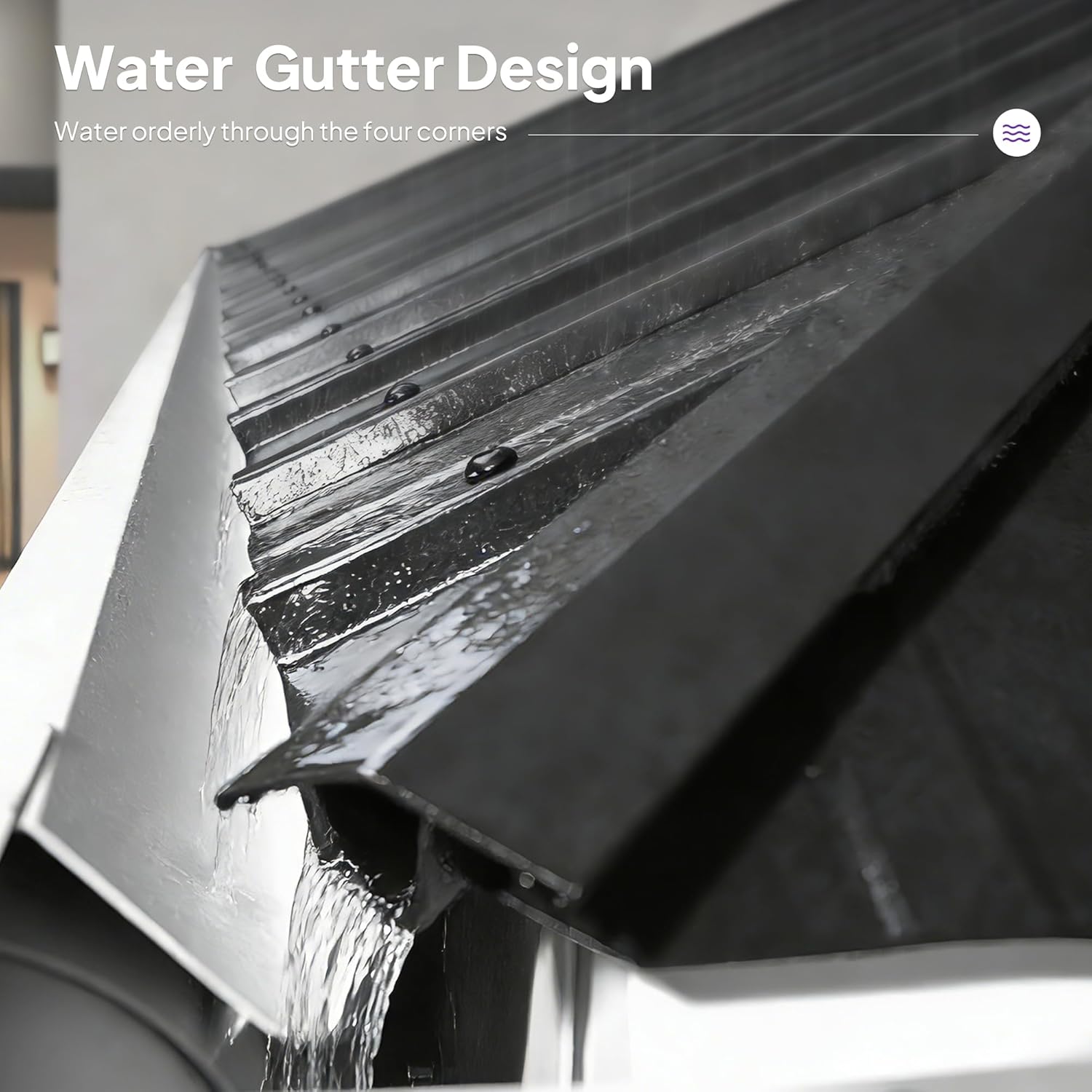

Imej: Jarak dekat view of the gazebo's thick posts and the integrated water gutter design, showing water flowing away from the structure.
Image: Visual comparison illustrating the wider and thicker 4.7" x 4.7" posts of the PURPLE LEAF gazebo compared to standard thinner posts, highlighting enhanced stability.
Image: Detail showing the stainless steel screws used for assembly, emphasizing their corrosion resistance compared to ordinary iron screws.
Arahan Operasi
Curtains and Mesh Screens:
The gazebo includes 160g/sqm PU fire-retardant curtains and 260 GSM Textilene mesh screens. These can be adjusted to provide shade, privacy, or insect protection.
- Fully Open: Tie back the curtains and mesh screens to enjoy an unobstructed outdoor space.
- Semi-Open: Use the mesh screens to maintain ventilation while keeping insects out.
- Fully Closed: Close the curtains for maximum privacy and sun protection.
- Pembuangan: Curtains can be removed for cleaning or storage as needed.

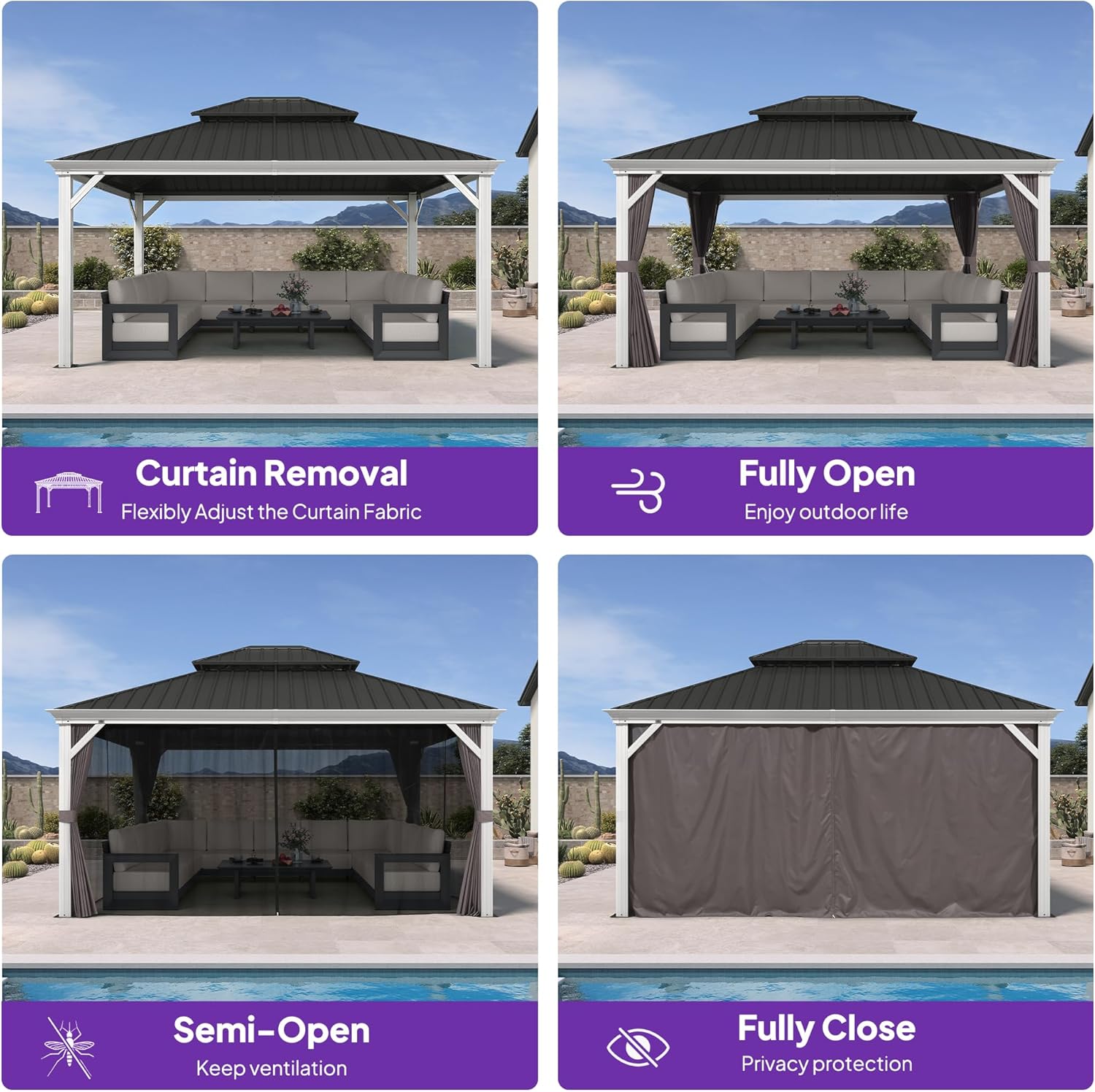

Image: Four panels demonstrating the flexibility of the gazebo's curtains and mesh screens: fully open, semi-open with mesh for ventilation, fully closed for privacy, and showing curtain removal.
Pengudaraan:
The double-layer roof design promotes improved airflow, helping to dissipate heat and maintain a comfortable environment within the gazebo.
Penyelenggaraan
Penyelenggaraan yang kerap akan memanjangkan hayat dan penampilan gazebo anda.
- Membersihkan Bingkai: Lap bingkai aluminium dengan iklanamp cloth and mild soap. Rinse thoroughly and dry. Avoid abrasive cleaners.
- Membersihkan Bumbung: The galvanized steel roof can be cleaned with water and a soft brush to remove debris. Ensure the water gutter system is clear of leaves and other blockages.
- Curtain and Mesh Care: The yarn-dyed fabric curtains are fade-resistant and water-repellent. Clean them with mild soap and water. Allow them to air dry completely before folding or storing. The Textilene netting is thick and durable; clean as needed with a damp kain.
- Pemeriksaan perkakasan: Periodically check all screws and bolts to ensure they remain tight. Tighten any loose fasteners to maintain structural integrity.
- Penyimpanan Musim Sejuk: In areas with heavy snow, it is recommended to remove roof panels or clear snow accumulation regularly to prevent structural damage. Store curtains and mesh indoors during harsh winter conditions.
Imej: Terperinci view of the upgrade yarn-dyed fabric used for curtains, highlighting its water-repellent, CPAI-84 fire-resistant, and fade-resistant properties.
Image: Comparison showing the thick (260 GSM) and heavy Textilene netting of the PURPLE LEAF gazebo versus thinner, flimsier netting from other brands, emphasizing durability and wind resistance.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Kebocoran air dari bumbung | Improperly installed roof panels; loose screws; clogged gutters. | Ensure roof panels are correctly overlapped and sealed. Tighten all roof screws. Clear debris from the water gutter system. |
| Gazebo terasa tidak stabil | Loose frame connections; not anchored to the ground. | Check and tighten all frame bolts and screws. Ensure the gazebo is securely anchored to a stable foundation using appropriate hardware. |
| Curtains/mesh not moving smoothly | Track obstruction; damaged runners. | Inspect tracks for debris and clean. Check curtain runners for damage and replace if necessary. |
Spesifikasi
- Jenama: DAUN UNGU
- model: 13' x 15' Hardtop Gazebo
- Dimensi Produk: 124.41"L x 156.81"W x 180.43"H (13' x 15' nominal size)
- Bahan Bingkai: Powder-coated Aluminum (4.7" Width Post)
- Bahan Bumbung: Keluli Tergalvani Berganda
- Curtain Material: 160g/sqm PU Fire-Retardant Fabric (Yarn-dyed, Water-Repellent, Fade-Resistant)
- Mesh Screen Material: 260 GSM Textilene Netting
- Tahap Rintangan Air: Kalis air
- Perlindungan Cahaya Ultraungu: 100%
- Perhimpunan Diperlukan: ya
- warna: Kelabu
Image: Technical drawing illustrating the dimensions of the 13' x 15' gazebo, including height, length, and width measurements for the frame and roof.
Waranti dan Sokongan
Maklumat Waranti:
PURPLE LEAF provides the following warranty for this product:
- Hardtop Coverage: 5 tahun
- Fabric (Curtains/Mesh) Support: 2 tahun
- Sokongan Bingkai: 1 tahun
Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use and conditions.
Sokongan Pelanggan:
For any questions regarding assembly, parts, or warranty, please contact PURPLE LEAF customer support. Refer to the contact information provided on the packaging or the official PURPLE LEAF webtapak.
Anda juga boleh melawat PURPLE LEAF Store on Amazon untuk mendapatkan lebih banyak maklumat produk dan sumber sokongan.
