HQ Screen HQ-210FV/RDFL 210 Liter Vertical Freezer and Refrigerator (127V) User Manual

pengenalan

This manual provides essential information for the safe and efficient use of your HQ Screen HQ-210FV/RDFL 210 Liter Vertical Freezer and Refrigerator. This versatile 2-in-1 appliance offers 210 liters of usable capacity, functioning as either a freezer for long-term storage or a refrigerator for daily use. It features an A+++ energy efficiency rating, ensuring reduced power consumption.

Please read this manual thoroughly before installation and operation, and retain it for future reference.

Maklumat Keselamatan

WARNING: To reduce the risk of fire, electric shock, or injury, observe the following basic precautions:

• Mandatory grounding: Ensure the appliance is properly grounded.
• Use in an indoor, dry, and well-ventilated environment only.
• Sentiasa tanggalkan plag perkakas daripada soket kuasa sebelum membersihkan atau melakukan sebarang penyelenggaraan.
• Jangan gunakan peranti mekanikal atau cara lain untuk mempercepatkan proses penyahbekuan, selain daripada yang disyorkan oleh pengilang.
• Jangan rosakkan litar penyejuk.
• Jangan gunakan peralatan elektrik di dalam petak penyimpanan makanan perkakas, melainkan ia daripada jenis yang disyorkan oleh pengilang.
• Pastikan bukaan pengudaraan, dalam kepungan perkakas atau dalam struktur terbina dalam, bersih daripada halangan.
• Perkakas ini tidak dimaksudkan untuk digunakan oleh orang (termasuk kanak-kanak) yang kurang keupayaan fizikal, deria atau mental, atau kurang pengalaman dan pengetahuan, melainkan mereka telah diberi pengawasan atau arahan mengenai penggunaan perkakas oleh orang yang bertanggungjawab untuk keselamatan mereka.
• Kanak-kanak harus diawasi untuk memastikan bahawa mereka tidak bermain dengan perkakas.

Persediaan

Membongkar dan Meletakkan

Carefully remove all packaging materials. Ensure no parts are missing or damaged. This is a freestanding product and should be placed on a flat, stable surface away from direct sunlight and heat sources.

Imej: Depan view of the HQ Screen HQ-210FV/RDFL vertical freezer and refrigerator. The appliance is silver/inox with a black top panel, featuring the 'HQ' logo on the door.

Imej: Bersudut view of the HQ Screen HQ-210FV/RDFL vertical freezer and refrigerator, showing the silver/inox front door and black side panel.

Sambungan elektrik

For safe installation, use a dedicated, grounded electrical outlet with a 15 A fuse or circuit breaker. Avoid using extension cords or adapters, as these can pose a fire hazard or cause electrical shock.

Pemasangan Pintu Boleh Balik

The appliance features a reversible door, allowing you to adjust the opening direction to suit your space. Refer to the detailed, illustrated step-by-step instructions in the full manual for proper door reversal. This process typically involves:

1. Gathering necessary tools (screwdriver, wrench).
2. Menanggalkan penutup engsel atas dan skru.
3. Mengangkat pintu dari engsel bawah.
4. Relocating the bottom hinge and door stopper to the opposite side.
5. Reattaching the door and securing the top hinge.

Arahan Operasi

2-in-1 Functionality: Freezer or Refrigerator

Your HQ-210FV/RDFL offers flexible storage options. You can easily switch between freezer and refrigerator modes using the mechanical temperature selector located inside the unit. This allows you to adapt the appliance to your current storage needs.

• Mod Penyejuk beku: For long-term storage of frozen foods like meats, prepared meals, and desserts. Typical operating range: -12 °C to -18 °C.
• Mod Peti Sejuk: Ideal for chilling beverages, dairy products, fresh produce, and daily meal preparations. Typical operating range: 0 °C to 10 °C.

Imej: Dalaman view of the HQ Screen HQ-210FV/RDFL with the door open, showing multiple glass shelves and a bottom drawer for organized storage.

Image: Interior of the HQ Screen HQ-210FV/RDFL filled with various food items on glass shelves and in the bottom drawer, demonstrating its internal organization capabilities.

Temperature Control and FAST FREEZER Function

The mechanical temperature selector allows for simple and intuitive operation. Rotate the dial to select your desired temperature setting or mode (Freezer/Refrigerator).

The FAST FREEZER function is designed for temporary super-freezing. Activate this feature to rapidly lower the internal temperature, which is particularly useful after restocking the appliance with a large quantity of new items. This helps to quickly restore optimal storage conditions and preserve food quality.

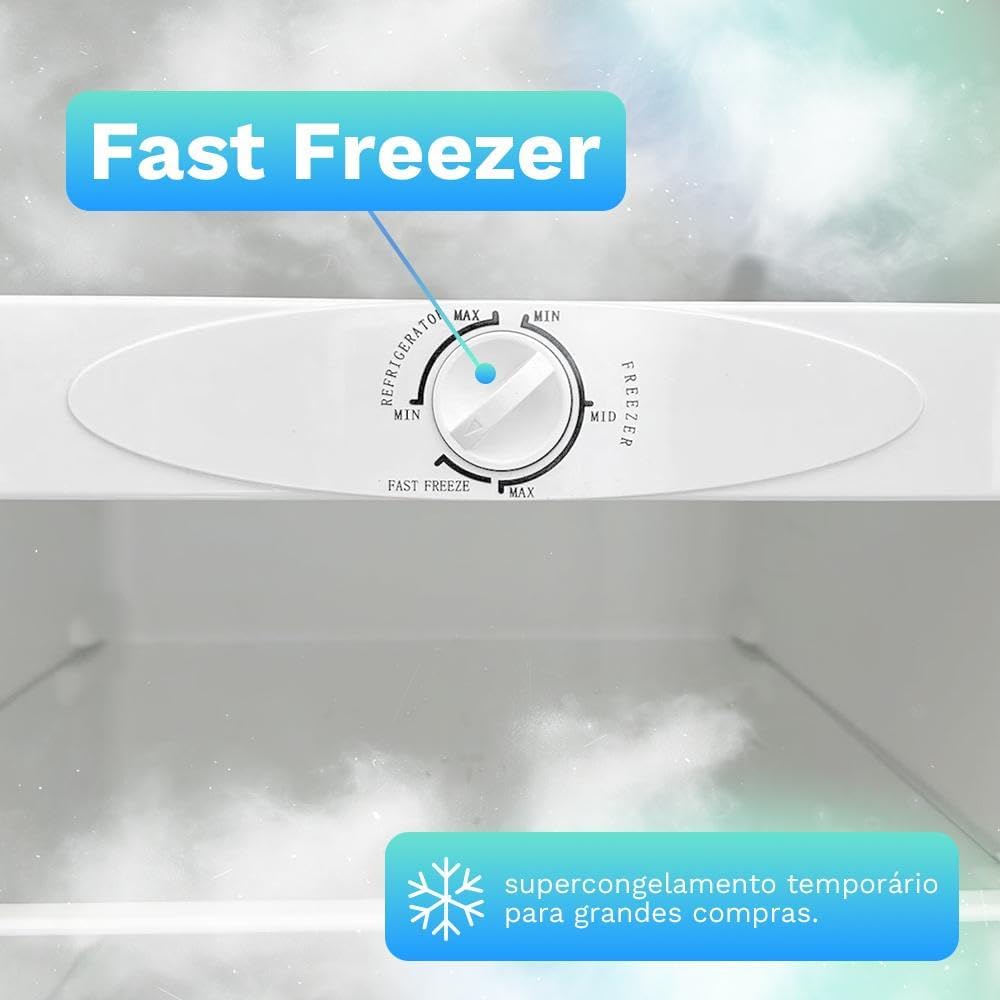

Image: Close-up of the mechanical temperature control dial inside the HQ Screen HQ-210FV/RDFL. The dial shows settings for 'Refrigerator' (Min-Max) and 'Freezer' (Min-Max), along with a 'FAST FREEZE' option for rapid cooling.

Organisasi Dalaman

The interior is designed for efficient organization, featuring:

• Multiple glass shelves (fixed and adjustable)
• A half shelf
• A bottom drawer

These components allow for flexible arrangement of items, maximizing storage capacity and accessibility.

Penyelenggaraan

Pencairan Manual

This appliance features manual defrost. Regular defrosting is necessary to maintain optimal performance and energy efficiency. Follow these guidelines for manual defrosting:

• Always unplug the appliance before starting the defrost process.
• Remove all food items and store them in a cooler or another freezer.
• Never use sharp objects or metal tools to remove ice, as this can damage the cooling system.
• To speed up defrosting, place a bowl of hot water inside the compartment and keep the door closed.
• Once the ice has melted, wipe the interior dry with a soft cloth.
• Plug the appliance back in and allow it to reach the desired temperature before returning food items.

Pembersihan

Regular cleaning helps maintain hygiene and extends the life of your appliance.

• Cabut plag perkakas sebelum membersihkan.
• Bersihkan bahagian dalam dengan larutan detergen lembut dan air suam. Elakkan pembersih atau pelarut yang kasar.
• Lap bahagian luar dengan lembut, damp kain.
• Ensure all surfaces are dry before plugging the appliance back in.
• Clean the condenser coils at the back of the unit periodically (e.g., every 6-12 months) to ensure efficient operation. Use a soft brush or vacuum cleaner.

Menyelesaikan masalah

Sebelum menghubungi perkhidmatan pelanggan, sila semak isu biasa berikut:

• Peralatan tidak berfungsi:
  • Check if the power cord is securely plugged into a grounded outlet.
  • Sahkan jika pemutus litar atau fius telah tersandung.
  • Ensure the temperature control is not set to "OFF" or a very warm setting.
• Suhu tidak cukup sejuk:
  • Check if the door is fully closed and sealed.
  • Ensure the temperature control is set correctly for the desired mode (freezer or refrigerator).
  • Elakkan meletakkan makanan panas terus ke dalam perkakas.
  • Do not overload the appliance, as this can restrict airflow.
  • Check if the appliance is located near a heat source or in direct sunlight.
• Bunyi yang berlebihan:
  • Ensure the appliance is level and stable on the floor.
  • Check if any objects are vibrating against the appliance.
  • Normal operating noises include compressor hum, refrigerant flow sounds, and fan operation.
• Ice buildup (in freezer mode):
  • This is normal for manual defrost units. Refer to the "Manual Defrost" section for instructions.
  • Ensure the door seal is intact and the door is not left open frequently.

If the problem persists after checking these points, please contact HQ Screen customer support.

Spesifikasi

Image: Diagram illustrating the dimensions of the HQ Screen HQ-210FV/RDFL vertical freezer and refrigerator. Height is 142 cm, width is 54.5 cm, and depth is 59 cm. The image also highlights the 210L capacity and 1-year warranty.

Waranti dan Sokongan

Maklumat Waranti

Your HQ Screen HQ-210FV/RDFL appliance comes with a Waranti 1 tahun. This warranty includes:

• 3 months of legal warranty.
• An additional 9 months of warranty for manufacturing defects.

Sila simpan bukti pembelian anda untuk tuntutan jaminan. Jaminan ini meliputi kecacatan bahan dan mutu kerja di bawah penggunaan biasa.

Sokongan Pelanggan

For technical assistance, warranty claims, or any questions regarding your HQ Screen appliance, please contact HQ Screen customer support. Refer to the contact information provided on the product packaging or the official HQ Screen webtapak.

When contacting support, please have your model number (HQ-210FVRDFL) and purchase date ready.
