PURPLE LEAF 12' x 20' Solarium Permanent Hardtop Gazebo

1. Maklumat Keselamatan

Please read and understand all safety instructions before assembly and use of your PURPLE LEAF Solarium Permanent Hardtop Gazebo. Failure to follow these instructions may result in injury or damage to the product.

• Pelabuhan Selamat: Ensure the gazebo is securely anchored to a stable, level foundation. Proper anchoring is crucial to prevent movement or collapse, especially in windy conditions.
• Assembly Team: Assemble the structure according to the instructions. Due to the size and weight of components, assembly requires multiple people. Do not attempt to assemble alone.
• Komponen Berat: Use multiple people to lift and move heavy components to prevent personal injury or damage to the gazebo.
• Alat dan Peralatan: Use appropriate tools and safety equipment during assembly.
• Kawasan Jernih: Pastikan kawasan perhimpunan bersih daripada halangan dan bahaya.
• Keadaan Cuaca: Avoid assembly during strong winds, heavy rain, or other adverse weather conditions.

2. Produk Lebihview

The PURPLE LEAF 12' x 20' Solarium Permanent Hardtop Gazebo is designed to provide a durable and comfortable outdoor living space. It features a robust construction and thoughtful design elements for enhanced usability and longevity.

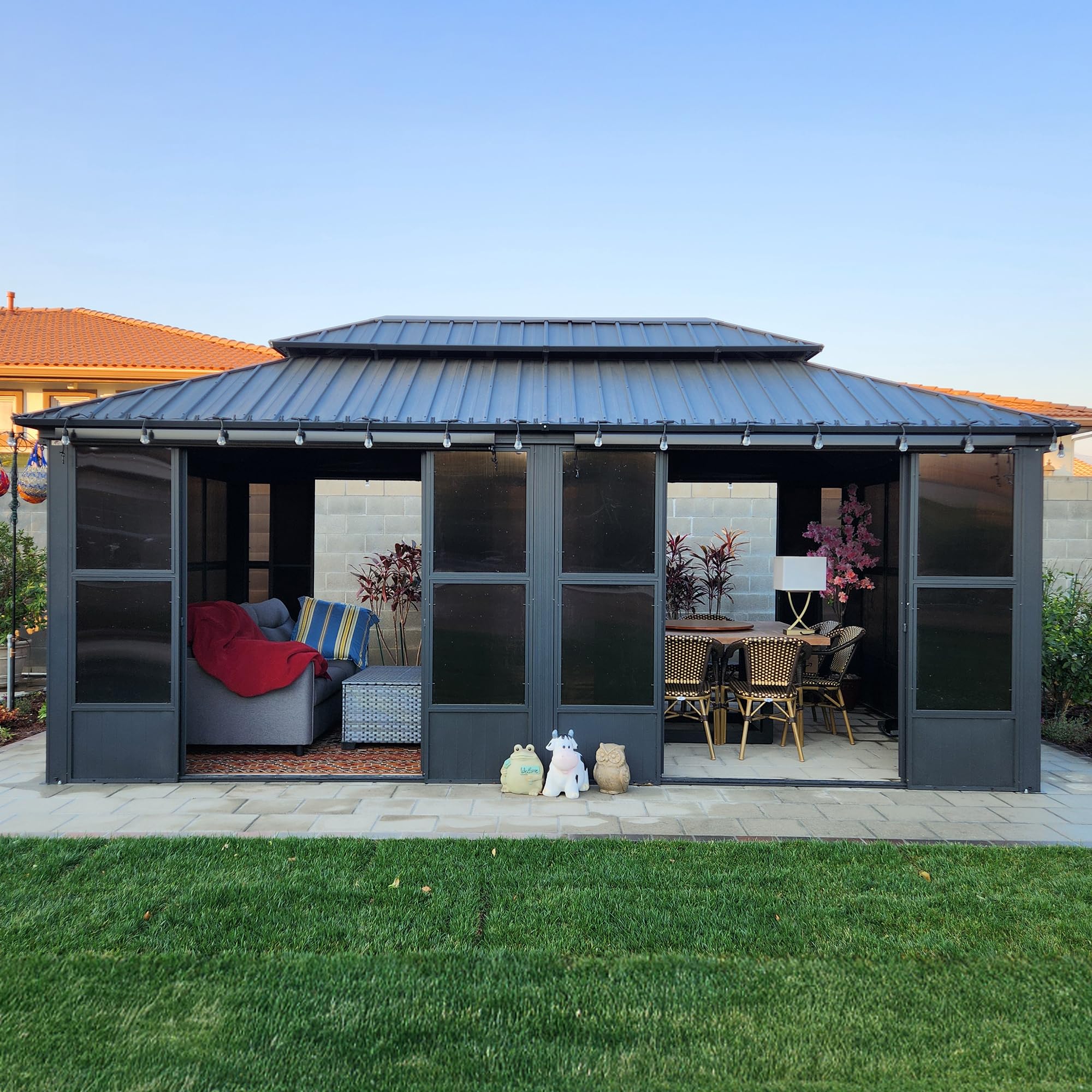

Figure 2.1: The PURPLE LEAF 12' x 20' Solarium Permanent Hardtop Gazebo.

Ciri-ciri Utama:

• Bumbung Berganda Keluli Tergalvani: The roof is constructed from galvanized steel, offering protection against UV rays and rust. Its double-layer design promotes heat insulation and ventilation, suitable for various weather conditions.
• Bingkai Aluminium Teguh: The frame is made from powder-coated aluminum, ensuring durability, rust resistance, and suitability for long-term outdoor use.
• Convenient Sliding Doors: Features double sliding doors at the front and back for easy access and seamless integration with outdoor spaces.
• PC Screen and Shelf: Tea-colored PC screens provide privacy and protection from UV, wind, and rain. They are removable, and dedicated shelves are included for storage when not in use.
• Skrin Mesh: High-quality mesh screens allow sunlight and ventilation while preventing excessive exposure and creating a well-ventilated environment.

Figure 2.2: Magnetic Double Sliding Doors for easy access.

Figure 2.3: PC Screen and Mesh for privacy and air circulation.

Figure 2.4: Galvanized Steel Double Roof for weather protection and ventilation.

Figure 2.5: Labeled diagram of the gazebo's main components.

3. Arahan Perhimpunan

Assembly of the PURPLE LEAF Solarium Gazebo requires careful attention to detail and the assistance of at least two to three adults. Ensure all parts are accounted for before beginning. Refer to the detailed diagrams and step-by-step instructions provided in the separate assembly guide included with your product.

Petua Perhimpunan Penting:

• Asas Aras: A level and square base is critical for proper alignment of all components, especially the roof and sliding panels. Uneven surfaces can lead to difficulties in assembly and potential structural issues.
• Pengenalan Komponen: All parts are labeled. Carefully identify each component before assembly to ensure correct placement.
• Pemasangan Bumbung: The roof construction requires two tall ladders due to the gazebo's height. Ensure the upper outer rails are square for proper roof panel alignment and watertight sealing.
• Pemasangan Panel: When installing the PC screens and mesh panels, pay close attention to the numbers on the bottoms of the panels. Use small drill bits or similar tools to hold nuts in position for proper alignment when securing the sliding door panels.
• Kesabaran adalah Kunci: This is a significant construction project. Take your time, follow the instructions precisely, and do not rush.

4. Arahan Operasi

Pintu gelangsar:

The gazebo is equipped with double sliding doors for convenient entry and exit. These doors feature magnetic strips to ensure they close securely and tightly. To open, gently slide the door along its track. To close, slide it back until the magnetic strips engage.

Rajah 4.1: Dalaman view showing the sliding doors open.

PC Screens and Mesh Screens:

The tea-colored PC screens offer privacy and protection from elements. They are designed to be removable. For increased airflow or to enjoy an open-air feel, the PC screens can be detached and stored on the provided shelves. The integrated mesh screens allow for ventilation while keeping insects out.

Figure 4.2: Dedicated storage shelves for removable PC screens.

Cangkuk Gantung:

The gazebo roof includes integrated hooks. These can be used to hang lightweight items such as decorative lights, small fans, or other accessories to enhance your outdoor living experience.

Figure 4.3: Hanging hooks for lights or fans.

5. Penyelenggaraan

Regular maintenance will help preserve the appearance and extend the lifespan of your gazebo.

• Membersihkan Bingkai: Clean the aluminum frame with a soft cloth, mild soap, and water. Avoid abrasive cleaners or harsh chemicals that could damage the powder coating.
• Penjagaan bumbung: Periodically inspect the galvanized steel roof for any debris accumulation. Clean as needed with water and a soft brush. Ensure proper drainage to prevent water pooling.
• Penyelenggaraan Skrin: The PC screens and mesh screens can be cleaned with a soft cloth and mild soapy water. For removable PC screens, ensure they are clean and dry before storing them on the provided shelves.
• Pemeriksaan perkakasan: Periodically check all bolts and fasteners to ensure they are tight. Re-tighten if necessary to maintain structural integrity.
• Musim sejuk: In areas with heavy snow or extreme weather, consider removing the PC screens and storing them indoors to prevent damage. While the hardtop roof is designed for durability, heavy snow loads should be cleared to prevent excessive stress on the structure.

6. Penyelesaian masalah

• Difficulty with Assembly/Alignment: If components do not align correctly, re-check that the base is perfectly level and square. Verify that all parts are correctly identified and oriented according to the assembly guide. Slight adjustments may be needed during the initial fastening of bolts.
• Kebocoran air: Ensure all roof panels are correctly overlapped and sealed as per the assembly instructions. Check that all bolts are tightened to create a secure fit.
• Pintu Gelongsor Melekat: Inspect the door tracks for any debris or obstructions. Clean the tracks thoroughly. Ensure the doors are properly aligned within their tracks.
• Bahagian yang hilang: If any parts are missing or damaged upon arrival, contact PURPLE LEAF customer support immediately for assistance.

7. Spesifikasi

Rajah 7.1: Dimensi terperinci gazebo.

8. Waranti dan Sokongan

For warranty information, product support, or to order replacement parts, please refer to the warranty card included with your purchase or visit the official PURPLE LEAF webtapak. Simpan resit pembelian anda sebagai bukti pembelian.
