Manual Pengguna Kipas Pinggang Mudah Alih Tedajo Y7

1. Pengenalan

This manual provides instructions for the safe and effective use of your Tedajo Y7 Portable Waist Fan. This device is designed to provide personal cooling in various environments, functioning as a waist fan, neck fan, desk fan, or handheld fan. Please read this manual thoroughly before operating the device and retain it for future reference.

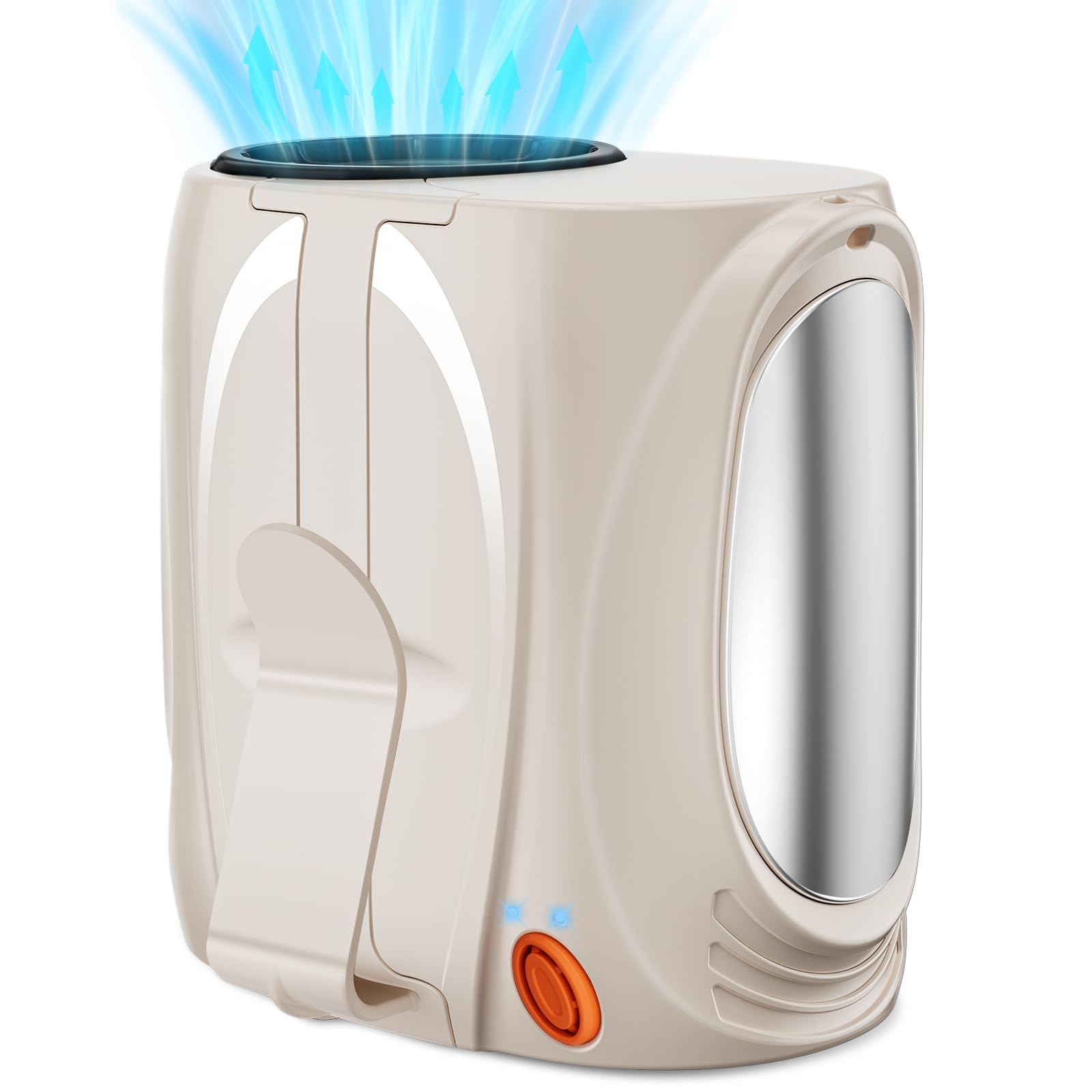

Figure 1: Tedajo Y7 Portable Waist Fan (Champagne)

2. Langkah-langkah Keselamatan

Untuk memastikan operasi yang selamat dan mengelakkan kerosakan, patuhi langkah berjaga-jaga berikut:

• Jangan rendamkan kipas dalam air atau cecair lain.
• Jauhkan peranti daripada kanak-kanak dan haiwan peliharaan.
• Do not disassemble, repair, or modify the fan yourself. Contact qualified service personnel for assistance.
• Avoid placing fingers or foreign objects into the fan blades or air inlets/outlets.
• Gunakan hanya kabel pengecas Jenis-C yang disediakan.
• Jangan dedahkan kipas kepada suhu yang melampau atau cahaya matahari langsung untuk tempoh yang lama.
• Pastikan pengudaraan yang betul semasa mengecas.

Figure 2: Fan dimensions and safety certifications (CE/FCC/RoHS).

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• Kipas Pinggang Mudah Alih Tedajo Y7
• Tali Leher
• Kabel Pengecasan Jenis-C
• Manual Arahan (dokumen ini)

4. Product Features & Overview

The Tedajo Y7 Portable Waist Fan is equipped with advanced features for optimal personal cooling:

• Reka bentuk pelbagai fungsi: Can be used as a waist fan, neck fan, desk fan, or handheld fan.
• Dual-Clip System: Features a large clip for belts and a small clip for shirts, ensuring secure attachment.
• Aliran Udara Kuat: Utilizes a high-speed brushless motor and a 5-blade turbo fan, reaching up to 16,000 RPM and delivering airflow speeds up to 33 ft/s.
• Jangka Hayat Bateri: Integrated 6000mAh battery provides 10-40 hours of operation depending on speed setting.
• Dwi Salur Udara: Air inlets on both the bottom and sides prevent blockage and ensure consistent airflow.
• Padat & Ringan: Beratnya lebih kurang 0.4 paun (0.22 kg) untuk kemudahan dibawa.
• AI Smart Safety Chip: Built-in chip for enhanced safety and performance.

Figure 3: Internal components showing the 5-blade turbo fan and brushless motor.

5. Persediaan & Pemasangan

5.1 Mengisi Kipas

Before first use, fully charge the fan. Connect the provided Type-C charging cable to the fan's charging port and the other end to a USB power source (e.g., wall adapter, computer USB port). The charging indicator light will show charging status.

5.2 Attaching the Neck Lanyard

To use the fan as a neck fan, attach the lanyard to the designated loops on the top of the fan. Ensure both ends of the lanyard are securely fastened.

5.3 Wearing the Fan

The fan offers multiple wearing options:

• Klip Pinggang: Clip the large clip onto your belt or waistband.
• Klip Baju: Use the small clip to secure the fan to your shirt, ensuring the air inlets are not obstructed.
• Kipas Leher: Wear the fan around your neck using the lanyard.
• Handheld/Desk Fan: The fan can also be held in hand or placed on a flat surface.

Figure 4: Various hands-free wearing styles for the fan.

6. Operasi

6.1 Hidupkan/Mati Kuasa

Press and hold the power button (typically located on the side) for 2-3 seconds to turn the fan on or off.

6.2 Melaraskan Kelajuan Kipas

Once powered on, short press the power button to cycle through the 6 available speed settings. Each press will increase the fan speed. After the highest speed, pressing again will return to the lowest speed or turn off the fan, depending on the model's specific sequence.

Figure 5: Fan speed settings and approximate battery life.

7. Mengecas

The fan is equipped with a 6000mAh rechargeable battery. When the battery is low, the fan's performance may decrease, or it may shut off. Connect the fan to a power source using the provided Type-C USB cable for charging. A full charge can take several hours. The LED indicator will typically change color or turn off when charging is complete.

Figure 6: Charging the Tedajo Y7 fan.

8. Penyelenggaraan & Penjagaan

8.1 Pembersihan

To clean the fan, ensure it is powered off and unplugged. Use a soft, dry cloth to wipe the exterior. For dust accumulation in the air inlets/outlets, use a soft brush or compressed air. Do not use harsh chemicals or abrasive materials.

8.2 Penyimpanan

When not in use for extended periods, store the fan in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to charge the battery periodically (e.g., every 3 months) to maintain battery health.

9. Penyelesaian masalah

10. Spesifikasi

11. Waranti & Sokongan

Kipas Pinggang Mudah Alih Tedajo Y7 didatangkan dengan a Waranti 2 tahun dari tarikh pembelian, meliputi kecacatan pembuatan. Sila simpan bukti pembelian anda untuk tuntutan waranti.

For technical support, troubleshooting assistance, or warranty inquiries, please contact Tedajo customer service through the retailer where the product was purchased or visit the official Tedajo webtapak untuk maklumat hubungan.

Figure 7: 2-Year Warranty for the product.
