PURPLE LEAF 8' x 8' Outdoor Hardtop Gazebo Instruction Manual

1. Pengenalan

Thank you for choosing the PURPLE LEAF 8' x 8' Outdoor Hardtop Gazebo. This manual provides essential information for safe assembly, operation, and maintenance of your gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

2. Maklumat Keselamatan

Before installation and use, please observe the following safety guidelines:

• Peraturan Tempatan: Always check HOA guidelines and local building codes before purchasing and installing this gazebo. A permit may be required in your area.
• Pemasangan Selamat: Ensure the gazebo is secured to a stable and level foundation to prevent tipping or movement, especially in windy conditions.
• Had Berat: Do not exceed the weight limit of 20 lbs for built-in hooks designed for lights, fans, or decor.
• Penyingkiran Salji: During winter, it is crucial to remove accumulated snow from the roof to prevent structural damage due to excessive weight.
• Rintangan angin: While designed for wind resistance up to 40 mph, extreme weather conditions may require additional precautions or temporary disassembly.

3. Ciri-ciri Produk

Your PURPLE LEAF Hardtop Gazebo is designed with several key features for durability and comfort:

• Double-Top Galvanized Steel Roof: Built for durability, UV protection, and wind resistance up to 40 mph. Features a vented design for optimal airflow and comfort.
• Bingkai Aluminium Teguh: Crafted from rust-resistant aluminum with 3.93" triangular posts, providing superior stability in various weather conditions.
• Effortless Water Drainage: The sloped roof directs rainwater naturally, preventing buildup and reducing maintenance, ensuring a cleaner, hassle-free outdoor experience.
• Upgrade Curtain & Netting: Enhanced 160 GSM fabric resists fading and wear. The 110 GSM high-tensile netting is three times stronger than average, offering superior insect protection.
• Built-in Hooks: Supports up to 20 lbs for hanging lights, fans, or other decorative items.

Image: Comparison of gazebo post widths, highlighting the wider 3.9-inch PURPLE LEAF post for increased stability.

Image: Detail showing the 5.9-inch reinforced beam for extra support and longevity in the PURPLE LEAF gazebo roof structure.

Image: Close-up comparison of netting material, illustrating PURPLE LEAF's 110 GSM high-tensile netting, which is three times stronger than average.

Image: Detail comparing curtain fabric, highlighting PURPLE LEAF's 160 GSM water-repellent and fade-resistant material.

Image: The galvanized steel double roof, showcasing its vented design for UV protection, weather resistance, and optimal ventilation.

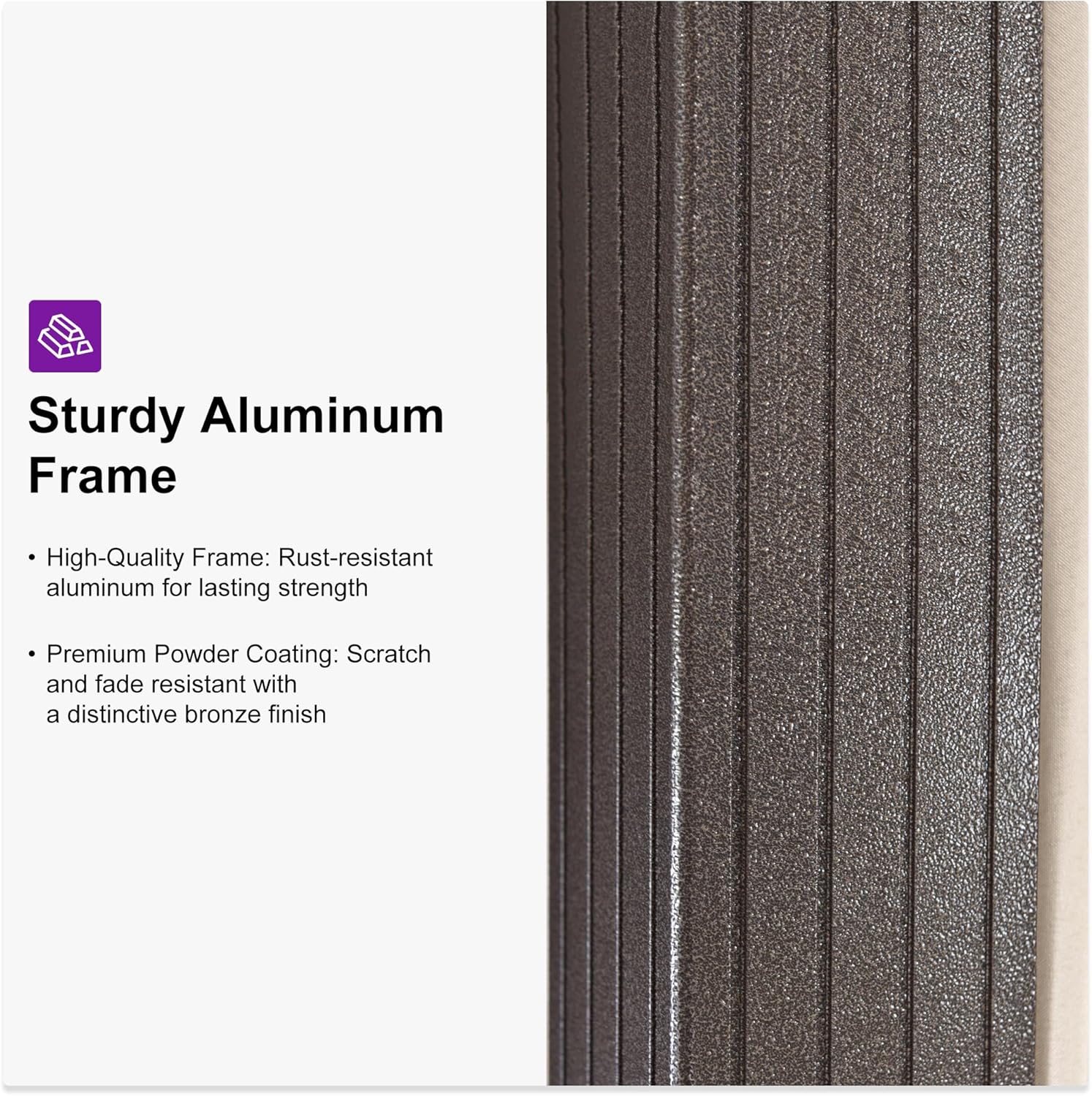

Image: Close-up of the sturdy aluminum frame, featuring rust-resistant material and a premium powder coating for a distinctive bronze finish.

4. Persediaan dan Pemasangan

The PURPLE LEAF Gazebo is designed for simplified installation, reducing assembly time by approximately 20%. Clear instructions are provided to ensure a smooth setup. While assembly can be done solo, having a helper is highly recommended, especially for roof frame installation and securing roof bolts.

4.1 Petua Perhimpunan Agung

• Pemeriksaan bahagian: Before starting, verify all parts are present and individually labeled. Extra small parts are typically included.
• Manual Arahan: Follow the provided instruction manual carefully. Pay close attention to detailed insets and ensure correct orientation of pieces.
• Pemasangan Panel Bumbung: It is advisable to secure each roofing panel as it is put into place, rather than waiting for all panels to be set. This prevents panels from sliding off during assembly.
• Curtain Rollers: Consider installing curtain rollers at a later stage if they interfere with frame construction, as they can roll off the ends.
• Asas: Ensure the gazebo is mounted securely to your patio or deck using appropriate anchors (different anchors may be preferred over those supplied, depending on your surface).

4.2 Video Pemasangan

5. Arahan Operasi

Your gazebo features integrated curtains and nettings for versatile use and protection. These can be adjusted to suit your needs:

• Fully Open: Tie back the curtains and nettings to enjoy an optimal outdoor view and maximum airflow.
• Semi-Open: Use the netting to maintain airflow while keeping insects out. Curtains can be partially drawn for privacy or shade.
• Fully Closed: Close both the curtains and nettings for complete privacy, enhanced UV protection, and to retain warmth.

Image: Visual guide demonstrating the gazebo in fully open, semi-open (with netting), and fully closed (with curtains) modes.

6. Penyelenggaraan

Proper maintenance will extend the life and appearance of your gazebo:

• Bingkai Pembersihan: Bersihkan bingkai aluminium dengan larutan sabun dan air yang lembut. Bilas dengan teliti dan keringkan untuk mengelakkan kesan air. Elakkan pembersih yang kasar.
• Membersihkan Bumbung: The galvanized steel roof can be cleaned with a soft brush and water. For stubborn dirt, use a mild detergent. Ensure proper drainage to prevent water pooling.
• Curtains & Netting Care: The 160 GSM fabric curtains and 110 GSM netting are designed to resist fading and wear. Clean them periodically with a gentle fabric cleaner or mild soap and water. Allow them to air dry completely before storing or closing for extended periods.
• Penjagaan Musim Sejuk: In areas with heavy snowfall, regularly remove snow from the roof to prevent structural stress. Consider disassembling and storing fabric components during harsh winter months to prolong their lifespan.
• Pemeriksaan perkakasan: Periodically inspect all bolts and connections to ensure they remain tight. Tighten as necessary.

7. Spesifikasi

Image: Technical drawing illustrating the detailed dimensions of the 8' x 8' gazebo.

8. Waranti dan Sokongan

Your PURPLE LEAF Gazebo comes with the following protection plan:

• Hardtop Roof: 5 tahun
• Pembinaan Rangka: 1 tahun
• Langsir & Jaring: 2 tahun

For customer support, please refer to the contact information provided with your purchase documentation or visit the official PURPLE LEAF webtapak.
