1. Pengenalan
This manual provides essential information for the safe and efficient operation of your HQ Screen 70 Liter Mini-Fridge, model BC-70. Please read these instructions carefully before installation and use, and retain them for future reference. This appliance is designed for cooling and storing beverages and quick meals in various environments such as bedrooms, offices, hotels, or clinics.

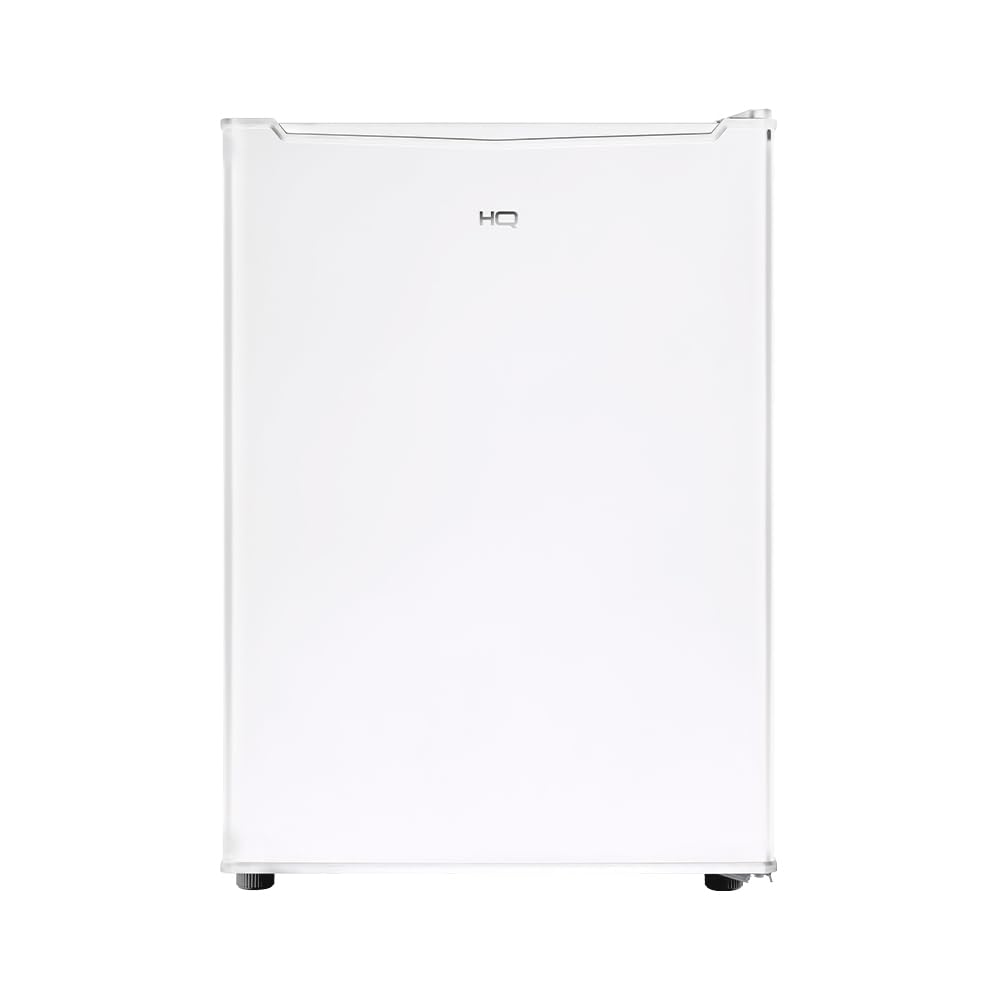

Imej 1.1: Depan view of the HQ Screen 70 Liter Mini-Fridge. This image shows the compact, white exterior of the appliance, highlighting its sleek design suitable for various room settings.
2. Maklumat Keselamatan
Untuk mengurangkan risiko kebakaran, kejutan elektrik atau kecederaan apabila menggunakan perkakas anda, ikut langkah berjaga-jaga asas ini:
- Ensure the appliance is connected to a properly grounded 220V electrical outlet. Do not use extension cords or ungrounded adapters.
- Do not place the appliance in direct sunlight or near heat sources such as stoves, radiators, or heaters.
- Allow adequate ventilation around the appliance. Maintain a minimum distance of 10 cm (4 inches) from walls and other objects.
- Jangan simpan bahan letupan seperti tin aerosol dengan bahan dorong mudah terbakar di dalam perkakas ini.
- Cabut plag perkakas sebelum membersihkan atau melakukan sebarang penyelenggaraan.
- Pastikan bukaan pengudaraan dalam kepungan perkakas atau dalam struktur terbina dalam bersih daripada halangan.
- Perkakas ini menggunakan bahan penyejuk R600a, yang mudah terbakar. Kendalikan dengan berhati-hati dan pastikan pengudaraan yang betul semasa pemasangan dan servis.
3. Persediaan
3.1 Membongkar
- Tanggalkan semua bahan pembungkusan dengan berhati-hati, termasuk busa dan pita pelekat.
- Inspect the appliance for any damage during transit. If damage is found, do not operate and contact your retailer.
- Clean the interior and exterior of the appliance with a soft cloth and mild detergent before use.
3.2 Penempatan
- Place the mini-fridge on a firm, level surface to ensure stability and quiet operation.
- Ensure the appliance is not exposed to direct sunlight or placed near heat-emitting appliances.
- Allow sufficient space around the unit for proper air circulation. A minimum of 10 cm (4 inches) on the sides and back is recommended.
Image 3.1: Diagram illustrating the dimensions of the HQ Screen 70 Liter Mini-Fridge. The image shows the height (65.8 cm), width (44.4 cm), and depth (48.5 cm) of the appliance, useful for planning placement.
3.3 Sambungan Elektrik
- Sebelum memasang, pastikan voltage indicated on the appliance's rating label matches your local power supply (220V).
- Plug the appliance into a dedicated, grounded 220V electrical outlet.
- After plugging in, allow the appliance to stand for at least 2-4 hours before loading it with food or beverages. This allows the refrigerant to settle.
4. Arahan Operasi
4.1 Kawalan Suhu
The mini-fridge features a manual temperature control with 7 adjustable levels, allowing you to set the internal temperature between 0°C and 8°C. Turn the thermostat dial to your desired setting. Higher numbers indicate colder temperatures.

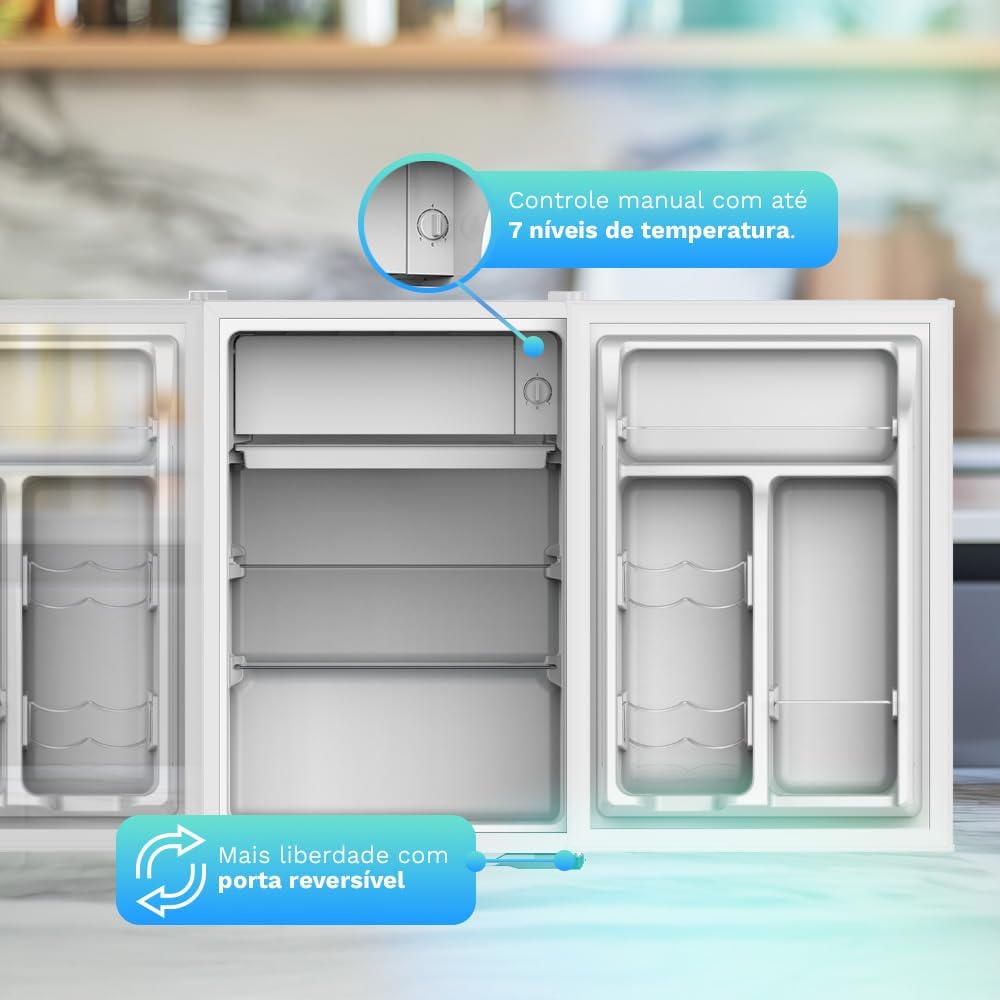

Imej 4.1: Dalaman view of the mini-fridge highlighting the manual temperature control dial and the reversible door mechanism. This image demonstrates how to adjust the cooling settings and the flexibility of door installation.
4.2 Organisasi Dalaman
- The appliance includes removable shelves, allowing you to customize the internal space to accommodate items of various sizes.
- Door compartments are designed for cans and bottles, optimizing storage for beverages.
Image 4.2: Open mini-fridge showing its interior capacity filled with various food items and beverages. This illustrates the practical storage solutions, including removable shelves and door compartments for cans and bottles.
4.3 Pintu Boleh Diterbalikkan
The door of the mini-fridge is reversible, allowing it to open from either the left or right side. This feature provides flexibility to adapt the appliance to your specific space requirements. Refer to the detailed instructions in the full manual for changing the door hinge orientation.
4.4 Operasi Senyap
The HQ Screen mini-fridge is designed for quiet operation, producing a noise level of approximately 42 dB. This makes it suitable for sensitive environments like bedrooms or offices where minimal disturbance is desired.
Image 4.3: The HQ Screen 70 Liter Mini-Fridge placed next to a bed in a bedroom, emphasizing its quiet operation. This image demonstrates the appliance's suitability for personal spaces due to its low noise level.
5. Penyelenggaraan
5.1 Menyahbeku
This appliance features manual defrosting. Frost will accumulate on the cooling plate. When the frost layer becomes too thick (approximately 5mm), it should be defrosted. To defrost:
- Unplug the mini-fridge from the power outlet.
- Remove all food and beverages and store them in another cool place.
- Leave the door open to allow the frost to melt naturally. Place a towel or shallow pan at the bottom to collect water.
- Jangan gunakan objek tajam atau alat pemanas untuk mengeluarkan fros, kerana ini boleh merosakkan sistem penyejukan.
- Once defrosted, clean and dry the interior thoroughly before plugging it back in and returning items.
5.2 Pembersihan
- Sentiasa cabut plag perkakas sebelum membersihkan.
- Clean the interior and exterior surfaces with a soft cloth dampdisalut dengan larutan detergen lembut.
- Jangan gunakan pembersih yang kasar, pad penggosok atau pelarut, kerana ini boleh merosakkan permukaan.
- Bersihkan gasket pintu secara kerap untuk memastikan pengedap yang betul.
- Wipe all surfaces dry after cleaning.
6. Penyelesaian masalah
Sebelum menghubungi perkhidmatan pelanggan, sila semak isu dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Peralatan tidak beroperasi | Tiada bekalan kuasa; kord kuasa tidak dipasang; pemutus litar tersandung. | Periksa sambungan kuasa; memastikan saluran keluar berfungsi; set semula pemutus litar. |
| Alat tidak cukup sejuk | Temperature setting too high; door not closed properly; excessive door openings; warm items placed inside; poor ventilation. | Adjust thermostat to a colder setting; ensure door is sealed; reduce frequency of door openings; allow warm items to cool before placing inside; ensure adequate ventilation. |
| Kebisingan yang berlebihan | Appliance not level; objects touching the back or sides; compressor noise (normal). | Adjust leveling feet; move appliance away from walls/objects; compressor noise is normal during operation. |
| Air di atas lantai | Drain hole blocked; excessive humidity; door left open. | Clear drain hole; ensure door is closed properly; reduce humidity in the room. |
7. Spesifikasi
Detailed technical specifications for the HQ Screen 70 Liter Mini-Fridge (Model BC-70):
- Jenama: HQ Screen
- model: BC-70
- Jumlah Kapasiti: 70 Liter
- Voltage: 220V
- semasa: 0.5A (220V)
- Kekerapan: 60 Hz
- Penggunaan Tenaga: 18.3 kWj/bulan
- Jenis Defrost: Manual
- Pelarasan Suhu: Mechanical, 7 levels
- Julat Suhu: 0°C hingga 8°C
- Gas Penyejuk: R600a (20g) - Ecological
- Kelas Kecekapan Tenaga: A
- Tahap Bunyi: 42 dB
- Dimensi Produk (H x W x D): 65.8 cm x 44.4 cm x 48.5 cm
- Berat produk: 18.2 kg
- Ciri Khas: Reversible door, removable shelf, can/bottle holders.
Imej 7.1: Bahagian Luar view of the mini-fridge highlighting its sustainable and efficient operation with R600a gas. This image reinforces the environmental benefits and performance aspects of the appliance.
8. Waranti dan Sokongan
8.1 Maklumat Waranti
Your HQ Screen mini-fridge comes with a Waranti 1 tahun. This warranty includes 3 months of legal warranty and an additional 9 months of manufacturer's warranty against manufacturing defects. Please retain your proof of purchase for warranty claims.
Image 8.1: A woman opening the HQ Screen mini-fridge, with a graphic indicating a 1-year warranty. This image visually confirms the warranty period for the product.
8.2 Sokongan Pelanggan
For any questions, technical assistance, or warranty claims, please contact your retailer or the HQ Screen customer support channel. Refer to your purchase documentation for specific contact details.
