1. Pengenalan
Thank you for choosing the PURPLE LEAF 9' x 11' Patio Umbrella. This manual provides essential information for the safe assembly, operation, and maintenance of your new cantilever umbrella. Please read all instructions carefully before use and retain this manual for future reference.
Figure 1: Fully assembled PURPLE LEAF 9' x 11' Patio Umbrella.
2. Maklumat Keselamatan
Untuk memastikan operasi yang selamat dan mengelakkan kerosakan, sila patuhi garis panduan keselamatan berikut:
- Always close the umbrella during strong winds, heavy rain, or other severe weather conditions to prevent damage to the umbrella and potential injury.
- Ensure the base is properly weighted with sand and/or water as specified to maintain stability. An unweighted base can cause the umbrella to tip over.
- Jauhkan kanak-kanak dan haiwan peliharaan daripada payung semasa penggunaan.
- Do not hang objects from the umbrella frame or canopy.
- Regularly inspect all parts for wear and tear. Replace damaged components immediately.
3. Kandungan Pakej
Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:
- 1 x Umbrella Canopy and Frame Assembly
- 1 x Weighted Base (consisting of multiple fillable sections)
- 1 x Pemegang Engkol
- 1 x Pedal Kaki
- Perkakasan Pemasangan (skru, pencuci, dsb.)
- Manual Arahan
4. Persediaan dan Pemasangan
Follow these steps to assemble your PURPLE LEAF Patio Umbrella:
- Sediakan Pangkalan: Place the weighted base sections in your desired location. Fill each section with sand (approximately 73.4 pounds) and/or water (approximately 66.8 pounds) to ensure maximum stability. Secure the caps tightly.
- Attach the Umbrella Pole: Insert the main umbrella pole into the central opening of the weighted base. Secure it using the provided hardware, ensuring all screws are tightened.
- Mount the Canopy Frame: Attach the canopy frame assembly to the main pole according to the diagrams in the included printed manual. Ensure all connections are secure.
- Pemeriksaan Akhir: Sahkan bahawa semua bahagian dipasang dan diketatkan dengan betul.
Figure 2: HDPE Umbrella Base with fill ports for sand and water.

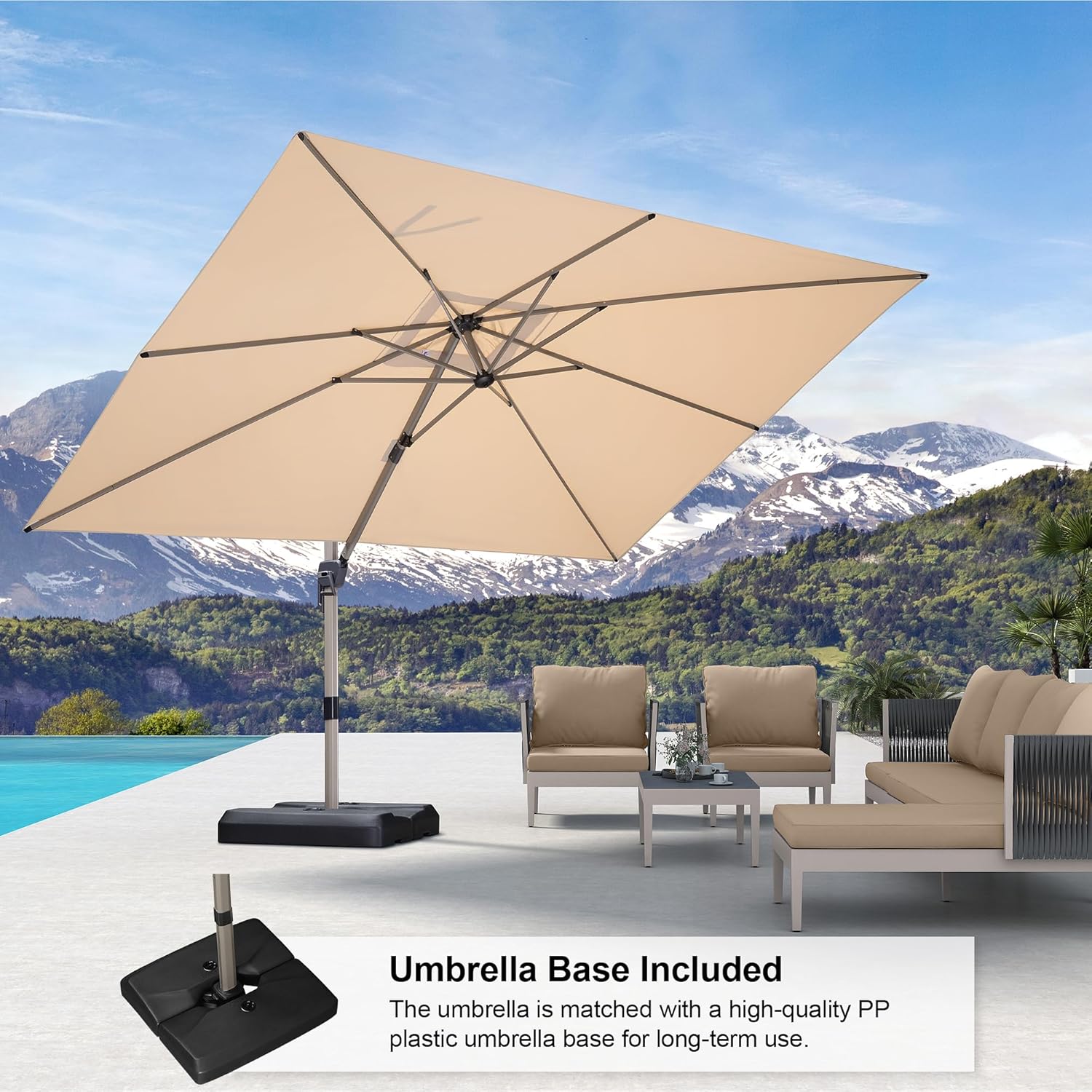

Figure 3: The included weighted base provides stability for the umbrella.
Video 1: Detailed assembly and operation of the Purple Leaf Patio Umbrella. This video demonstrates the step-by-step process of setting up the umbrella and utilizing its features.
5. Arahan Operasi
Your cantilever umbrella offers versatile shading options:
5.1. Opening and Closing the Umbrella
Use the crank handle located on the main pole to smoothly open or close the umbrella canopy. Turn the handle clockwise to open and counter-clockwise to close.
Figure 4: The unique handle design allows for effortless opening and closing.
Figure 5: The crank lift mechanism for easy canopy deployment.
5.2. Putaran 360°
The umbrella features a foot pedal at the base that allows for a full 360° horizontal rotation. Press the foot pedal down to unlock the rotation mechanism, then gently rotate the umbrella to your desired position. Release the pedal to lock it in place.
Figure 6: The foot pedal enables 360° rotation for optimal shade positioning.
Video 2: Demonstration of the 360-degree rotation feature of the PURPLE LEAF Patio Umbrella.
5.3. Height and Tilt Adjustment
The umbrella offers 5 height adjustable tilt positions. Use the adjustment mechanism on the main pole to change the angle of the canopy, providing full-coverage sun protection throughout the day.
Figure 7: The umbrella offers five adjustable tilt settings to block sun at various angles.
6. Penyelenggaraan
Proper care will extend the life of your umbrella:
- Pembersihan: Clean the canopy with water and mild soap. Avoid harsh chemicals or abrasive cleaners.
- Storan: When not in use for extended periods, especially during off-season or severe weather, close the umbrella and store it in a dry, protected area. Consider using a protective cover.
- Pemeriksaan: Periodically check all bolts, screws, and moving parts to ensure they are tight and functioning correctly.
- Elakkan Objek Tajam: Keep sharp objects away from the canopy fabric to prevent tears.
7. Penyelesaian masalah
Berikut adalah penyelesaian kepada isu-isu biasa:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Payung tidak stabil atau berakhir. | Base is not sufficiently weighted. | Ensure the base is fully filled with sand and/or water. Close the umbrella in windy conditions. |
| Crank handle is stiff or difficult to turn. | Mechanism may need lubrication or is obstructed. | Apply a silicone-based lubricant to moving parts. Check for any obstructions in the mechanism. |
| Umbrella does not rotate 360°. | Foot pedal is not fully depressed or mechanism is obstructed. | Ensure the foot pedal is fully depressed to disengage the lock. Check for debris around the rotation mechanism. |
8. Spesifikasi
- Jenama: DAUN UNGU
- Saiz: 9' x 11' (Segi empat tepat)
- warna: Beige
- Bahan Bingkai: Aluminum (Champagne finish)
- Bahan Kanopi: 240/gsm yarn-dyed polyester fabric (50UV sun protection)
- Ciri Khas: 360° Rotation (foot pedal), 5 Height Adjustable Tilt System, Wind-proof (up to 25MPH), Rust-resistant
- Komponen yang Disertakan: Umbrella, Weighted Base
- Penjagaan Produk: Clean with water and mild soap, avoid sharp objects, store in a dry place.
Figure 8: Key dimensions of the PURPLE LEAF 9' x 11' Patio Umbrella and its base.
Figure 9: The robust aluminum frame and thickened ribs ensure stability and durability.
9. Waranti dan Sokongan
For any after-sales questions or support, please contact PURPLE LEAF customer service. Refer to your purchase documentation for specific warranty details and contact information.
You can also visit the official PURPLE LEAF store for more information: PURPLE LEAF Store
