Generic Carburetor Instruction Manual

1. Produk Lebihview

This replacement carburetor is designed to restore optimal fuel delivery and engine performance for compatible snow blowers. It is engineered to meet OEM-style specifications, ensuring reliable operation under various conditions.

• Reliable OEM-Style Performance: Precision-machined to match factory tolerances for consistent operation.
• Tested for Tough Conditions: Designed to withstand mud, dust, water, and extreme temperatures.
• Cost-Effective Replacement: Provides OEM-level quality as an economical alternative.
• Enhanced Materials & Finish: Built with upgraded alloys, seals, or coatings for improved durability and corrosion resistance.

The carburetor is a critical component of your engine's fuel system, mixing air and fuel in the correct ratio for combustion. Proper function is essential for engine starting, idling, and power output.

2. Keserasian

This carburetor is compatible with a wide range of snow blowers and power equipment. Verify your equipment's model and part number against the list below to ensure proper fitment.

Known Compatible Models and Part Numbers:

• MTD Yard Machines 8526 Gold 8.5HP (Model 31AE6C0F300)
• Ariens Models: 921002, 921003, 924086, 924311, 924318, 924020, 924026, 920001, 932039, 932042, 932102, 932103, 932310, 932015, 924321, 924092, 924050, 924082, 932101, ST1028, ST 2+2 (932015), 624E, 520 624, 1027LE, 1130DLE
• John Deere Part Numbers: AM38161, AM100941, AM108412, AM100246, AM108405
• Oregon Part Numbers: 50-642 (50642), 50-659 (50659)
• Tecumseh Part Numbers: 632334A, 632111, 640349, 640052, 640054, 632110, 632334, 632370, 632536, 640105, 632370A, 632117
• Toro Part Numbers: 38066, 38053, 38078, 38086, 38543, 38641, 38642, 38645, 38630, 38631, 38632, 38620, 38621, 38622
• Stens Part Number: 520-926 (520926)
• Fitment Models: 31BS644E129, 315-641E118, 31AE6A4E129 (8hp), 315E640F000 (8hp Blower), 317E640F352 Storm 9528, 31AH6KQ4711 (28"), 31AE6GQ3711 (8.5HP 26"), 42010, Sears 143-029003, Pro Chaser PC144052, 317E662G013, 315e640f352 (26'' 8hp), 317E640F000 (26'' 8hp Thrower), Jacobsen Imperial 826, 247.88790, 31AE5HTG799 Snowthrower, 536.886260 (9hp 26''), 31AS6FEE729 (8 HP), 31AE665E118, White Outdoor SB-950 ST 316E756G190, Snow Boss 31AS6GN3711 Storm 8.5HP 26" Self-Propelled, Simplicity 860SE (1691900), Murray Ultra 5hp 22" (622505X31A), Murray 627804X6B, 627804X79B, 627904X89B, 247.88190.0, 31AS6HEG799, 536.884900 (9hp Assembly), Ariens ST824, Ariens ST1236E, Sears 143-029003, 536.886350 (30 inch 11 Hp), 536-881110.

3. Maklumat Keselamatan

Always prioritize safety when working with power equipment and fuel systems. Failure to follow these safety guidelines can result in serious injury or property damage.

• Putuskan Kuasa: Sebelum memulakan sebarang kerja, pastikan enjin dimatikan dan wayar palam pencucuh diputuskan sambungannya untuk mengelakkan penghidupan secara tidak sengaja.
• Pengendalian Bahan Api: Work in a well-ventilated area. Fuel is highly flammable. Avoid open flames, sparks, or smoking. Use an approved container for draining and storing fuel.
• Perlindungan Mata: Always wear safety glasses or goggles to protect your eyes from fuel, debris, or tools.
• sarung tangan: Wear appropriate gloves to protect your hands from fuel, oil, and sharp edges.
• Engine Hot: Allow the engine to cool completely before working on it to avoid burns.
• Baca Manual Peralatan: Refer to your snow blower's original instruction manual for specific safety procedures and component locations.

4. Persediaan dan Pemasangan

The following steps provide a general guide for carburetor replacement. Specific procedures may vary depending on your snow blower model. Always consult your equipment's service manual for detailed instructions.

1. Penyediaan:
   • Ensure the engine is cool and the spark plug wire is disconnected.
   • Turn off the fuel supply valve (if equipped) and drain the fuel tank into an approved container.
   • Remove any engine covers or air filter assemblies that obstruct access to the carburetor.
2. Keluarkan Karburator Lama:
   • Carefully disconnect all fuel lines, throttle linkages, and choke linkages from the old carburetor. Note their positions for reinstallation.
   • Unbolt the carburetor from the engine manifold. Be mindful of gaskets; they may need replacement.
3. Pasang Karburator Baru:
   • Ensure mating surfaces are clean. Install new gaskets (if required) between the carburetor and the engine manifold.
   • Mount the new carburetor, tightening bolts evenly to prevent warping.
   • Reconnect all fuel lines, throttle linkages, and choke linkages to their correct positions. Double-check connections for security.
4. Langkah Akhir:
   • Isi semula tangki bahan api dengan bahan api yang segar dan sesuai.
   • Sambungkan semula wayar palam pencucuh.
   • Perform a test start and check for fuel leaks or abnormal engine operation.

5. Pertimbangan Operasi

After carburetor replacement, proper operating procedures are crucial for optimal engine performance.

• Kualiti Bahan Api: Always use fresh, clean fuel of the recommended octane for your engine. Stale fuel can cause carburetor issues.
• Choke Usage: Use the choke as necessary for cold starts. Once the engine warms up, gradually disengage the choke.
• Kerosakan Enjin: If this is a new engine or a major overhaul, follow the manufacturer's break-in procedures.
• Pelarasan Terbiar: If the engine idles too high or too low after installation, consult your equipment's manual for idle speed adjustment procedures.

6. Penyelenggaraan

Regular maintenance helps prolong the life of your carburetor and ensures reliable engine operation.

• Penstabil Bahan Api: Use a high-quality fuel stabilizer, especially during off-season storage, to prevent fuel degradation and gumming in the carburetor.
• Penapis Bahan Api: Regularly inspect and replace the fuel filter (if equipped) to prevent contaminants from reaching the carburetor.
• Penapis Udara: A clean air filter is essential for proper air-fuel mixture. Clean or replace the air filter according to your engine's maintenance schedule.
• Pembersihan Karburator: If performance issues arise, a carburetor cleaning may be necessary. This typically involves disassembling the carburetor and cleaning jets and passages with carburetor cleaner. This task is recommended for experienced users or professional technicians.
• Storan Bermusim: Before long-term storage, run the engine until it runs out of fuel, or drain the fuel system completely to prevent fuel-related issues.

7. Penyelesaian masalah

If you experience issues after installing the new carburetor, consider the following common problems and solutions:

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified service technician.

8. Spesifikasi

Key dimensions and general information for the TRD-RST-9385 carburetor.

• model: TRD-RST-9385
• Jenama: Generik
• Bahan: Metal alloy construction
• Jarak Lubang Pemasangan: Approximately 1.93 inches (49mm) center-to-center (refer to Figure 3)
• Air Intake Diameter: Approximately 1.03 inches (26.16mm) (refer to Figure 3)

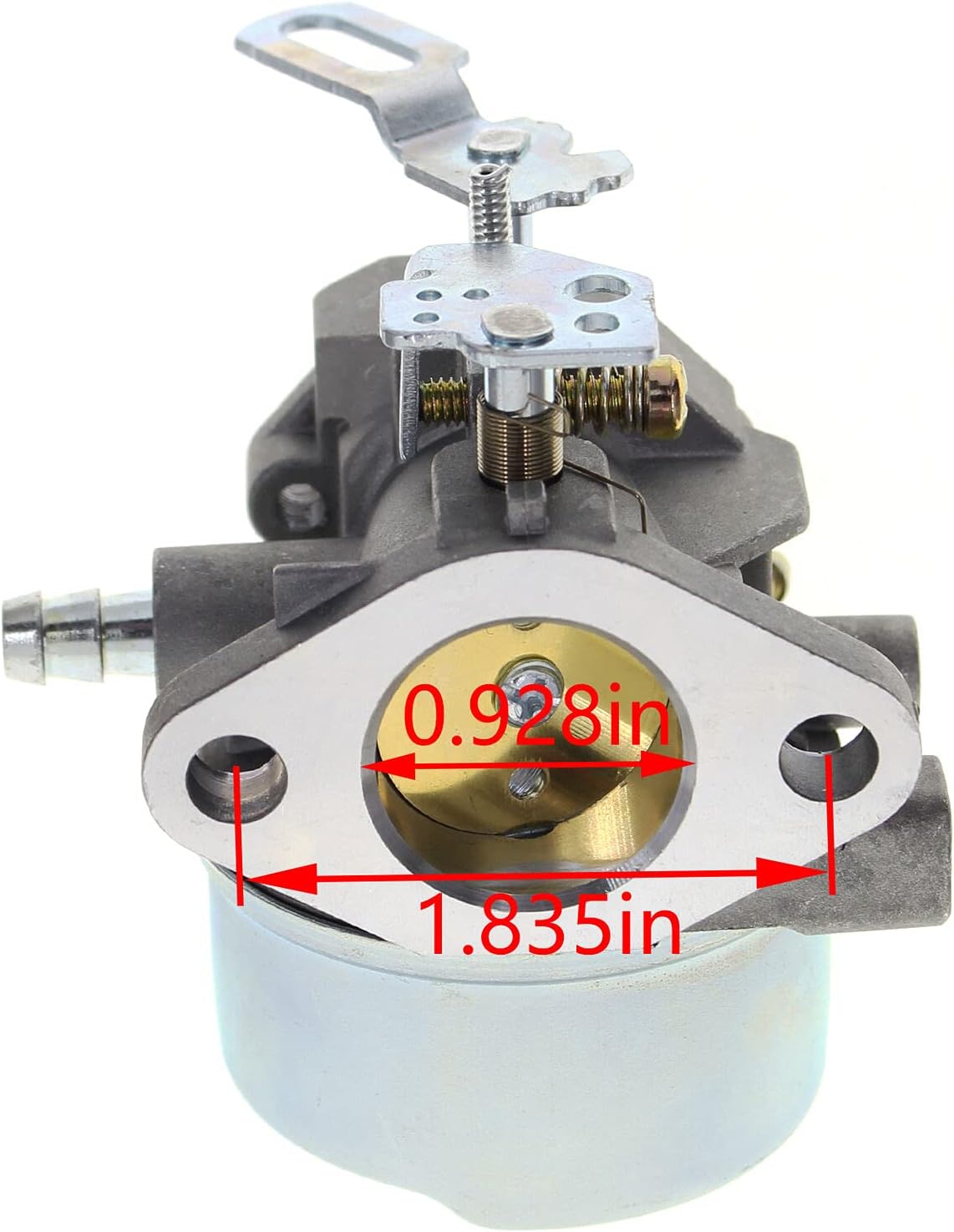

• Engine Side Diameter: Approximately 0.928 inches (23.57mm) (refer to Figure 4)

9. Waranti dan Sokongan

For warranty information or technical support regarding this product, please contact the seller directly through your purchase platform. Keep your purchase receipt or order number handy for faster service.
