Haotian Slim Shoe Cabinet FSR151-W: 2-Drawer Assembly and User Manual

1. Maklumat Keselamatan Penting

Sila baca dan fahami semua arahan keselamatan sebelum memasang atau menggunakan produk ini. Kegagalan mematuhi arahan ini boleh mengakibatkan kecederaan atau kerosakan pada produk.

• Always assemble the cabinet on a stable, level surface.
• Pastikan semua bahagian diikat dengan selamat sebelum digunakan.
• Keep the cabinet away from high-traffic areas and doorways to prevent tipping.
• Do not overload the cabinet, as this may cause it to tip over. The maximum load capacity is 35.2 lbs.
• Always use the anti-tipping devices provided with the cabinet to secure it to a wall.

2. Produk Lebihview

The Haotian Slim Shoe Cabinet FSR151-W is designed to provide efficient and space-saving shoe storage for entryways and hallways. Its narrow profile and flip-drawer design help keep your living space organized and clutter-free.

Ciri-ciri Utama:

• Two flip-drawers offer ample storage for shoes.
• Slim design (7.5 inches deep) suitable for narrow spaces.
• Constructed from durable MDF with a white finish.
• Modern design with hidden handles.

Dimensi:

• Width: 19.7 inches (W)
• Depth: 7.5 inches (D)
• Height: 35.8 inches (H)
• Berat: 26.4 lbs
• Kapasiti Beban: 35.2 lbs

Figure 2.1: Product Dimensions. This image illustrates the exact measurements of the shoe cabinet, highlighting its compact and narrow design.

3. Kandungan Pakej

The Haotian Slim Shoe Cabinet FSR151-W comes in a flat pack and includes all necessary components and hardware for assembly. Please verify that all parts are present and undamaged before beginning assembly.

• Panel kabinet (atas, bawah, sisi, belakang)
• Two flip-drawers with internal shoe racks
• Kaki kabinet
• Hardware kit (screws, dowels, cam locks, anti-tipping devices)
• Manual arahan pemasangan

4. Arahan Perhimpunan

This item requires self-assembly. Detailed instructions are supplied within the package. Follow the step-by-step guide provided to ensure correct and safe assembly.

1. Buka bungkus dan Kenalpasti Bahagian: Lay out all components on a clean, soft surface to prevent scratches. Refer to the parts list in the included manual to identify each piece.
2. Pasang Kerangka Utama: Connect the side panels to the top and bottom panels using the provided hardware. Ensure all connections are tight and secure.
3. Pasang Panel Belakang: Attach the back panel to the assembled frame. This adds stability to the cabinet.
4. Assemble Flip-Drawers: Construct each flip-drawer according to the instructions, including the internal shoe racks.
5. Install Flip-Drawers: Carefully insert the assembled flip-drawers into the main cabinet frame. Test their smooth operation.
6. Attach Cabinet Feet: Secure the cabinet feet to the bottom of the unit.
7. Install Anti-Tipping Devices: For safety, attach the anti-tipping devices to the back of the cabinet and secure them to a wall stud. This is crucial to prevent accidental tipping.

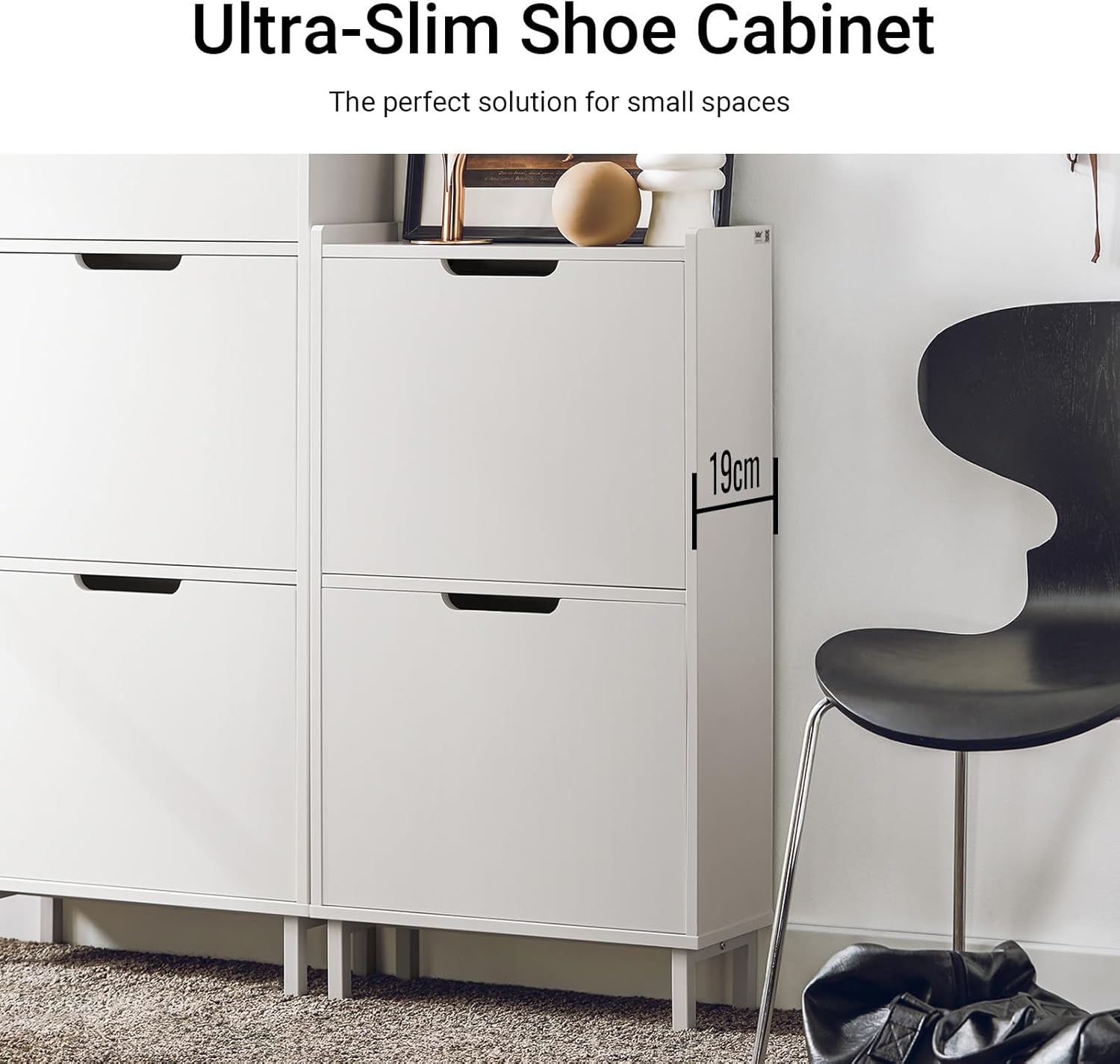

Figure 4.1: Assembled Shoe Cabinet. This image shows the fully assembled Haotian Slim Shoe Cabinet in an entryway setting, demonstrating its appearance and size.

Figure 4.2: Cabinet Feet. A detailed view of the cabinet's feet, illustrating the base structure.

5. Arahan Operasi

The Haotian Slim Shoe Cabinet features two flip-drawers for easy access and organized storage of your footwear.

1. Opening a Flip-Drawer: Gently pull the hidden handle located at the top of each drawer. The drawer will tilt forward, revealing the internal shoe racks.
2. Meletakkan Kasut: Arrange your shoes on the internal racks. The design allows for shoes to be stored vertically, maximizing space. Depending on shoe size and style, each drawer can typically hold 2-3 pairs of shoes.
3. Closing a Flip-Drawer: Push the drawer back into the cabinet until it is flush with the cabinet front. Ensure it closes completely to maintain a neat appearance.

Figure 5.1: Shoes in Flip-Drawer. This image demonstrates how shoes are stored within the cabinet's flip-drawers.

Figure 5.2: Design Details. This composite image highlights the top storage shelf, cabinet feet, hidden handle, and the functional flip-door design.

6. Penyelenggaraan

Proper care and maintenance will extend the life and appearance of your shoe cabinet.

• Pembersihan: Lap permukaan kabinet dengan kain lembut,amp kain. Elakkan menggunakan bahan kimia yang keras atau pembersih yang kasar, kerana ini boleh merosakkan kemasan.
• Berhabuk: Lap kabinet dengan kain kering dan lembut secara berkala untuk mengelakkan pengumpulan habuk.
• Tumpahan: Lap sebarang tumpahan dengan segera untuk mengelakkan kotoran atau kerosakan pada bahan MDF.
• Pemeriksaan perkakasan: Periksa semua skru dan pengikat secara berkala untuk memastikan ia kekal ketat. Ketatkan jika perlu.

7. Penyelesaian masalah

If you encounter any issues with your Haotian Slim Shoe Cabinet, refer to the following common solutions:

• Laci tidak ditutup dengan lancar: Check for any obstructions inside the drawer or along the runners. Ensure all assembly hardware for the drawers is correctly installed and tightened.
• Kabinet bergoyang: Verify that the cabinet is placed on a level surface. Re-tighten all assembly screws. Ensure the anti-tipping devices are securely installed.
• Bahagian yang hilang: If any parts are missing upon unpacking, please contact Haotian customer support with your model number and a description of the missing parts.

8. Spesifikasi

9. Waranti dan Sokongan

For warranty information or customer support, please refer to the documentation included with your product or contact Haotian customer service directly. Keep your purchase receipt for warranty claims.
