Craftsman CMXGWFN061214 3000 PSI Gas Pressure Washer Instruction Manual

pengenalan

This manual provides comprehensive instructions for the safe and efficient use of your Craftsman CMXGWFN061214 3000 PSI Gas Pressure Washer. Designed for residential use, this powerful machine is ideal for cleaning decks, patios, outdoor furniture, house siding, and preparing home exteriors for painting. Please read this manual thoroughly before operation to ensure proper setup, usage, and maintenance.

Ciri-ciri Utama:

• Powerful Residential Performance: Equipped with a 163 cc Craftsman residential engine for easy starting and reliable operation.
• Durable Pump: Features a maintenance-free OEM Technologies axial cam pump delivering 3000 PSI at 2.3 GPM, including thermal relief to prevent overheating.
• Aksesori Serbaguna: Includes a ¼-inch x 25-feet non-marring, flexible, abrasion-resistant high-pressure hose, an ergonomic spray gun with a 16-inch steel wand/lance, and 4 Quick-Connect nozzle tips (0°, 15°, 25°, Soap) for various cleaning applications.
• Pembinaan Teguh: Built with a steel frame and powder-coated finish for enhanced durability and corrosion resistance.
• Mudah dikendalikan: Features 12-inch Never-flat wheels for effortless transport across diverse terrains.

Persediaan

Before operating your pressure washer, ensure all components are correctly assembled and connected. Refer to the following steps and illustrations for guidance.

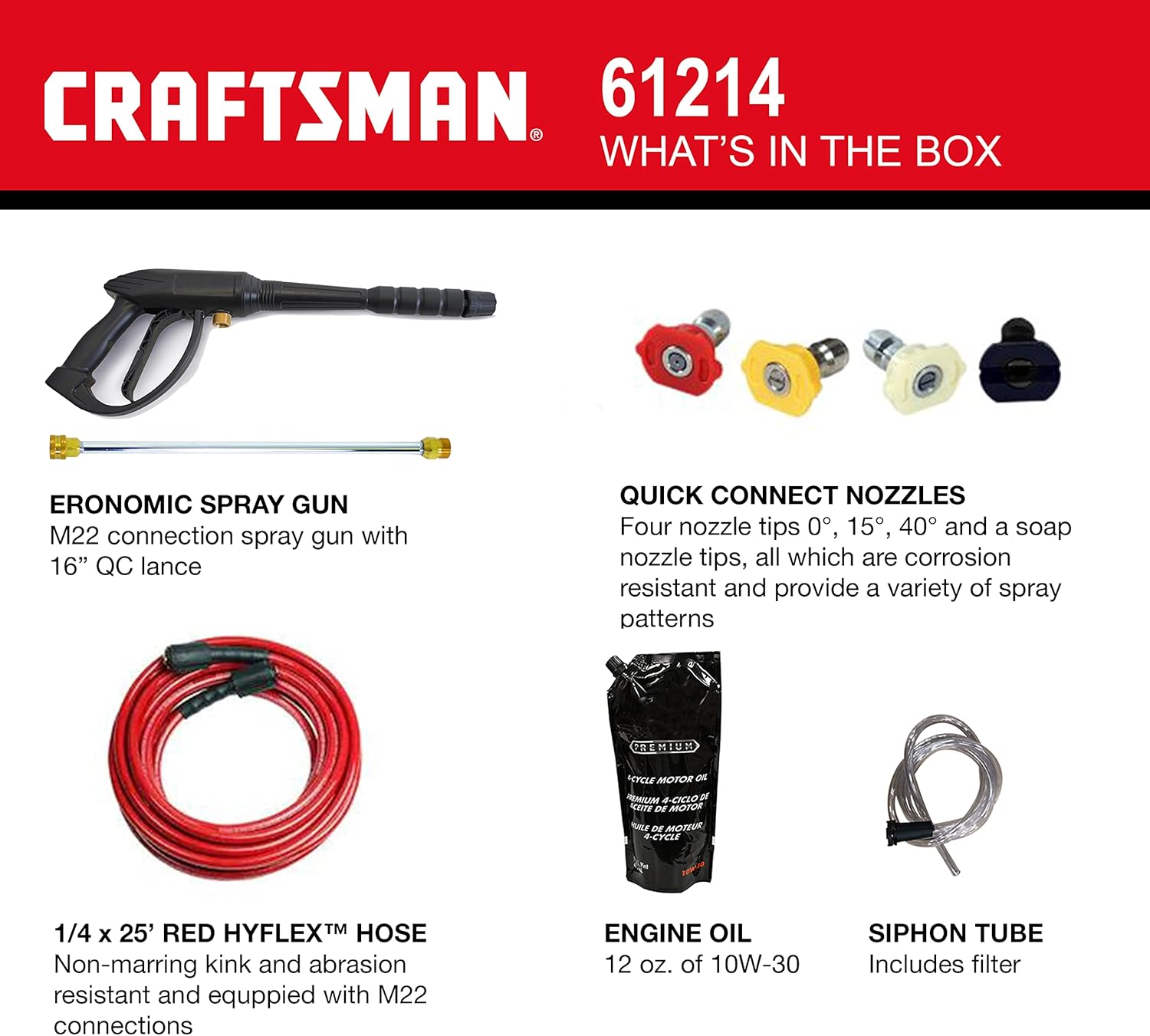

Pembukaan Kotak dan Pengenalpastian Komponen:

Carefully remove all items from the packaging. Verify that all parts are present and undamaged. The main components include the pressure washer unit (engine and pump assembly), spray gun, wand, high-pressure hose, and quick-connect nozzles.

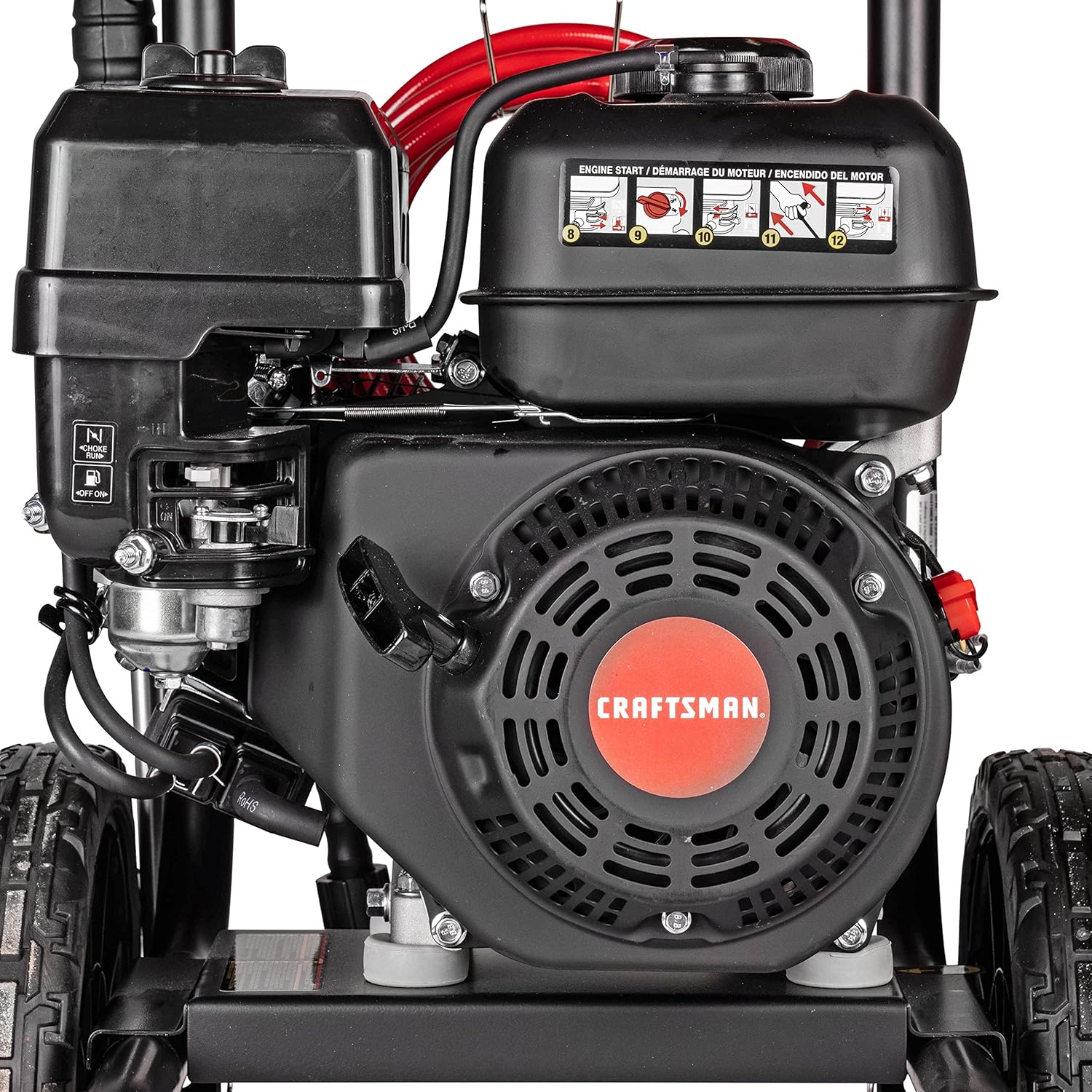

Penyediaan Bahan Api dan Minyak:

Your pressure washer is equipped with a gas-powered engine. Ensure the fuel tank is filled with fresh, unleaded gasoline. Check the engine oil level and add the provided 12 oz. of 10W-30 engine oil if necessary. Engines are tested in the factory and may contain minimum residual fuel/oil or fuel odor.

Menyambungkan Bekalan Air:

Connect a garden hose to the water inlet on the pressure washer pump. Ensure the connection is tight to prevent leaks. Turn on the water supply completely before starting the engine to prevent damage to the pump.

Attaching the High-Pressure Hose and Spray Gun:

Connect one end of the 25-foot high-pressure hose to the pressure outlet on the pump and the other end to the spray gun. Securely attach the 16-inch steel wand to the spray gun. Select the desired quick-connect nozzle and insert it into the end of the wand until it clicks into place.

Arahan Operasi

Follow these steps for safe and effective operation of your Craftsman pressure washer.

Memulakan Enjin:

1. Pastikan injap bahan api berada dalam kedudukan 'ON'.
2. Move the choke lever to the 'FULL CHOKE' position (for cold starts).
3. Set the engine switch to 'ON'.
4. Tarik pemegang starter undur dengan kuat sehingga enjin dihidupkan.
5. Setelah enjin dihidupkan, gerakkan tuil pencekik secara beransur-ansur ke kedudukan 'RUN'.

Using Nozzle Tips:

The pressure washer includes four quick-connect nozzle tips, each designed for specific cleaning tasks:

• 0° (Merah): Pin-point stream for intense cleaning of small, stubborn spots. Use with extreme caution.
• 15° (Kuning): Narrow, powerful spray for heavy-duty cleaning of hard surfaces.
• 25° (Hijau): Medium-angle spray for general cleaning of most surfaces.
• Sabun (Hitam): Low-pressure wide spray for applying detergent.

Always test the spray pattern on an inconspicuous area first to avoid damaging the surface.

Menyapu Detergen:

For soap application, ensure the black soap nozzle is installed. Fill the onboard detergent tank with pressure washer-safe detergent. The pressure washer will automatically mix the detergent with the water at low pressure. After applying detergent, switch to a high-pressure nozzle (e.g., 25°) to rinse the surface thoroughly.

Video Produk Rasmi:

Penyelenggaraan

Penyelenggaraan tetap memastikan jangka hayat dan prestasi optimum mesin basuh tekanan anda.

Penyelenggaraan Enjin:

• Perubahan Minyak: Refer to the engine manual for recommended oil change intervals. Use the specified oil type (e.g., 10W-30).
• Penapis Udara: Periksa dan bersihkan atau ganti penapis udara dengan kerap, terutamanya dalam keadaan berdebu.
• Palam Pencucuh: Periksa dan gantikan palam pencucuh seperti yang disyorkan oleh pengeluar enjin.
• Sistem Bahan Api: Use fresh fuel and consider a fuel stabilizer for storage periods longer than 30 days to prevent fuel degradation.

Penyelenggaraan pam:

• Pelepasan Terma: The OEM Technologies axial cam pump includes thermal relief to prevent overheating. Avoid running the pump dry or for extended periods without spraying.
• Musim sejuk: In freezing temperatures, properly winterize the pump to prevent damage from ice expansion. Consult the engine manual for detailed winterization procedures.

Hose and Nozzle Care:

• Penyimpanan hos: Coil the high-pressure hose neatly after each use to prevent kinks and damage.
• Pembersihan muncung: Clean clogged nozzles with the included nozzle cleaning tool to maintain proper spray patterns.

Menyelesaikan masalah

If you encounter issues with your pressure washer, refer to the common problems and solutions below.

For issues not listed here, please consult the full owner's manual or contact Craftsman customer support.

Spesifikasi

Waranti dan Sokongan

The Craftsman CMXGWFN061214 3000 PSI Gas Pressure Washer is backed by Craftsman's consumer warranties. For specific warranty details, please refer to the documentation included with your product or visit the official Craftsman website. For customer support, troubleshooting assistance, or to locate authorized service centers, please contact Craftsman directly.

Always use genuine Craftsman replacement parts to maintain product integrity and warranty coverage.
