Perlegear PGLCM1 Ceiling TV Mount User Manual

1. Pengenalan

Thank you for choosing the Perlegear PGLCM1 Ceiling TV Mount. This manual provides detailed instructions for safe and proper installation, operation, and maintenance of your new TV mount. Please read this manual thoroughly before installation to ensure correct assembly and to prevent any potential damage or injury. Keep this manual for future reference.

Imej: Selesaiview of the Perlegear PGLCM1 Ceiling TV Mount, showing its main components and how it appears when installed with a television.

2. Maklumat Keselamatan Penting

WARNING: Failure to read and follow all instructions, warnings, and cautions in this manual may result in serious personal injury, property damage, or voiding of your warranty.

• Do not begin installation until you have read and understood all instructions and warnings contained in this installation sheet. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance.
• This mounting bracket is designed to be installed only by qualified installation personnel.
• The mounting surface must be capable of supporting five times the weight of the TV and the mount combined.
• Jangan gunakan produk ini untuk sebarang tujuan yang tidak dinyatakan secara jelas oleh pengilang.
• Pengilang tidak bertanggungjawab untuk kerosakan atau kecederaan yang disebabkan oleh pemasangan atau penggunaan yang salah.
• Always use appropriate safety equipment and proper tools for installation.
• Ensure all screws are tightened securely but do not overtighten. Overtightening can damage the screws and components.
• Produk ini mengandungi barang-barang kecil yang boleh menjadi bahaya tercekik jika tertelan. Jauhkan barang-barang ini daripada kanak-kanak.

3. Kandungan Pakej

Please verify that all parts are present and undamaged before beginning installation. If any parts are missing or damaged, do not attempt to install. Contact customer service for replacement parts.

4. Spesifikasi Produk

• model: PGLCM1
• Keserasian Saiz Skrin: 37 - 75 inci
• Kapasiti Berat: Sehingga 99 paun (45 kg)
• Keserasian VESA: 200x100mm to 600x400mm (Horizontal x Vertical)
• Pelarasan Ketinggian: 28.23 inches to 40.04 inches (from ceiling to TV plate)
• Sudut Kecondongan: +5° hingga -15°
• Sudut Pusing: 360°
• Pelarasan Tahap: +/-3°
• Ceiling Type: Flat or Sloped (up to ±60°)
• Bahan: Keluli Aloi
• warna: Hitam

Image: Visual representation of the mount's wide compatibility, including supported TV sizes (37"-75"), maximum weight (99 lbs), and VESA mounting patterns (Min 200x100mm, Max 600x400mm).

5. Persediaan & Pemasangan

5.1 Pemeriksaan Pra-Pemasangan

1. Sahkan Keserasian TV:
   • Check your TV's weight. It must be less than 99 lbs (45 kg).
   • Measure your TV's VESA mounting pattern (horizontal x vertical distance between screw holes). It must be between 200x100mm and 600x400mm.
   • Pastikan saiz TV anda antara 37 dan 75 inci.
2. Identify Ceiling Type: This mount is suitable for wood joist ceilings, concrete ceilings, and brick ceilings.


   Image: Important checks before purchase, including VESA pattern, TV weight and size, and compatible ceiling types (ceiling joist, concrete ceiling, brick ceiling).

3. Alat Kumpul: You will need a drill, stud finder (for wood joists), level, pencil, and a Phillips head screwdriver.

5.2 Mounting the Ceiling Plate

1. Locate the center of your desired mounting area on the ceiling. For wood joists, use a stud finder to locate the center of a joist. For concrete/brick, ensure the area is solid.
2. Position the ceiling plate (A) against the ceiling and mark the pilot hole locations.
3. Drill pilot holes. For wood joists, drill 5.5mm (7/32") diameter holes to a depth of 60mm (2.36"). For concrete/brick, drill 10mm (3/8") diameter holes to a depth of 60mm (2.36") and insert concrete anchors (WA).
4. Attach the ceiling plate (A) to the ceiling using the lag bolts (WB) and washers (WC). Tighten securely.
5. If mounting on a sloped ceiling, adjust the ceiling plate's angle using the pivot mechanism. The mount supports slopes up to ±60°.


   Image: The ceiling mount's ability to be installed on both flat and sloped ceilings, demonstrating its ±60° angle adjustment.

5.3 Assembling the Pole and TV Plate

1. Attach the telescopic pole (B) to the ceiling plate (A). Secure with the provided screws.
2. Attach the TV plate (C) to the bottom of the telescopic pole (B). Secure with the provided screws.

5.4 Attaching TV Brackets to TV

1. Letakkan TV anda dengan berhati-hati menghadap ke bawah di atas permukaan yang lembut dan bersih.
2. Identify the correct diameter and length of screws (MA, MB, MC, MD, ME, MF) for your TV's VESA holes. Use washers (MG, MH) and spacers (MI, MJ) if needed to ensure a flush fit and prevent damage to the TV.
3. Attach the TV brackets (D) to the back of your TV using the selected screws, washers, and spacers. Ensure the brackets are centered and level.

5.5 Mounting TV to Ceiling Mount

1. With assistance, carefully lift the TV with the attached brackets and hook the brackets onto the TV plate (C).
2. Secure the TV to the TV plate by tightening the safety screws located at the bottom of the TV brackets.

6. Arahan Operasi

6.1 Pelarasan Ketinggian

The telescopic pole allows for 6 height settings, extending from 28.23 inches to 40.04 inches (from the ceiling to the TV plate). To adjust the height, loosen the locking mechanism on the pole, extend or retract to the desired height, and then securely tighten the locking mechanism.

Image: The adjustable height feature of the mount, demonstrating the range from 28.23 inches to 40.04 inches.

6.2 Pelarasan Kecondongan

The mount allows for a tilt range of +5° (upwards) to -15° (downwards) to reduce glare and optimize viewing angles. Loosen the tilt adjustment knobs on the TV plate, adjust the TV to the desired angle, and then securely tighten the knobs.

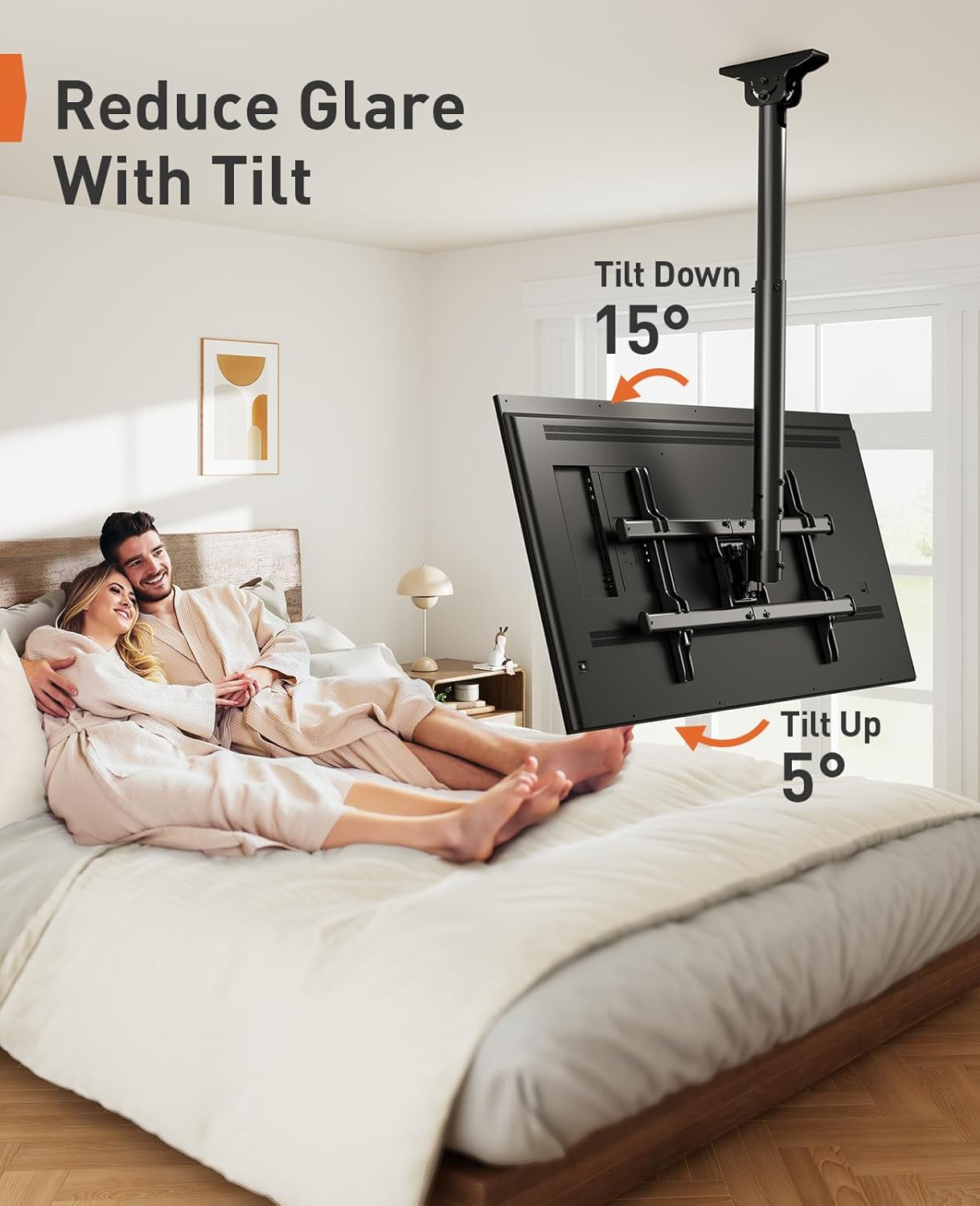

Image: How to reduce glare using the tilt function, showing the +5° and -15° tilt angles.

6.3 Pelarasan Pusing

The TV mount can swivel 360° around the pole, allowing you to achieve an optimal view from any seat in the room. Simply rotate the TV to your preferred viewarah dalam.

Image: Achieving an optimal view from any seat with the 360° swivel feature.

6.4 Pelarasan Tahap

After installation, you can fine-tune the TV's level by adjusting it +/-3°. This allows for minor corrections to ensure the TV is perfectly horizontal.

Image: Fine-tuning the TV's position with the +/-3° level adjustment after installation.

6.5 Pengurusan Kabel

The ceiling mount is designed with a hollow tube for cable management. Route your TV cables through the pole to keep them hidden and maintain a neat appearance. Use the provided cable ties to secure cables if necessary.

7. Penyelenggaraan

• Pemeriksaan biasa: Periodically check that all screws and connections are secure. Over time, vibrations or adjustments can cause screws to loosen.
• Pembersihan: Clean the mount with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
• Pelinciran: No lubrication is required for the moving parts.
• kerosakan: If any part of the mount becomes damaged, do not use it. Contact customer support for replacement parts or professional inspection.

8. Penyelesaian masalah

9. Waranti & Sokongan Pelanggan

Perlegear provides a limited warranty for this product. For detailed warranty information, please refer to the warranty card included with your purchase or visit the official Perlegear webtapak.

If you encounter any issues during installation or use, or if you have any questions, please do not hesitate to contact Perlegear customer support:

• Webtapak: www.perlegear.com (Cthamppautan le, pautan sebenar mungkin berbeza-beza)
• e-mel: support@perlegear.com (Example email, actual email may vary)
• telefon: Please check the Perlegear webtapak untuk nombor hubungan serantau.

When contacting support, please have your product model number (PGLCM1) and purchase information ready.
