AKEZ 26-inch 36V Electric Mountain Bike User Manual

1. Pengenalan

Thank you for choosing the AKEZ 26-inch 36V Electric Mountain Bike. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your electric bicycle. Please read this manual thoroughly before your first ride and keep it for future reference.

Langkah-langkah Keselamatan

• Sentiasa pakai topi keledar dan peralatan keselamatan yang sesuai semasa menunggang.
• Biasakan diri anda dengan undang-undang dan peraturan lalu lintas tempatan.
• Lakukan pemeriksaan keselamatan pra-perjalanan sebelum setiap penggunaan.
• Jangan menunggang di bawah pengaruh alkohol atau dadah.
• Pastikan bateri dikunci dengan selamat sebelum menunggang.
• Kapasiti beban maksimum ialah 150 kg. Jangan melebihi had ini.

2. Produk Lebihview

The AKEZ 26-inch 36V Electric Mountain Bike is designed for adult riders, featuring a durable aluminum alloy frame, a powerful 36V motor, and a removable lithium-ion battery for versatile outdoor cycling and travel.

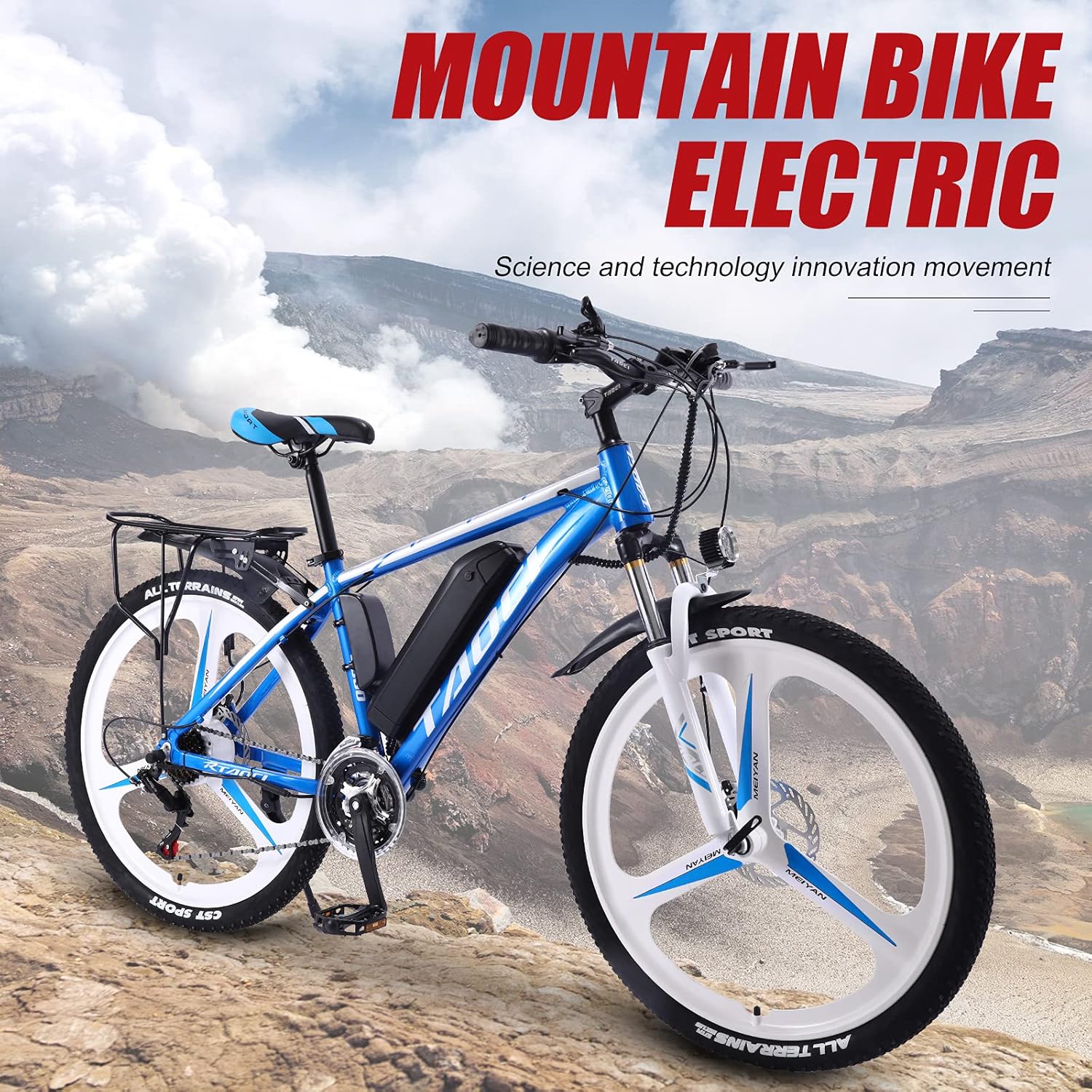

Image: The AKEZ electric mountain bike in blue, set against a mountainous landscape. This image highlights the overall design and rugged appearance of the bike.

Image: The AKEZ electric mountain bike in blue, positioned by a serene lake with mountains in the background. This image showcases the bike in an outdoor, recreational setting.

3. Persediaan dan Pemasangan

Your AKEZ electric bike comes partially assembled. Follow these steps for final assembly and initial setup.

3.1 Pemasangan dan Pengecasan Bateri

1. Locate the battery compartment on the bike frame.
2. Insert the removable lithium battery into the compartment and secure it with the provided lock.
3. Before first use, fully charge the battery. Connect the charger to the charge socket on the battery and then to a power outlet.
4. The battery level light will indicate charging status. Ensure the charging current does not exceed 3 amps.
5. Setelah dicas sepenuhnya, cabut pengecas.

Image: This image illustrates the removable lithium battery, internal wiring, and the aluminum alloy frame construction. This highlights the convenience of charging and the bike's sturdy build.

Image: Close-up images of the battery features: the charge socket (max 3 amps), the safe lock mechanism for battery removal and power control (Off/On), and the battery level indicator lights. This image provides details on battery management.

3.2 Component Check

• Ensure all bolts and quick releases are tightened.
• Periksa tekanan tayar.
• Verify brake functionality (front and rear mechanical disc brakes).
• Adjust the seat height for comfortable riding.
• Confirm the LED headlamp berfungsi.

Image: Composite image showing various components: intelligent power-off brake handle, LED headlamp, front and rear mechanical disc brakes, ZHEN XIN 26/2.15 tire, comfortable car seat, and special tooth plate for the lithium electric car. This image details key features and parts.

4. Arahan Operasi

4.1 Hidupkan/Mati Kuasa dan Paparan

1. To power on the bike, press and hold the 'Switch machine/function key' on the handlebar display.
2. The waterproof LCD display (M2 model) will show power, speed, current gear, and total mileage.
3. To power off, press and hold the 'Switch machine/function key' again.

4.2 Mod Menunggang

Your AKEZ electric bike offers three riding modes:

• Manpower (MAX): Traditional cycling without electric assistance.
• Boost (50%): Pedal-assist mode, providing 50% electric assistance to your pedaling effort.
• Electric Power (100%): Full electric mode, where the motor provides 100% power without pedaling (throttle control).

Use the 'Upshift key' and 'Downshift key' on the handlebar to switch between gears and adjust the level of electric assistance.

Image: This image details the waterproof LCD display (M2 model) showing power, speed, gear, and total mileage. It also illustrates the three riding modes: Manpower (MAX), Boost (50%), and Electric power (100%). This image explains the user interface and power assistance options.

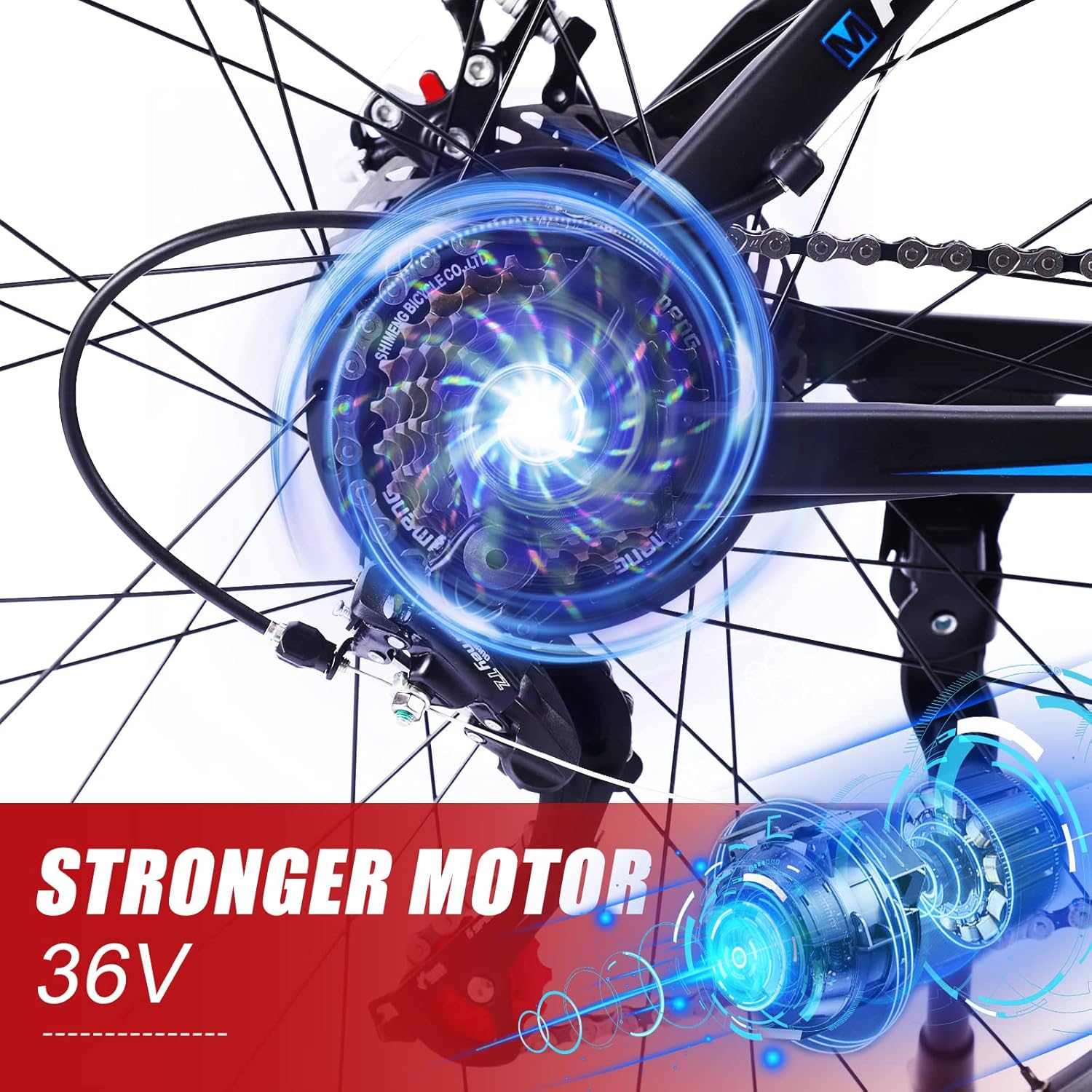

Imej: Jarak dekat view of the rear wheel and cassette, emphasizing the 36V motor. The image illustrates the power delivery system of the electric bicycle.

5. Penyelenggaraan

Regular maintenance ensures the longevity and safe operation of your AKEZ electric bike.

5.1 Penjagaan Bateri

• Cas bateri secara berkala, walaupun tidak digunakan, untuk mengekalkan kesihatannya.
• Elakkan daripada menghabiskan bateri sepenuhnya sebelum mengecas semula.
• Simpan bateri di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
• If the bike will not be used for an extended period, remove the battery and store it separately.

5.2 Penyelenggaraan Am

• Keep the bike clean, especially the drivetrain components.
• Pelincir rantai dengan kerap.
• Periksa pad brek untuk haus dan gantikan jika perlu.
• Inspect tires for wear and proper inflation before each ride.
• Periksa semua pengikat secara berkala untuk kesesakan.

6. Penyelesaian masalah

Bahagian ini menangani isu biasa yang mungkin anda hadapi.

6.1 Isu dan Penyelesaian Biasa

• Basikal tidak boleh dihidupkan: Check if the battery is properly installed and locked. Ensure the battery is charged.
• Motor tidak membantu: Verify that you are in a pedal-assist or full electric mode. Check battery level. Ensure all connections are secure.
• Brek terasa lemah: Inspect brake pads for wear. Adjust brake cables if necessary.
• Bunyi luar biasa: Check for loose components, rubbing parts, or debris in the drivetrain.

For more complex issues or if you require a PDF description file, please contact after-sales service. You can reach them via WhatsApp / Skype at +8613213105602.

7. Spesifikasi

Key technical specifications for the AKEZ 26-inch 36V Electric Mountain Bike:

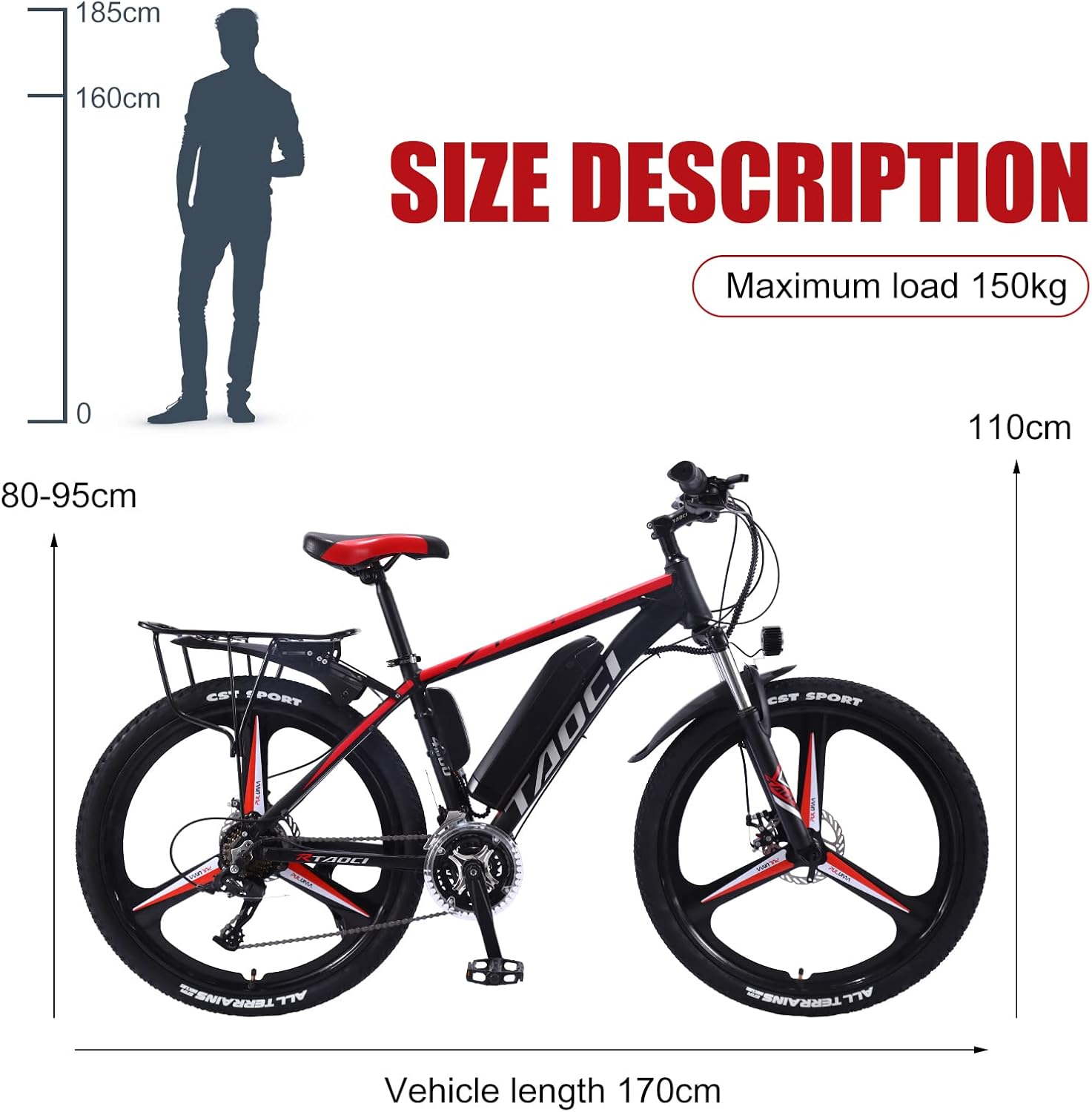

Image: Size description image showing a person next to the bike for scale, indicating a maximum load of 150kg and a vehicle length of 170cm. This provides important dimensional and weight capacity information.

8. Waranti dan Sokongan

For warranty information and customer support, please refer to the documentation included with your purchase or contact AKEZ customer service directly.

For after-sales service inquiries, you may contact via WhatsApp / Skype: +8613213105602.
