Kandang Subwoofer Dwi-12 inci Memphis Audio SRXE212VP dan AmpManual Arahan Pakej lifier

1. Pengenalan dan Lebihview

This manual provides essential information for the proper installation, operation, and maintenance of your Memphis Audio SRXE212VP Dual 12-inch Subwoofer Enclosure and Amplifier Package. Please read this manual thoroughly before attempting installation or operation to ensure optimal performance and safety.

Rajah 1.1: Memphis Audio SRXE212VP Dual 12-inch Subwoofer Enclosure and SRX500.1 Amplifier Package.

This image displays the complete Memphis Audio SRXE212VP package, featuring the dual 12-inch subwoofer enclosure alongside the compact SRX500.1 amplifier, ready for installation.

Ciri-ciri Utama:

• Dual 12-inch subwoofers for powerful bass reproduction.
• Vented enclosure design with a side slot port for enhanced bass response.
• Includes a dedicated Memphis SRX500.1 amplifier, optimized for the subwoofers.
• Subwoofers feature woven tinsel leads and a 2-inch diameter heat-treated aluminum voice coil.
• Amplifier includes a bass boost circuit and remote level control for convenient adjustments.

2. Apa yang ada di dalam Kotak

Upon unpacking your Memphis Audio SRXE212VP package, please verify that all components listed below are present and in good condition:

• Dual 12-inch subwoofers (pre-installed in vented enclosure)
• Vented subwoofer enclosure
• Memphis SRX500.1 dedicated subwoofer amplebih hidup
• Remote level control (bass knob)
• Wiring harness for remote level control
• Perkakasan pemasangan (skru, dll.)
• Manual Arahan / Maklumat Waranti

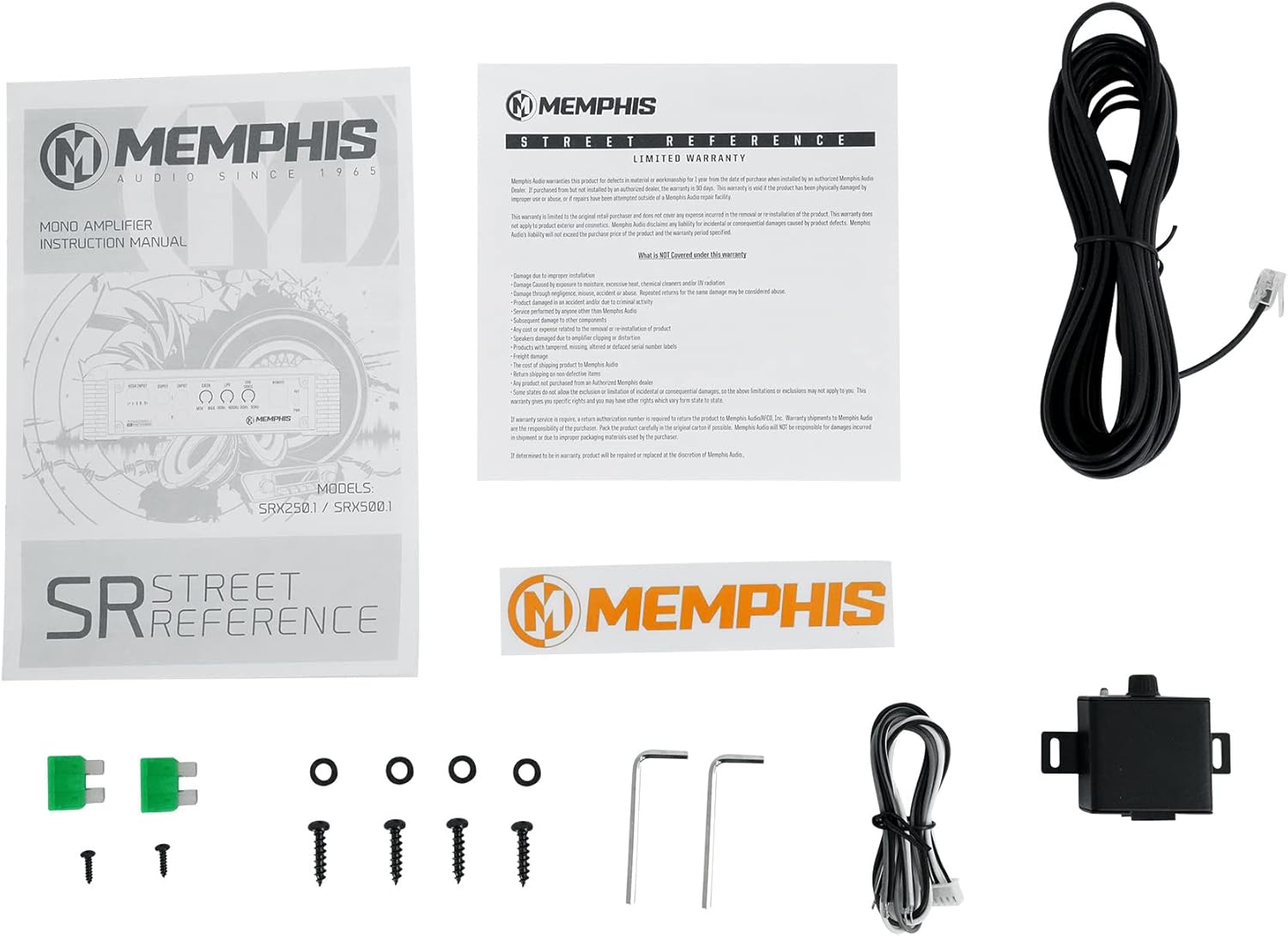

Rajah 2.1: Included accessories and documentation.

This image illustrates the various components typically included with the SRXE212VP package, such as the amplifier, remote gain control, wiring, and documentation.

3. Maklumat Keselamatan

Always observe the following safety precautions during installation and operation to prevent injury or damage to the equipment:

• Putuskan sambungan terminal bateri negatif kenderaan sebelum memulakan sebarang kerja elektrik.
• Ensure proper grounding for all components to prevent electrical shorts and noise.
• Use appropriate wire gauges for power, ground, and speaker connections as specified by the ampkeperluan pengawas.
• Install fuses at the battery and near the amplifier as close as possible to protect against overcurrent.
• Lekapkan amplifier and enclosure securely to prevent movement during vehicle operation.
• Avoid routing power cables near signal cables to minimize interference.
• Do not expose the equipment to excessive moisture or extreme temperatures.
• Dapatkan pemasangan profesional jika anda tidak pasti tentang sebarang langkah.

4. Pemasangan dan Persediaan

Proper installation is crucial for the performance and longevity of your subwoofer system. Follow these general guidelines. Specific vehicle wiring diagrams are not included and may vary.

4.1 Memasang Amplifier and Enclosure

• Choose a secure, well-ventilated location for the amplifier, away from direct sunlight or heat sources.
• Ensure the mounting surface is solid and can support the weight of the amplebih hidup.
• Mount the subwoofer enclosure securely in the trunk or cargo area to prevent it from shifting during driving.

4.2 Sambungan Pendawaian

Refer to the diagrams below for amplifier connections. Always ensure the vehicle's battery is disconnected before making any electrical connections.

Rajah 4.1: Amplifier rear panel showing input and control connections.

This image details the various input and control terminals on the amplifier, including High Input, RCA Input/Output, Gain, LPF, Sub Sonic, and Remote connections.

Rajah 4.2: Amplifier power and speaker output terminals.

This image shows the power input (+12V, REM, GND) and speaker output terminals, along with the fuse slots for the SRX500.1 amplebih hidup.

1. Sambungan Kuasa (+12V): Run a heavy gauge power cable (e.g., 4 AWG or 8 AWG, depending on total power draw) directly from the vehicle's positive battery terminal to the amplifier's +12V terminal. Install an inline fuse holder within 18 inches (45 cm) of the battery.
2. Sambungan Tanah (GND): Connect a heavy gauge ground cable of the same length as the power cable from the ampterminal GND lifier ke permukaan logam yang bersih dan tidak dicat pada casis kenderaan. Pastikan sambungan yang kukuh dan berrintangan rendah.
3. Penghidupan Jauh (REM): Sambungkan wayar tolok yang lebih kecil (cth., 18 AWG) daripada amplifier's REM terminal to the remote turn-on output of your head unit. This signal turns the amphidupkan dan matikan lampu isyarat dengan stereo anda.
4. Input Isyarat:
   • Input RCA: If your head unit has RCA pre-outs, connect RCA cables from the head unit's subwoofer output to the amplifier's RCA Input terminals.
   • Input Tahap Tinggi: If your head unit does not have RCA outputs, use the high-level input. Connect the speaker wires from your head unit's rear speaker outputs to the amplifier's High Input terminal using the provided connector.
5. Output pembesar suara: The dual 12-inch subwoofers are pre-wired within the enclosure. Connect the speaker wires from the subwoofer enclosure's terminals to the amplifier's Speaker Output terminals. Ensure correct polarity (+ to + and - to -).

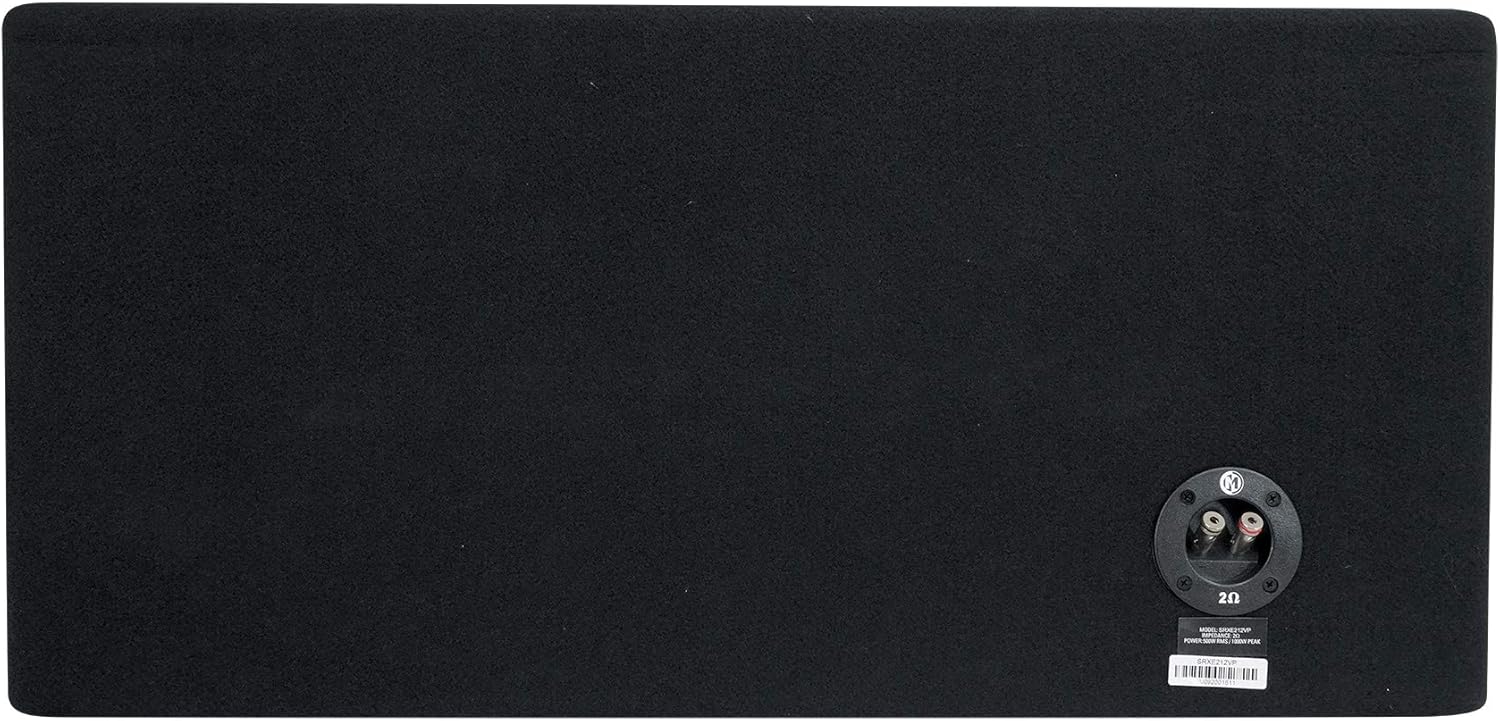

Rajah 4.3: belakang view of the subwoofer enclosure showing speaker terminals.

This image displays the speaker wire input terminals located on the rear panel of the subwoofer enclosure, where the amplifier's speaker output connects.

5. Arahan Operasi

Once installed, you can adjust the amplifier settings to optimize the subwoofer's performance for your vehicle and listening preferences.

5.1 Amplifier Controls (Refer to Figure 4.1)

• DAPATKAN: Kawalan ini sepadan dengan amplifier's input sensitivity to the output level of your head unit. Start with the gain at minimum, then slowly increase it until you hear distortion, then back off slightly. Do not use the gain control as a volume knob.
• LPF (Penapis Lulus Rendah): Penapis ini hanya membenarkan frekuensi di bawah titik set untuk melalui subwoofer. Laraskan ini untuk menggabungkan output subwoofer dengan lancar dengan pembesar suara utama anda. Titik permulaan yang biasa ialah 80-100 Hz.
• SUB SONIC: This filter removes extremely low frequencies that are below the audible range or harmful to the subwoofer. Setting it slightly below your LPF setting (e.g., 20-30 Hz) can improve sound quality and protect the subwoofers.
• JAUHKAN: This port connects to the included remote level control.

5.2 Remote Level Control

The remote level control allows you to adjust the subwoofer's output level conveniently from the driver's seat without accessing the amppenguat secara langsung.

Rajah 5.1: Depan view of the remote gain control.

This image shows the compact remote gain control unit, featuring a rotary knob for adjusting the subwoofer's output level and an indicator light.

• Connect the remote control to the "REMOTE" port on the amppengalir menggunakan kabel yang disediakan.
• Mount the remote control in an easily accessible location within the vehicle.
• Turn the knob to increase or decrease the subwoofer's volume relative to the main system volume.

6. Penyelenggaraan

To ensure the longevity and optimal performance of your Memphis Audio subwoofer system, follow these simple maintenance guidelines:

• Pembersihan: Use a soft, dry cloth to wipe down the amplifier and enclosure surfaces. Avoid using harsh chemicals or abrasive cleaners.
• Pengudaraan: Memastikan amplifier's cooling fins are free from dust and debris to maintain proper airflow and prevent overheating.
• Sambungan: Periodically check all wiring connections (power, ground, signal, speaker) to ensure they are secure and free from corrosion. Loose connections can lead to poor performance or damage.
• Persekitaran: Protect the system from extreme temperatures, direct sunlight, and moisture.

7. Penyelesaian masalah

If you experience issues with your subwoofer system, consult the following table for common problems and their solutions before contacting customer support.

8. Spesifikasi Produk

Below are the technical specifications for the Memphis Audio SRXE212VP package:

Catatan: Spesifikasi boleh berubah tanpa notis.

9. Maklumat Waranti

Memphis Audio products are designed and manufactured to the highest quality standards. This product comes with a limited or full warranty. Please refer to the warranty document included in your package (see Figure 2.1) for specific terms, conditions, and duration of coverage.

Typically, warranty coverage addresses defects in materials and workmanship under normal use. Damage resulting from improper installation, abuse, accident, neglect, or unauthorized modification is generally not covered. Retain your proof of purchase for warranty claims.

10. Sokongan Pelanggan

If you have questions or require assistance beyond the scope of this manual, please contact Memphis Audio customer support. For the most up-to-date contact information, visit the official Memphis Audio webtapak atau rujuk kepada dokumentasi yang disertakan dengan produk anda.

When contacting support, please have your product model number (SRXE212VP) and proof of purchase readily available.
