tectake 402601-SE Adjustable Dumbbell Bench User Manual

1. Pengenalan

This manual provides essential information for the safe and effective use of your tectake 402601-SE Adjustable Dumbbell Bench. This versatile training bench is designed for home gym use, offering adjustable positions for various strength training exercises. Please read this manual thoroughly before assembly and use, and retain it for future reference.

Image 1.1: The tectake adjustable dumbbell bench, shown in a home gym environment, ready for use with other fitness equipment.

2. Maklumat Keselamatan

To ensure your safety and prevent injury, adhere to the following guidelines:

• Rujuk Pakar Perubatan: Sebelum memulakan sebarang program senaman, berunding dengan profesional penjagaan kesihatan.
• Perhimpunan: Pastikan semua komponen dipasang dan diketatkan dengan betul mengikut arahan pemasangan.
• Pemeriksaan: Before each use, inspect the bench for any loose parts, damage, or wear. Do not use if damaged.
• penempatan: Place the bench on a stable, level surface. Ensure adequate space around the bench for safe movement.
• Had Berat: Do not exceed the maximum weight capacity of 250 kg (551 lbs). This includes user weight plus any weights used.
• Pelarasan: Always ensure adjustment mechanisms (backrest, seat) are securely locked in place before use.
• Kanak-kanak dan Haiwan Kesayangan: Jauhkan kanak-kanak dan haiwan peliharaan daripada peralatan semasa digunakan.
• Borang yang Betul: Use proper exercise form to avoid injury. If you experience pain, stop immediately.
• Penyelenggaraan: Regularly clean and maintain the bench as instructed in this manual.

3. Persediaan dan Pemasangan

The tectake dumbbell bench requires assembly. Detailed assembly instructions are included in the product package. Follow these instructions carefully, step-by-step, to ensure proper and safe construction.

3.1 Langkah Perhimpunan Agung

1. Buka bungkusan semua komponen dan sahkan dengan senarai bahagian yang disediakan dalam manual pemasangan.
2. Attach the main frame components using the provided hardware.
3. Secure the backrest and seat cushions to the frame.
4. Install the adjustment mechanisms for the backrest and seat.
5. Ensure all bolts and nuts are securely tightened. Do not overtighten.
6. Place the protective feet on the base of the bench to prevent floor damage and enhance stability.

Imej 3.1: Sisi view of the bench, illustrating the adjustable backrest and seat components. Ensure these are correctly assembled and secured.

Imej 3.2: Terperinci view of the bench's components, including the durable artificial leather padding, adjustment pin, and non-slip foot caps for stability and floor protection.

4. Arahan Operasi

The tectake dumbbell bench features adjustable backrest and seat positions to accommodate various exercises and user preferences.

4.1 Melaraskan Sandaran Belakang

The backrest can be adjusted to four different positions, ranging from 0 to 90 degrees (flat to upright). To adjust:

1. Locate the backrest adjustment pin or lever mechanism.
2. Pull the pin or release the lever to unlock the backrest.
3. Carefully move the backrest to the desired angle.
4. Ensure the pin re-engages securely into one of the four designated slots. Verify stability before use.

4.2 Melaraskan Tempat Duduk

The seat can be adjusted to two different positions (10 and 25 degrees) to provide optimal comfort and support during exercises.

1. Locate the seat adjustment mechanism, typically a pin or lever beneath the seat.
2. Pull the pin or release the lever to unlock the seat.
3. Adjust the seat to one of the two available angles.
4. Ensure the pin re-engages securely into the chosen slot. Confirm the seat is stable before use.

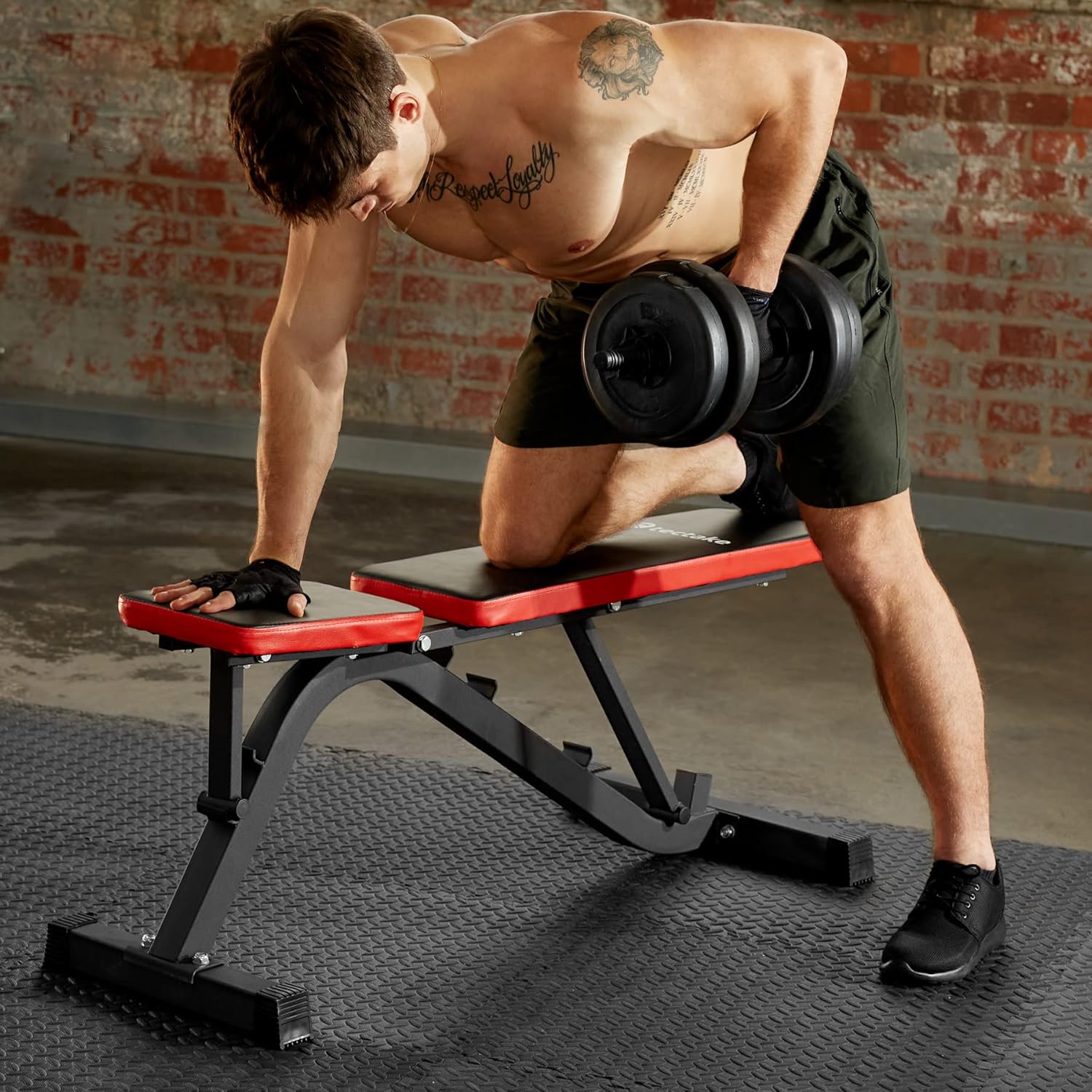

Image 4.1: User demonstrating a dumbbell row exercise, highlighting the bench's stability and suitability for various strength training movements.

Imej 4.2: Depan view of the bench, showing the seat and backrest in an adjusted position, ready for exercises requiring an incline.

5. Penyelenggaraan

Regular maintenance ensures the longevity and safe operation of your dumbbell bench.

• Pembersihan: The artificial leather upholstery is designed for easy cleaning. Wipe down the seat and backrest with a damp cloth after each use to remove sweat and dirt. Use a mild soap solution if necessary, then wipe dry. Avoid abrasive cleaners.
• Pembersihan Bingkai: Bersihkan bingkai logam dengan iklanamp kain.
• Pemeriksaan perkakasan: Periodically check all bolts, nuts, and screws to ensure they are tight. Retighten as needed.
• Pemeriksaan: Regularly inspect the bench for any signs of wear, cracks, or damage to the frame, upholstery, or adjustment mechanisms.
• Storan: Store the bench in a dry, temperate environment away from direct sunlight and extreme temperatures.

6. Penyelesaian masalah

If you encounter issues with your dumbbell bench, refer to the following common problems and solutions:

• Bangku terasa tidak stabil:
  • Ensure the bench is placed on a flat, level surface.
  • Check all assembly bolts and nuts for tightness. Retighten if loose.
  • Verify that the protective feet are properly installed and making full contact with the floor.
• Backrest/Seat not locking securely:
  • Ensure the adjustment pin is fully engaged in the desired slot.
  • Check for any obstructions preventing the pin from seating correctly.
  • Inspect the adjustment mechanism for damage or wear.
• Bunyi berdecit semasa penggunaan:
  • Check and tighten all bolts and connections.
  • Apply a small amount of silicone-based lubricant to pivot points if necessary, avoiding contact with upholstery.

7. Spesifikasi

Key technical specifications for the tectake 402601-SE Adjustable Dumbbell Bench:

8. Waranti dan Sokongan

For warranty information or technical support, please refer to the documentation included with your purchase or contact tectake customer service. Keep your proof of purchase for warranty claims.

Pengeluar: TecTake GmbH

Penjual: TecTake Sweden AB
