Westmann Devon Wooden Gazebo Instruction Manual

1. Pengenalan

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Westmann Devon Wooden Gazebo. Please read this manual thoroughly before beginning assembly or use to ensure safe and correct installation and to maximize the lifespan of your product. Keep this manual for future reference.

The Westmann Devon Gazebo is designed to provide a stylish and functional outdoor living space, featuring a robust wooden frame and a durable aluminum roof.

2. Maklumat Keselamatan

• Perhimpunan Dewasa Diperlukan: This product requires assembly by at least two adults.
• Penyediaan Tapak: Choose a level, stable surface for installation. Ensure adequate clearance from power lines, trees, and other structures.
• Berlabuh: Securely anchor the gazebo to the ground using appropriate hardware for your specific surface (e.g., concrete anchors, ground stakes). Failure to do so may result in structural instability during high winds.
• Keadaan Cuaca: Do not assemble or use the gazebo during strong winds, heavy rain, or lightning storms. In severe weather, remove any items from inside the gazebo and ensure it is securely anchored.
• Had Berat: Jangan gantung objek berat dari rangka atau bumbung gazebo.
• Keselamatan Kebakaran: Keep all heat sources and open flames away from the gazebo structure.
• Kanak-kanak dan Haiwan Kesayangan: Jauhkan kanak-kanak dan haiwan peliharaan daripada kawasan pemasangan semasa pemasangan.

3. Kandungan Pakej

Before beginning assembly, unpack all components and verify against the parts list provided in the separate assembly guide. Ensure all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

Komponen biasa termasuk:

• Wooden posts and beams
• Aluminum roof panels
• Hardware kit (screws, bolts, washers, nuts)
• Assembly tools (e.g., Allen wrench, spanner - may not be included)

4. Persediaan dan Pemasangan

Assembly typically requires 2-3 people and can take several hours. Follow the step-by-step instructions provided in the dedicated assembly manual for your Westmann Devon Gazebo. Below are general guidelines:

1. Sediakan Tapak: Clear and level the chosen installation area.
2. Buka bungkusan dan Susun: Lay out all parts and hardware, ensuring easy access.
3. Pasang Tiang dan Rasuk: Connect the main wooden posts and horizontal beams to form the base structure. Ensure all connections are secure but do not fully tighten bolts until the frame is squared.
4. Pasang Struktur Bumbung: Attach the roof support beams and rafters to the main frame.
5. Pasang Panel Bumbung: Carefully install the aluminum roof panels according to the instructions, ensuring proper overlap and sealing to prevent leaks.
6. Pengetatan dan Penambatan Akhir: Once the entire structure is assembled and squared, fully tighten all bolts. Securely anchor the gazebo to the ground.

Image: The Westmann Devon Gazebo fully assembled, showcasing its wooden frame and aluminum roof.

Imej: A terperinci view of the gazebo's wooden frame and the underside of the aluminum roof, highlighting structural connections.

5. Pengendalian dan Penggunaan

Your Westmann Devon Gazebo is designed for outdoor use as a semi-permanent structure to provide shade and shelter. It is suitable for various activities such as dining, lounging, or entertaining.

• Penggunaan Bermusim: While designed for durability, consider local weather conditions. In areas with heavy snowfall, it is recommended to clear snow from the roof to prevent excessive weight accumulation.
• Pengudaraan: Ensure adequate ventilation, especially if using outdoor heating appliances (e.g., patio heaters) within the gazebo.
• Hiasan: When decorating, ensure items are securely attached and do not overload the structure.

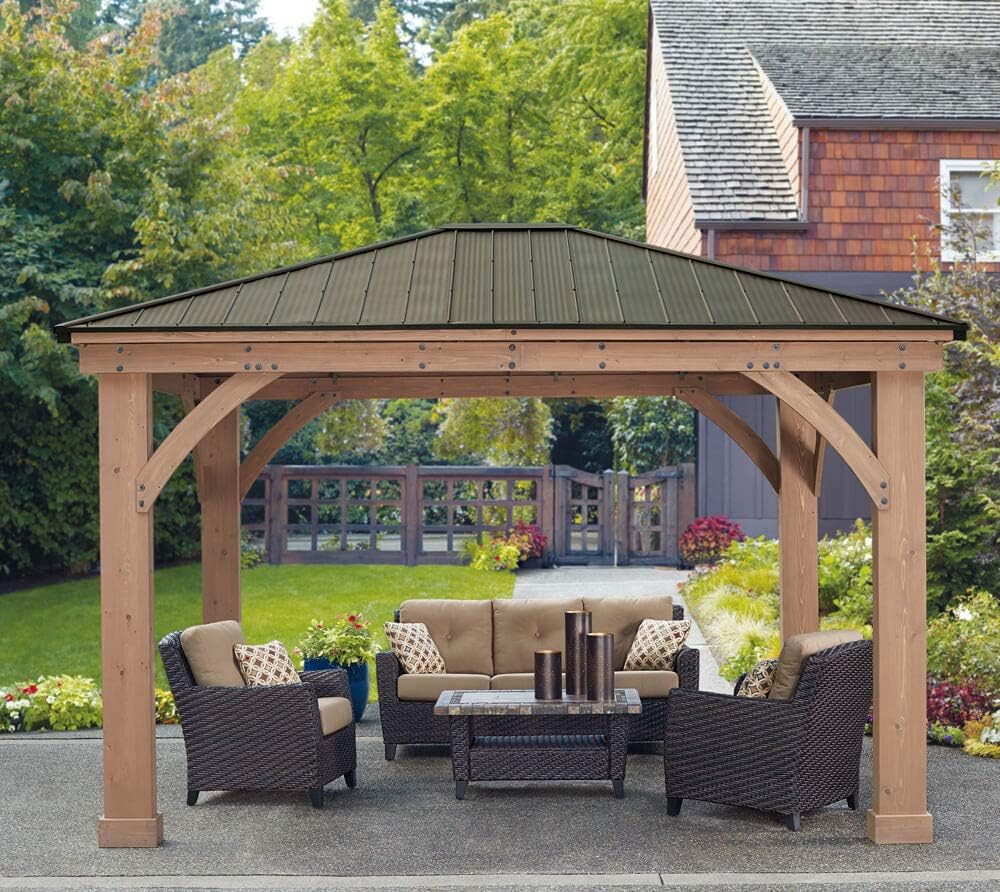

Image: The Westmann Devon Gazebo providing a shaded area for outdoor seating in a garden.

Image: An interior perspective of the gazebo, illustrating its spacious design suitable for various outdoor furniture arrangements.

6. Penyelenggaraan

Regular maintenance will help preserve the appearance and structural integrity of your gazebo.

• Bingkai Kayu: Inspect the wooden frame annually for any signs of wear, rot, or insect damage. Clean the wood with a mild soap and water solution. To maintain the natural brown finish and protect the wood, apply a wood sealant or stain every 1-3 years, depending on local climate and exposure.
• Aluminum Roof: Clean the aluminum roof panels periodically to remove leaves, dirt, and debris. Use a soft brush or cloth with water and a mild detergent. Avoid abrasive cleaners or tools that could scratch the finish. Inspect for any loose fasteners or damaged panels and address them promptly.
• Perkakasan: Periodically check all bolts, screws, and connections to ensure they are tight. Re-tighten as necessary.
• Berlabuh: Verify that the gazebo remains securely anchored to the ground, especially after severe weather.

Imej: Dari dekat view of the corrugated aluminum roof panels, showing their texture and fastening points.

7. Penyelesaian masalah

• Isu: Gazebo terasa tidak stabil atau goyah.
  Penyelesaian: Ensure all bolts and fasteners are fully tightened. Verify that the gazebo is securely anchored to a level surface. Re-check the ground anchors for looseness or damage.
• Isu: Kebocoran air dari bumbung.
  Penyelesaian: Inspect roof panels for proper overlap and sealing. Check for any damaged or bent panels. Ensure all roof fasteners are tight. Apply a silicone sealant to any small gaps if necessary.
• Issue: Wood discoloration or mildew.
  Penyelesaian: Clean the affected areas with a wood cleaner or a mild bleach solution (diluted). Rinse thoroughly. Ensure proper ventilation around the gazebo. Consider applying a wood sealant with UV protection.
• Isu: Kesukaran semasa pemasangan.
  Penyelesaian: Refer to the detailed assembly manual. Ensure all parts are correctly oriented. Do not overtighten fasteners until the entire section is aligned. Contact customer support if you encounter persistent issues.

8. Spesifikasi

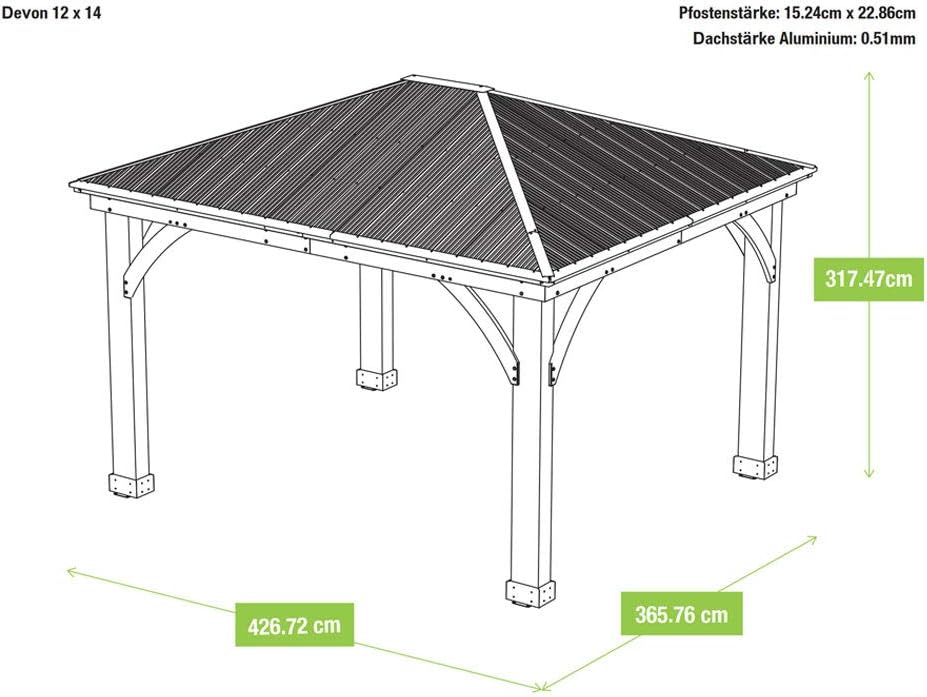

Image: A perspective technical drawing illustrating the overall dimensions of the gazebo.

Image: A top-down technical drawing showing the footprint and internal dimensions of the gazebo.

9. Waranti dan Sokongan

For warranty information, please refer to the documentation included with your purchase or visit the official WESTMANN website. If you require assistance with assembly, missing parts, or have any questions regarding your Westmann Devon Gazebo, please contact WESTMANN customer support directly. Have your model number (YD12941) and proof of purchase ready when contacting support.
