Memphis Audio SRXS1040 10-inch Shallow Mount Subwoofer User Manual

pengenalan

This manual provides essential information for the proper installation, operation, and maintenance of your Memphis Audio SRXS1040 10-inch Street Reference Shallow Mount Subwoofer. Please read this manual thoroughly before attempting installation or operation to ensure optimal performance and safety.

Maklumat Keselamatan

AMARAN: Produk ini boleh mendedahkan anda kepada bahan kimia termasuk plumbum, yang diketahui oleh Negeri California boleh menyebabkan kanser dan kecacatan kelahiran atau bahaya pembiakan lain. Untuk maklumat lanjut pergi ke www.P65Warnings.ca.gov.

Always disconnect the vehicle's battery before performing any electrical work. Ensure all wiring is properly insulated and secured to prevent short circuits and damage. Consult a professional installer if you are unsure about any part of the installation process.

Ciri-ciri Produk

• 12 AWG compression terminals for secure connections.
• Anodized aluminum voice coil former for enhanced heat dissipation.
• Optimized for use in both sealed and ported enclosures.
• Sub cone design engineered for greater efficiency.
• Polypropylene cone material for improved durability and sound reproduction.
• Progressive poly cotton spider for controlled motion and reduced distortion.
• Rubber surround for improved durability and excursion.
• Shallow mounting depth of 3.30 inches for versatile installation options.

Apa yang ada dalam Kotak

Pakej termasuk:

• One (1) Memphis Audio SRXS1040-UOB 10-inch Shallow Mount Subwoofer.

Note: Speaker grills (PRXG10) are not included and must be purchased separately if desired.

Persediaan dan Pemasangan

Proper installation is crucial for the performance and longevity of your subwoofer. It is recommended to have this product installed by a certified car audio professional.

Pemilihan Kepungan

The SRXS1040 subwoofer is optimized for both sealed and ported enclosures. The choice of enclosure will affect the subwoofer's sound characteristics:

• Kandang Tertutup: Provide tighter, more accurate bass response, suitable for musical detail.
• Lampiran Beralih: Offer louder, more impactful bass, often preferred for genres with heavy bass lines.

Consult the subwoofer's Thiele-Small parameters (not provided in this manual) or a car audio specialist for recommended enclosure volumes and port tuning frequencies.

Melekap

Due to its shallow mounting depth of 3.30 inches, the SRXS1040 can be installed in various space-constrained applications. Ensure the mounting surface is rigid and free from obstructions. The cut-out diameter required is 9.22 inches.

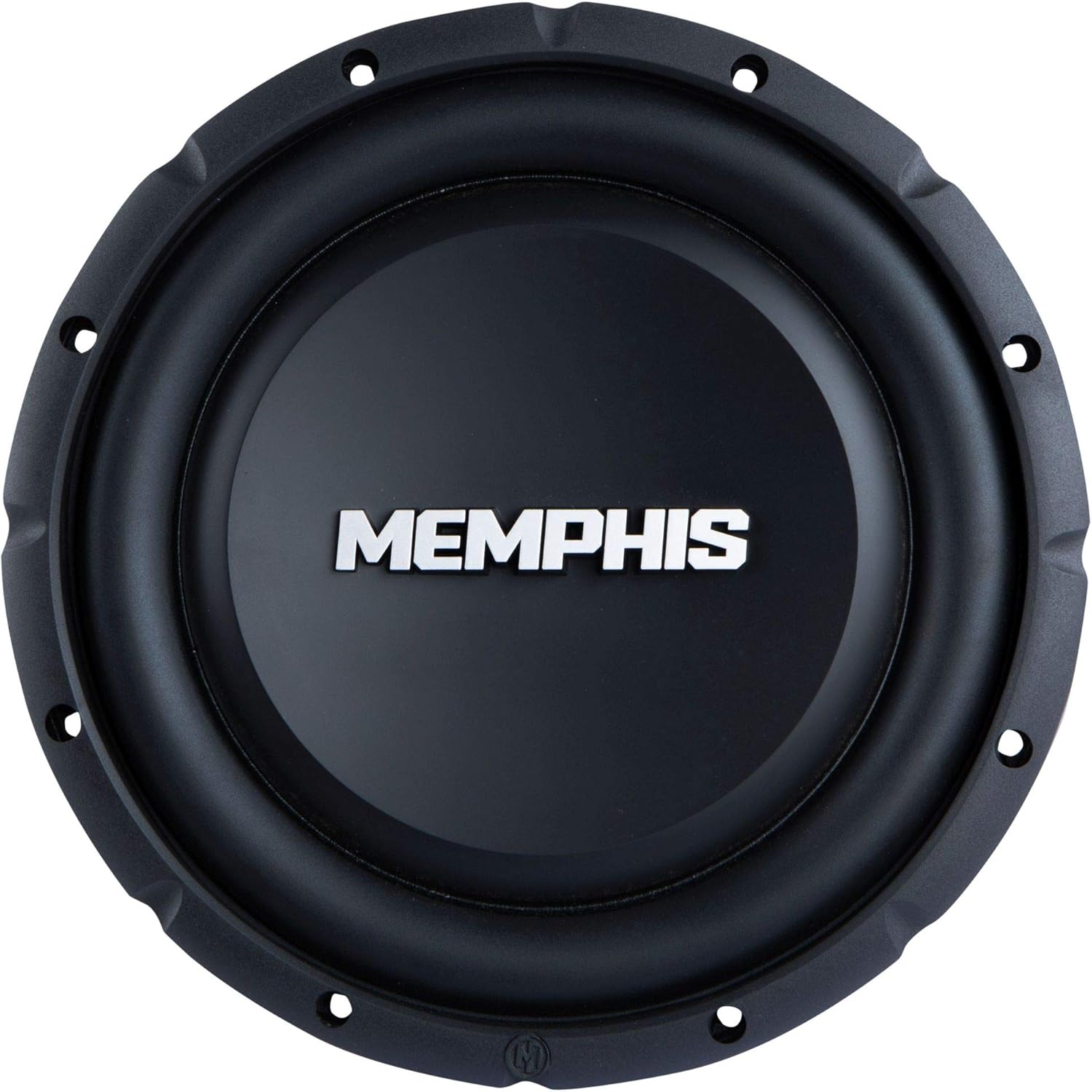

Imej: Depan view of the Memphis Audio SRXS1040 subwoofer, showing the black polypropylene cone with the 'MEMPHIS' logo in the center. This view highlights the speaker's primary sound-producing surface.

Sambungan Pendawaian

The SRXS1040 features 12 AWG compression terminals. Ensure proper polarity when connecting the subwoofer to your amplifier. Incorrect wiring can lead to poor performance or damage to the subwoofer and amplebih hidup.

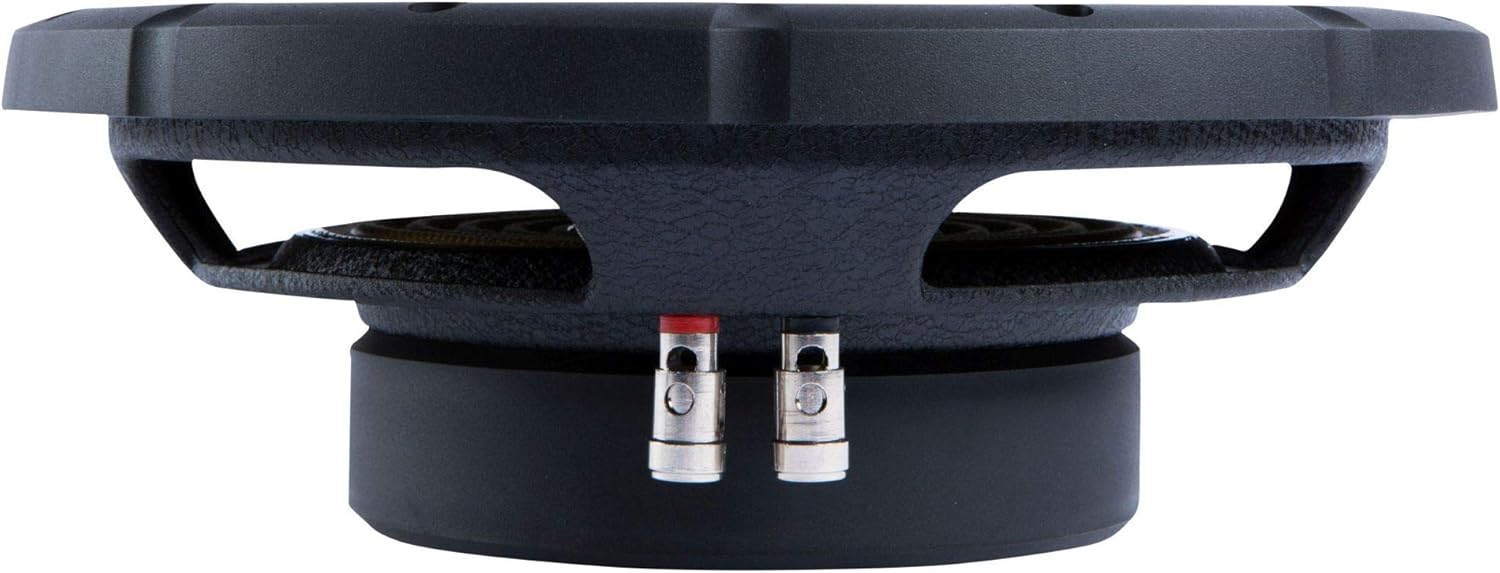

Imej: Sisi view of the Memphis Audio SRXS1040 subwoofer, displaying the red and black 12 AWG compression terminals for speaker wire connection. This angle also shows the shallow depth of the subwoofer.

This is a single 4-ohm subwoofer. Match the subwoofer's impedance to your amplifier's stable output impedance. Refer to your amplifier's manual for specific wiring configurations and impedance loads.

Imej: Belakang view of the Memphis Audio SRXS1040 subwoofer, showing the magnet structure, model number (SRXS1040), power ratings (250W/500W), and the red and black terminals. This view provides identification details and connection points.

Arahan Operasi

Once installed, follow these guidelines for optimal performance:

• Tempoh Pecah Masuk: Allow a break-in period of approximately 10-20 hours of moderate listening before operating the subwoofer at high volumes. This allows the suspension components to loosen and perform optimally.
• Tetapan Keuntungan: Tetapkan anda amplifier's gain correctly to match the output voltage of your head unit. Incorrect gain settings can lead to distortion and potential damage.
• Tetapan Crossover: Gunakan penapis laluan rendah (LPF) pada anda amplifier or head unit to send only low frequencies to the subwoofer. A typical LPF setting for subwoofers is between 80Hz and 120Hz.
• Penapis Subsonik: Jika anda amplifier has a subsonic filter, enable it and set it below your enclosure's tuning frequency (for ported enclosures) to protect the subwoofer from over-excursion.
• Dengar Penyelewengan: If you hear any distortion, reduce the volume immediately. Prolonged operation with distortion can cause permanent damage.

Penyelenggaraan

The Memphis Audio SRXS1040 subwoofer requires minimal maintenance:

• Pembersihan: Gunakan kain lembut dan kering untuk mengelap kon dan sekelilingnya. Elakkan menggunakan bahan kimia yang keras atau kelembapan berlebihan.
• Pemeriksaan: Periodically inspect the subwoofer for any signs of damage to the cone, surround, or terminals. Ensure all mounting screws are secure.
• Faktor Persekitaran: Protect the subwoofer from extreme temperatures, direct sunlight, and moisture, which can degrade materials over time.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

The Memphis Audio SRXS1040 subwoofer comes with a Waranti terhad 1 tahun dari tarikh pembelian. Waranti ini melindungi kecacatan pada bahan dan mutu kerja di bawah penggunaan biasa.

The warranty does not cover damage caused by improper installation, abuse, accident, neglect, or unauthorized repair. For warranty claims or technical support, please contact Memphis Audio customer service or your authorized dealer with your proof of purchase.

For further assistance, visit the official Memphis Audio webtapak atau hubungi saluran sokongan mereka.
