Lindby Hakan Outdoor Wall Light Instruction Manual

1. Pengenalan

Thank you for choosing the Lindby Hakan Outdoor Wall Light. This modern fixture, crafted from stainless steel, is designed to provide reliable and aesthetically pleasing illumination for your outdoor areas. Its IP44 rating ensures protection against splashing water, making it suitable for terraces, gardens, balconies, and other exterior applications. This manual provides essential information for safe installation, operation, and maintenance of your new light.

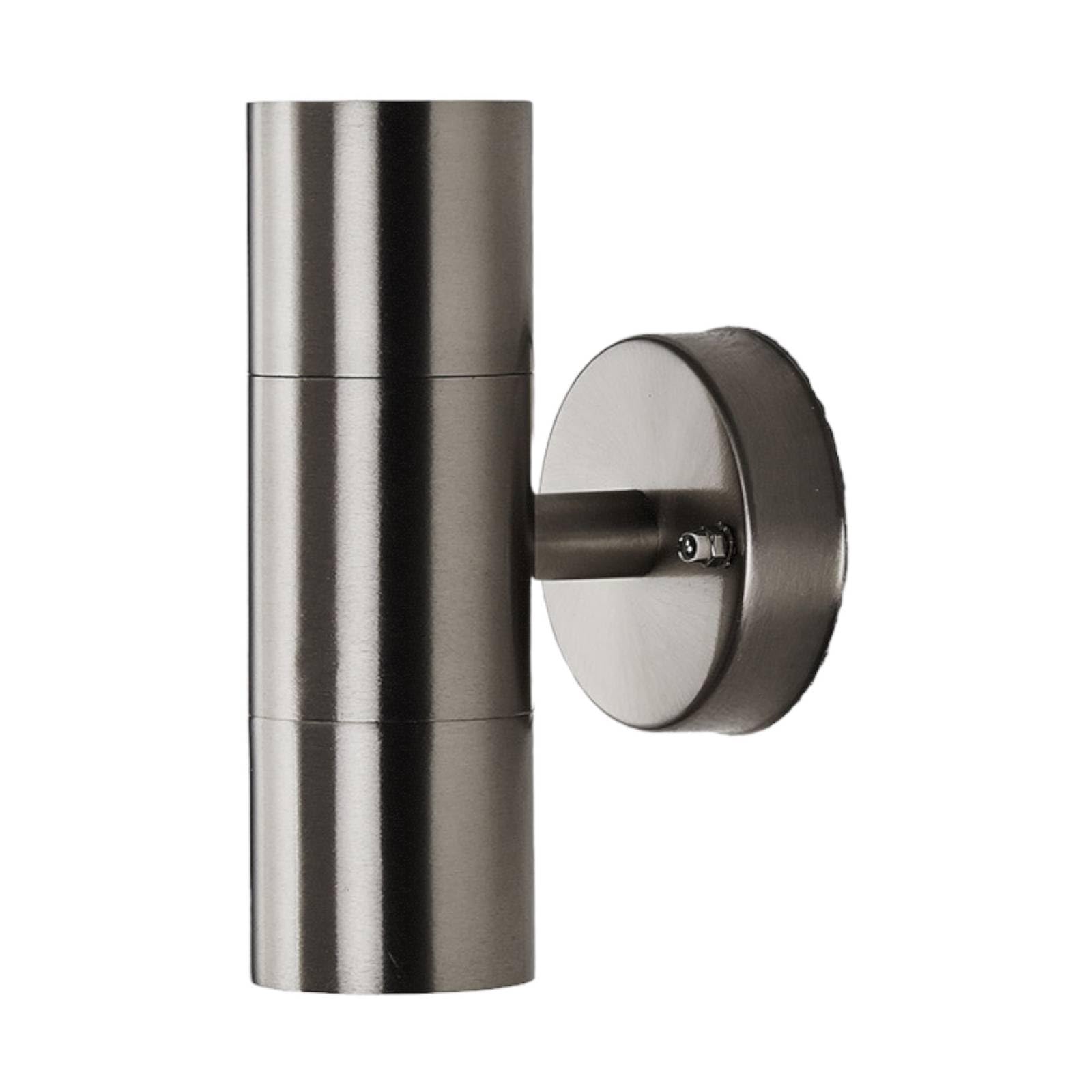

Figure 1: Lindby Hakan Outdoor Wall Light in operation.

2. Maklumat Keselamatan

Sila baca semua arahan keselamatan dengan teliti sebelum pemasangan dan penggunaan. Simpan manual ini untuk rujukan pada masa hadapan.

• Keselamatan Elektrik: Installation must be performed by a qualified electrician in accordance with local wiring regulations. Always disconnect power at the main circuit breaker before installation, maintenance, or bulb replacement.
• Voltage: Pastikan bekalan voltage matches the fixture's requirements (230V).
• Penilaian IP44: This fixture is protected against splashing water from any direction. It is suitable for outdoor use but should not be submerged in water.
• Jenis Mentol: Use only GU10 bulbs with a maximum wattag35W setiap mentol. Jangan melebihi kuasa yang ditetapkantage.
• Pengendalian: Kendalikan lekapan dengan berhati-hati untuk mengelakkan kerosakan. Jangan ubah suai produk dalam apa jua cara.
• haba: Light bulbs can become hot. Allow them to cool before touching or replacing.

3. Kandungan Pakej

Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:

• 1 x Lindby Hakan Outdoor Wall Light fixture
• Perkakasan pemasangan (skru, palam dinding)
• Manual Arahan

Nota: Light bulbs (GU10, max 35W) are tidak termasuk dan mesti dibeli secara berasingan.

4. Spesifikasi

5. Persediaan dan Pemasangan

Penting: Pastikan bekalan kuasa utama dimatikan pada pemutus litar sebelum memulakan pemasangan.

1. Sediakan Permukaan Pemasangan: Choose a suitable outdoor wall location. Mark the drilling points for the mounting bracket.
2. Lubang gerudi: Drill holes at the marked positions and insert appropriate wall plugs (if required for your wall type).
3. Pasang Pendakap Pelekap: Pasangkan pendakap pelekap pada dinding menggunakan skru yang disediakan.
4. Pendawaian:
   • Carefully open the wiring compartment of the fixture.
   • Connect the mains electrical wires to the terminal block inside the fixture. Ensure correct polarity: Live (L), Neutral (N), and Earth (E).
   • Pastikan semua sambungan selamat dan terlindung dengan betul.


   Figure 2: Internal wiring connections. Ensure proper connection of Live, Neutral, and Earth wires.

5. Pasang Lekapan: Attach the light fixture body to the mounting bracket, ensuring it is securely fastened.
6. Pasang Mentol: Insert two GU10 bulbs (max 35W each) into the lamp holders. Twist to secure them.
7. Seal and Test: Close the fixture securely, ensuring all seals are correctly seated to maintain the IP44 rating. Restore power at the circuit breaker and test the light.

Figure 3: Lindby Hakan fixture ready for bulb installation and final mounting.

6. Arahan Operasi

The Lindby Hakan Outdoor Wall Light operates by a standard wall switch connected to its power supply. Once installed and wired correctly, simply toggle the connected switch to turn the light on or off.

• Hidupkan/Mati Kuasa: Use the designated wall switch to control the light.
• Jenis Mentol: This fixture uses GU10 bulbs. Ensure you use bulbs within the specified wattage range (max 35W per bulb).

7. Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your Lindby Hakan light.

• Pembersihan:
  • Sentiasa putuskan sambungan kuasa sebelum membersihkan.
  • Lap permukaan keluli tahan karat dengan kain lembut,amp cloth. For stubborn dirt, use a mild, non-abrasive cleaner specifically designed for stainless steel.
  • Avoid abrasive materials or harsh chemicals, as these can damage the finish.
  • Pastikan lekapan benar-benar kering sebelum memulihkan kuasa.
• Penggantian mentol:
  • Putuskan sambungan kuasa pada pemutus litar.
  • Allow the old bulb to cool completely before touching.
  • Carefully remove the old GU10 bulb by pushing it in and twisting counter-clockwise.
  • Insert the new GU10 bulb by aligning the pins, pushing it in, and twisting clockwise until secure.
  • Pulihkan kuasa dan ujian.

8. Penyelesaian masalah

If you encounter issues with your Lindby Hakan light, refer to the following common problems and solutions:

Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi khidmat pelanggan atau juruelektrik yang berkelayakan.

9. Waranti dan Sokongan

Lindby products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation or the Lindby webtapak untuk terma dan syarat waranti tertentu.

For technical support, replacement parts, or warranty claims, please contact your retailer or visit the official Lindby webtapak untuk maklumat hubungan.

Sumber Dalam Talian: Lindby Brand Store on Amazon
