Rola 59970 DFE Series End Support Instruction Manual

pengenalan

This manual provides detailed instructions for the proper installation, operation, and maintenance of your Rola 59970 DFE Series End Support. This product is designed to securely attach cross bars to your vehicle's door frames, forming part of a complete roof rack system. Please read all instructions carefully before installation and use.

Maklumat Keselamatan

• Sentiasa pastikan semua komponen diikat dengan selamat sebelum memandu.
• Do not exceed the maximum load capacity specified for your vehicle's roof or the Rola roof rack system.
• Regularly inspect the end supports and cross bars for any signs of wear, damage, or loose connections.
• Refer to your vehicle's owner's manual for specific roof load limits and recommendations.
• This product is designed for use with Rola Rail Extreme Cross Bar Kits and a vehicle-specific DF Fit Kit (sold separately).

Kandungan Pakej

The Rola 59970 DFE Series End Support package includes:

• DFE Series End Support (1 Pack)
• Note: Rola Rail Extreme Cross Bar Kit and vehicle-specific DF Fit Kit are sold separately and are required for complete installation.

Persediaan dan Pemasangan

The Rola 59970 DFE Series End Supports are designed for quick and easy installation when combined with the appropriate Rola Rail Extreme Cross Bar Kit and a vehicle-specific DF Fit Kit.

Komponen yang Diperlukan (Dijual Secara Berasingan):

• Rola Rail Extreme Cross Bar Kit
• Vehicle-specific DF Fit Kit
• Rola Tensioning Tool (typically included with Cross Bar Kit or Fit Kit)

Langkah Pemasangan:

1. Prepare Vehicle and Fit Kit: Ensure your vehicle's roof and door frames are clean and free of debris. Consult the instructions provided with your vehicle-specific DF Fit Kit for initial preparation and attachment points.

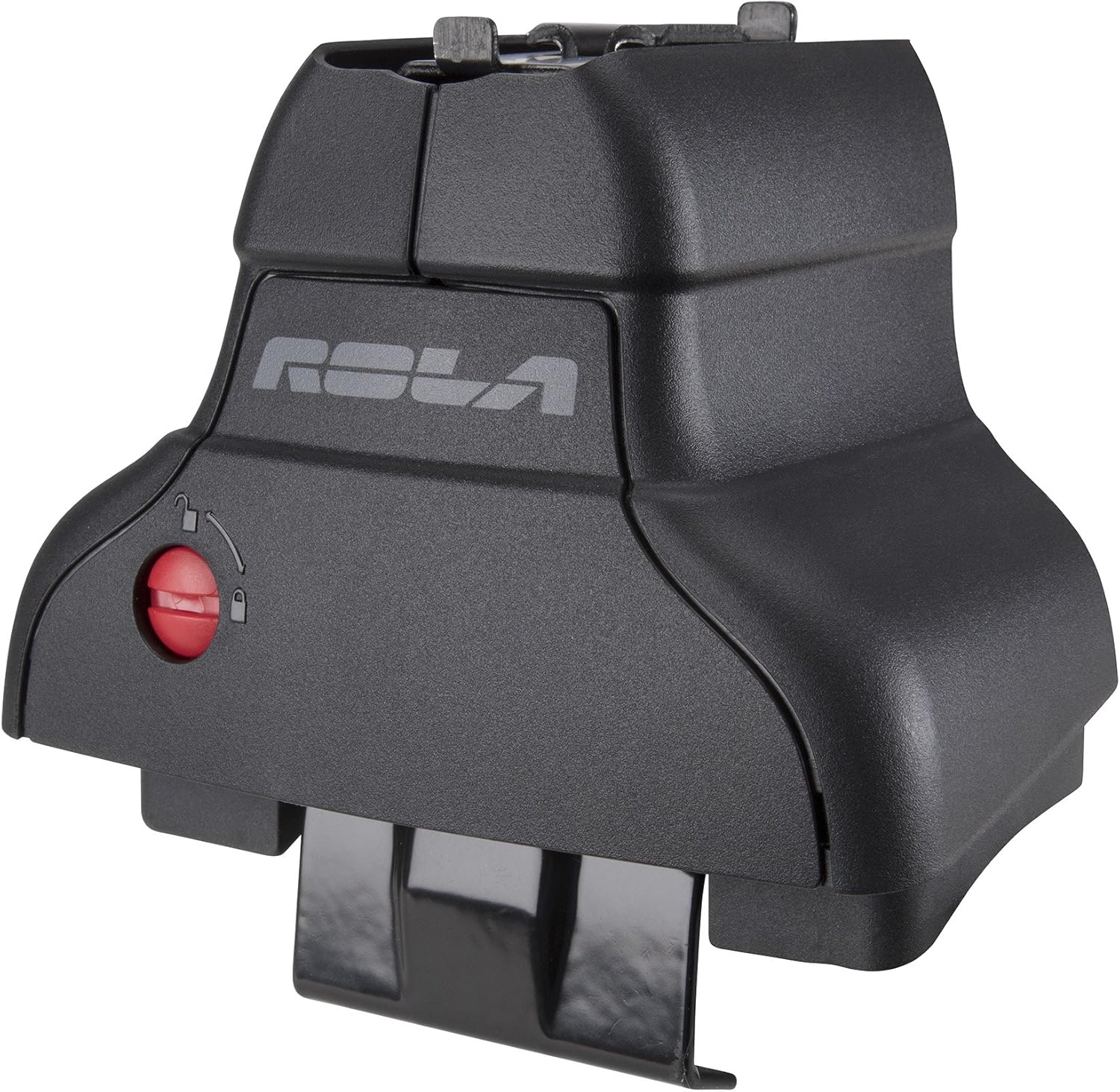

   Rajah 1: Depan view of the Rola 59970 DFE Series End Support. This image shows the main body of the support with the Rola logo and the red locking mechanism on the side.

2. Attach End Supports to Cross Bars: Slide the DFE Series End Supports onto the Rola Rail Extreme Cross Bars. Position them according to the setting marks provided on the cross bars or as indicated in your specific fit kit instructions.


   Rajah 2: Atas view of the Rola 59970 DFE Series End Support. This perspective highlights the top locking mechanism and the overall shape of the support.

3. Kedudukan di atas Kenderaan: Carefully place the assembled cross bars with end supports onto your vehicle's door frames, aligning them with the attachment points from your DF Fit Kit. The end supports are designed to clamp securely to the door frame.


   Rajah 3: Buka view of the Rola 59970 DFE Series End Support. This image shows the internal clamping mechanism and how it would engage with a vehicle's door frame.
4. Secure the Supports: Lock the levers down on each end support to initially secure them. Use the provided Rola tensioning tool to tighten the supports to the setting marks. This ensures a precise and secure fit.


   Figure 4: Rola 59970 DFE Series End Support installed on a vehicle's roof. This image demonstrates how the end support integrates with a cross bar and attaches to the vehicle's door frame.

5. Semakan Akhir: After tightening, ensure all four end supports are firmly attached and the cross bars are level and stable. Attempt to move the entire rack system to confirm it is securely mounted.

Operating the Locking Mechanism

The DFE Series End Supports feature a lockable outer cover for added security. This mechanism helps deter theft of your roof rack system.

• To lock the end support, insert your Rola One Key core system key (available separately) into the lock cylinder and turn it to the locked position.
• To unlock, insert the key and turn it to the unlocked position.
• Ensure all end supports are locked when the vehicle is unattended or when transporting cargo.

Penyelenggaraan

Regular maintenance ensures the longevity and safe operation of your Rola DFE Series End Supports.

• Pembersihan: Clean the end supports with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Pemeriksaan: Periodically check all mounting points, bolts, and levers for tightness and signs of wear or corrosion. Re-tighten as necessary.
• Pelinciran: Lightly lubricate moving parts of the locking mechanism with a silicone-based lubricant if they become stiff.
• Storan: If removing the roof rack system for extended periods, store the end supports in a clean, dry place away from direct sunlight.

Menyelesaikan masalah

Spesifikasi

• Nombor Model: 59970
• Jenama: Rola
• Berat Barang: 7.19 paun
• Dimensi Pakej: 20.53 x 6 x 6 inci
• Jenis Pemasangan: Strap (requires vehicle-specific DF Fit Kit)
• Keserasian: Requires Rola Rail Extreme Cross Bar Kit and vehicle-specific DF Fit Kit
• Boleh dikunci: Yes, with Rola One Key core systems (sold separately)

Waranti dan Sokongan

For specific warranty information and customer support, please refer to the documentation included with your purchase or visit the official Rola webtapak. Simpan bukti pembelian anda untuk tuntutan waranti.
