परिचय
The Acora R22189132 LED Solar Outdoor Wall Light is designed to provide reliable and energy-efficient illumination for outdoor areas such as driveways, garden paths, and yards. This unit features an integrated solar panel for battery charging, a motion sensor for automatic activation, and a twilight sensor for operation in low light conditions. Control options include a remote control for adjusting brightness and operating modes. Constructed from durable plastic with an IP65 rating, it is built to withstand various weather conditions.
प्रतिमा: समोर view of the Acora LED Solar Outdoor Wall Light, showcasing its square design and central motion sensor.
सुरक्षितता सूचना
- सर्व विद्युत जोडण्या सुरक्षित आणि आर्द्रतेपासून संरक्षित असल्याची खात्री करा.
- Do not attempt to open or modify the product. Refer servicing to qualified personnel.
- Mount the light and solar panel securely to prevent falling.
- कार्यक्षम चार्जिंग सुनिश्चित करण्यासाठी सौर पॅनेल स्वच्छ आणि अडथळ्यांपासून मुक्त ठेवा.
- स्थानिक नियमांनुसार उत्पादन आणि त्याची बॅटरी जबाबदारीने विल्हेवाट लावा.
Image: Diagram illustrating different IP classifications for outdoor lighting, indicating suitable installation zones.
पॅकेज सामग्री
स्थापनेपूर्वी सर्व घटक उपस्थित आहेत याची खात्री करा:
- Acora LED Solar Outdoor Wall Light unit
- Solar Panel with 2-meter connection cable
- रिमोट कंट्रोल
- माउंटिंग सूचना
- माउंटिंग हार्डवेअर (स्क्रू, अँकर)
सेटअप आणि स्थापना
१. स्थान निवडणे
Select a location for the light unit that provides the desired illumination coverage. For the solar panel, choose a spot that receives direct sunlight for 8-10 hours daily to ensure optimal charging. The 2-meter cable allows flexible placement of the solar panel relative to the light unit.
2. Mounting the Light Unit
- Mark the desired mounting points for the light unit on the wall.
- आवश्यक असल्यास पायलट होल ड्रिल करा आणि योग्य भिंतीवरील अँकर घाला.
- Secure the light unit to the wall using the provided screws.
४.२. सौर पॅनेल बसवणे
- Mark the desired mounting points for the solar panel.
- पायलट होल ड्रिल करा आणि योग्य भिंतीवरील अँकर घाला.
- Secure the solar panel to the wall, ensuring it can be angled towards the sun.
- Connect the solar panel cable to the light unit's input port. Ensure the connection is tight and secure to maintain IP65 rating.
Image: The Acora light unit connected to its separate solar panel via a cable, ready for installation.

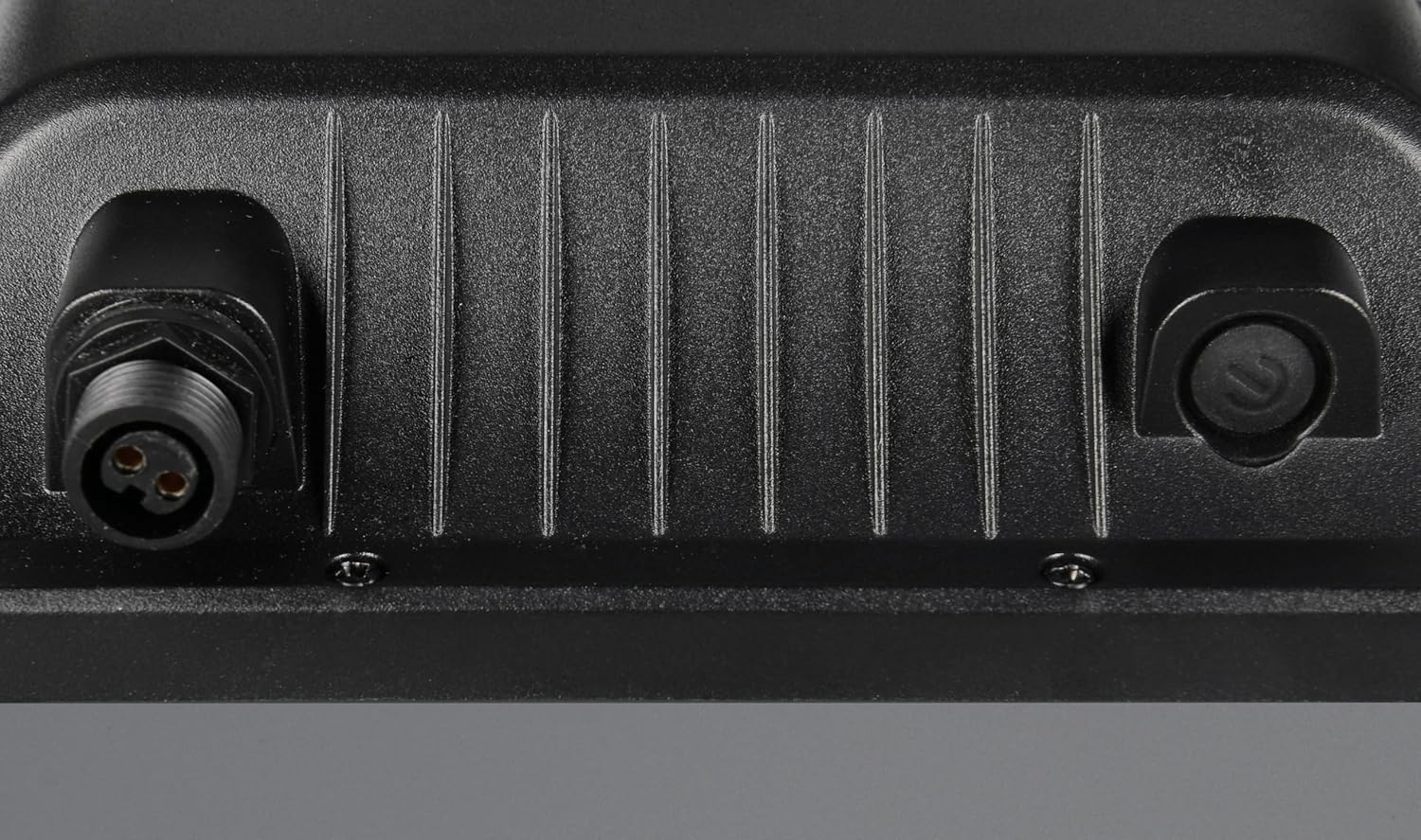

प्रतिमा: क्लोज-अप view of the secure, waterproof connection ports on the back of the light unit.
Image: The Acora light and solar panel installed on an exterior wall, demonstrating typical outdoor placement.
१. सुरुवातीचे चार्जिंग
Allow the solar panel to charge the internal battery for 8-10 hours in direct sunlight before first use. This ensures the battery is fully charged for optimal performance.
ऑपरेटिंग सूचना
The Acora light features a motion sensor, twilight sensor, and remote control for versatile operation.
रिमोट कंट्रोल फंक्शन्स
Use the provided remote control to select operating modes and adjust settings:
- चालू/बंद: Manually turn the light on or off.
- चमक: Adjust light intensity to 100%, 50%, or dimming options.
- PIR Mode with Orientation Light: The light activates at full brightness upon motion detection and then dims to a low orientation light after a set period of no motion.
- Auto Mode (30%): The light automatically turns on at 30% brightness in darkness and remains on.
- टाइमर: Set the light to operate for a specific duration (3h, 5h, or 8h).
सेन्सर ऑपरेशन
- मोशन सेन्सर: Detects movement up to 8 meters within a 120° angle. The light will activate or brighten when motion is detected, depending on the selected mode.
- ट्वायलाइट सेन्सर: Automatically detects ambient light levels, enabling the light to operate only when it is dark enough.
Image: Graphic display of feature icons including remote control, 4000K color temperature, timer, battery, solar charging, twilight sensor, motion sensor, and IP65 rating.
Image: Detailed close-up of the integrated motion sensor, located centrally on the light unit.
देखभाल
- स्वच्छता: नियमितपणे सौर पॅनेल आणि प्रकाश पृष्ठभाग मऊ, डी ने पुसून टाका.amp धूळ, घाण आणि कचरा काढण्यासाठी कापड. स्वच्छ सौर पॅनेल कार्यक्षम चार्जिंग सुनिश्चित करते.
- तपासणी: Periodically check the mounting hardware and cable connections for tightness and signs of wear or damage.
- बॅटरी: The integrated battery is designed for long-term use. If the light duration significantly decreases over time, ensure the solar panel is receiving adequate sunlight and is clean.
समस्यानिवारण
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| रात्री लाईट चालू होत नाही. | Insufficient solar panel charging. Battery depleted. Twilight sensor not detecting darkness. | Ensure solar panel is in direct sunlight for 8-10 hours. Clean solar panel. Check for obstructions blocking the twilight sensor. |
| मोशन सेन्सर काम करत नाही. | Sensor obstructed. Incorrect mode selected. | सेन्सरच्या क्षेत्रातून येणारे कोणतेही अडथळे दूर करा view. Use remote control to select PIR mode. |
| प्रकाशाचा कालावधी अपेक्षेपेक्षा कमी आहे. | Insufficient charging. Old battery. | Ensure maximum sun exposure for the solar panel. If the issue persists after prolonged use, the battery may be nearing its end of life. |
| रिमोट कंट्रोल प्रतिसाद देत नाही. | Remote battery depleted. Obstruction between remote and light. | Replace remote control battery. Ensure clear line of sight to the light unit. |
तपशील
| वैशिष्ट्य | तपशील |
|---|---|
| मॉडेल क्रमांक | R22189132 |
| ब्रँड | RL LIVE YOUR LIGHT |
| साहित्य | प्लास्टिक |
| रंग | मॅट ब्लॅक |
| प्रकाश स्रोत | एकात्मिक एलईडी |
| वाटtage | 18 वॅट्स |
| चमक | 2600 लुमेन |
| रंग तापमान | ४००० केल्विन (तटस्थ पांढरा) |
| उर्जा स्त्रोत | सौरऊर्जेवर चालणारी |
| विशेष वैशिष्ट्ये | Motion Sensor, Twilight Sensor, Remote Control, Energy Efficient |
| मोशन सेन्सर डिटेक्शन | 8m / 120° |
| संरक्षण वर्ग | IP65 (Dust-proof, protected against jet water) |
| चार्जिंग वेळ | Approx. 8-10 hours (full sunlight) |
| ऑपरेटिंग वेळ | Approx. 8-9 hours (full battery) |
| उत्पादनाची परिमाणे (L x W x H) | 45L x 200W x 190H मिमी |
| आयटम वजन | 1.93 किलोग्रॅम |
| ऊर्जा कार्यक्षमता वर्ग | F |
Image: Technical drawing showing detailed dimensions of the Acora light unit and its solar panel.
Image: Energy efficiency label indicating class F for the product.
हमी आणि समर्थन
वॉरंटी माहिती किंवा तांत्रिक समर्थनासाठी, कृपया तुमच्या खरेदीसोबत दिलेल्या कागदपत्रांचा संदर्भ घ्या किंवा थेट उत्पादकाशी संपर्क साधा. वॉरंटी दाव्यांसाठी तुमचा खरेदीचा पुरावा ठेवा.
