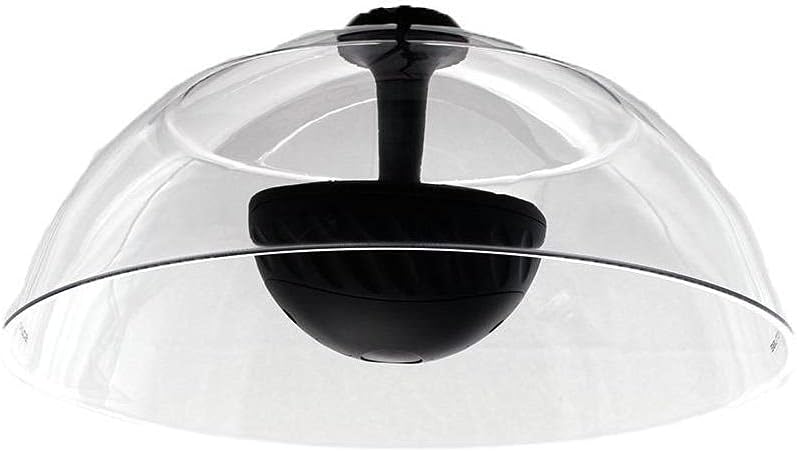

SoundTube FP6020-II 20" Stereo Dual-Parabolic SoundDome Speaker

परिचय

Thank you for choosing the SoundTube FP6020-II Stereo Dual-Parabolic SoundDome Speaker. This manual provides essential information for the proper installation, operation, and maintenance of your speaker. Please read this manual thoroughly before use to ensure optimal performance and safety.

The SoundTube FP6020-II features twin 1-inch high-excursion drivers within a 20-inch dual-parabolic dome, designed to deliver focused stereo audio. It supports 8-ohm stereo or 4/16-ohm mono configurations and includes a selectable high-pass filter.

पॅकेज सामग्री

पॅकेजमध्ये सर्व वस्तू आहेत का ते तपासा:

• SoundTube FP6020-II SoundDome Speaker
• माउंटिंग हार्डवेअर
• 15-foot Hardwire Lead

महत्वाची सुरक्षितता माहिती

• स्थापना आणि वापरण्यापूर्वी या सूचना काळजीपूर्वक वाचा.
• भविष्यातील संदर्भासाठी या सूचना ठेवा.
• उत्पादनावरील आणि ऑपरेटिंग निर्देशांमधील सर्व इशाऱ्यांकडे लक्ष द्या.
• सर्व सूचनांचे अनुसरण करा.
• हे उपकरण पाण्याजवळ वापरू नका.
• फक्त कोरड्या कापडाने स्वच्छ करा.
• कोणत्याही वायुवीजन छिद्रांना अडथळा आणू नका. उत्पादकाच्या सूचनांनुसार स्थापित करा.
• रेडिएटर्स, उष्णता रजिस्टर, स्टोव्ह किंवा इतर उपकरणे (यासह amplifiers) जे उष्णता निर्माण करतात.
• पात्र सेवा कर्मचाऱ्यांना सर्व सेवांचा संदर्भ द्या. कोणत्याही प्रकारे उपकरण खराब झाल्यावर सेवा आवश्यक आहे.

सेटअप आणि स्थापना

The SoundTube FP6020-II is designed for wall mount installation. Ensure the mounting surface is structurally sound to support the speaker's weight (approximately 12.25 lbs / 5.57 kg).

1. अनपॅक करणे: Carefully remove the speaker and all components from the packaging. Inspect for any damage.
2. माउंटिंग स्थान: Select a suitable location for mounting. Consider the desired audio coverage area and ensure adequate clearance for the 20-inch dome.
3. माउंटिंग हार्डवेअर: Use the provided mounting hardware to securely attach the speaker to the chosen surface. Follow the specific instructions included with the mounting kit for your installation type.
4. वायरिंग: Connect the 15-foot hardwire lead to your audio amplifier. The speaker supports 8-ohm stereo or 4/16-ohm mono configurations. Consult your amplifier's manual for proper wiring procedures. Ensure correct polarity.
5. हाय-पास फिल्टर: The speaker includes a selectable high-pass filter. Adjust this setting based on your audio system requirements and desired frequency response. Refer to the detailed wiring diagram (if provided in a separate sheet) for filter selection.

ऑपरेशन

Once properly installed and connected, operating the SoundTube FP6020-II is straightforward:

1. पॉवर चालू: तुमच्या ऑडिओची खात्री करा amplifier is powered on and connected to an audio source (e.g., smartphone, tablet, MP3 player, desktop, television, projector, laptop).
2. आवाज नियंत्रण: तुमचा वापरून आवाज पातळी समायोजित करा amplifier or audio source. Start with a low volume and gradually increase it to a comfortable listening level.
3. ऑडिओ स्रोत: Play audio from your chosen device. The speaker will project sound within its focused parabolic field.
4. नियंत्रण पद्धत: The speaker itself does not have direct controls; all audio adjustments are made via the connected audio source or ampलाइफायर

देखभाल आणि काळजी

To ensure the longevity and optimal performance of your SoundTube FP6020-II speaker, follow these maintenance guidelines:

• स्वच्छता: Use a soft, dry cloth to gently wipe the parabolic dome and speaker unit. Avoid abrasive cleaners, solvents, or excessive moisture, as these can damage the surfaces.
• तपासणी: Periodically check the mounting hardware and wiring connections to ensure they remain secure.
• पर्यावरण: Avoid exposing the speaker to extreme temperatures, high humidity, or direct sunlight for prolonged periods. The speaker is not waterproof.

समस्यानिवारण

तपशील

हमी माहिती

The SoundTube FP6020-II speaker comes with a Limited Warranty. Please refer to the warranty card included with your product or visit the official SoundTube webकव्हरेज, कालावधी आणि दाव्यांच्या प्रक्रियेबाबत तपशीलवार अटी आणि शर्तींसाठी साइट.

ग्राहक समर्थन

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact SoundTube customer support. Visit the official SoundTube webसंपर्क तपशील, वारंवार विचारले जाणारे प्रश्न आणि अतिरिक्त संसाधनांसाठी साइट.

निर्माता: साउंडट्यूब

मॉडेल क्रमांक: FP6020-II
