परिचय
This user manual provides detailed instructions for the installation and use of the Kufatec Halogen to Bi-Xenon Headlight Adapter Kit. This kit is designed to facilitate the conversion of vehicles equipped with halogen headlights to bi-xenon headlights, ensuring proper electrical connection and functionality. Manufactured in Germany, this adapter kit offers a reliable solution for headlight upgrades.
उत्पादन संपलेview

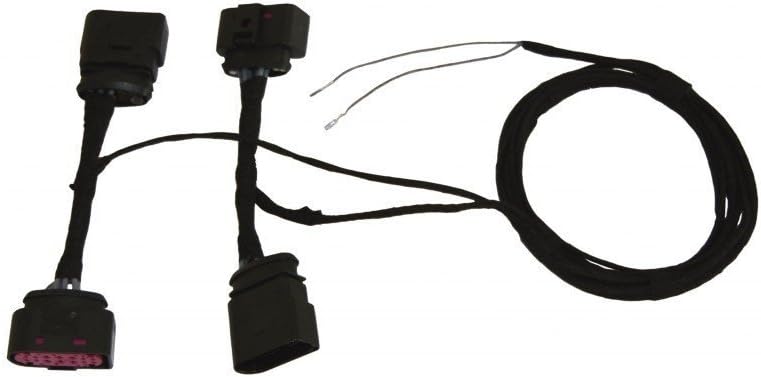

आकृती 1: Kufatec Halogen to Bi-Xenon Adapter Kit. The image displays two primary adapter connectors, designed to interface with existing vehicle wiring, and an additional loose wire for connection to the on-board control unit. The adapters are black with visible wiring harnesses.
The Kufatec adapter kit consists of specialized wiring harnesses and connectors that bridge the electrical systems between your vehicle's existing halogen headlight wiring and the new bi-xenon headlights. It includes the necessary components to ensure seamless integration.
सुसंगतता
This adapter kit is compatible with the following Audi models:
- Audi A4 / S4 B8 + Avant (सर्व मॉडेल्स)
- Audi A5 / S5 8T + Sportback + Cabriolet (सर्व मॉडेल्स)
Please ensure your vehicle model matches the listed compatibility before proceeding with installation.
सेटअप आणि स्थापना
महत्वाची सुरक्षितता टीप: Before beginning any electrical work on your vehicle, ensure the vehicle's battery is disconnected to prevent electrical shorts or damage. If you are unsure about any step, consult a qualified automotive technician.
- तयारी: तुमचे वाहन सपाट पृष्ठभागावर पार्क करा आणि पार्किंग ब्रेक लावा. वाहनाच्या बॅटरीचे निगेटिव्ह टर्मिनल डिस्कनेक्ट करा.
- Access Headlight Wiring: Carefully remove the existing halogen headlights from your vehicle. This may involve removing bumper components or fender liners depending on your vehicle model. Access the existing headlight wiring connectors.
- अॅडॉप्टर्स कनेक्ट करा: The Kufatec adapter kit is designed for plug-and-play installation. Simply insert the adapter connectors between the vehicle's existing wiring harness and the new bi-xenon headlights. Ensure all connections are secure and fully seated.
- Connect Additional Cable: For bi-xenon headlights, an additional cable is provided with the kit. This cable must be routed and connected to the vehicle's on-board control unit (BCM or similar module). Refer to your vehicle's specific wiring diagrams or a professional guide for the exact connection point on the control unit. This connection is crucial for proper bi-xenon functionality (e.g., shutter control for high beam).
- सुरक्षित वायरिंग: Once all connections are made, ensure that all wiring is neatly routed and secured to prevent chafing, pinching, or interference with moving parts. Use zip ties or automotive tape as needed.
- Reinstall Headlights: Carefully reinstall the new bi-xenon headlights into their housings. Reattach any removed vehicle components (bumper, fender liners, etc.).
- बॅटरी पुन्हा कनेक्ट करा: वाहनाच्या बॅटरीचे निगेटिव्ह टर्मिनल पुन्हा कनेक्ट करा.
- चाचणी कार्यक्षमता: Turn on your vehicle and test all headlight functions: low beam, high beam, turn signals, and parking lights. Verify that the bi-xenon function (shutter movement for high beam) operates correctly.
- Headlight Aiming: After installation, it is highly recommended to have your new bi-xenon headlights professionally aimed to ensure proper light distribution and to avoid blinding oncoming traffic.
ऑपरेटिंग सूचना
Once installed, the Kufatec adapter kit allows your vehicle's electrical system to properly control the bi-xenon headlights. Operation of the headlights (e.g., turning them on/off, switching between low and high beam) will typically remain the same as with your original halogen setup, controlled via your vehicle's standard light switch and stalk.
- कमी बीम: Activate your vehicle's low beam function as usual.
- उच्च प्रकाशझोत: Activate your vehicle's high beam function. The bi-xenon projector's internal shutter will open to provide the high beam pattern.
- Automatic Headlights: If your vehicle is equipped with automatic headlight functionality, it should continue to operate as designed, controlling the bi-xenon headlights based on ambient light conditions.
देखभाल
The Kufatec adapter kit itself requires minimal maintenance. It is designed to be a fit-and-forget component. However, regular checks of your vehicle's electrical system and headlight functionality are always recommended.
- व्हिज्युअल तपासणी: Periodically inspect the adapter connections and wiring for any signs of wear, corrosion, or damage. Ensure all connections remain secure.
- स्वच्छता: Keep the headlight area clean from dirt and debris, which can affect light output and potentially damage wiring over time.
- व्यावसायिक तपासणी: If you notice any flickering, intermittent operation, or error messages related to your headlights, consult a qualified technician.
समस्यानिवारण
If you encounter issues after installing the Kufatec adapter kit, consider the following:
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| हेडलाइट्स चालू होत नाहीत. | कनेक्शन सैल, फ्यूज फुटला, चुकीचे वायरिंग. | Check all adapter connections. Verify vehicle fuses related to headlights. Double-check the additional cable connection to the on-board control unit. |
| High beam not working. | Incorrect connection of the additional cable, faulty bi-xenon projector shutter. | Ensure the additional cable to the on-board control unit is correctly connected. Test the bi-xenon projector's shutter mechanism if possible. |
| Error message on dashboard (e.g., "Headlight Malfunction"). | Vehicle's control unit not recognizing new headlights, CAN bus communication issue. | Ensure all connections are secure. Some vehicles may require coding or adaptation with diagnostic software after a headlight upgrade. Consult a specialist. |
| Flickering headlights. | Unstable power supply, loose connection, incompatible ballast/bulb. | Check power connections. Ensure the bi-xenon components (ballasts, bulbs) are compatible and functioning correctly. |
If troubleshooting steps do not resolve the issue, it is recommended to seek assistance from a professional automotive electrician or a Kufatec authorized dealer.
तपशील
- उत्पादन प्रकार: Halogen to Bi-Xenon Headlight Adapter Kit
- ब्रँड: कुफाटेक
- मॉडेल क्रमांक: 44853236
- ASIN: B07RQRCLLS
- सुसंगतता: Audi A4/S4 B8, Audi A5/S5 8T (all models)
- उत्पादन: जर्मनी मध्ये केले
- कार्य: Converts electrical signals for bi-xenon headlight operation, including high beam shutter control.
हमी आणि समर्थन
Specific warranty information for this Kufatec product is not provided in the available documentation. For details regarding warranty coverage, technical support, or replacement parts, please contact the retailer where the product was purchased or visit the official Kufatec webसाइट. वॉरंटी दाव्यांसाठी तुमचा खरेदीचा पुरावा नेहमी जवळ ठेवा.
