Dieffematic 8K01MP-012 24VDC Swing Gate Opener System User Manual

1. परिचय

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Dieffematic 8K01MP-012 24VDC Swing Gate Opener System. This system is designed for automating swing gates up to 2 meters per leaf. Please read this manual thoroughly before beginning any installation or operation procedures to ensure proper functionality and to prevent damage or injury.

For additional support or detailed technical specifications, please refer to the official Dieffematic webसाइटवर जा किंवा अधिकृत सेवा कर्मचाऱ्यांशी संपर्क साधा.

2. सुरक्षितता माहिती

WARNING: Failure to follow these safety instructions could result in serious injury or death, and may void your warranty.

• Installation must be performed by qualified personnel in accordance with all local and national safety regulations.
• Ensure the main power supply is disconnected before performing any installation, maintenance, or repair work.
• मुलांना आणि पाळीव प्राण्यांना गेटच्या क्षेत्रापासून दूर ठेवा, विशेषतः ऑपरेशन दरम्यान.
• Do not attempt to repair or modify the system components yourself. Contact qualified service personnel.
• Ensure all safety devices (e.g., photocells, safety edges) are correctly installed and functioning before operating the gate.
• The gate must be in good mechanical condition and move freely before installing the automation system.

3. पॅकेज सामग्री

Carefully unpack the system and verify that all components are present and undamaged. If any items are missing or damaged, contact your supplier immediately.

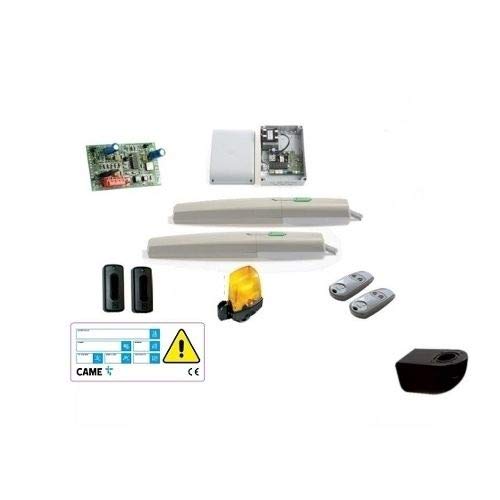

आकृती 1: ओव्हरview of the Dieffematic 8K01MP-012 swing gate opener system components. This image shows the main control unit, two linear actuators, and various mounting brackets and accessories.

A typical complete system package for the 8K01MP-012 includes:

• 2 x 24VDC Linear Actuators for swing gates
• 1 x Control Unit with integrated receiver
• 2 x Remote Controls (transmitters)
• 1 x Pair of Safety Photocells
• 1 x Flashing Light with integrated antenna
• Mounting Brackets and Fasteners
• वापरकर्ता मॅन्युअल आणि स्थापना मार्गदर्शक

4. सेटअप आणि स्थापना

IMPORTANT: Installation of this gate automation system requires technical expertise and adherence to electrical and mechanical safety standards. It is strongly recommended that installation be carried out by a qualified professional.

1. पूर्व-स्थापना तपासणी: Ensure the gate leaves are structurally sound, move freely without friction, and are properly balanced. Verify that there is adequate space for the actuators to operate without obstruction.
2. Mounting Actuators: Securely attach the linear actuators to the gate posts and gate leaves using the provided mounting brackets. Ensure correct alignment and leverage for smooth gate movement. Refer to the detailed installation diagrams in the separate installation guide for precise measurements and positioning.
3. नियंत्रण युनिट स्थापना: Mount the control unit in a protected, easily accessible location, away from direct weather exposure. Ensure proper ventilation.
4. विद्युत जोडणी: Connect the actuators, photocells, flashing light, and power supply to the control unit according to the wiring diagrams provided in the installation guide. All electrical connections must comply with local electrical codes. The system operates on 24VDC.
5. Safety Device Installation: Install the safety photocells at appropriate heights and distances to detect obstructions in the gate's path. Connect them to the control unit.
6. प्रारंभिक कॉन्फिगरेशन: Power on the system. Follow the control unit's programming instructions to set gate travel limits, operating speeds, and remote control pairing. Perform several test cycles to ensure smooth operation and correct functioning of all safety features.

5. ऑपरेटिंग सूचना

The Dieffematic 8K01MP-012 system is designed for user-friendly operation.

5.1. रिमोट कंट्रोल ऑपरेशन

• Press the assigned button on your remote control once to open the gate.
• Press the same button again while the gate is moving to stop it.
• Press the button a third time to reverse the gate's direction (e.g., if it was opening, it will start closing).
• The gate will automatically close after a preset time (if auto-close function is enabled).

३.५.८. मॅन्युअल ओव्हरराइड

In case of power failure or system malfunction, the gate can be operated manually.

1. Locate the manual release mechanism on each actuator (usually covered by a cap or flap).
2. Insert the provided key into the lock and turn it to disengage the motor.
3. Manually push the gate leaves open or closed.
4. To re-engage the motor, turn the key back to the locked position and operate the gate with the remote control to synchronize the actuators.

6. देखभाल

Regular maintenance ensures the longevity and reliable operation of your gate opener system.

6.1. Monthly Checks

• गेट हालचाल: Manually open and close the gate to check for any stiffness, grinding noises, or obstructions. Lubricate hinges if necessary.
• सुरक्षा उपकरणे: Test the photocells by breaking the beam with an object (e.g., a broom handle) while the gate is closing. The gate should stop or reverse.
• ॲक्ट्युएटर्स: Inspect actuators for any signs of wear, damage, or loose mounting. Clean any debris from the actuator rods.
• विद्युत जोडणी: Visually inspect all wiring for fraying or damage. Ensure connections are secure.

6.2. Annual Professional Service

It is recommended to have the system inspected and serviced by a qualified technician annually. This includes checking motor performance, control unit diagnostics, and lubrication of moving parts.

7. समस्या निवारण

हा विभाग तुम्हाला येऊ शकणाऱ्या सामान्य समस्यांबद्दल चर्चा करतो. येथे सूचीबद्ध नसलेल्या समस्यांसाठी, तांत्रिक समर्थनाशी संपर्क साधा.

8. तपशील

Key technical specifications for the Dieffematic 8K01MP-012 Swing Gate Opener System:

• मॉडेल: 8K01MP-012
• ब्रँड: Dieffematic
• वीज पुरवठा: 24 VDC
• Max Gate Leaf Length: 2 meters (per leaf)
• ASIN: B07JR1CMPX
• Availability on Amazon.it: From May 30, 2022
• अर्ज: Residential swing gates
• सुरक्षितता वैशिष्ट्ये: Obstacle detection, photocell input, manual release

9. हमी आणि समर्थन

Your Dieffematic 8K01MP-012 system comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including warranty duration and coverage details.

For technical assistance, spare parts, or warranty claims, please contact your authorized Dieffematic dealer or visit the official Dieffematic website for support contact information. When contacting support, please have your model number (8K01MP-012) and purchase date readily available.

ऑनलाइन संसाधने: For further information, installation videos (if available), and FAQs, please visit the Dieffematic Official Webसाइट.
