1. परिचय
This manual provides detailed instructions for the installation, operation, and maintenance of the Honda 08T70-GFY-660 Grip Heater, designed for the Honda Gyro X (TD02) model. This grip heater features a half-circular heating element for efficient hand warming, 5 adjustable temperature settings, and a voltage monitoring function to protect your vehicle's battery system.
2. सुरक्षितता माहिती
Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in property damage, injury, or improper function of the product.
- कोणतेही विद्युत काम करण्यापूर्वी वाहनाची बॅटरी नेहमीच डिस्कनेक्ट करा.
- शॉर्ट सर्किट टाळण्यासाठी सर्व वायरिंग कनेक्शन सुरक्षित आणि योग्यरित्या इन्सुलेटेड असल्याची खात्री करा.
- Do not modify the grip heater or its components. Use only genuine Honda parts for replacement.
- Avoid prolonged exposure to high heat settings, which may cause discomfort or damage to the grips.
- If you are unsure about any installation step, consult a qualified technician.
3. पॅकेज सामग्री
खाली सूचीबद्ध केलेल्या सर्व वस्तू पॅकेजमध्ये आहेत याची खात्री करा:
- Grip Heater (Left and Right)
- वायरिंग हार्नेस
- नियंत्रण स्विच
- Mounting Parts (screws, brackets, etc.)
आकृती 1: ओव्हरview of the Honda Grip Heater components.
4. स्थापना सूचना
This section outlines the steps for installing the grip heater on your Honda Gyro X (TD02). Ensure you have the necessary tools and follow all safety precautions.
- तयारी: Turn off the vehicle's ignition and disconnect the negative terminal of the battery to prevent electrical shorts during installation.
- Remove Existing Grips: Carefully remove the original grips from the handlebars. This may involve cutting them off or using compressed air to loosen them.
- Install New Grips: Slide the new Honda grip heaters onto the handlebars. Ensure the half-circular heating element is positioned correctly to warm the rider's hands effectively. Use a small amount of grip adhesive if recommended by Honda (not included).
- वायरिंग हार्नेस कनेक्ट करा: Route the wiring harness along the handlebars and frame, securing it with cable ties to prevent interference with moving parts. Connect the grip heater wires to the main wiring harness.
- Mount Control Switch: Select a convenient and accessible location on the handlebars for the control switch. Secure it using the provided mounting parts.
- Connect to Vehicle Power: Connect the main power wires of the grip heater harness to the vehicle's electrical system according to the vehicle's service manual. Ensure proper polarity. The system includes a voltage monitoring function that will automatically turn off the heater if vehicle voltage drops too low, protecting your battery.
- बॅटरी पुन्हा कनेक्ट करा आणि चाचणी करा: Reconnect the vehicle's battery. Turn on the ignition and test the grip heater functionality. Verify that all temperature settings work and the indicator lights function correctly.

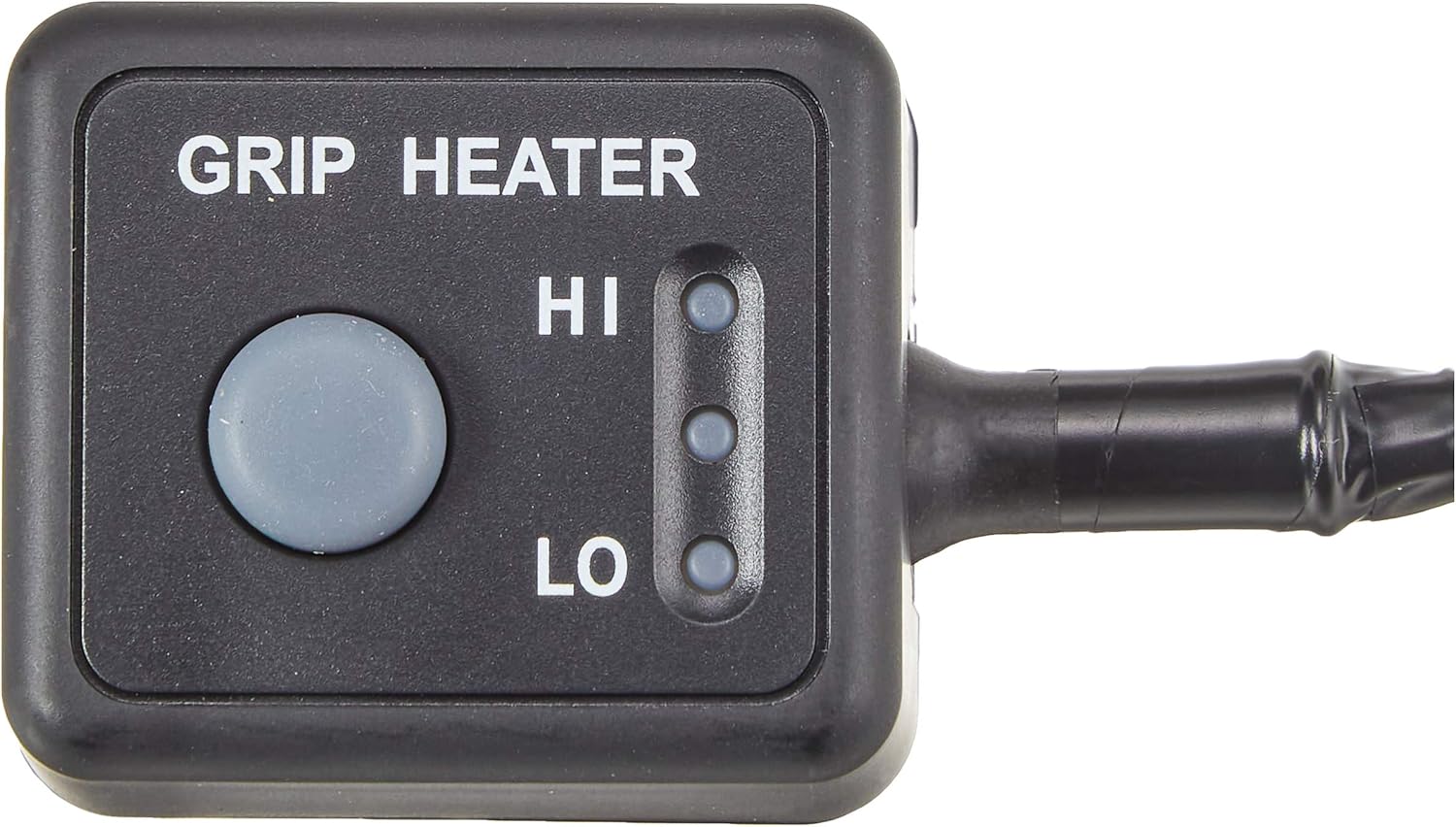

आकृती 2: Detail of the control switch for the grip heater.
5. ऑपरेशन
The Honda Grip Heater is designed for ease of use with its intuitive control switch.
- पॉवर चालू/बंद: Press and hold the push button on the control switch to turn the grip heater on or off.
- तापमान समायोजित करणे: Briefly press the push button to cycle through the 5 adjustable temperature settings. Indicator lights (HI/LO) will illuminate to show the current heat level.
- खंडtagई देखरेख: The system continuously monitors your vehicle's voltage जर व्हॉल्यूमtage drops below a safe operating level, the grip heater will automatically turn off, and the indicator lights will flash to alert you, preventing battery drain.
6. देखभाल
Regular maintenance ensures optimal performance and longevity of your grip heater.
- स्वच्छता: Wipe the grips and control switch with a damp कापड कठोर रसायने किंवा अपघर्षक क्लीनर वापरू नका.
- वायरिंग तपासणी: Periodically check all visible wiring for signs of wear, fraying, or damage. Ensure connections remain secure.
- Grip Condition: Inspect the grips for any tears or excessive wear. Replace if necessary to maintain comfort and heating efficiency.
7. समस्या निवारण
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| Grip heater does not turn on. | वीज नाही, कनेक्शन तुटले आहे, फ्यूज फुटला आहे. | Check battery connection. Inspect wiring harness for secure connections. Check vehicle's fuse box for a blown fuse. |
| Indicator lights flashing. | वाहन खंडtage खूप कमी आहे. | हा खंड आहेtage monitoring function. Start the engine to charge the battery. If the issue persists, check the vehicle's charging system. |
| Grips are not heating evenly. | Improper installation of grips or internal heating element issue. | Ensure grips are fully seated and correctly oriented. If problem persists, contact Honda service. |
8. तपशील
- मॉडेल क्रमांक: 08T70-GFY-660
- उत्पादक भाग क्रमांक: 08T70-GFY-660
- सुसंगत मॉडेल: Honda Gyro X (TD02)
- हीटर प्रकार: Half-Circular Heating Element
- तापमान सेटिंग्ज: 5 समायोज्य पातळी
- विशेष वैशिष्ट्ये: खंडtage Monitoring Function
- आयटम वजन: अंदाजे 15.9 औंस (450 ग्रॅम)
- पॅकेजचे परिमाण: अंदाजे 10.43 x 7.95 x 3.9 इंच
9. हमी आणि समर्थन
For warranty information, technical support, or replacement parts, please contact your authorized Honda dealer or visit the official Honda webसाइट. खरेदीचा पुरावा म्हणून तुमची खरेदी पावती ठेवा.
निर्माता: होंडा
