This manual provides comprehensive instructions for the safe and efficient operation of your Velleman Universal Fast Charger/Discharger. Please read this manual thoroughly before using the device to ensure proper functionality and to prevent damage or injury.

The Velleman VLE4 is designed for charging and discharging various NiMH rechargeable batteries, featuring an intelligent charging process, multiple safety mechanisms, and a convenient USB output.

2. उत्पादन संपलेview

The Velleman VLE4 is a versatile battery charger and discharger equipped with an LCD display for monitoring the charging process and a USB output for charging external devices. Its compact design makes it suitable for both home and travel use.

Figure 2.1: Velleman VLE4 Universal Fast Charger/Discharger.

This image displays the Velleman VLE4 charger with its transparent blue lid open, revealing the four battery charging slots and the integrated LCD screen. The device is black with silver accents on the sides.

The charger supports various NiMH battery sizes, including AAA, AA, C, D, and 9V, offering independent charging for each slot.

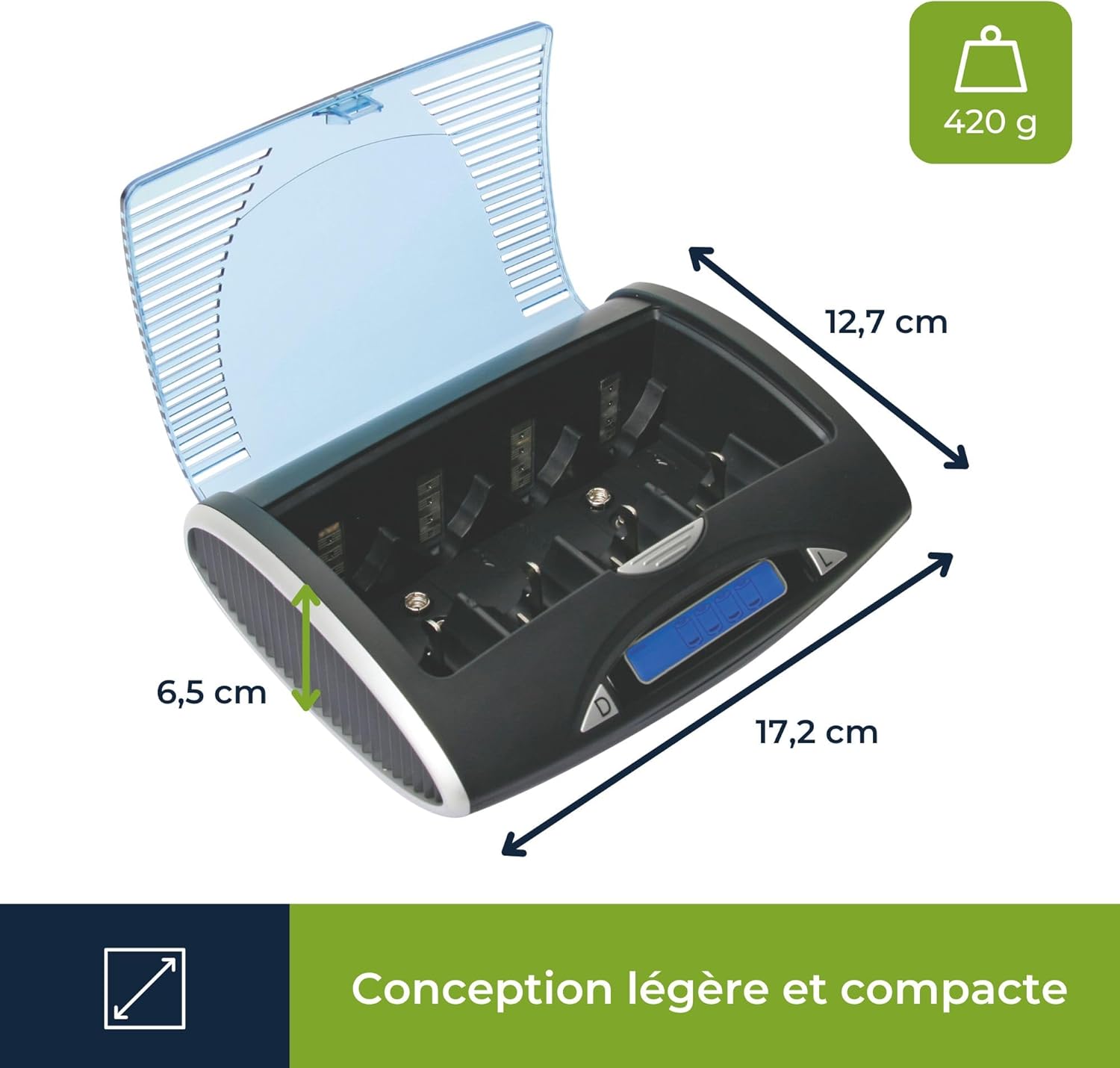

Figure 2.2: Velleman VLE4 Dimensions.

This image illustrates the compact dimensions of the Velleman VLE4 charger, showing its length (17.2 cm), width (12.7 cm), and height (6.5 cm), along with its lightweight design at 420 grams. This highlights its portability.

3. प्रमुख वैशिष्ट्ये

• बहुमुखी सुसंगतता: Charges a wide range of NiMH battery sizes including AAA, AA, C, D, and 9V. It can simultaneously and independently charge 1 to 4 NiMH batteries (AAA/AA/C/D type) or 1 to 2 9V NiMH batteries.
• Intelligent Charging Process: Equipped with microprocessor control and automatic charge current selection, ensuring an optimal charging process that extends battery life and increases efficiency.
• Optimal Safety Mechanisms: Features a built-in safety timer, reverse polarity protection, and negative delta V cut-off to prevent overcharging and other charging-related issues.
• Efficient Discharge Function: Includes a discharge function to 'refresh' batteries, reducing the memory effect and preserving battery capacity, especially important for NiMH batteries.
• पोर्टेबल आणि कॉम्पॅक्ट डिझाइन: Lightweight and compact dimensions make the charger easy to transport, ideal for use at home or on the go.
• USB आउटपुट: Provides a 5V USB output for charging external devices when batteries are absent or fully charged.
• एलसीडी डिस्प्ले: Clear LCD screen provides real-time information on the charging status of each battery.

आकृती १: प्रमुख वैशिष्ट्ये संपलीview.

This graphic emphasizes the charger's versatility, fast charging capability, and compact design, represented by a stylized battery with a lightning bolt.

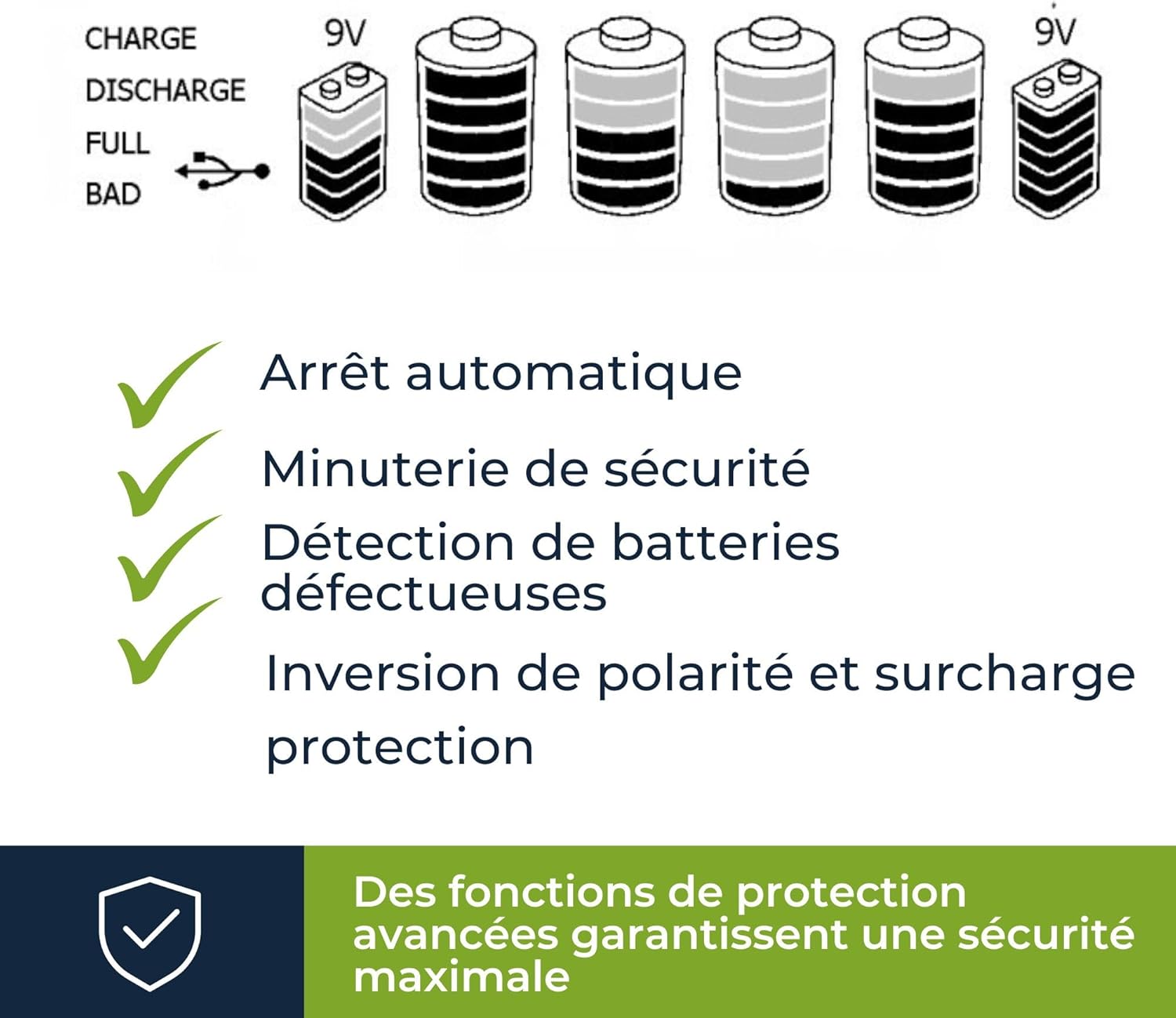

Figure 3.2: Advanced Protection Functions.

This image lists the advanced safety features of the charger, including automatic shut-off, a safety timer, detection for defective batteries, and protection against reverse polarity and overcharging, ensuring maximum safety during use.

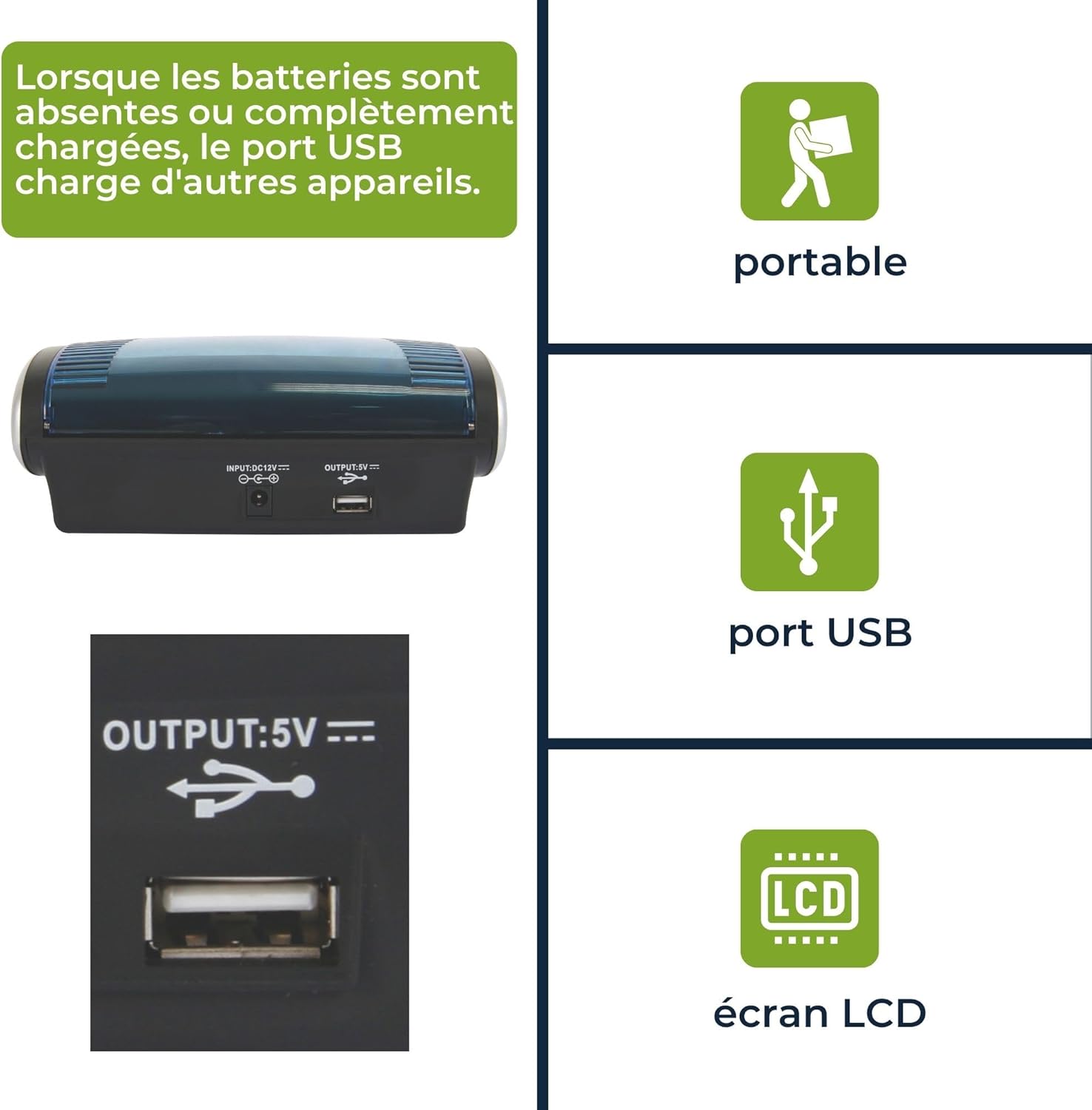

Figure 3.3: USB Output and Display.

This image focuses on the charger's USB output port, indicating its ability to charge other devices. It also visually highlights the charger's portability and the presence of an LCD screen for user feedback.

4. सेटअप

4.1 अनपॅकिंग आणि तपासणी

1. चार्जर त्याच्या पॅकेजिंगमधून काळजीपूर्वक काढा.
2. Inspect the charger for any signs of damage during transit. Do not use the device if it appears damaged.
3. Ensure all components are present: the Velleman VLE4 charger and its power adapter.

4.2 वीज जोडणी

1. Connect the power adapter to the DC input port on the back of the charger.
2. Plug the power adapter into a suitable wall outlet (100-240V AC, 50/60Hz).
3. The LCD display will illuminate, indicating the charger is ready for use.

5. ऑपरेटिंग सूचना

5.1 बॅटरी घालणे

1. Open the transparent lid of the charger.
2. Insert NiMH batteries into the appropriate slots, ensuring correct polarity (+ and -). The charger supports AAA, AA, C, D, and 9V batteries.
3. For AAA, AA, C, and D batteries, slide the adjustable contact to fit the battery size.
4. For 9V batteries, insert them into the dedicated 9V slots.
5. The charger can accommodate 1 to 4 AAA/AA/C/D batteries simultaneously and independently, or 1 to 2 9V batteries.

५.२ चार्जिंग प्रक्रिया

Once batteries are inserted correctly, the charger will automatically detect the battery type and begin the charging process. The LCD display will show the charging status for each slot.

• चार्जिंग संकेत: The LCD display will show a charging icon or progress bar for each active slot.
• पूर्ण शुल्क संकेत: When a battery is fully charged, the display will indicate "FULL" or a similar completion status for that slot. The charger will automatically stop charging to prevent overcharge.
• Defective Battery Detection: If a defective or non-rechargeable battery is inserted, the charger will display an error message (e.g., "BAD") and will not attempt to charge it. Remove such batteries immediately.

Figure 5.1: Supported Battery Types and Approximate Charging Times.

This image illustrates the various NiMH battery formats supported by the charger (AAA, AA, C, D, 9V) and provides approximate charging durations based on typical capacities for each type.

5.3 डिस्चार्ज फंक्शन

The discharge function helps to reduce the memory effect in NiMH batteries, optimizing their performance and lifespan. To use the discharge function:

1. Insert the NiMH battery you wish to discharge into a slot.
2. Press the 'Discharge' button (if available, or follow automatic discharge cycle if applicable). Refer to the LCD display for discharge status.
3. Once discharged, the charger will automatically switch to charging mode to fully recharge the battery.

5.4 USB Output Usage

The charger features a 5V USB output port, allowing you to charge compatible USB-powered devices.

1. Ensure the charger is connected to power.
2. Connect your USB device (e.g., smartphone, tablet) to the USB output port on the charger using a compatible USB cable.
3. The USB output is active when batteries are absent from the charging slots or when the inserted batteries are fully charged.

6. देखभाल

6.1 स्वच्छता

• Always disconnect the charger from the power outlet before cleaning.
• Use a soft, dry cloth to wipe the exterior of the charger.
• अपघर्षक क्लीनर, सॉल्व्हेंट्स किंवा कठोर रसायने वापरू नका, कारण ते पृष्ठभागाला नुकसान पोहोचवू शकतात.
• Keep the battery contacts clean and free of dust or debris to ensure optimal connection.

५.८.१ स्टोरेज

• चार्जर थेट सूर्यप्रकाश आणि अति तापमानापासून दूर थंड, कोरड्या जागी ठेवा.
• Ensure no batteries are left in the charging slots during storage.
• Keep the charger away from moisture and corrosive materials.

7. समस्या निवारण

If the problem persists after attempting these solutions, please contact Velleman customer support for further assistance.

8. तपशील

टीप: पूर्वसूचना न देता तपशील बदलू शकतात.

9. हमी आणि समर्थन

Velleman products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or visit the official Velleman webसाइट

For technical support, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please contact Velleman customer service or the retailer from whom you purchased the product. Keep your purchase receipt as proof of purchase for warranty claims.

You can find more information about Velleman products and support at their official brand store: Velleman Brand Store on Amazon.
