HAUSBELL Flat EDC Flashlight Model 5452 User Manual

Танилцуулга

Thank you for choosing the HAUSBELL Flat EDC Flashlight Model 5452. This compact and versatile flashlight is designed for everyday carry, offering multiple lighting modes and features for various situations. Its durable stainless steel body, stepless dimming, and integrated magnetic base make it a reliable tool for outdoor activities, work, and emergency use.

Хайрцагт юу байна

• 1 x HAUSBELL Flat EDC Flashlight Model 5452
• 1 х USB-C цэнэглэх кабель
• 1 х хэрэглэгчийн гарын авлага

Бүтээгдэхүүний онцлог

The HAUSBELL Flat EDC Flashlight is engineered with a range of features to enhance functionality and user experience:

• Ultra-Flat Stainless Steel Body: Designed for comfortable pocket carry and enhanced durability.
• Stepless Dimming (1800 to 300 Lumens): Precision fidget dial allows smooth adjustment of main light brightness.
• Олон үйлдэлт гэрэлтүүлэг: Includes cool white, warm white, mixed white, UV blacklight, red light, and an arrow-shaped RGB beacon.
• Соронзон суурь: Allows hands-free attachment to metal surfaces for convenient work lighting.
• USB-C цэнэглэдэг: Fast charging with a clear battery indicator.
• IPX6 Усны эсэргүүцэл: Provides protection against strong water jets.

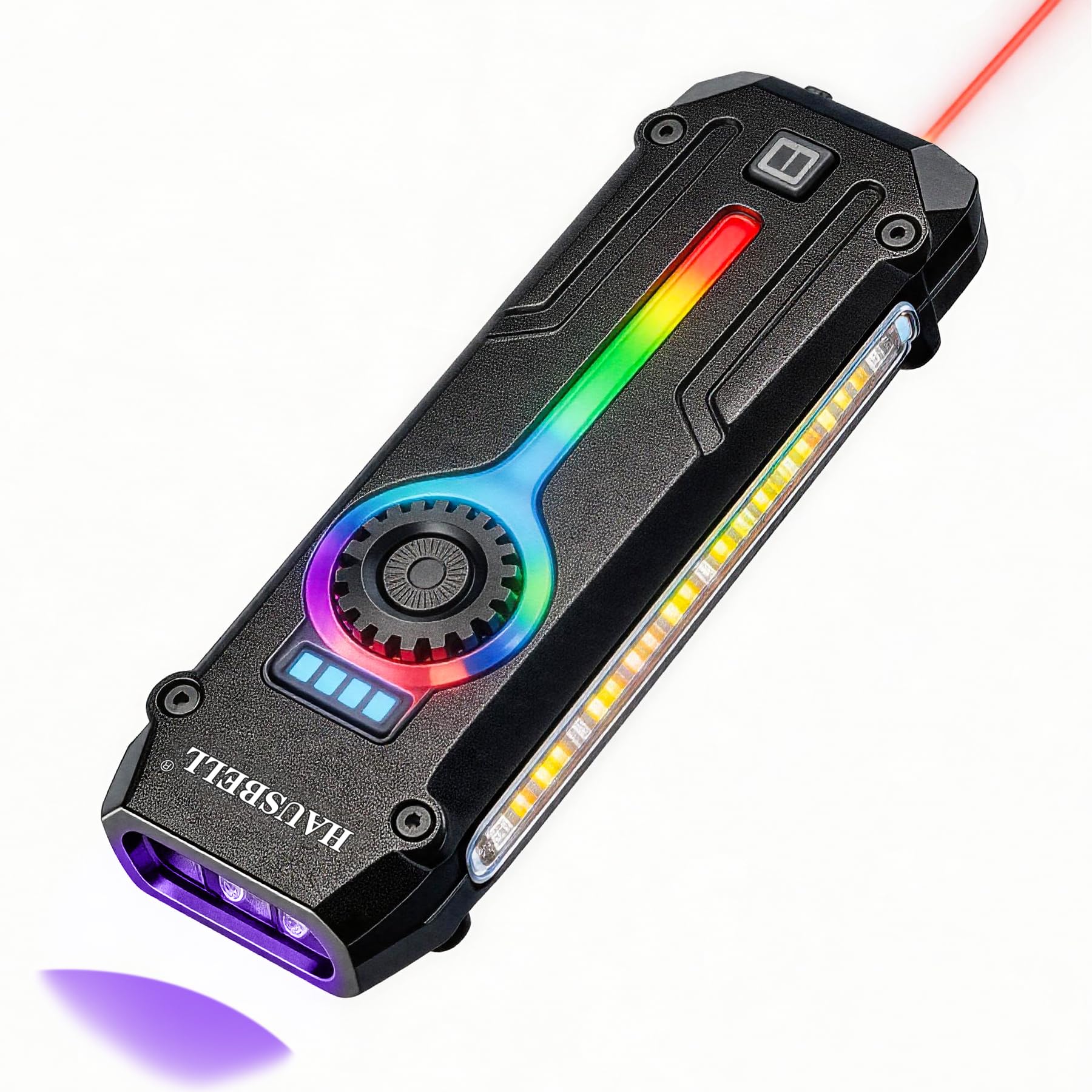

Figure 1: HAUSBELL Flat EDC Flashlight Model 5452.

Зураг 2: Илүүview of the HAUSBELL Flat EDC Flashlight's compact design and features.

Тохиргоо

Анхны цэнэглэлт

Before first use, fully charge your HAUSBELL Flat EDC Flashlight.

1. Locate the USB-C charging port on the tail of the flashlight. It is protected by a dust cover.
2. Тоосны тагийг нээ.
3. Connect the included USB-C cable to the flashlight and to a 5V/2A USB power adapter or computer USB port.
4. The battery indicator lights will show red during charging and turn green when fully charged.
5. After charging, securely close the dust cover to maintain water resistance.

Figure 3: The flashlight features USB-C charging for convenience.

Ашиглалтын заавар

The HAUSBELL Flat EDC Flashlight features a main switch/knob and an auxiliary button for controlling various lighting modes.

Figure 4: Visual guide to the main switch/knob and auxiliary button functions.

Main Light Control (Front LEDs)

-г ашиглана уу Main Switch/Knob to control the front LEDs:

1. Нэг товшилт: Press the main switch/knob once to turn on the main light. Each subsequent single click cycles through the following modes:
• Хүйтэн цагаан гэрэл
• Халуун цагаан гэрэл
• Cool/Warm Mixed Light
• Strobe горим
• OFF
2. Алхамгүй бүдэгрүүлэх: While the main light is ON, rotate the main switch/knob clockwise to increase brightness or counter-clockwise to decrease brightness. The brightness can be adjusted from 300 to 1800 lumens.
3. Санах ойн функц: If the main light is left on a particular setting for approximately 10 seconds before turning off, it will memorize that setting and return to it when turned on again.
4. Хоёр дарж: From OFF, double-click the main switch/knob to directly activate the UV Blacklight mode. Single-click again to turn off.

Figure 5: The main light offers Cool White, Warm White, and Mixed White modes.

Figure 6: Stepless dimming allows precise brightness control, and the UV mode helps detect hidden stains.

Side Light Control (COB Work Light)

-г ашиглана уу Туслах товчлуур for the side COB work light:

1. Удаан дарах: Press and hold the auxiliary button for about 3 seconds to turn the side light ON.
2. Нэг товшилт: After the side light is ON, single-click the auxiliary button to cycle through the following light modes:
• Cool White Side Light
• Warm White Side Light
• Cool/Warm Mixed Side Light
• OFF
3. Алхамгүй бүдэгрүүлэх: While the side light is ON, rotate the main switch/knob to adjust its brightness.

Auxiliary Light Control (Red Laser & RGB Beacon)

The auxiliary button also controls the red laser and RGB mood lights:

1. Нэг товшилт: Press the auxiliary button once to activate the Red Laser Mode. Single-click again to turn off.
2. Хоёр дарж: Double-click the auxiliary button to turn on the Red Flashing Mood Light (arrow-shaped beacon).
3. Удаан дарах: Press and hold the auxiliary button to cycle through the Color-Chasing Flow Light and Multi-Color Flashing Mood Light modes.

Figure 7: The flashlight includes UV light for detection and a red laser for various uses, including pet play.

Figure 8: The arrow-shaped RGB beacon enhances visibility and can be used for signaling.

Засвар үйлчилгээ

• Цэвэрлэгээ: Гар чийдэнг зөөлөн арчих, damp даавуу. Зүлгүүрийн цэвэрлэгч, уусгагчийг бүү ашигла.
• Усны эсэргүүцэл: The flashlight is IPX6 water-resistant. Ensure the USB-C port dust cover is securely closed to maintain water resistance. Avoid submerging the flashlight in water.
• Хадгалах: Store the flashlight in a cool, dry place when not in use for extended periods. Charge the battery every 3-6 months to prolong its lifespan.

Алдааг олж засварлах

Үзүүлэлтүүд

Баталгаат болон дэмжлэг

This product is covered by an 18-month limited warranty. The warranty covers defects in materials or workmanship. Damage caused by misuse, disassembly, or improper handling is not covered. For assistance, please contact Customer Support at: Hausbell.U@outlook.com.

Байгаль орчны тэмдэглэл: Please dispose of used batteries and electronic devices according to local regulations.
