Cecotec Bolero Squad I 4300 Invisible FullFlex Induction Hob User Manual

1. Танилцуулга

This manual provides essential information for the safe and efficient use of your Cecotec Bolero Squad I 4300 Invisible FullFlex Induction Hob. Please read these instructions carefully before installation and operation, and keep them for future reference. This invisible induction hob is designed to integrate seamlessly into your kitchen countertop, offering powerful and versatile cooking capabilities.

2. Аюулгүй байдлын мэдээлэл

Always prioritize safety when using electrical appliances. Failure to follow these instructions may result in electric shock, fire, or injury.

Аюулгүй байдлын ерөнхий арга хэмжээ:

• Төхөөрөмжийг зөв газардуулсан эсэхийг шалгаарай.
• Do not immerse the appliance or its electrical cord in water or other liquids.
• Ашиглаж байх болон хөргөх үед хүүхдүүдийг төхөөрөмжөөс хол байлга.
• Хэрэв утас, залгуур нь гэмтсэн, эсвэл ямар нэгэн байдлаар эвдэрсэн эсвэл эвдэрсэн бол төхөөрөмжийг ажиллуулж болохгүй.
• Зөвхөн үйлдвэрлэгчээс санал болгосон дагалдах хэрэгслийг ашиглана уу.
• Төхөөрөмжийг ашиглаагүй үед болон цэвэрлэхийн өмнө цахилгааны залгуураас салга.
• Хутга, сэрээ, халбага, таг зэрэг металл эд зүйлсийг халах боломжтой тул плитка дээр тавьж болохгүй.

Induction Specific Warnings:

• Persons with pacemakers or other medical implants should consult their doctor before using an induction hob, as electromagnetic fields may interfere with their operation.
• Зөвхөн индукцийн зууханд тохиромжтой тогооны сав суулга ашиглана уу.
• The hob surface will be hot after use due to residual heat from the cookware. Avoid touching the surface until the residual heat indicator turns off.
• Do not place aluminum foil or plastic containers on the hot hob surface.

3. Тохиргоо ба суурилуулалт

Proper installation is crucial for the performance and safety of your invisible induction hob. It is recommended that installation be performed by a qualified technician.

Countertop Requirements:

• The countertop must be able to withstand temperatures exceeding 400°C. Recommended materials include porcelain or granite.
• The recommended countertop thickness is between 12 mm and 15 mm.
• Ensure adequate ventilation space beneath the hob for proper heat dissipation.

Image: This diagram illustrates the requirement for a countertop thickness of 12-15 mm and the ability to withstand temperatures above 400°C for optimal performance of the invisible induction hob.

Оруулсан бүрэлдэхүүн хэсгүүд:

• 1 x Invisible Induction Hob
• 1 x Wired Control Panel (Slider Control)
• 1 х хэрэглэгчийн гарын авлага

Суурилуулалтын үе шатууд (хураангуй):

1. Prepare the countertop opening according to the provided dimensions in the full installation guide.
2. Place the invisible induction hob into the prepared opening from below the countertop.
3. Secure the hob in place using the appropriate fasteners.
4. Connect the wired control panel to the hob and install it in a convenient location on the countertop.
5. Ensure all electrical connections are made by a qualified electrician, adhering to local regulations.

Image: The wired control panel features a slider for precise temperature and power adjustments, offering versatility and convenience in placement.

4. Ашиглалтын заавар

Your Bolero Squad I 4300 Invisible FullFlex Induction Hob offers intuitive controls and advanced features for an enhanced cooking experience.

Асаах/унтраах:

• To turn on the hob, press the power button on the control panel.
• Унтраахын тулд цахилгаан товчийг дахин дарна уу.

Selecting Cooking Zones and Power Levels:

• The hob features four individual cooking zones or two flexible FullFlex zones.
• Индукцийн зууханд тохиромжтой тогооны савыг хүссэн хоол хийх бүс дээрээ байрлуул.
• Use the slider control on the wired panel to select the desired power level from 1 to 9.

Image: The invisible induction hob allows direct cooking on the countertop surface, providing a clean and modern aesthetic.

FullFlex Zones:

The FullFlex zones allow you to combine two individual cooking zones into one larger zone, accommodating larger or irregularly shaped cookware.

• To activate a FullFlex zone, select the corresponding option on the control panel.
• This feature provides flexibility for various cooking needs.

Image: This diagram illustrates the FullFlex zones, which can be used individually or combined to adapt to different cookware sizes.

Өсгөгч функц:

The Booster function provides maximum power to a selected cooking zone for a short period, ideal for rapidly boiling water or searing food.

• Activate the Booster function by selecting the appropriate button on the control panel for the desired zone.
• The hob will automatically reduce power after a set time to prevent overheating.

Image: The hob offers 9 cooking speeds and a Booster function for rapid heating, allowing precise control over cooking processes.

Таймер функц:

Each cooking zone can be set with an individual timer.

• Select the cooking zone and then press the timer button.
• Adjust the desired cooking time using the slider or dedicated buttons.
• The hob will automatically turn off the zone once the set time expires.

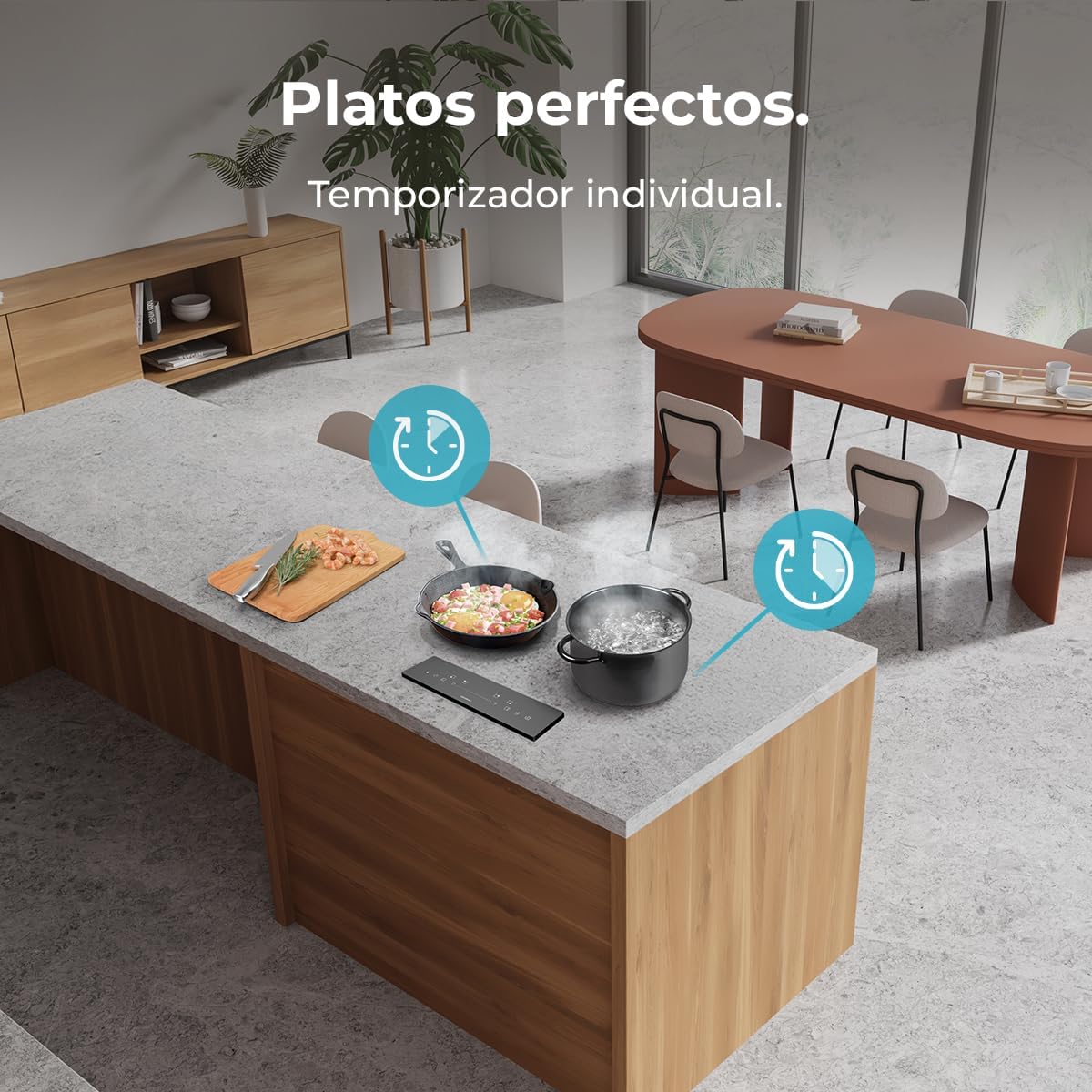

Image: Individual timers ensure precise cooking for each dish, contributing to perfect results.

Хүүхдийн түгжээ:

The child lock function prevents accidental operation of the hob.

• To activate the child lock, press and hold the designated lock button for a few seconds.
• The control panel will be locked, and no functions can be changed.
• Repeat the process to deactivate the child lock.

Image: The child lock feature and residual heat indicator prioritize safety in the kitchen environment.

5. Засвар үйлчилгээ, цэвэрлэгээ

Тогтмол цэвэрлэгээ, засвар үйлчилгээ нь таны индукцийн зуухны урт наслалт, оновчтой ажиллагааг хангах болно.

Cleaning the Hob Surface:

• Цэвэрлэхийн өмнө зуухыг үргэлж сэрүүн байлгах хэрэгтэй.
• Use a soft cloth and a mild detergent or a specialized ceramic hob cleaner.
• For stubborn stains, use a hob scraper designed for ceramic surfaces, holding it at a shallow angle.
• Усны ул мөр үлдэхгүйн тулд цэвэр даавуугаар арчиж хатаана.
• Гадаргууг гэмтээж болзошгүй тул зүлгүүрийн цэвэрлэгч, цэвэрлэгч, хатуу химийн бодисоос зайлсхий.

Хяналтын самбарыг цэвэрлэх:

• Хяналтын самбарыг зөөлөн арчиж, damp даавуу.
• Do not use excessive water or cleaning agents that could seep into the electronics.

6. Алдаа засах

If you encounter issues with your induction hob, refer to the following common problems and solutions before contacting customer service.

Хэрэв эдгээр шийдлүүдийг туршиж үзсэний дараа асуудал арилахгүй бол Cecotec хэрэглэгчийн дэмжлэгтэй холбогдоно уу.

7. Техникийн үзүүлэлтүүд

Image: The 7200W power ensures rapid cooking for all your dishes.

8. Баталгаат хугацаа ба дэмжлэг

Баталгаат мэдээлэл:

This Cecotec Bolero Squad I 4300 Invisible FullFlex Induction Hob comes with a 3 жилийн баталгаат хугацаа худалдан авсан өдрөөс. Энэхүү баталгаа нь ердийн ашиглалтын нөхцөлд үйлдвэрлэлийн согогийг хамарна. Баталгаат заргад зориулж худалдан авалтаа нотлох баримтаа үлдээнэ үү.

Хэрэглэгчийн дэмжлэг:

For technical assistance, warranty claims, or any questions regarding your product, please visit the official Cecotec website or contact their customer service department. You can find contact details on the Cecotec webсайт эсвэл таны бүтээгдэхүүнд хавсаргасан баталгаат картанд.

Replacement parts availability in the EU is guaranteed for 10 years.
