LAUSAINT HOME 10'x20' Outdoor Gazebo Instruction Manual

Танилцуулга

Thank you for choosing the LAUSAINT HOME 10'x20' Outdoor Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your new gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Аюулгүй байдлын мэдээлэл

WARNING: Always secure the gazebo with ground stakes or expansion bolts during installation for maximum stability. In windy conditions, retract curtains and netting to reduce wind resistance. During extreme weather such as strong winds, heavy rain, storms, or snow, fully disassemble and store the gazebo to prevent damage and extend its lifespan.

• Угсрахаас өмнө бүх бүрэлдэхүүн хэсгүүд байгаа эсэхийг шалгаарай.
• Хавтгай, тэгш гадаргуу дээр угсарна.
• Хоёр ба түүнээс дээш хүнийг угсрахыг зөвлөж байна.
• Хүүхэд, тэжээвэр амьтдыг цугларах газраас хол байлга.
• Do not hang heavy objects from the gazebo frame, exceeding the stated weight capacity for hooks.

Бүтээгдэхүүний онцлог

• Хүнд даацын барилга: Engineered for long-term outdoor use with upgraded materials and a reinforced structure.
• Reinforced Galvanized Steel Frame: Designed to withstand winds up to Level 7. The roof structure supports up to 250 lbs. Expansion bolts are included for secure anchoring.
• Waterproof & UPF 50+ Sun Protection: Canopy crafted from 1500mm water-resistant polyester fabric, resisting fading and blocking up to 99.99% of harmful UV rays.
• Ventilated Double-Tier Roof: Promotes airflow to reduce heat buildup and enhances stability. Mesh netting between roof tiers deters insects.
• Privacy Curtains & Mosquito Netting: Includes zippered mosquito netting and waterproof privacy curtains for flexible shade and protection.
• Integrated D-Rings: Four built-in D-rings allow easy securing with wind ropes or decorative lighting.

Figure 1: Key features including ventilation, mosquito protection, and privacy.

Figure 2: Vented double roof design for improved airflow.

Бүрэлдэхүүн хэсгүүдийн жагсаалт

Угсрахаасаа өмнө доор жагсаасан бүх эд анги байгаа бөгөөд гэмтэлгүй эсэхийг шалгаарай. Бүрэлдэхүүн хэсэг бүрийг нүдээр тодорхойлохын тулд угсралтын видеог үзнэ үү.

Хүрээний бүрэлдэхүүн хэсгүүд

• A: Main Horizontal Beams (4 pcs)
• B, B1, B2: Side Beams (various lengths, total 8 pcs)
• C, C1, C2: Corner Beams (various lengths, total 8 pcs)
• D: Connecting Plates (4 pcs)
• E, E1: Roof Support Bars (various lengths, total 8 pcs)
• F1, F2, F3, F4: Roof Panel Supports (various lengths, total 8 pcs)
• H, I: Upper Roof Supports (4 pcs each)
• J, J1: Upper Roof Ridge Bars (2 pcs each)
• K, K1: Upper Roof Center Plates (1 pc each)
• L1, L2: Corner Brackets (4 pcs each)
• M1, M2, M3, M4: Roof Brackets (various types, total 16 pcs)
• N, N1-N7: Main Roof Panels (various types, total 8 pcs)
• O, O1-O5: Upper Roof Panels (various types, total 8 pcs)
• P, P1-P5: Upper Roof Panels (various types, total 8 pcs)
• R1, R2: Roof Panel Connectors (2 pcs each)
• Z1, ZS2: Roof Panel Brackets (8 pcs each)

Тоног төхөөрөмж, Дагалдах хэрэгсэл

• S: M6 x 42mm Bolts (12 pcs)
• T: M6 x 26mm Bolts (64 pcs)
• U: M6 x 24mm Bolts (4 pcs)
• V: M6 x 15mm Bolts (229 pcs)
• V1: M6 x 10mm Bolts (40 pcs)
• X: M6 x 12mm Bolts (16 pcs)
• X1: M6 x 42mm Bolts (8 pcs)
• Y: ST3.9 x 12mm Screws (24 pcs)
• W2: Wrench (1 pc)
• Z: Allen Key (1 pc)
• GG: Hooks (1 pc)
• DD: Ground Stakes (8 pcs)
• PZ: Expansion Bolts (8 pcs)
• Q: Hooks for Curtains/Netting (104 pcs)
• NN: Mosquito Mesh (4 pcs)
• CC: Privacy Curtains (4 pcs)

Тохиргоо ба угсралт

Assembly requires careful attention to detail. Follow the steps outlined in the official assembly video for best results. Ensure all connections are secure before proceeding to the next step.

Угсралтын видео гарын авлага

General Assembly Steps (Refer to video for specifics)

1. Base Frame Installation: Assemble the main vertical posts and horizontal beams using the specified bolts (V1, V, X) and connecting plates (D). Ensure all corners are securely fastened with brackets (Y).
2. Top Frame Installation: Attach the upper roof support bars (E, E1) and ridge bars (J, J1) to form the upper frame structure. Secure with appropriate bolts (V, V1).
3. Дээд хавтанг суурилуулах: Install the main roof panels (N, N1-N7, O, O1-O5, P, P1-P5) onto the frame, securing them with screws (S, T, U, X1). Then, attach the upper roof panels and center plates (K, K1) using the specified hardware.
4. Дагалдах хэрэгслийн суурилуулалт: Hang the mosquito mesh (NN) and privacy curtains (CC) onto the tracks using the provided hooks (Q). Ensure they slide smoothly.
5. Gazebo-г бэхлэх: Depending on your surface, use ground stakes (DD) for lawn installation or expansion bolts (PZ) for hard surfaces like concrete or decking.

Figure 3: Expansion bolts and stakes for securing the gazebo.

Ашиглалтын заавар

Using Mosquito Netting and Privacy Curtains

The gazebo is equipped with dual-track system for mosquito netting and privacy curtains. Both can be operated independently.

• Нээх/Хаах: Use the zippers to open or close the netting and curtains.
• Хамгаалах: When not in use, the netting and curtains can be tied back to the gazebo legs using the attached Velcro straps.
• Нууцлал: For full privacy, close all curtains. The Velcro shade curtains prevent gaps.

Figure 4: Dual-track system for separate operation of curtains and nettings.

Figure 5: Zippers for curtains and nettings.

Figure 6: Zipper design for a secure fit of the canopy.

Decorating Your Gazebo

The gazebo includes built-in D-rings and hanging hooks for decorations.

• Hanging Lights: Use the corner rings and hooks to hang string lights or other lightweight decorations.
• Жингийн багтаамж: The hanging hooks have a weight capacity of 44 lbs. Do not exceed this limit.

Figure 7: Decoration hanging hooks and corner rings.

Засвар үйлчилгээ

• Тогтмол цэвэрлэгээ: Clean the canopy fabric and metal frame regularly with mild soap and water. Rinse thoroughly and allow to air dry completely to prevent mildew and rust.
• Даавуу арчилгаа: The polyester fabric is designed to resist fading. Avoid harsh chemicals or abrasive cleaners that could damage the material.
• Хүрээний үзлэг: Periodically check all bolts and connections to ensure they remain tight and secure. Tighten any loose hardware.
• Өвлийн агуулах: For prolonged lifespan, especially in regions with harsh winters, it is recommended to disassemble and store the gazebo indoors during the off-season.
• Цаг агаарын урьдчилан сэргийлэх арга хэмжээ: Always follow the safety guidelines regarding extreme weather conditions.

Алдааг олж засварлах

• Дээвэр дээрх усны хуримтлал: The double roof design includes water leakage holes to prevent pooling. Ensure these are clear of debris. If water still accumulates, check the canopy tension.
• Gazebo тогтворгүй байдал: Verify that the gazebo is properly anchored using ground stakes or expansion bolts. Ensure all frame connections are tightened.
• Curtains/Netting Not Sliding Smoothly: Check the tracks for any obstructions or debris. Ensure the hooks are correctly inserted into the tracks.
• Салхины гэмтэл: In strong winds, always retract curtains and netting. If damage occurs, contact customer support for replacement parts.

Figure 8: Water leakage holes to prevent pooling on the canopy.

Үзүүлэлтүүд

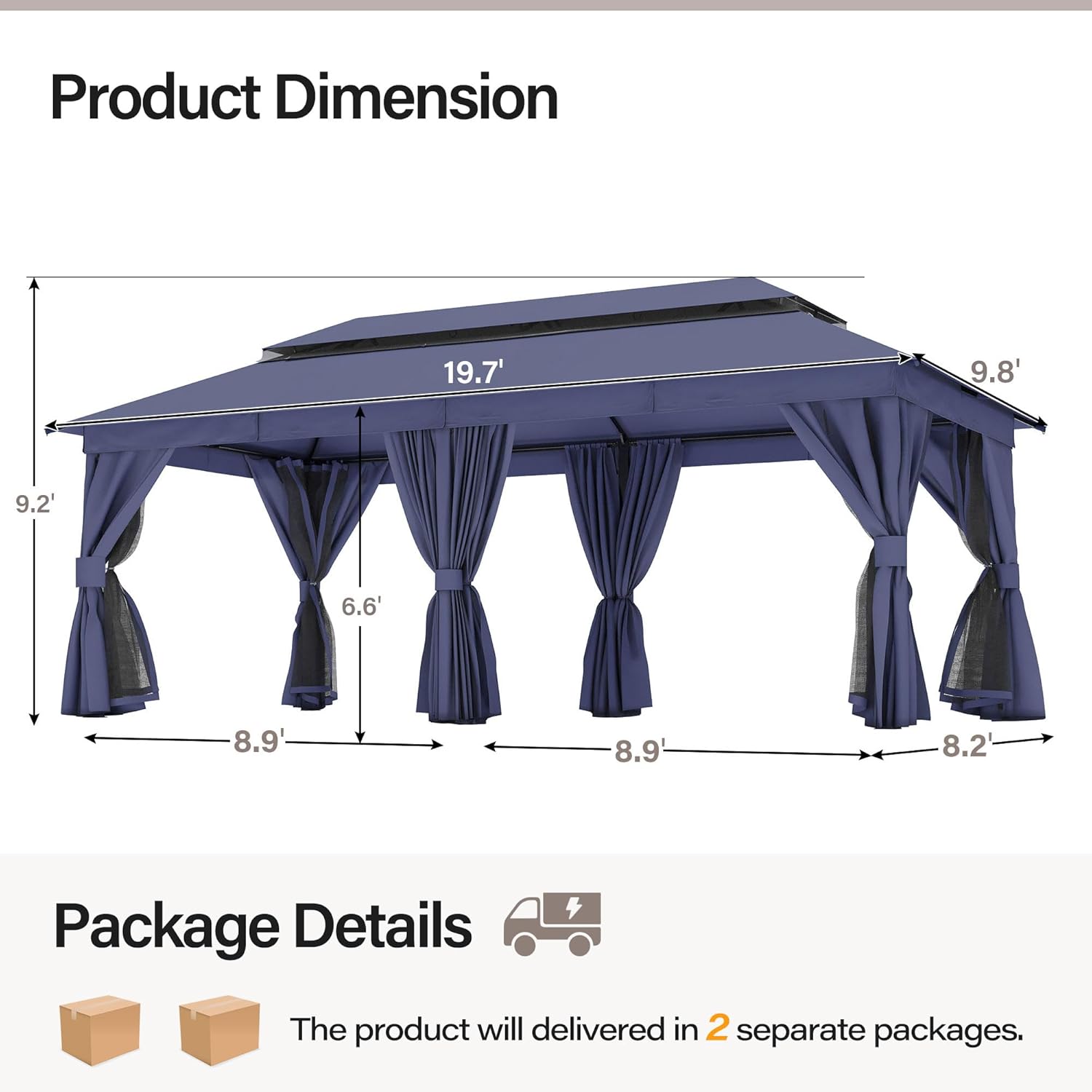

Зураг 9: Бүтээгдэхүүний хэмжээ хэтэрсэнview.

Additional Product Videos

Бүтээгдэхүүн дууссанview

Heavy Duty Features

Canopy Zipper Demonstration

White Gazebo Buyer's Show (Visual Features)

Баталгаат болон дэмжлэг

LAUSAINT HOME is committed to providing quality products and customer satisfaction. This product includes a 30-day easy return policy. For any questions, missing parts, or concerns regarding your gazebo, please contact LAUSAINT HOME customer support.

• Хэрэглэгчийн дэмжлэг: Refer to your purchase documentation or the LAUSAINT HOME webхолбоо барих мэдээлэл авах сайт.
• Хамгаалалтын төлөвлөгөө: Optional 3-Year Protection Plan and Complete Protect plans may be available for purchase. Check product listing for details.
