Husqvarna Aspire P5-P4A Mini Battery Pruning Saw User Manual

1. Танилцуулга

Thank you for choosing the Husqvarna Aspire P5-P4A Mini Battery Pruning Saw. This compact and powerful tool is designed for efficient pruning of trees and small carpentry tasks, capable of cutting branches up to 75 mm in diameter. It is part of the 18V Power For All Alliance battery system, offering flexibility and convenience across multiple gardening products.

This manual provides essential information for the safe and effective operation, setup, and maintenance of your pruning saw. Please read it thoroughly before first use and keep it for future reference.

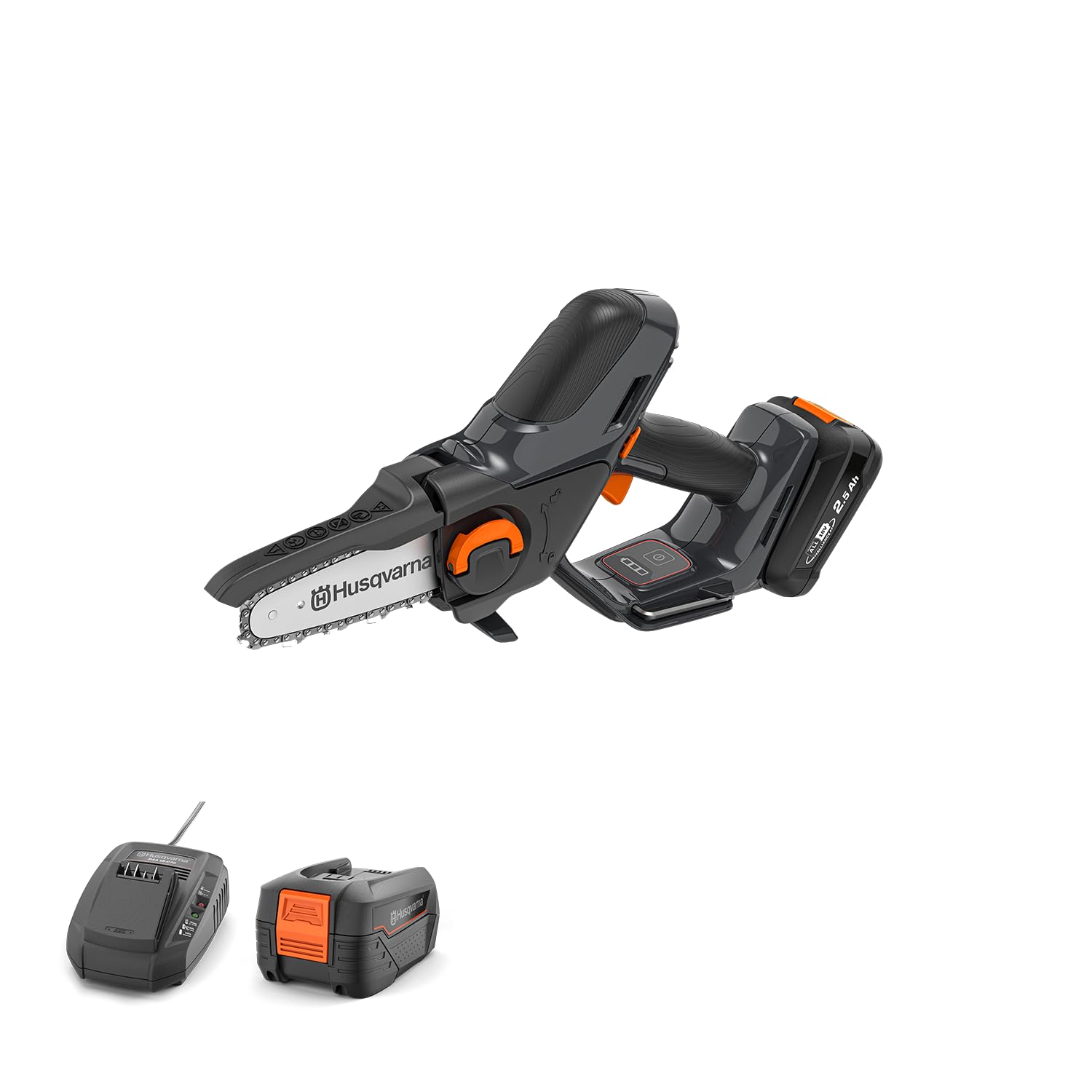

Figure 1: Husqvarna Aspire P5-P4A Mini Battery Pruning Saw. This image shows the compact design of the pruning saw with its battery attached.

2. Аюулгүй байдлын мэдээлэл

Цахилгаан багаж хэрэгслийг ажиллуулахдаа аюулгүй байдлыг үргэлж нэн тэргүүнд тавь. Аюулгүй ажиллагааны зааврыг дагаж мөрдөөгүй тохиолдолд ноцтой гэмтэл учруулж болзошгүй.

Аюулгүй байдлын ерөнхий дүрмүүд

• Гарын авлагыг бүхэлд нь уншина уу: Understand all instructions and warnings before operating the tool.
• Тохиромжтой хувийн хамгаалах хэрэгсэл (PPE) өмсөх: This includes safety glasses, gloves, hearing protection, and sturdy footwear.
• Ажлын талбайг цэвэр байлгах: Ensure no bystanders, children, or pets are near the operating area.
• Бат бөх барих: Always hold the pruning saw with both hands during operation.
• Avoid awkward positions: Ensure stable footing and balance. Do not overreach.
• Хэрэглэх бүрийн өмнө багажийг шалгана уу: Check for damaged parts, loose components, or any other condition that may affect safe operation.
• Use the correct battery and charger: Only use batteries and chargers specified by Husqvarna or compatible with the Power For All Alliance 18V system.
• Нойтон нөхцөлд ажиллахыг хориглоно: Avoid using the saw in rain or damp орчин.
• Disconnect battery when not in use: Always remove the battery before making adjustments, changing accessories, or storing the tool.

Specific Chainsaw Safety

• Beware of kickback: Kickback can occur when the moving chain contacts an object at the upper tip of the guide bar or when the wood closes in and pinches the chain in the cut.
• Ensure chain lubrication: The chain must be manually lubricated regularly to prevent wear and ensure smooth operation.
• Never cut above shoulder height: This can lead to loss of control.
• Do not cut small, unsupported branches: These can get caught in the chain and be thrown towards the operator.

3. Багцын агуулга

Савлахдаа бүх эд зүйлс байгаа бөгөөд гэмтэлгүй эсэхийг шалгана уу:

• Husqvarna Aspire P5-P4A Mini Battery Pruning Saw body
• 18V лити-ион батерей (2.5Аh)
• Зай цэнэглэгч
• Хөтөч ба хөрөөний гинж
• Сүлжээний харуул
• 50ml Bio Chainsaw Oil
• Wall Mount Bracket with Fastening Material (3x screws 4x30, 3x dowels 6x30)
• Зааварчилгааны гарын авлага

4. Тохиргоо

4.1. Батерейг цэнэглэх, суурилуулах

1. Зайг цэнэглэгч рүү оруулна уу. Энэ нь байрандаа орсон эсэхийг шалгаарай.
2. Plug the charger into a suitable power outlet. The charging indicator lights will show the charging status.
3. Бүрэн цэнэглэгдсэний дараа зайг цэнэглэгчээс салга.
4. Align the charged battery with the battery slot on the pruning saw handle and slide it in until it locks securely.

Figure 2: Husqvarna Aspire P5-P4A Mini Battery Pruning Saw with the 18V Power For All Alliance battery. The battery system offers broad compatibility.

4.2. Chain and Guide Bar Installation/Adjustment

The Husqvarna Aspire P5-P4A features a tool-free chain and bar replacement system.

1. Ensure the battery is removed before handling the chain or guide bar.
2. Refer to the specific instructions in the manual for opening the chain cover and correctly seating the chain on the sprocket and guide bar.
3. Adjust the chain tension using the integrated mechanism until the chain is snug but can still be pulled freely around the guide bar by hand. There should be no excessive slack.
4. Close and secure the chain cover.

Figure 3: Close-up of the pruning saw's handle and chain adjustment area. The orange lever indicates the tool-free chain tensioning mechanism.

4.3. Гинжний тосолгооны материал

This pruning saw requires manual chain lubrication. Before each use and periodically during operation, apply the provided bio chainsaw oil directly to the chain and guide bar to ensure smooth movement and prevent premature wear. Do not operate the saw with an unlubricated chain.

5. Ашиглалтын заавар

5.1. Эхлэх ба зогсоох

1. Батерейг бүрэн цэнэглэж, зөв ​​суурилуулсан эсэхийг шалгаарай.
2. To start, press the safety lock-off button (if present) and then squeeze the trigger switch. The saw will begin operating.
3. Зогсоохын тулд гох унтраалгыг суллана.

5.2. Pruning Techniques

• Assess the branch: Identify the cutting point, considering the branch's weight and direction of fall.
• Хоёр гар ажиллагаа: Always hold the saw firmly with both hands.
• Cutting small branches: For branches up to 75 mm, position the saw firmly against the branch before engaging the chain. Allow the saw to do the work; do not force it.
• Буцалтаас зайлсхийх: Be mindful of the guide bar tip. Do not use the tip to initiate cuts.
• Using with a telescopic pole: The P5-P4A is compatible with a telescopic pole (sold separately) for extended reach. Follow the pole's instructions for attachment and safe use.

Figure 4: A user demonstrating the Husqvarna Aspire P5-P4A Mini Battery Pruning Saw in action, cutting a tree branch. Note the two-hand grip for control.

6. Засвар үйлчилгээ

Regular maintenance ensures optimal performance and extends the life of your pruning saw.

6.1. Цэвэрлэгээ

• Цэвэрлэхийн өмнө зайг үргэлж салгаж ав.
• Use a brush or compressed air to remove sawdust, chips, and debris from the saw body, guide bar, and chain.
• Зар сурталчилгааны тусламжтайгаар гаднах гадаргууг арчинаamp даавуу. Химийн хатуу бодис хэрэглэж болохгүй.

6.2. Гинжийг хурцалж, солих

• A dull chain reduces cutting efficiency and increases the risk of kickback. Sharpen the chain regularly or replace it when necessary.
• Refer to the detailed instructions in the full manual for proper chain sharpening techniques or consult a qualified service technician.
• Replacement chains are available through authorized Husqvarna dealers.

6.3. Хадгалах

• Remove the battery before storing the saw.
• Clean the saw thoroughly.
• Хөрөөг хуурай, аюулгүй газар, хүүхдэд хүрэхгүй газар хадгална.
• Utilize the included wall mount bracket for convenient and compact storage.

Figure 5: The Husqvarna Aspire P5-P4A Mini Battery Pruning Saw stored on a wall hook, demonstrating its compact storage capability.

7. Алдаа засах

Энэ хэсэгт танд тулгарч болох нийтлэг асуудлуудыг авч үзэх болно. Энд дурдаагүй асуудлуудын талаар хэрэглэгчийн дэмжлэгтэй холбогдоно уу.

8. Техникийн үзүүлэлтүүд

9. Баталгаат хугацаа ба дэмжлэг

9.1. Баталгаат хугацааны мэдээлэл

Husqvarna products are manufactured to high-quality standards. While specific warranty periods may vary by region, Husqvarna guarantees spare parts availability for this model for 10 years from the date of purchase. Please retain your proof of purchase for any warranty claims.

For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Husqvarna webтанай бүс нутагт зориулсан сайт.

9.2. Хэрэглэгчийн дэмжлэг

If you have any questions, require technical assistance, or need to order spare parts, please contact Husqvarna customer support:

• Webсайт: www.husqvarna.com
• Local Dealer: Find your nearest authorized Husqvarna dealer via the webсайт.
• Утас: Refer to the Husqvarna webбүс нутгийн холбоо барих утасны сайт.
