BISSELL PowerWash Pet Carpet Cleaner User Manual

Аюулгүй байдлын чухал заавар

Read all instructions before using your appliance. When using an electrical appliance, basic precautions should be observed, including the following:

• Үргэлж зөв газардуулсан залгуурт залгаарай.
• Unplug from outlet when not in use and before cleaning, maintaining or servicing the appliance.
• Ус эсвэл шингэнд дүрж болохгүй.
• Гэмтсэн утас, залгууртай хамт хэрэглэж болохгүй.
• Зөвхөн энэ гарын авлагад заасны дагуу хэрэглээрэй. Зөвхөн үйлдвэрлэгчийн санал болгосон хавсралтыг ашиглана уу.
• Утсаар татах, авч явах, утсыг бариул болгон ашиглах, утсан дээр хаалгыг хааж, хурц ирмэг эсвэл булангаар татахыг хориглоно.
• Үс, сул хувцас, хуруу, биеийн бүх хэсгийг нүх, хөдлөх хэсгүүдээс хол байлга.
• Тамхи, шүдэнз, халуун үнс зэрэг шатаж буй, тамхи татдаг зүйлийг бүү ав.
• Бензин гэх мэт шатамхай, шатамхай шингэнийг авах эсвэл тэдгээр нь байж болзошгүй газарт бүү ашигла.
• Шүүлтүүрийг байрлуулахгүй бол бүү ашигла.
• Тоглоом болгон ашиглахыг бүү зөвшөөр. Хүүхэд болон түүний ойролцоо хэрэглэх үед маш болгоомжтой байх шаардлагатай.

Бүтээгдэхүүн дууссанview

The BISSELL PowerWash Pet Carpet Cleaner is designed for effective deep cleaning of carpets, rugs, and upholstery. It features a powerful motor, specialized brushes, and a dual-tank system for optimal cleaning performance.

Image: The BISSELL PowerWash Pet Carpet Cleaner shown with its main unit, hose, 8cm tough stain tool, spraying crevice tool, and a bottle of BISSELL Wash & Protect Pet Stain & Odour cleaning solution.

Гол бүрэлдэхүүн хэсгүүд:

• Цэвэр усны сав: Holds clean water and cleaning solution. Capacity: 3.8 Liters.
• Бохир усны сав: Бохир ус, хог хаягдлыг цуглуулдаг.
• DeepReach™ PowerBrush: 4-row brush for deep cleaning and stain removal.
• Хоолой: 2.1m hose for cleaning hard-to-reach areas.
• 8 cm Tough Stain Tool: For tackling stubborn spots and stains.
• Spraying Crevice Tool: Ideal for baseboards, stairs, and pet beds.

Тохиргоо

1. Бариулыг угсарна: Insert the upper handle into the main body until it clicks securely into place.
2. Цэвэр усны савыг дүүргэ:

   Remove the clean water tank from the unit. Unscrew the cap and fill the tank with warm tap water up to the 'Water' fill line. Add BISSELL cleaning formula up to the 'Formula' fill line. Replace the cap and reinsert the tank into the unit.

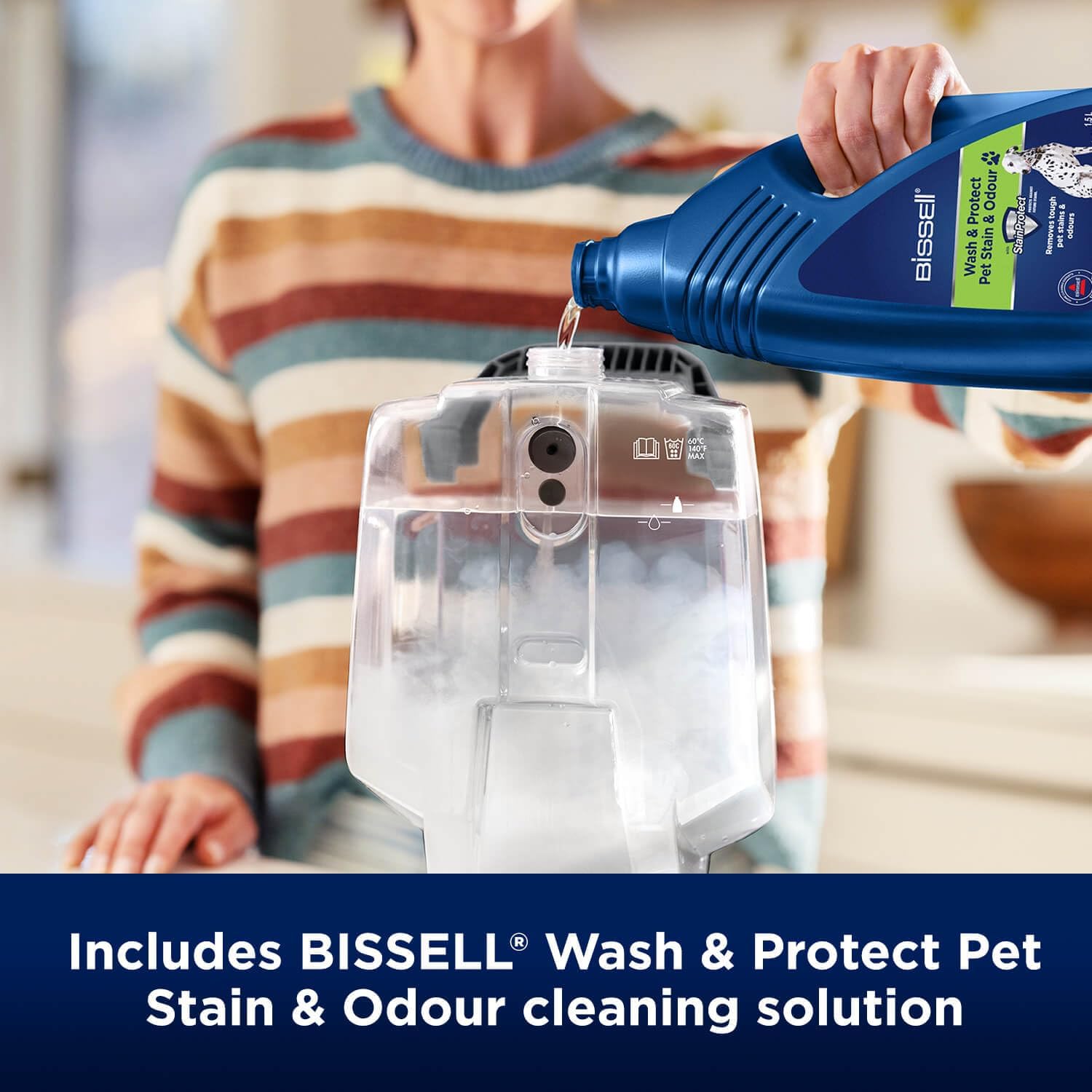

   Image: A person is shown pouring BISSELL Wash & Protect Pet Stain & Odour cleaning solution into the clean water tank of the carpet cleaner, illustrating the correct way to prepare the solution for cleaning.

3. Талбайг бэлтгэх: Vacuum the area to be cleaned thoroughly before using the carpet cleaner. Remove any large debris or loose dirt.
4. Залгаас: Цахилгааны утсыг газардуулсан цахилгааны залгуурт холбоно уу.

Ашиглалтын заавар

Cleaning Carpets and Rugs:

1. Асаах: Цахилгаан унтраалга ашиглан машиныг асаана уу.
2. Pre-Treat (Optional): For heavily soiled areas, pre-treat with a BISSELL pre-treatment spray.
3. Pass-ийг цэвэрлэх: Press the spray trigger to apply solution and make a slow forward wet pass, then a slow backward wet pass. Release the trigger and make a slow forward dry pass, then a slow backward dry pass to suction up the dirty water. Repeat until the area is clean. The cleaning path is 25 cm wide for efficient coverage.


   Image: The BISSELL PowerWash Pet cleaner is shown actively cleaning a light-colored carpet, effectively removing a visible yellow stain. This demonstrates its capability to remove embedded pet dirt and dander allergens.


   Зураг: Ойрын зураг view of the BISSELL PowerWash Pet's 4-Row DeepReach™ PowerBrush as it cleans a carpet, highlighting its effectiveness in removing tough stains.



   Image: The BISSELL PowerWash Pet cleaner is shown making a pass on a carpet, illustrating its 25 cm wide cleaning path that allows for efficient cleaning of larger areas.

4. Бохир усны савыг хоослох: When the dirty water tank reaches its 'Full' line, or when you finish cleaning, empty it and rinse thoroughly.

Cleaning with Tools (Hose and Attachments):

1. Хоолойг холбох: Open the hose access door on the front of the machine and insert the hose. Ensure it clicks into place.
2. Хавсаргах хэрэгсэл: Connect the desired cleaning tool (8 cm Tough Stain Tool or Spraying Crevice Tool) to the end of the hose.
3. Цэвэр гадаргуу: For upholstery, stairs, or other hard-to-reach areas, hold the tool about an inch above the soiled surface and press the spray trigger. Release the trigger and apply downward pressure while pulling the tool slowly over the soiled surface to suction up the dirty water. Repeat as needed.


   Image: Two panels show the spraying crevice tool in use, demonstrating its ability to clean hard-to-reach areas such as baseboards and stairs, as well as pet beds.



   Image: Two panels illustrate the 8 cm tough stain tool in action, effectively removing a liquid stain from upholstery, showcasing its utility for quick spot treatment or deep cleaning furniture.

4. Салгах хэрэгсэл: When finished, turn off the machine, disconnect the tool from the hose, and then disconnect the hose from the machine. Close the hose access door.

Засвар үйлчилгээ, цэвэрлэгээ

Regular maintenance ensures optimal performance and extends the life of your BISSELL PowerWash Pet cleaner.

1. Савыг хоослох ба зайлах: After each use, empty both the clean and dirty water tanks. Rinse them thoroughly with warm water. Allow them to air dry before reassembling.
2. Clean Nozzle and Brush Roll: Remove the nozzle cover and clean any debris from the spray nozzle and brush roll area. The 4-row DeepReach™ PowerBrush should be free of hair and debris for effective cleaning.
3. Угаах хэрэгсэл: Rinse the 8 cm Tough Stain Tool and Spraying Crevice Tool under running water after each use.
4. Зөв хадгалах: Store the machine in a dry, protected area. Do not store with solution in the clean water tank.

Алдааг олж засварлах

Үзүүлэлтүүд

• Загвар: 3878Н
• Брэнд: Бисселл
• Эрчим хүч: 600 W (Suction)
• Цэвэр усны савны багтаамж: 3.8 литр
• Бүтээгдэхүүний хэмжээс (L x W x H): 42 x 30 x 108 см
• Барааны жин: 7.71 кг
• Цэвэрлэх замын өргөн: 25 см
• Хоолойн урт: 2.1 м
• Оруулсан хэрэгслүүд: 8 cm Tough Stain Tool, Spraying Crevice Tool
• Эрчим хүчний эх үүсвэр: Утастай цахилгаан
• Өнгө: Noir Cha Cha Lime (Black Cha Cha Lime)

Баталгаат болон дэмжлэг

For warranty information and customer support, please refer to the warranty card included with your product or visit the official BISSELL webсайт. Худалдан авалтын баримтаа аливаа баталгаат нэхэмжлэлийг худалдан авсан баримт болгон хадгална уу.

Онлайн дэмжлэг: www.bissell.com

Загварын дугаар: 3878Н

Серийн дугаар: (Located on the product label, usually on the back or bottom of the unit)
