Grundig GIGL 622410 Wok Built-in Glass Hob User Manual

1. Танилцуулга

Thank you for choosing the Grundig GIGL 622410 Wok Built-in Glass Hob. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new appliance. Please read these instructions thoroughly before using the hob and keep them for future reference.

2. Аюулгүй байдлын мэдээлэл

Your safety and the safety of others are paramount. This section contains important safety instructions. Failure to follow these instructions may result in fire, electric shock, serious injury, or death.

• Ерөнхий аюулгүй байдал: This appliance is intended for domestic use only. Do not use it for commercial purposes.
• Хүүхэд ба эмзэг бүлгийн хүмүүс: Энэ төхөөрөмжийг 8 ба түүнээс дээш насны хүүхдүүд болон бие бялдар, мэдрэхүйн болон сэтгэцийн хомсдолтой эсвэл туршлага, мэдлэг дутмаг хүмүүс уг төхөөрөмжийг аюулгүй ашиглах зааварчилгааг авсан, учирч болох аюулыг ойлгосон тохиолдолд ашиглаж болно. . Хүүхэд төхөөрөмжөөр тоглохыг хориглоно. Цэвэрлэгээ болон хэрэглэгчийн засвар үйлчилгээг хараа хяналтгүй хүүхэд хийж болохгүй.
• Суурилуулалт: Installation and service must be performed by a qualified installer, service agency, or the gas supplier. Ensure the appliance is correctly connected to the gas and electrical supply according to local regulations.
• Агааржуулалт: Ensure adequate ventilation in the kitchen when the hob is in use.
• Халуун гадаргуу: The hob surface and surrounding areas become hot during use. Avoid touching hot surfaces. Use oven mitts or pot holders.
• Шатамхай материал: Keep flammable materials (e.g., curtains, paper, aerosols) away from the hob.
• Хэт халалт: Never leave cooking unattended, especially when cooking with oil or fat, as it can ignite.
• Цэвэрлэгээ: Always turn off the appliance and allow it to cool before cleaning.
• Хийн алдагдал: Хэрэв та хийн үнэртвэл хийн хангамжийг нэн даруй унтрааж, цонхоо онгойлгож, цахилгаан унтраалга, цахилгаан хэрэгслийг бүү асаагаарай. Хийн хангамжийн компани эсвэл мэргэшсэн техникчтэй холбоо барина уу.

3. Бүтээгдэхүүн дууссанview

The Grundig GIGL 622410 is a built-in glass hob featuring four gas burners, including a dedicated wok burner, designed for efficient and versatile cooking.

Зураг 3.1: Дээрээс доош view of the Grundig GIGL 622410 built-in glass hob. This image shows the overall layout of the hob, including the four gas burners and the control knobs located on the right side of the white glass surface.

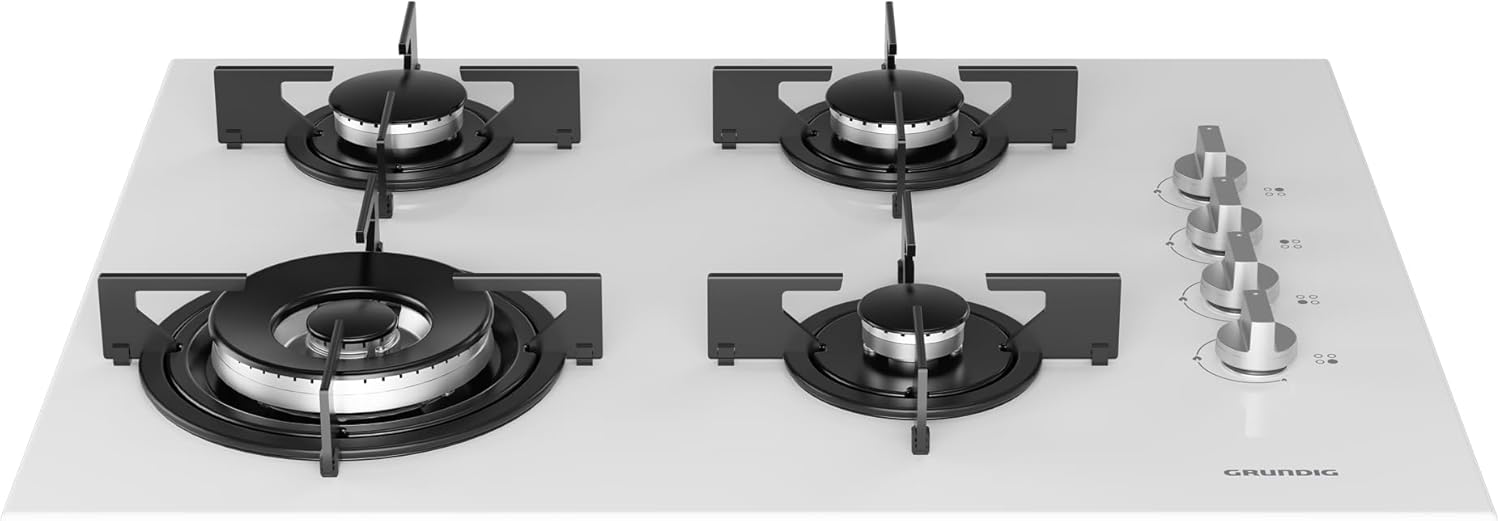

Зураг 3.2: Өнцөг дээд view of the Grundig GIGL 622410 built-in glass hob. This perspective provides a clearer view of the individual burner grates and the arrangement of the control knobs.

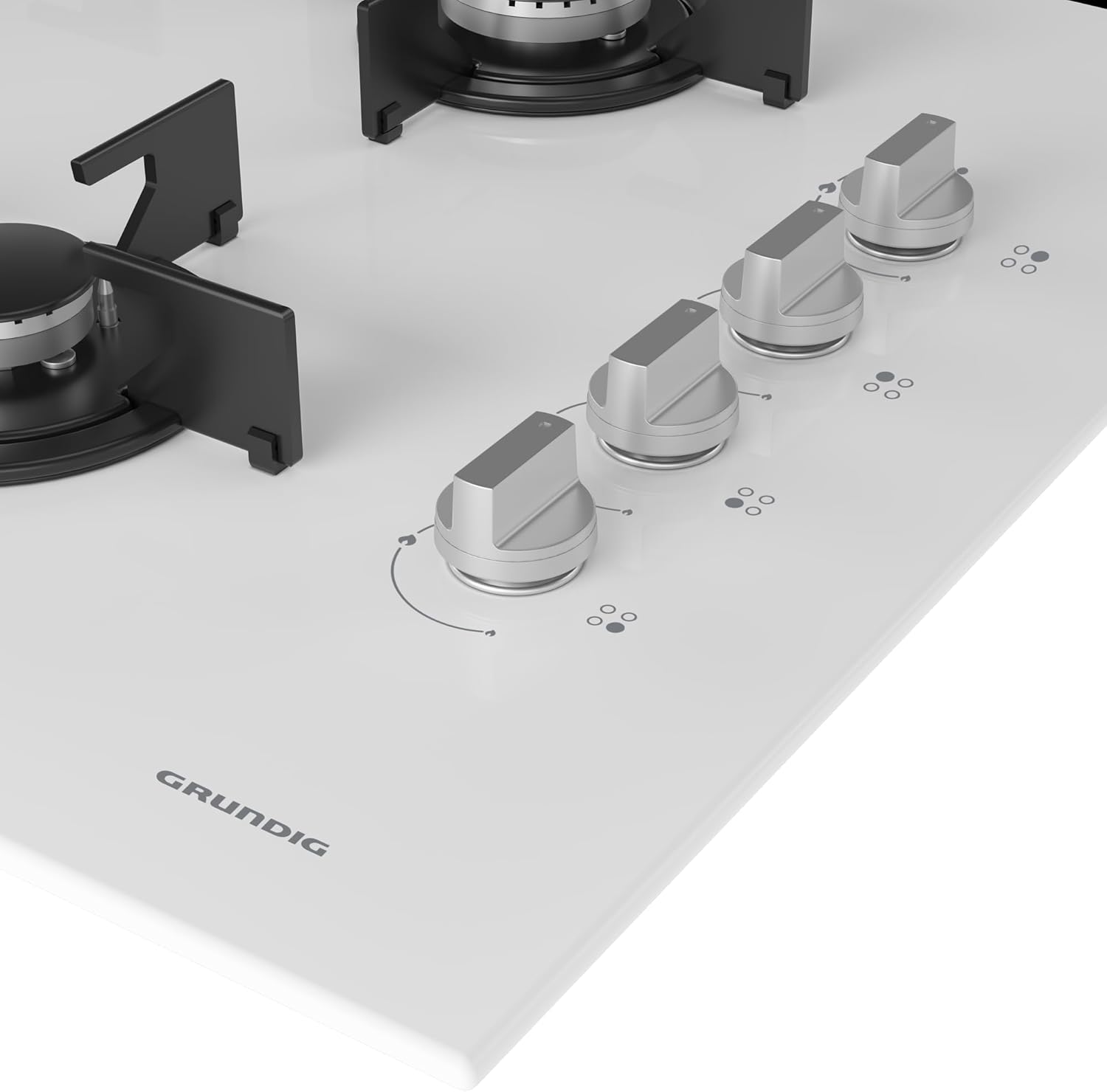

Зураг 3.3: Ойрын зураг view of the control knobs. Each knob is clearly marked with symbols indicating flame intensity and ignition positions, allowing precise control over each burner.

Figure 3.4: Close-up of a single gas burner. This image details the burner cap, flame spreader, and the sturdy cast-iron pan support, designed for stable cookware placement.

Figure 3.5: Vertical view of the control panel. This image provides a clear, straight-on view of all four control knobs, emphasizing their ergonomic design and the clear markings for operation.

Бүрэлдэхүүн хэсгүүд:

• Шилэн гадаргуу: Durable and easy-to-clean ceramic glass.
• Хийн шатаагч: Four burners of varying sizes, including a powerful wok burner.
• Пан дэмждэг: Sturdy grates for holding cookware securely.
• Хяналтын товчлуурууд: Ergonomic knobs for flame adjustment and ignition.
• Гал асаах систем: Асаахад хялбар электрон асаагуур.

4. Тохиргоо ба суурилуулалт

Installation must be carried out by a qualified technician in accordance with all local and national regulations. Incorrect installation can lead to serious injury or damage.

4.1. Суулгахын өмнөх шалгалт

• Ensure the kitchen counter opening dimensions match the hob's requirements.
• Verify that the gas supply type (natural gas or LPG) matches the appliance's specifications. If conversion is needed, use the provided conversion kit and have it performed by a qualified technician.
• Check that the electrical supply (voltage and frequency) is compatible with the hob's requirements for ignition.
• Суурилуулалтын талбайд хангалттай агааржуулалтыг хангах.

4.2. Hob Placement

• Place the hob into the prepared cutout in the kitchen countertop.
• Secure the hob using the provided mounting clips and seals to prevent movement and protect against moisture.

4.3. Хийн холболт

• Connect the hob to the gas supply using a flexible or rigid pipe approved for gas installations.
• Ensure all connections are tight and leak-free. Perform a leak test using soapy water; never use an open flame.
• Install a gas shut-off valve in an accessible location near the hob.

4.4. Цахилгааны холболт

• Connect the hob's electrical cable to a grounded power outlet or junction box.
• Ensure the electrical connection is protected by a suitable fuse or circuit breaker.
• The electrical connection is primarily for the electronic ignition system.

5. Ашиглалтын заавар

This section explains how to safely and effectively use your Grundig GIGL 622410 hob.

5.1. Анхны хэрэглээний өмнө

• Remove all packaging materials and protective films from the hob.
• Зуухны гадаргууг зар сурталчилгаагаар цэвэрлэamp даавуу, зөөлөн угаалгын нунтаг.
• Ensure all burner components (burner caps, flame spreaders, pan supports) are correctly assembled.

5.2. Igniting a Burner

1. Place appropriate cookware on the pan support over the desired burner.
2. Push down the corresponding control knob and turn it counter-clockwise to the ignition position (usually marked with a flame symbol or asterisk).
3. Дөл асаж, тогтворжих хүртэл товчлуурыг хэдэн секундын турш дарна уу. Энэ үйл явцад электрон асаалт товших болно.
4. Once the flame is stable, release the knob. If the flame goes out, repeat the process.

5.3. Adjusting Flame Intensity

• After ignition, turn the control knob further counter-clockwise to increase the flame (larger flame symbol) or clockwise to decrease it (smaller flame symbol).
• Always adjust the flame so it does not extend beyond the base of the cookware.

5.4. Using the Wok Burner

• The wok burner provides high heat for rapid cooking. Use it with a wok or large pots.
• Ensure the wok is stable on the dedicated wok support (if provided) or the standard pan support.

5.5. Шатаагчийг унтраах

• Turn the control knob clockwise until it reaches the 'off' position (usually marked with a dot or '0'). The flame will extinguish.

5.6. Cookware Recommendations

• Use pots and pans with flat, heavy bases that are suitable for gas hobs.
• Ensure the diameter of the cookware matches the size of the burner to maximize efficiency and prevent heat loss.
• Avoid using excessively large or small cookware that could be unstable or inefficient.

6. Засвар үйлчилгээ, цэвэрлэгээ

Regular cleaning and maintenance will ensure the longevity and optimal performance of your hob. Always ensure the hob is cool and disconnected from the power supply before cleaning.

6.1. Өдөр тутмын цэвэрлэгээ

• Wipe the glass surface with a soft cloth and mild detergent after each use to remove spills and food residue.
• Dry thoroughly with a clean cloth to prevent water spots.

6.2. Cleaning Burners and Pan Supports

• Remove the pan supports, burner caps, and flame spreaders.
• Wash these components in warm soapy water. For stubborn stains, a non-abrasive cleaner can be used.
• Rinse thoroughly and dry completely before reassembling. Ensure burner parts are correctly positioned to prevent ignition issues.
• Clean the ignition electrodes gently with a small brush if they become soiled, ensuring they are dry before use.

6.3. Glass Surface Care

• For burnt-on food, use a ceramic hob scraper (plastic or metal, specifically designed for glass hobs) to carefully remove residue.
• Apply a specialized ceramic hob cleaner to maintain the shine and protect the surface.
• Avoid abrasive sponges, scouring pads, or harsh chemical cleaners that can scratch or damage the glass.

7. Алдаа засах

Хэрэглэгчийн үйлчилгээтэй холбогдохын өмнө нийтлэг асуудлууд болон тэдгээрийн шийдлүүдийг дараах хүснэгтээс харна уу.

8. Техникийн үзүүлэлтүүд

Key technical specifications for the Grundig GIGL 622410 Built-in Glass Hob:

• Брэнд: Грундиг
• Загвар: GIGL 622410
• Өнгө: Цагаан
• Эрчим хүчний эх үүсвэр: Corded Electric (for ignition)
• Халаалтын гадаргуугийн материал: Шилэн керамик
• Материал: Керамик
• Халаалтын элементийн төрөл: Зэвэрдэггүй ган
• Суурилуулалтын төрөл: Freestanding (Note: Product description indicates built-in, but specification lists 'Ayaklı' which translates to freestanding. Please refer to installation guide for precise details.)
• Оруулсан бүрэлдэхүүн хэсгүүд: Зөвхөн плитка
• Үйлдвэрлэгчийн хэсгийн дугаар: 8690842606533
• ASIN: B0CKWLDFFT

9. Баталгаат хугацаа ба дэмжлэг

For warranty information, please refer to the warranty card included with your product or visit the official Grundig webсайт. Худалдан авалтын баримтаа худалдан авалтын баталгаа болгон хадгалаарай.

If you require technical assistance, spare parts, or service, please contact Grundig customer support. You can find contact details on the Grundig webсайт эсвэл таны төхөөрөмжид өгөгдсөн баримт бичигт.

When contacting support, please have your product model number (GIGL 622410) and serial number ready.
