BETELNUT 36-Inch Electric Fireplace User Manual

1. Аюулгүй байдлын чухал мэдээлэл

Энэ бүтээгдэхүүнийг залгах эсвэл ашиглахаасаа өмнө аюулгүй байдлын бүх мэдээллийг багтаасан энэхүү хэрэглэгчийн гарын авлагыг бүрэн уншиж, ойлгоно уу. Үүнийг хийхгүй бол гал түймэр, цахилгаанд цохиулах эсвэл ноцтой гэмтэл учруулж болзошгүй.

• Always disconnect the fireplace from the power supply before cleaning or performing maintenance.
• Энэ задгай зуухыг гадаа бүү ашигла.
• Тавилга, дэр, ор дэрний цагаан хэрэглэл, цаас, хувцас, хөшиг зэрэг шатамхай материалыг пийшингийн урд талаас 3 фут (0.9 м)-ээс багагүй зайд байлга.
• This fireplace is ETL certified, ensuring safety standards are met.

2. Багцын агуулга

Суулгацыг эхлүүлэхийн өмнө бүх бүрэлдэхүүн хэсгүүд байгаа эсэхийг шалгана уу.

• 1x Electric Fireplace (36"L*17"W*4"D)
• 1x Carbon Log
• 1 pack Crystal Stone
• 1x Алсын удирдлага
• 1x суулгах гарын авлага
• Тоног төхөөрөмжийн дагалдах хэрэгсэл

3. Бүтээгдэхүүний техникийн үзүүлэлтүүд

4. Суурилуулалт

The BETELNUT electric fireplace offers flexible installation options: wall-mounted or recessed. No chimney or venting is required.

4.1 Хэмжээ ба зай

Image: Detailed dimensions for the 36-inch electric fireplace, including the unit's overall size (36"L x 17"H x 4"D) and the recommended recessed opening (32.77"W x 16.54"H x 4.33"D). Arrows indicate air intake and exhaust.

Ensure adequate clearance around the fireplace for proper air circulation and safety. Refer to the diagram for precise measurements for both the unit and the required wall opening for recessed installation.

4.2 Суурилуулах аргууд

Зураг: Жишээ ньamples of the two installation methods: recessed into a wall (left) and wall-mounted (right). Both show the fireplace integrated into different room aesthetics.

Хананд суурилуулсан суурилуулалт: Secure the mounting bracket to a wall stud using appropriate hardware. Hang the fireplace unit onto the bracket, ensuring it is level and securely fastened.

Суурилуулалт: Create an opening in the wall according to the specified dimensions. Insert the fireplace unit into the opening and secure it using the provided mounting screws. Ensure the unit is flush with the wall surface.

5. Ашиглалтын заавар

The fireplace can be operated using the LED touch screen panel on the unit or the included remote control.

5.1 Controls: Remote and Touch Screen

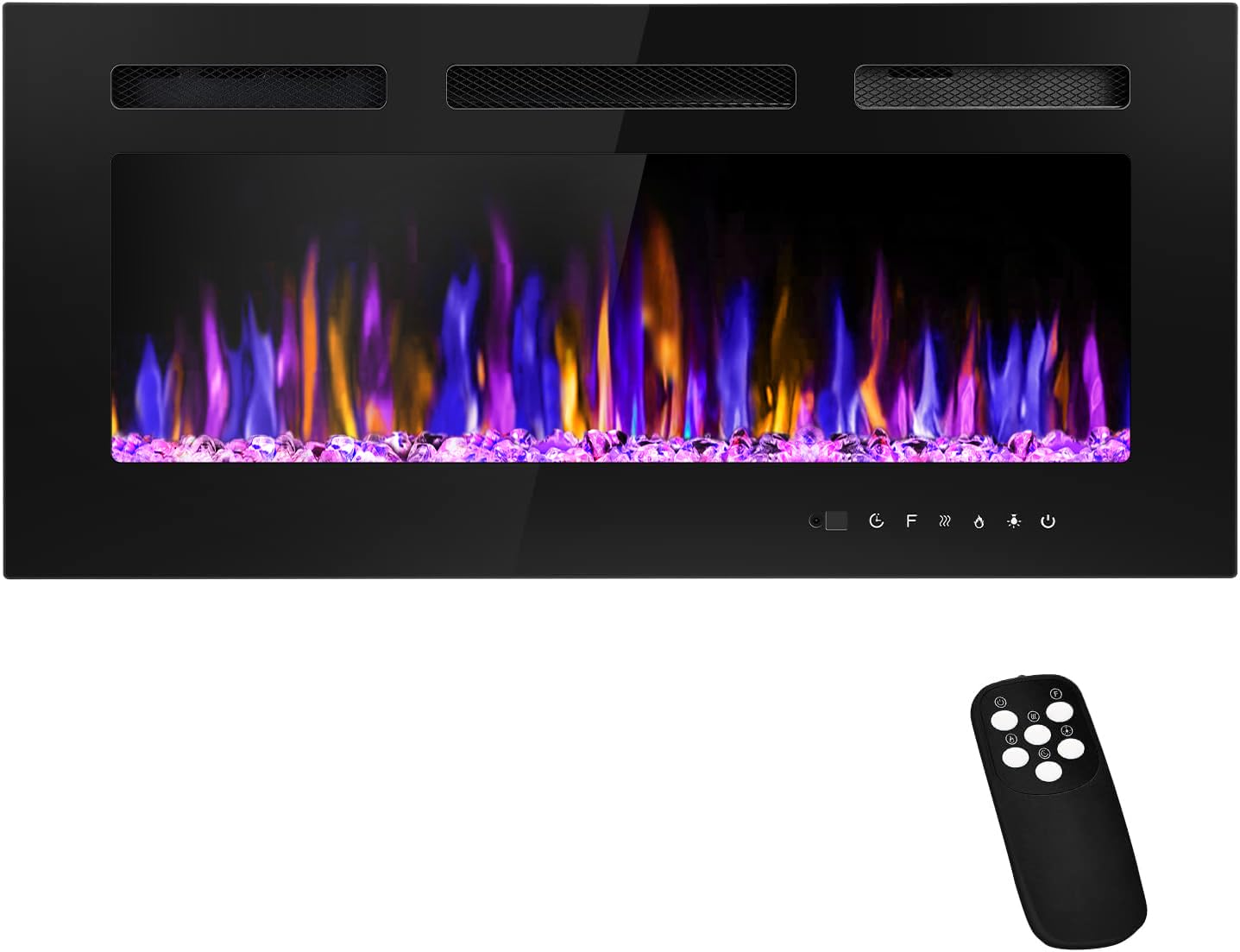

Зураг: Дээд тал нь view of the electric fireplace highlighting the touch screen controls on the unit and the handheld remote control. Icons for Timer, Temperature, Heater, Flame Color, Dimmer, and Power are clearly visible.

• Цахилгаан товч: Turns the fireplace ON/OFF.
• Цаг хэмжигч товчлуур: Автомат унтрах таймерыг 1-ээс 8 цаг хүртэл тохируулна.
• Температурын товчлуур: Adjusts the heat temperature from 62°F to 82°F.
• Халаагчийн товчлуур: Toggles between 750W (low heat) and 1500W (high heat) settings.
• Галын өнгөний товчлуур: Cycles through 12 different flame colors.
• Бүдгэрүүлэх товчлуур: Adjusts the flame brightness through 5 levels (L1-L5).

5.2 Галын нөлөө

Customize the visual ambiance with various flame colors and brightness levels.

Image: A visual representation of the 12 distinct flame colors available for both the crystal and log flame bed options, showcasing the variety of aesthetic choices.

Image: A graphic demonstrating the five adjustable brightness levels (L1 being dimmest, L5 brightest) for the flame effect, allowing users to control the intensity of the visual display.

The fireplace includes both a carbon log and crystal stone options for the flame bed, allowing you to choose your preferred aesthetic.

Image: The electric fireplace showcasing both the traditional carbon log set and the modern crystal stone options for the flame bed, providing versatility in design.

5.3 Халаалтын функц

The heating function provides supplemental warmth for spaces up to 400 sq ft.

Image: A visual explanation of the heating operation, indicating that heat is emitted from the top-center vent. Icons highlight the low-noise operation (below 45 dB) and the adjustable timer (1-8 hours).

• Choose between 750W and 1500W heat settings.
• Adjust the thermostat to maintain a comfortable room temperature between 62°F and 82°F.
• The unit operates with low noise (approximately 45 dB) for a quiet environment.
• Utilize the timer function to automatically shut off the heater after 1 to 8 hours, promoting energy saving.
• Equipped with a safe cut-off device to prevent overheating.

6. Засвар үйлчилгээ

Цахилгаан зуухны тогтмол засвар үйлчилгээ нь түүний оновчтой ажиллагаа, удаан эдэлгээг баталгаажуулдаг.

• Цэвэрлэгээ: Цэвэрлэхийн өмнө төхөөрөмжийг унтрааж, залгуураас салгасан эсэхийг шалгаарай. Зөөлөн ашиглах, damp cloth to wipe down the exterior surfaces, including the tempered glass panel. Do not use abrasive cleaners or sprays.
• Агааржуулалтын нүх: Periodically check and clean the air intake and exhaust vents to ensure they are free from dust and debris, which can obstruct airflow and reduce heating efficiency.

7. Алдаа засах

If you encounter any issues with your fireplace, refer to the following common troubleshooting steps:

• Эрчим хүчгүй: Check if the power cord is securely plugged into a working electrical outlet. Ensure the circuit breaker is not tripped.
• Дулаан байхгүй: Verify that the heater function is activated and the temperature setting is above the current room temperature. Check for any obstructions in the air vents.
• Алсын удирдлага ажиллахгүй байна: Алсын удирдлага дахь батерейг солино уу. Алсын удирдлага болон задгай зуухны мэдрэгчийн хооронд ямар нэгэн саад байхгүй эсэхийг шалгаарай.
• Ер бусын дуу чимээ: A slight fan noise is normal during heating operation. If the noise is excessive or unusual, turn off the unit and contact customer support.

8. Баталгаат хугацаа ба дэмжлэг

This BETELNUT electric fireplace comes with a Хязгаарлагдмал баталгаат хугацаа. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty card included in your product packaging or contact BETELNUT customer support directly.

For technical assistance, parts replacement, or any other inquiries, please contact the manufacturer, BETELNUT, through their official support channels.
