Танилцуулга
This manual provides detailed instructions for the safe installation, operation, and maintenance of your PSHRFANST 19.7" Ceiling Fan with Lights. Please read this manual thoroughly before installation and use, and retain it for future reference.
Аюулгүй байдлын мэдээлэл
- Суурилуулалт, засвар үйлчилгээ хийхээс өмнө цахилгаан таслагчаас цахилгааныг салгасан эсэхийг шалгаарай.
- Бүх утаснууд нь үндэсний болон орон нутгийн цахилгааны кодын дагуу байх ёстой. Хэрэв та эргэлзэж байвал мэргэшсэн цахилгаанчинтай зөвлөлдөөрэй.
- Сэнсийг таазны дам нуруу эсвэл сэнсний жинг даах чадвартай тулгуур байгууламжид угсарна.
- Суурилуулах эсвэл цэвэрлэх явцад сэнсний ирийг нугалж болохгүй.
- Сэнс ажиллаж байх үед гар болон эд зүйлсийг сэнсний ирнээс хол байлга.
- Энэхүү төхөөрөмжийг бие бялдар, мэдрэхүйн болон сэтгэцийн хомсдолтой, эсвэл туршлага, мэдлэг дутмаг хүмүүс (хүүхдүүдийг оролцуулан) ашиглахад зориулагдаагүй бөгөөд хэрэв тэдэнд аюулгүй байдлыг нь хариуцдаг хүнээс тухайн төхөөрөмжийг ашиглах зааварчилгаа өгөөгүй л бол.
Бүтээгдэхүүний онцлог
- Smart Lighting Customization: Dimmable LED lighting with adjustable color temperatures (warm 3000K to white 6500K) and 10%-100% smooth dimming. Features a memory function to retain preferred settings.
- 6-Speed Airflow & Timer Convenience: Offers 6 adjustable fan speeds and a 1/2-hour automatic shutdown timer for customized comfort.
- Ultra-Quiet, All-Season Comfort: Equipped with a reversible DC motor for year-round use, operating at under 25dB for minimal noise.
- Space-Saving Modern Design: Sleek 19.7" low-profile build suitable for compact spaces, maximizing headroom and enhancing airflow.

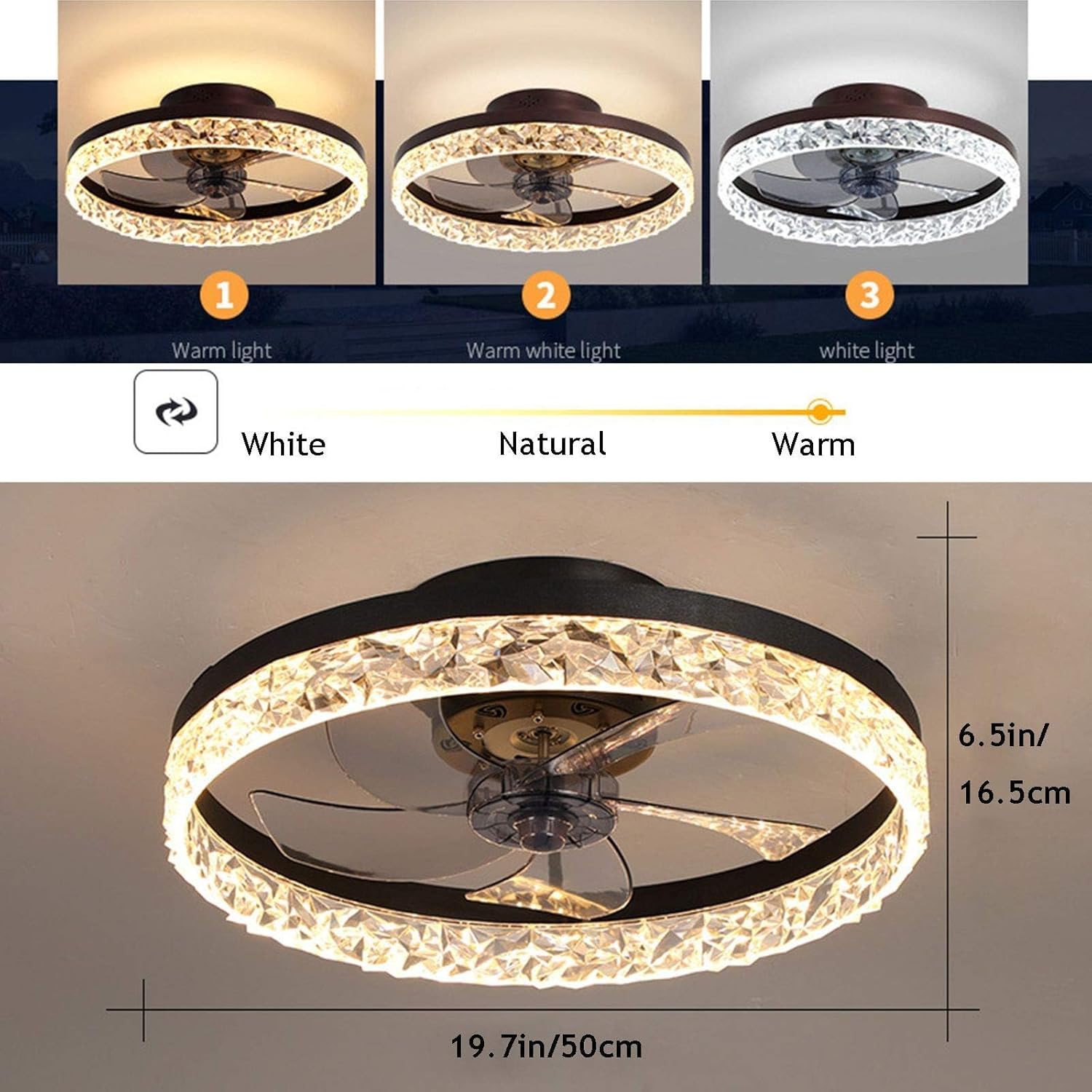

Image: The PSHRFANST ceiling fan with lights, illustrating its dimmable LED feature with warm, warm white, and white light options. Dimensions of 19.7 inches (50cm) diameter and 6.5 inches (16.5cm) height are shown.

Image: The ceiling fan demonstrating its reversible blade function, with blue arrows indicating downward airflow for summer mode and orange arrows indicating upward airflow for winter mode.
Суурилуулалт
Professional installation is recommended. Ensure all power is off before beginning installation.
- Суулгах бэхэлгээг бэлтгэх: Secure the mounting bracket to the ceiling junction box using appropriate screws and washers. Ensure the bracket is firmly attached to a structural support.
- Утасны холболтууд: Connect the fan's electrical wires to the household wiring according to local electrical codes. Typically, this involves connecting live, neutral, and ground wires. Use wire nuts to secure connections.
- Attach Fan Assembly: Carefully lift the fan assembly and attach it to the mounting bracket. Ensure all screws are tightened securely.
- Secure Light Fixture: If applicable, connect any additional wiring for the light fixture and secure it to the fan assembly.
- Алсын хүлээн авагчийг суулгах: Place the remote control receiver inside the canopy, ensuring it does not interfere with the fan's operation.
- Туршилтын функц: Restore power and test all fan speeds, light settings, and remote control functions.
Video: A demonstration of the installation process for the PSHRFANST ceiling fan, showing how to prepare the mounting bracket, connect wiring, and attach the fan assembly to the ceiling.
Ашиглалтын заавар
Your PSHRFANST ceiling fan is operated via the included remote control.
Алсын удирдлагын функцууд:
- Гэрэл асаах/унтраах: LED гэрлийг асаах эсвэл унтраахын тулд гэрлийн товчийг дарна уу.
- Бүдэгрүүлж байна: Use the '+' and '-' buttons to adjust the brightness of the light (10%-100%).
- Өнгөний температурын тохируулга: Cycle through warm (3000K), natural (4000K), and white (6500K) light settings.
- Сэнс асаах/унтраах: Сэнсийг асаах, унтраахын тулд сэнсний товчлуурыг дарна уу.
- Сэнсний хурд: Select from 6 fan speeds (1-6) to control airflow intensity.
- Reversible Blades (Summer/Winter Mode): Use the F/R button to switch between forward (cooling) and reverse (air circulation) modes.
- Цаг хэмжигч: Set the fan to automatically turn off after 1 or 2 hours.
- Шөнийн гэрэл: Activate a low-brightness night light mode.

Image: The remote control for the ceiling fan, detailing buttons for light on/off, dimming, color temperature, fan on/off, 6 fan speeds, reversible mode, and timer settings.
Засвар үйлчилгээ
- Цэвэрлэгээ: Regularly clean the fan and light fixture with a soft, damp даавуу. Зүлгүүрийн цэвэрлэгч, уусгагчийг бүү ашигла.
- Хутганы үзлэг: Periodically check fan blades for any signs of damage or imbalance.
- Боолтыг чангалах: Ensure all mounting screws and blade attachment screws remain tight.
Алдааг олж засварлах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Сэнс эхлэхгүй байна. | Цахилгаангүй, утаснууд нь суларсан, алсын удирдлагатай, батерей нь дууссан. | Check circuit breaker, verify wiring connections, replace remote batteries. |
| Гэрэл асдаггүй. | Loose wiring, LED module failure, remote battery dead. | Check wiring, contact support if LED module is faulty, replace remote batteries. |
| Сэнс чимээ шуугиантай байна. | Сул эрэг, тэнцвэргүй ир. | Tighten all screws, ensure blades are balanced. |
| Алсын удирдлага ажиллахгүй байна. | Батарей дуусч, алсын удирдлага холбогдоогүй. | Replace batteries, refer to remote pairing instructions in the manual. |
Үзүүлэлтүүд
| Онцлог | Дэлгэрэнгүй |
|---|---|
| Брэнд | ПШРФАНСТ |
| Загварын дугаар | 713041268017 |
| Хэмжээ | 19.7 инч |
| Гэрлийн эх үүсвэр | Dimmable LED (3000K-6500K) |
| Сэнсний хурд | 6 хурд |
| Моторын төрөл | Урвуу гүйдлийн хөдөлгүүр |
| Хяналтын арга | Алсын удирдлага |
| Таймер функц | 1/2-hour automatic shutdown |
| Дуу чимээний түвшин | 25дБ-ээс доош |
| Материал | Acrylic, Acrylonitrile Butadiene Styrene, Iron |
| Зүйлийн жин | 7.5 фунт |
Баталгаат болон дэмжлэг
The PSHRFANST 19.7" Ceiling Fan with Lights comes with a 5-year motor support болон 2-year component support. For any questions or assistance, please contact our after-sales support team. We are committed to helping you resolve any issues as soon as possible.
