1. Бүтээгдэхүүн дууссанview
This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your Toshiba AW-10SD6 T DD Inverter Washing Machine. Please read this manual thoroughly before using the appliance and keep it for future reference.
The Toshiba AW-10SD6 T is a fully automatic 10kg capacity washing machine featuring advanced washing technologies such as Ultra Fine Bubble wash, ZABOON Pal 6 pulsator, and a direct drive (DD) inverter motor for quiet and powerful performance.
Зураг: Урд view of the Toshiba AW-10SD6 T DD Inverter Washing Machine in Grain Brown.
2. Аюулгүй ажиллагааны чухал заавар
To prevent injury to the user or others and property damage, the following instructions must be observed. Incorrect operation due to ignoring instructions may cause harm or damage.
- Төхөөрөмжийг үргэлж газардуулсан цахилгаан залгуурт холбоно уу.
- Хүүхдийг төхөөрөмж дээр тоглуулахыг бүү зөвшөөр. Төхөөрөмжийг хүүхдийн ойролцоо ашиглах үед нарийн хяналт шаардлагатай.
- Энэ төхөөрөмжийг цаг агаар, хүйтэнд өртөх газар бүү суулгаж, бүү хадгал.
- Энэхүү гарын авлагад тусгайлан заагаагүй бол төхөөрөмжийн аль нэг хэсгийг засах, солих, засвар үйлчилгээ хийхийг бүү оролд.
- Төхөөрөмжийг цэвэрлэх, засвар үйлчилгээ хийхээсээ өмнө үргэлж цахилгаан тэжээлээс салга.
- Усны хоолойг зөв холбож, гоожихоос сэргийлж чангалсан эсэхийг шалгаарай.
3. Тохиргоо ба суурилуулалт
3.1 Савлах
Carefully remove all packaging materials. Ensure all accessories are present. Keep packaging materials away from children.
3.2 Байршилд тавигдах шаардлага
The washing machine requires a stable, level surface. Ensure there is sufficient space around the unit for proper ventilation and operation. Refer to the dimensions below for installation planning.
Image: Diagram illustrating the required clearance for installation, including door openings and surrounding space. A minimum of 10cm clearance is generally required for product dimensions.

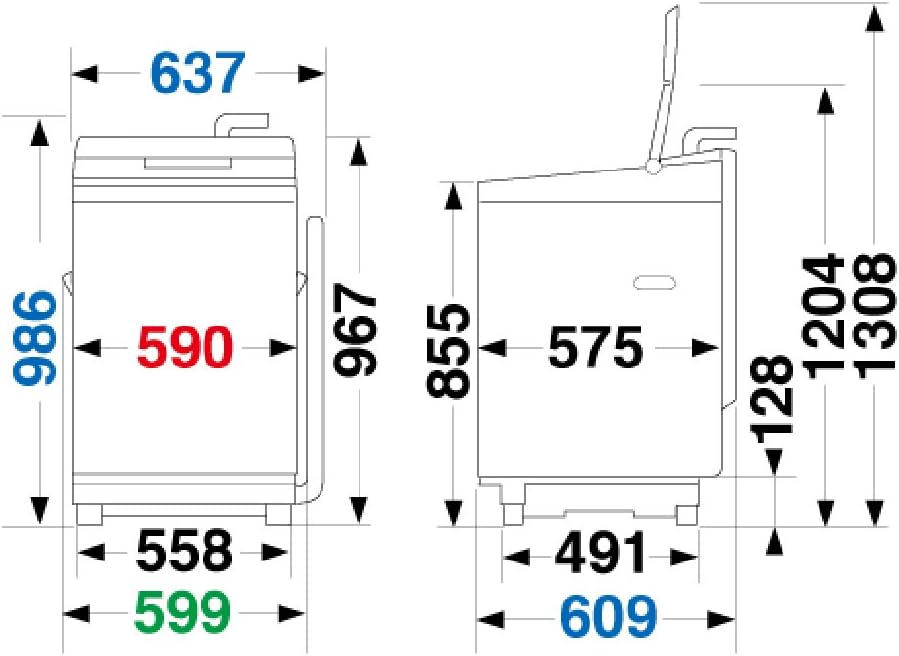

Image: Detailed technical drawing showing the dimensions of the Toshiba AW-10SD6 T washing machine from front and side viewс, миллиметрээр хэмжсэн.
3.3 Ус ба ус зайлуулах хоолойн холболт
Connect the water inlet hose to a cold water tap and the washing machine. Ensure connections are secure to prevent leaks. Position the drain hose correctly to allow for proper water drainage.
3.4 Төхөөрөмжийг тэгшлэх
Adjust the leveling feet at the bottom of the washing machine to ensure it is perfectly level. This prevents excessive vibration and noise during operation. Use a spirit level for accuracy.
4. Ашиглалтын заавар
4.1 Угаалга ачих
Open the lid and load laundry into the tub. Do not overload the machine. For optimal washing, ensure clothes are distributed evenly.
4.2 Угаалгын нунтаг болон зөөлрүүлэгч нэмэх
Add the appropriate amount of detergent and fabric softener to the integrated concentrated detergent case. This case allows for combined input of detergent and softener.
4.3 Угаах хөтөлбөр сонгох
Turn on the power and select the desired wash program using the control panel. The machine offers various programs tailored for different fabric types and soil levels.
Ultra Fine Bubble Wash
This technology generates nano-sized bubbles, smaller than fabric fibers, which penetrate deep into the fabric. These bubbles enhance the cleaning power of detergent by attracting and lifting dirt effectively, leading to superior stain removal and maintaining fabric brightness over time.
Image: Diagram illustrating the three steps of Ultra Fine Bubble wash: 1. Small bubbles absorb detergent components. 2. Small bubbles deeply penetrate fabric fibers. 3. Dirt is effectively lifted and removed.
ZABOON Pal 6 Pulsator
The ZABOON Pal 6 features six asymmetrical blades of varying sizes. These blades create a powerful, three-dimensional water flow that moves clothes up, down, left, and right, preventing uneven washing and ensuring thorough cleaning.
Water Flow Power Button
Adjust the water flow intensity (strong or weak) according to the soil level of your laundry. This allows for customized washing performance.
Stylish Clothes Tray (Delicate Wash Course)
For delicate items, use the dedicated Stylish Clothes Tray. This tray prevents direct friction between clothes and the pulsator, minimizing damage and deformation even with strong water flow. It ensures thorough cleaning of delicate garments.
Image: Illustration of the Stylish Clothes Tray in use, showing how it protects delicate garments from direct contact with the pulsator during washing. Examples of suitable clothing types are also shown.
Эко горим
The Eco Mode uses sensors to detect the amount of laundry, fabric type, and water temperature, optimizing operation to minimize water and energy consumption without compromising cleaning performance.
Room Drying Course
This course extends the spin-drying time, using powerful airflow to remove moisture from clothes. It is recommended for indoor drying, significantly reducing drying time. (Adds approximately 30 minutes to normal spin cycle).
4.4 Угаалгын циклийг эхлүүлэх
Press the "Start" button to begin the selected wash program. The machine will automatically proceed through the wash, rinse, and spin cycles.
4.5 Delay Start Function
The machine features a delay start function, allowing you to set the wash cycle to begin 1 to 24 hours later.
5. Засвар үйлчилгээ, цэвэрлэгээ
5.1 Автомат цэвэрлэгээний горим
The Automatic Cleaning Mode uses the final rinse water for spinning, and the centrifugal force generated by high-speed rotation creates a powerful water flow. This flow automatically cleans the outer side of the washing tub, the inner side of the outer tub, and the bottom of the tub. Water is circulated from the bottom to the top of the tub, washing away dirt and preventing its accumulation.
5.2 Хөвөн шүүлтүүр цэвэрлэх
Regularly clean the lint filter to ensure efficient operation and prevent lint from redepositing on clothes. Refer to the diagram for filter location and removal.
5.3 Concentrated Detergent Case Cleaning
The integrated detergent and softener case is removable for easy cleaning. Rinse it with water regularly to prevent residue buildup.
Зураг: Дууслааview of user-friendly features, including the wide opening for easy loading, the glass top design for easy cleaning, and the removable concentrated detergent case.
5.4 Гадна цэвэрлэгээ
Угаалгын машины гадна талыг зөөлөн, гamp даавуу. Зүлгүүрийн цэвэрлэгч, уусгагчийг бүү ашигла.
6. Алдаа засах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Машин асахгүй байна | Цахилгааны утас салгагдсан; Таг нь зөв хаагаагүй; Усны хангамж тасарсан. | Check power connection; Ensure lid is fully closed; Turn on water supply. |
| Хэт их чичиргээ/дуу чимээ | Machine not level; Laundry unevenly distributed; Shipping bolts not removed. | Adjust leveling feet; Redistribute laundry; Remove shipping bolts (if applicable). |
| Ус гоожих | Hoses not tightened; Drain hose improperly positioned. | Check and tighten all hose connections; Ensure drain hose is correctly installed. |
| Угаалгын үр дүн муу байна | Overloading; Incorrect detergent amount; Lint filter clogged. | Reduce load size; Use correct detergent amount; Clean lint filter. |
Эдгээр шийдлүүдийг туршиж үзсэний дараа асуудал хэвээр байвал хэрэглэгчийн дэмжлэгтэй холбоо барина уу.
7. Техникийн үзүүлэлтүүд
- Брэнд: Тошиба
- Загвар: AW-10SD6 T
- Хүчин чадал: 10 кг
- Standard Water Usage: 119 литр
- Operating Noise (Wash): 29 дБ
- Хэмжээ (D x W x H): 60.9 см х 63.7 см х 98.6 см
- Бүтээгдэхүүний жин: 47 кг
- Хаалганы байрлал: Шилдэг ачаалал
- Моторын төрөл: DD Inverter Motor
- Онцлогууд: Ultra Fine Bubble Wash, ZABOON Pal 6, Water Flow Power Button, Stylish Clothes Tray, Automatic Cleaning Mode, Eco Mode, Room Drying Course, Concentrated Detergent Case.
8. Баталгаат хугацаа ба дэмжлэг
Баталгаат хугацааны талаарх мэдээллийг авахыг хүсвэл бүтээгдэхүүнтэй хамт ирсэн баталгаат картыг үзнэ үү эсвэл Toshiba-ийн албан ёсны дэлгүүрт зочилно уу. website. For technical support, service, or spare parts, please contact your local Toshiba service center. Keep your purchase receipt as proof of purchase.
Та албан ёсны вэбсайтаас дэлгэрэнгүй мэдээлэл, дэмжлэг авах боломжтой Тошиба брэндийн дэлгүүр.
