ABCCANOPY 10x20 Pop Up Canopy Tent Instruction Manual

Вовед

This manual provides detailed instructions for the safe and efficient setup, operation, and maintenance of your ABCCANOPY 10x20 Pop Up Canopy Tent. This commercial-grade canopy features a robust steel frame with 1.77-inch hexagonal legs, designed for durability and stability. It includes a waterproof, fire-retardant, and UV-protected 300D fabric top, along with three sidewalls and one door wall for versatile use.

Key features include a peak tensioner design to prevent water collection, three adjustable height positions, and an improved auto-slider button for easy setup and takedown. The canopy is supplied with a wheeled roller bag for convenient transport and storage.

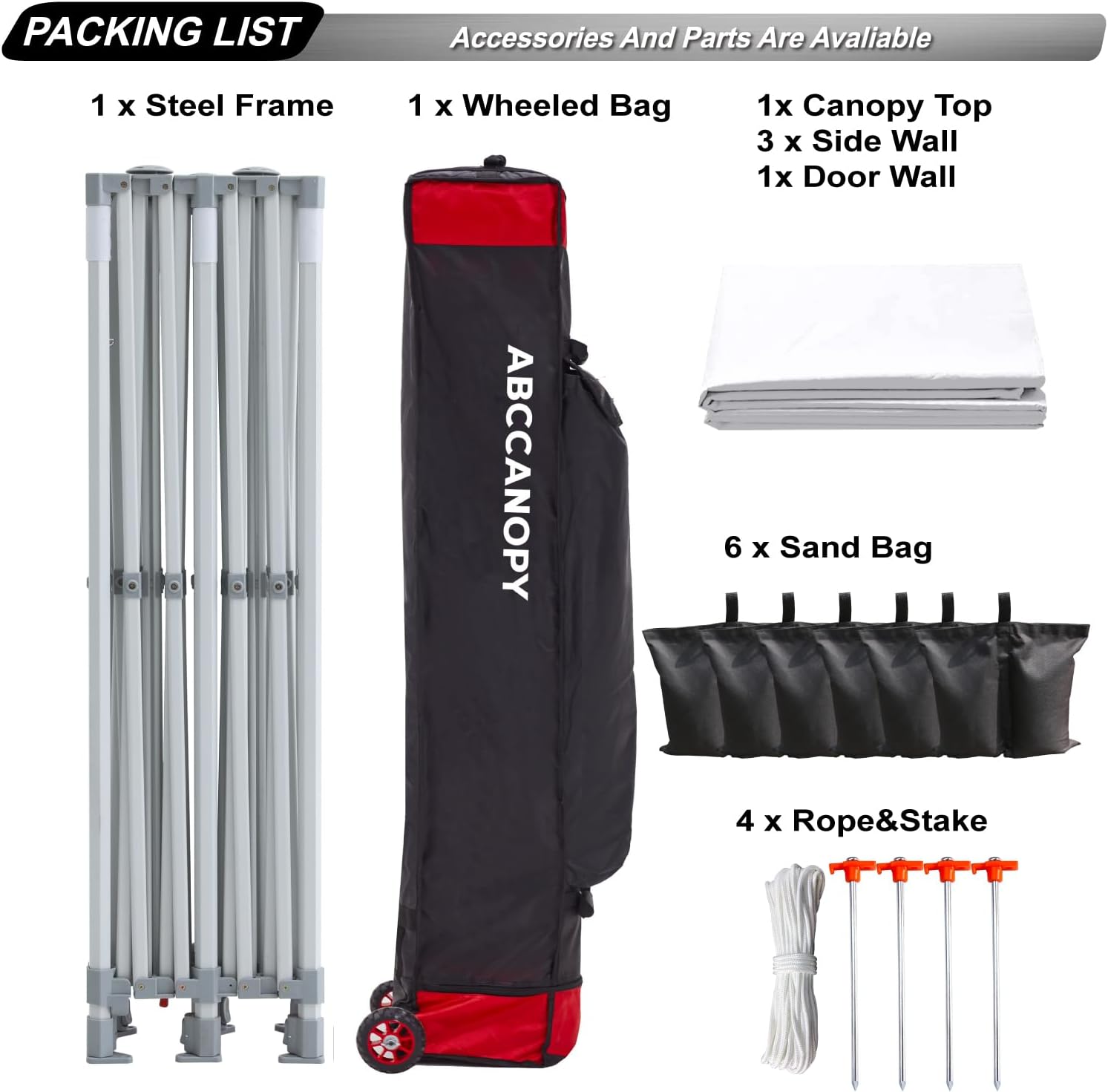

Содржина на пакетот

Пред да започнете со склопување, проверете дали сите компоненти наведени подолу се присутни во вашето пакување:

• 1 x Steel Frame
• 1 x Wheeled Bag
• 1 x Canopy Tent Top
• 3 x странични ѕидови
• 1 x Door Wall
• 6 x Sand Bags
• 4 x Јажиња
• 4 x Влогови

Инструкции за поставување

Assembly of the ABCCANOPY Pop Up Canopy Tent typically requires two people. No tools are required for setup.

Собрание чекор-по-чекор:

1. Step 1: Remove Frame and Position
   Remove the folded steel frame from its wheeled bag. Stand the frame upright in the desired setup location.



2. Чекор 2: Делумно проширување на рамката
   With a person on each side, gently pull the outer legs of the frame until it is slightly expanded.



3. Step 3: Attach Canopy Top and Lift
   Place the canopy top over the partially expanded frame. Lift the frame into its full position by expanding the truss bars. Ensure the peak tensioner design is engaged to keep the top tight.



4. Чекор 4: Прилагодете ја висината и заштитете
   Adjust the canopy to one of the three available height positions (6.4ft, 6.7ft, or 7ft clearance height) using the thumb button release levers. Secure the frame by pushing the auto slider button into place.
5. Step 5: Attach Sidewalls
   Attach the three sidewalls and one door wall to the canopy frame using the Velcro straps and zippers as desired.



6. Step 6: Anchor the Canopy
   Utilize the provided sandbags, ropes, and stakes to anchor the canopy securely to the ground, especially in windy conditions. The steel D-rings on each corner facilitate easy rope attachment.

Видео водич за поставување:

Упатства за работа

Once assembled, your ABCCANOPY Pop Up Canopy Tent provides a versatile outdoor shelter. The peak tensioner design ensures the canopy top remains taut, preventing water from pooling during rain. The three height settings allow you to customize the clearance for various activities or preferences.

The sidewalls can be attached or removed as needed to provide additional shade, privacy, or protection from wind and light rain. Ensure all Velcro straps and zippers are properly secured when sidewalls are in use.

Одржување

To ensure the longevity and optimal performance of your canopy, follow these maintenance guidelines:

• Чистење: Clean the canopy fabric with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as these can damage the fabric's waterproof and UV-protective coatings. Allow the fabric to dry completely before storage to prevent mildew.
• Нега на рамка: Периодично проверувајте ја челичната рамка за какви било знаци на 'рѓа или оштетување. Исчистете ја рамката од секаква нечистотија или остатоци.
• Складирање: When not in use, disassemble the canopy and store all components in the provided wheeled bag in a dry, cool place, away from direct sunlight.

Решавање проблеми

Еве решенија за вообичаени проблеми со кои може да се соочите:

• Water Collection on Top: The canopy features a peak tensioner design to minimize water pooling. Ensure the canopy top is properly stretched and secured to the frame during setup. If water still collects, check for any sagging points and adjust the frame or fabric tension.
• Нестабилност на ветерот: This canopy is built to withstand strong winds (up to 50km/h) when properly secured. Always use all provided sandbags, ropes, and stakes to anchor the canopy firmly to the ground. In very strong winds, it is recommended to take down the canopy to prevent damage.
• Difficulty in Setup/Takedown: Ensure the thumb button release levers and auto slider buttons are fully engaged or disengaged as required. Lubricate moving parts of the frame if they become stiff. Always perform setup and takedown with at least two people.

Спецификации

Информации за безбедност

Always secure the canopy with the provided weight bags and stakes in windy conditions. Keep a safe distance from heat sources and avoid prolonged exposure to sunlight to prevent fire and UV-related hazards.

Гаранција и поддршка

Your ABCCANOPY Pop Up Canopy Tent comes with the following warranty:

• Рамка: One year after-sale protection.
• Fabrics and Accessories: Six months after-sale protection.

For any questions, concerns, or warranty claims, please contact ABCCANOPY customer support. Refer to your purchase documentation for specific contact details.
