Model Number: BWCDS-HCQ1
Product Name: Bluetooth sound-control SPI controller (I series)
BWCDS-HCQ1 Bluetooth Ssound Control SPI Controller
Product Parameter
| Category | LED Controller |
| Domination Principle | BLUETOOTH 5.0 |
| APP | Magic Home Pro |
| Language | Chinese、English、Japanese、German |
| Operation Platform | Android 6.0 or IOS 11 or higher |
| LED Drive Type | SPI：WS2812B、SM16703、SM16704、WS2811、UCS1903、SK6812、SK6812RGBW、INK1003、UCS2904B |
| Input Voltage | DC(5-24)V |
| Max Output Power | 144W |
| Work For | LED Strip |
| Connect Method | Common Anode |
| Working Temperature | -20~+55℃ |
| Control Distance | Visible distance 40M |
| Certification | CE, RoHS, FCC |
| Warranty | 1 Year |
Detailed introduction of APP functions
Fixed Mode
10 fixed modes are built in, can change foreground and background color, adjust brightness, speed and direction freely.

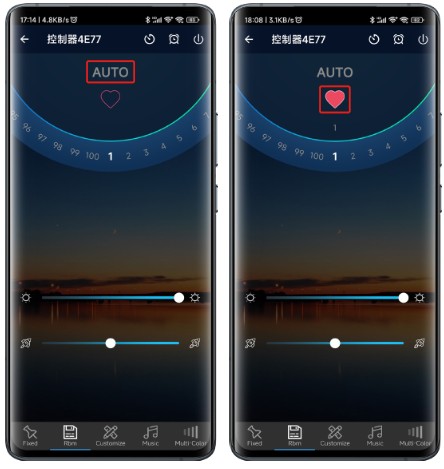

Rbm Mode
100 patterns of change, slide the ring to select pattern effect, and slide “
”or“
”for overall pattern effect brightness or speed settings. Click on“AUTO” to enter cycle mode or click on the heart icon to mark the favorite effect.
DIY Mode
Customized your own effects, click on”+” to choose your favorite effect and color then save it, now you can enjoy your own light effects at any time.

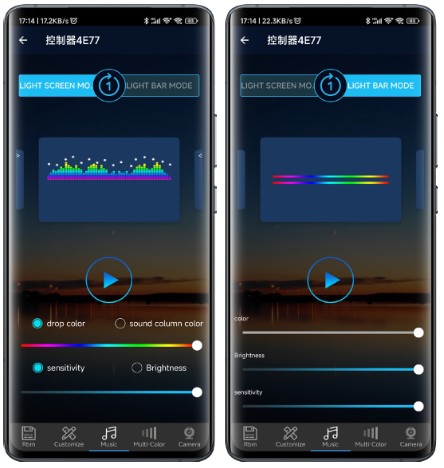

Music Mode
- In the light screen mode, you can choose the falling color, column color, sensitivity and brightness, which can be played circularly to achieve a more beautiful light effect.
- In the LED Strip Mode, you can select the brightness and sensitivity.
There are two ways to input the audio signal on the controller, built in APP microphone and external microphone.
Camera Mode
The area where the camera is aimed at is the coloring area, and the light color will changed accordingly.
Multi Color Function
Can set each IC seperately and set the lights with different modes 2. Optional dynamic modes for color lump gradient or mixed colors gradient:static, Asynchronous colors jumping, random color breathing, strobe and flow.
Key Functions
 | Static colors switch | 7 static colors switch (Red/yellow/green/light blue/dark blue/purple/white) |
 | Static RGB | 3 static colors switch (Red/Green/Blue) |
 | 7 static colors | 7 static colors switch (Red/yellow/green/light blue/dark blue/purple/orange) |
 | Loop mode | Built-in mode switch |
 | Modes+/- | Bulit-in mode+/Bulit-in mode- |
 | DIY Mode 1-4 | Hold down for two seconds to record the current mode, and short press to trigger the recorded mode next time. |
- Remote control code matching : power on the device, hold down “ON” key for 5 seconds, the device flashes slowly to indicate successful code matching.
- Remote code clearing : power on the device, hold down “OFF” key for 5 seconds, the device flashes quickly to indicate successful clearing
- Scene mode can only record one custom color
