Kupu Whakataki
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Blue Star IA322DXU 2 Ton 3 Star Smart Inverter Split AC. Please read it thoroughly before using the appliance and retain it for future reference.
The Blue Star IA322DXU is a 2-ton, 3-star rated smart inverter split air conditioner designed for optimal cooling performance in rooms up to 200 sq ft. It features a 4-way swing, DigiQ Hepta Sensor, Anti-Corrosive Blue Fins, Turbo Cool, and Self Clean Technology, along with smart connectivity options.

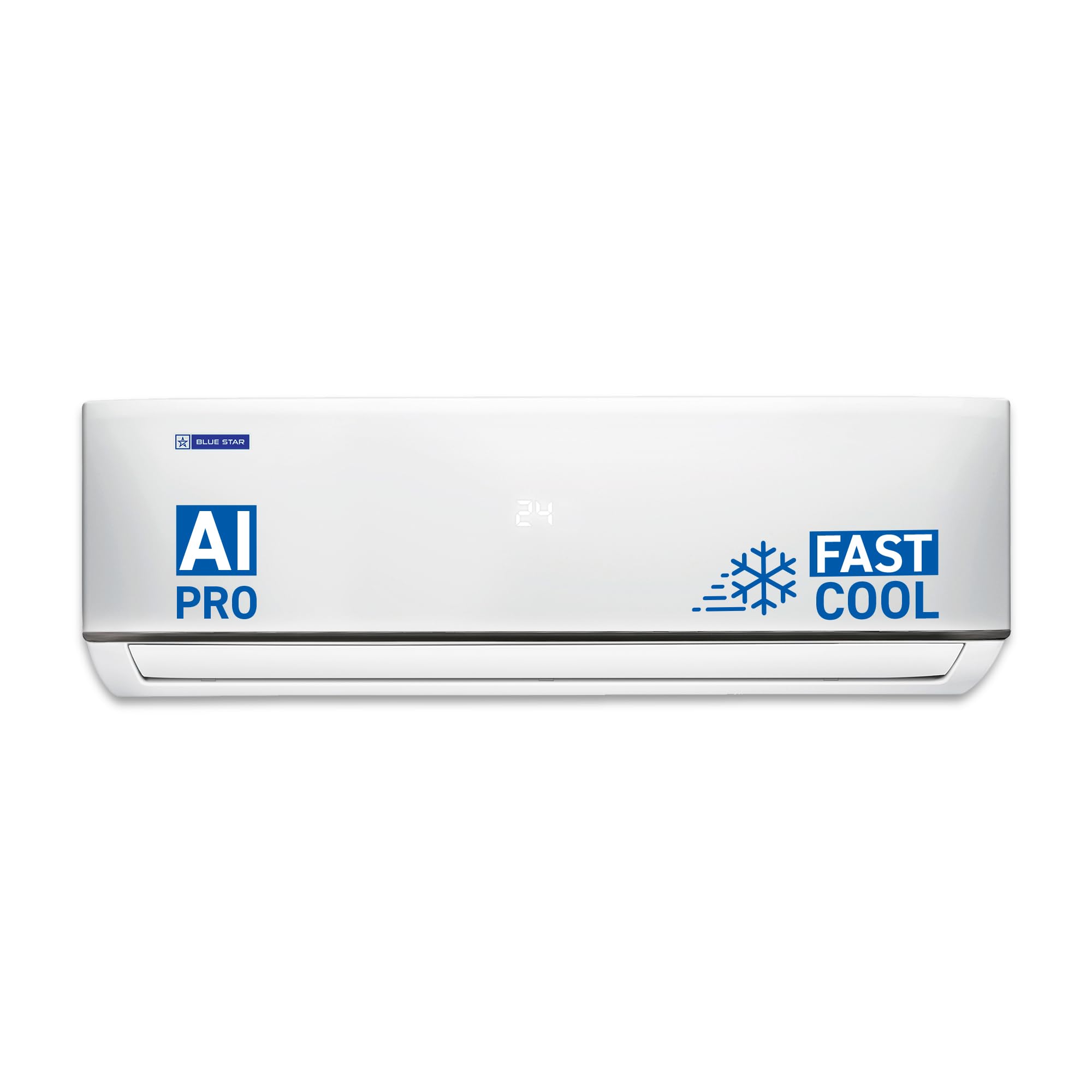

Whakaahua: Mua view of the Blue Star IA322DXU 2 Ton 3 Star Smart Inverter Split AC indoor unit.
Nga korero haumaru
Nga Tohutohu Haumaru Nui:
- Always ensure the AC is installed by qualified and authorized personnel.
- Do not attempt to repair or modify the unit yourself. Contact authorized service personnel for all repairs.
- Ensure the power supply matches the specifications listed on the unit's rating label.
- Kaua e kuhu maihao maihao, taonga ranei ki roto i te urunga hau.
- Puritia atu nga mea muramura mai i te waahanga.
- Regularly clean the air filters to maintain efficiency and air quality.
- If any abnormal operation or smell occurs, immediately turn off the unit and disconnect the power supply.
- This appliance uses R-32 refrigerant, which is mildly flammable. Ensure proper ventilation during installation and servicing.
Tatūnga me te Tāuta
Professional installation is crucial for the optimal performance and safety of your Blue Star AC. Please ensure that only certified technicians perform the installation.
Te Whakakore me te Tirotiro Tuatahi
- Carefully unbox the indoor and outdoor units.
- Verify that all included components are present: 1 Indoor Unit, 1 Outdoor Unit, 1 Remote Control, 1 User Manual with Warranty Card.
- Inspect for any visible damage during transit. Report any damage to the retailer immediately.
Ngā Aratohu Tāuta
- Turanga Wae Roto: Kōwhirihia he waahi ka taea te tohatoha hau puta noa i te ruma, kei tawhiti atu i te ra tika, i nga puna wera ranei. Whakaritea te waahi mokowhiti huri noa i te waahanga mo te tiaki.
- Turanga Waehe o waho: Position the outdoor unit in a well-ventilated area, away from obstacles that might impede airflow. Ensure it is on a stable, level surface.
- Paipa Rerigerant: The AC uses R-32 refrigerant. Ensure proper handling and installation of refrigerant lines by a qualified technician.
- Hononga Hiko: Connect the unit to a dedicated power circuit with appropriate voltage (230 Volts) and earthing. The unit is designed for stabilizer-free operation within specified voltage awhe.
- Whakaheke wai: Ensure proper drainage for condensate water from the indoor unit to prevent leaks.
Image: Dimensions of the Blue Star IA322DXU Indoor and Outdoor units. The indoor unit measures 21.5D x 111W x 33.5H Centimeters. The outdoor unit measures 36.7D x 88.9W x 58.2H Centimeters. This image also highlights the compressor and PCB warranty details.
Nga Tohutohu Whakahaere
Your Blue Star AC comes with a remote control and smart features for convenient operation.
Nga Mahi Mana Mamao
The remote control allows you to manage all functions of your AC. Point the remote control directly at the indoor unit's receiver when operating.
- Pātene ON/OFF: Ka whakakaha, ka weto ranei te waeine.
- Pātene MODE: Cycles through operating modes: Auto, Cool, Dry, Fan, Heat (if applicable).
- Pātene Pāmahana (▲/▼): Whakaritea te pāmahana e hiahiatia ana.
- Pātene Tere Fan: Kōwhiria te tere o te pā (Aunoa, Iti, Waenga, Teitei).
- Pātene SWING: Activates or deactivates the 4-way air swing feature for uniform cooling.
- Pātene TURBO: Engages Turbo Cool mode for rapid cooling.
- Pātene ECO: Activates Eco mode for energy-efficient operation.
- Pātene MOE: Whakaritea te pāmahana me te tere o te paihikara mo te moe pai.
- Patene MAA AROHA: Initiates the self-clean function for the indoor coil.
- 5-in-1 Convertible Cooling: Allows you to adjust the cooling capacity (100%, 80%, 60%, 40%) based on your needs, saving energy.
- 5-in-1 Turbo: Provides 110% cooling capacity for quick temperature reduction.
Image: Diagram illustrating the 5-in-1 Convertible Cooling and 5-in-1 Turbo modes. The 5-in-1 Convertible mode allows capacity adjustment from 100% down to 40% in steps, while the 5-in-1 Turbo mode boosts cooling to 110% capacity. The remote control buttons for these features are also shown.
Image: A person comfortably relaxing on a couch, using the remote control to adjust the settings of the Blue Star AC mounted on the wall, demonstrating ease of use.
Smart AC Features
- In-built Wi-Fi Module: Connect your AC to your home Wi-Fi network using the Blue Star Smart App. This allows you to control your AC remotely from anywhere using your smartphone.
- Voice Command Technology: Integrate your AC with Amazon Alexa or Google Assistant. Use voice commands to switch the unit on/off, set the temperature, change modes, and more.
- DigiQ Hepta Sensor: This advanced sensor system monitors various parameters to optimize cooling performance and energy efficiency.
- AI Pro: The AI Pro feature intelligently senses ambient temperature and indoor conditions to automatically optimize cooling and fan speed for enhanced comfort and efficiency.
Image: A detailed illustration of the AI Pro chip, highlighting its intricate circuitry. This chip is responsible for the intelligent optimization of cooling and fan speed based on environmental conditions.
Whakaahua: He hoahoa e whakaatu anaasing the various sensors that comprise the DigiQ Hepta Sensor system. These include overload protection, PCB, ODU ambient, discharge, condenser, anti-freeze, and IDU ambient sensors, all working together for precise control and efficiency.
Image: The Blue Star AC installed in a living room, illustrating the wide and even distribution of cool air throughout the space.
Te tiaki
Regular maintenance ensures the longevity and efficient operation of your AC unit.
Te Whakapai i te Matarere
- Whakatuwherahia te papa o mua o te waahanga o roto.
- Tangohia nga whiriwhiringa hau.
- Clean the filters using a vacuum cleaner or wash them with lukewarm water and mild detergent.
- Tukua kia maroke katoa nga tātari i mua i te whakauru ano.
- Whakapaihia nga whiriwhiringa ia rua wiki neke atu ranei i runga i te whakamahinga me te kounga o te hau.
Self Clean Technology
The Self Clean function automatically cleans the indoor unit's evaporator coil, preventing the accumulation of dust, mold, and bacteria. Activate this feature periodically using the remote control.
Anti-Corrosive Blue Fins
The indoor and outdoor coils are equipped with Anti-Corrosive Blue Fins, which protect them from corrosion and enhance durability. While these fins offer protection, periodic professional cleaning of the coils is still recommended.
Whakaahua: He roto view of the Blue Star AC's evaporator coil, clearly showing the distinctive blue fins. These fins are treated to resist corrosion, contributing to the unit's longevity and efficient heat exchange.
Raparongoā
I mua i te whakapā atu ki te ratonga kiritaki, tirohia nga take me nga otinga e whai ake nei:
| Raruraru | Take pea | Rongoā |
|---|---|---|
| Kāore te AC e tahuri. | Karekau he hiko, he iti nga pākahiko mana mamao, he pakaru te ara iahiko. | Tirohia te tuku hiko, whakakapi i nga pākahiko mamao, tautuhi ano i te wehenga ara iahiko. |
| He iti rawa te whakamahana. | Ko nga whiriwhiringa hau paru, kua aukatihia te waahanga o waho, kua he te aratau kua tohua, he nui rawa te ruma. | Clean air filters, clear obstructions from outdoor unit, select Cool mode, ensure room size is within capacity. |
| Haruru rereke mai i te waeine. | Loose parts, foreign object, fan imbalance. | Whakawetohia te waeine ka tirotirohia mo nga waahanga karekau, arai ranei. Mena ka haruru tonu, whakapā atu ki te ratonga. |
| Te rerenga wai mai i te waahanga o roto. | Paipa waikeri kua purua, tāutanga hē. | Check and clear drain pipe. If issue persists, contact service for inspection of installation. |
| Kaore e mahi te mana mamao. | Batteries dead, remote not pointed at receiver, interference. | Replace batteries, ensure direct line of sight to indoor unit, remove obstructions. |
For issues not listed above or if troubleshooting steps do not resolve the problem, please contact Blue Star customer support.
Whakatakotoranga
| Āhuahira | Taipitopito |
|---|---|
| Waitohu | Whetu Kahurangi |
| Tau tauira | IA322DXU |
| Te kaha | 2 Toni |
| Whakatauranga Ataata | 3 Star (as per new BEE guidelines effective from 1st Jan 2026) |
| Te Whakamahi Pungao a-Tau | 1131.55 Ngā Wāhanga ia Tau |
| ISEER Uara | 4.38 |
| Te Mana Matao | 6400 Watts (21838 British Thermal Units) |
| Whakamaoho | R-32 |
| Momo Kōpeke | Inverter Compressor with Acoustic Insulation Jacket |
| Poipoi Condenser | 100% Copper with Anti-Corrosive Blue Fins |
| Air Flow Volume (Wet CFM) | Turbo: 707, High: 587, Medium: 498, Low: 374 |
| Te Mahi Te Maamaa Ambient | Cools up to 52 degrees Celsius |
| Nga waahanga motuhake | 5-in-1 Convertible Cooling, AI Pro, Comfort Sleep, DigiQ Hepta Sensor, Stabilizer-free operation, 4-Way Swing, Turbo Cool, Self Diagnosis, Dry Mode, Eco Mode, Smart AC (Wi-Fi, Voice Command) |
| Taumata Haruru (Waeine Roto) | 47 Decibels |
| Tuku Hiko | 230 Volts |
| Ngā Rahi o te Wāhanga o Roto (D x W x T) | 21.5D x 111W x 33.5H Henemita |
| Ngā Rahi o te Wāhanga o Waho (D x W x T) | 36.7D x 88.9W x 58.2H Centimeters (Inferred from image) |
| Taumaha Tūemi | 28300 Karamu |
| Nga Waahanga kei roto | 1 Unit (Indoor & Outdoor), 1 Remote, 1 Manual With Warranty Card |
Whakaahua: Kua mutuview of the Blue Star AC's energy efficiency and key features. It displays the BEE 3-star rating, ISEER value of 4.38, R32 eco-friendly refrigerant, 100% copper condenser, and stabilizer-free operation, emphasizing energy savings.
Nga korero Whakaputanga
Your Blue Star IA322DXU AC comes with the following manufacturer's warranty:
- Pūtāhui Hua: 1 Year on the entire product.
- Inverter Compressor Warranty: 10 Years on the Inverter Compressor.
- Pūtāhui PCB: 5 Years on the PCB (Printed Circuit Board).
Nga Taipitopito Hihi: The warranty covers comprehensive repairs, rectification, or replacement of components such as the Electronic PCB, Indoor Unit Evaporating Coil, and Outdoor Unit Condenser Coil. This applies to residential usage only.
Whakakore: The warranty excludes all types of air filters, plastic and metal parts, remote handset, and gas charging. Gas charging associated with Compressor/Evaporator/Condenser coil issues must be paid by the customer. Terms and conditions apply.
Please retain your purchase invoice and warranty card for any warranty claims.
Tautoko Kiritaki
For any queries, service requests, or technical assistance, please contact Blue Star customer support:
- Īmēra: customerservice@bluestarindia.com
- Waea: 89 7678 1177
- Wāhitau Kaihanga: BLUE STAR LIMITED, KASTURI BUILDINGS, MOHAN T ADVANI CHOWK, JAMSHEDJI TATA ROAD, CHURCHGATE, MUMBAI 400 020
When contacting support, please have your model number (IA322DXU) and purchase details ready.
