Kupu Whakataki
This manual provides instructions for the safe installation, operation, and maintenance of your Nordic Acrylic Geometric LED Ceiling Lamp. Please read this manual thoroughly before installation and retain it for future reference.
Nga Tohutohu Haumaru
- Ensure power is disconnected at the circuit breaker before installation, maintenance, or bulb replacement.
- All electrical connections must be performed by a qualified electrician and comply with local codes and ordinances.
- Kaua e whakauruhia ki runga i nga papa kaore i te tangi te hanganga.
- Kaua e whakarereketia te lamp ona wahanga ranei.
- Kaua e taea e nga tamariki nga taonga takai.
- Ko tenei lamp kua hangaia mo te whakamahi o roto anake.
Ihirangi mokete
Manatokohia kei te noho katoa nga waahanga me te kore e pakaru i mua i te tiimata o te whakaurunga.
- 1 x LED Ceiling Light Fixture
- 1 x Mana Mamao
- 1 x Set of Mounting Accessories (screws, anchors, wire connectors)
Whakatakotoranga
| Āhuahira | Whakaahuatanga |
|---|---|
| Tau tauira | Y4AW1495 |
| Dimensions (42cm variant) | Diameter: 42 cm (16.5 inches), Height: 10 cm (3.9 inches) |
| Power (42cm variant) | 24W |
| Lumen Output (42cm variant) | 2380 Lumens |
| Rauemi | Metal, Acrylic, Wood |
| Puna Maama | LED whakauru |
| Mahi Voltage | 110V~240V |
| Te Manawao Ora | 50,000 haora |
| Pouriuri | Te Ataahua Kore (10% ki te 100%) |
| Te Paemahana Tae | Adjustable (3000K-6500K) |
| Tikanga Mana | Mana Mamao |
Note: Specifications may vary slightly for different size variants (e.g., 52cm diameter).
Tatūnga (Tāuta)
Ko tenei lamp requires hard-wired installation. Professional installation by a qualified electrician is recommended.
- Whakaritea mo te Tāuta: Turn off power at the main circuit breaker. Ensure the power is completely off before proceeding.
- Taiapa Whakapiki: Secure the mounting bracket to the ceiling junction box using the provided screws. Ensure the bracket is firmly attached.
- Hononga Waea: Honoa te lamp's wires to your household electrical wires according to standard wiring practices (e.g., live to live, neutral to neutral, ground to ground). Use appropriate wire connectors.
- Whakapiri Lamp Tinana: Āta hiki te lamp fixture and align it with the mounting bracket. Secure the lamp body to the bracket using the provided screws. Ensure no wires are pinched.
- Whakaora i te Mana: Kia tae mai te lamp is securely installed, restore power at the circuit breaker.

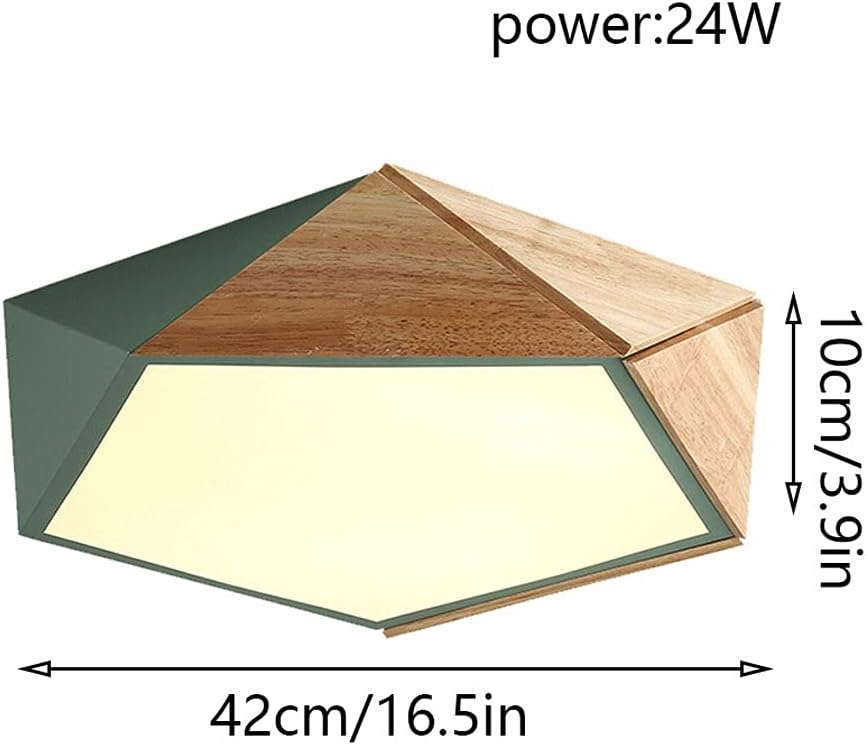

Whakaahua: Lamp dimensions (42cm diameter, 10cm height).
Image: Painted wrought iron lamp body detail.
Image: Energy-saving LED light source.

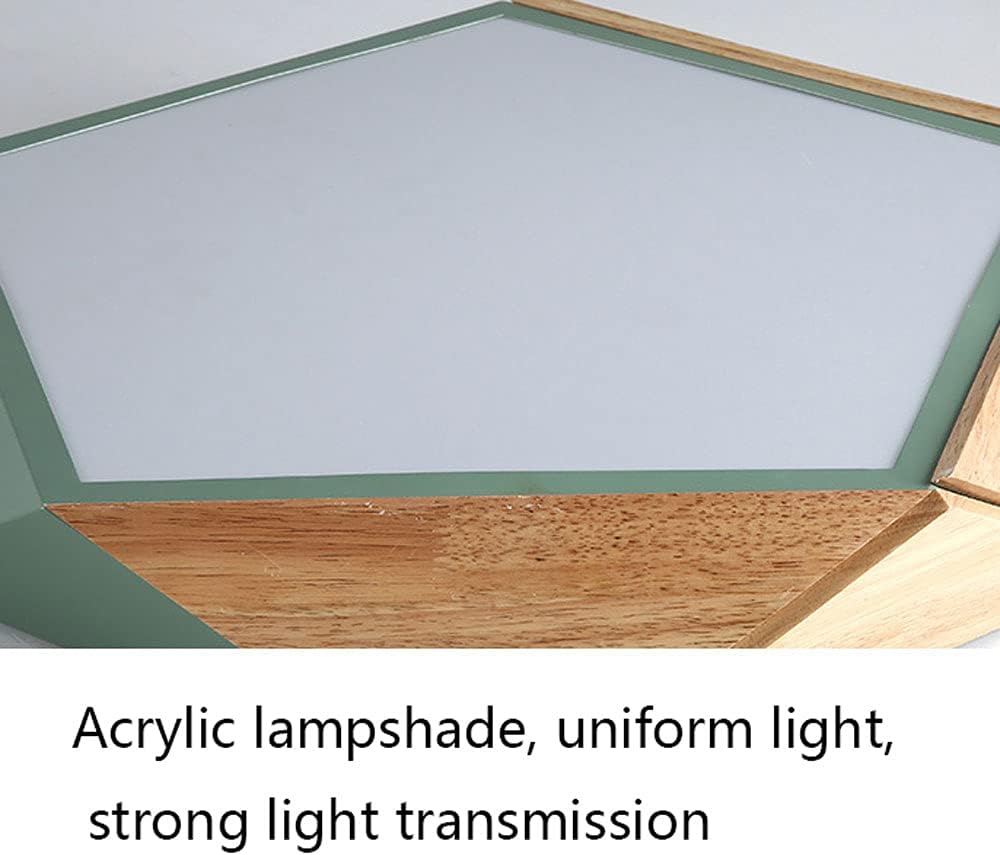

Image: Acrylic lampshade detail.
Nga Tohutohu Whakahaere
Kei teamp is controlled using the included remote control.
- Hiko Whakaka/Weto: Press the power button on the remote control to turn the lamp i runga, i runga ranei.
- Te Whakatikatika i te Kanapa (Te Whakaiti i te Kanapa): Use the brightness buttons (usually marked with '+' and '-') to adjust the light intensity from 10% to 100%.
- Te Whakarereketanga Te Mahana Tae: Use the color temperature buttons (often marked with 'K' or sun/moon icons) to change the light color from warm white (3000K) to cool white (6500K).
Image: Remote control for stepless dimming and color temperature adjustment.
Te tiaki
Hei whakarite i te roa me te āhua o tō tinanaamp:
- Te horoi: Momotuhia te hiko i mua i te horoinga. Horoia teamp with a soft, dry cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or acrylic.
- Huihuinga: Ko te puna rama rama whakauru kua hangaia mo te roa o te oranga, kaore e taea te whakakapi e te kaiwhakamahi.
Raparongoā
| Raruraru | Take pea | Rongoā |
|---|---|---|
| Lamp kaore e huri. | No power, loose wiring, remote control battery dead. | Check circuit breaker. Verify wire connections. Replace remote control battery. |
| Kaore e mahi te mana mamao. | Remote control battery dead, remote out of range, interference. | Replace remote control battery. Ensure remote is within range of the lamp. Remove any obstructions. |
| Ka whiti te marama, ka pohehe ohorere ranei. | Pūtake hiko kore pumau, hononga ngoikore. | Consult a qualified electrician to check power supply. Verify wire connections. |
Pūtāhui me te Tautoko
If you have any questions or require assistance with this product, please contact the seller or manufacturer directly. Please have your model number (Y4AW1495) and purchase information ready when contacting support.
Ka mutu te huaview Whakaahua

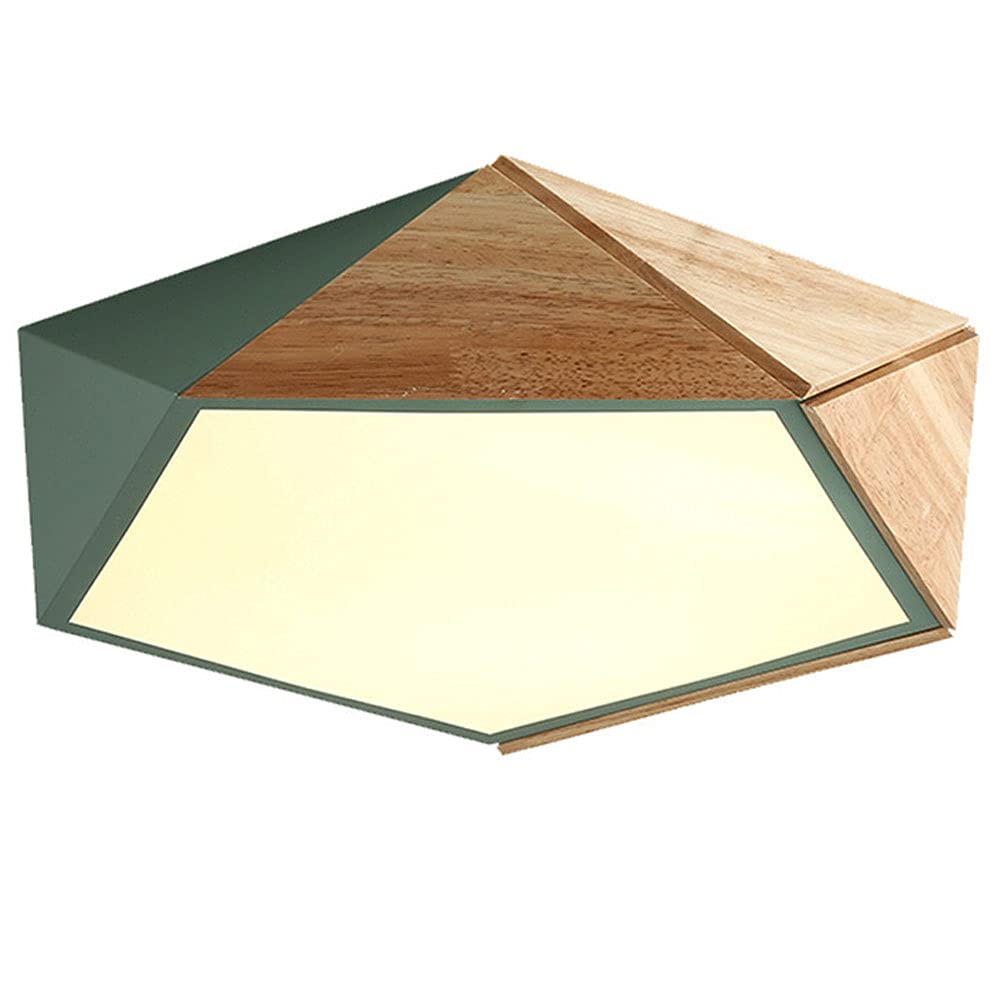

Whakaahua: Te katoa view of the ceiling lamp.
Whakaahua: Lamp installed in a living space.
Whakaahua: Lamp installed in a bedroom setting.
