1. Kupu Whakataki
This manual provides detailed instructions for the installation, operation, and maintenance of your JandCase Low Voltage Landscape Lighting system, Model C-SD00102DUS. Please read this manual thoroughly before installation and retain it for future reference. This system is designed to provide warm white illumination for outdoor areas such as gardens, yards, and pathways.
2. Nga korero haumaru
- Haumaru Hiko: Ensure the power source is disconnected before any installation or maintenance. Only use the provided transformer. Do not exceed the maximum wattage for the transformer.
- Whakamahi o waho: This product is designed for outdoor use and is IP65 waterproof rated. However, ensure all connections are secure and protected from direct water exposure where possible.
- Transformer Protection: While the lights are waterproof, the transformer may require additional protection from extreme weather conditions. Consider placing it in a sheltered location or a weatherproof enclosure.
- Whakaha Uepu: Route cables in areas where they will not be a tripping hazard or susceptible to damage from lawnmowers or other equipment.
- Vol Rawatage: This system operates on 12V low voltage, which is safer than standard household voltage. However, always exercise caution when working with electrical components.
3. Ihirangi mokete
Manatokohia kei te noho nga waahanga katoa i roto i te kete:
- 4 x LED Landscape Spotlights
- 1 x Power Adapter/Transformer
- Connecting Cables with Waterproof Twist Connectors
- Mau tt o te whenua
4. Tatūnga me te Tāuta
A pee i enei taahiraa mo te whakauru tika:
- Whakanoho Mahere: Determine the desired locations for each spotlight to achieve optimal illumination for your garden, pathway, or architectural features.
- Assemble Spotlights: Attach the ground stakes to the bottom of each spotlight.
- Stake into Ground: Firmly push the assembled spotlights into the ground at your chosen locations. Ensure they are stable.
- Tūhono Rama: Use the provided waterproof twist connectors to link the spotlights to each other and then to the main cable from the transformer. Ensure all connections are tight and secure to prevent water ingress.
- Position Transformer: Place the transformer in a safe, sheltered location, ideally protected from direct rain and snow.
- Whakaritea Aronga Maama: The spotlight heads are adjustable. Angle each light to highlight specific areas or objects.
- Tūhono ki te Hiko: Plug the transformer into a standard outdoor-rated electrical outlet.
5. Nga Tohutohu Whakahaere
The JandCase Low Voltage Landscape Lighting system features an integrated dusk-to-dawn light sensor for automatic operation.
- KIA Aunoa: The lights will automatically turn on when the ambient light level drops at dusk.
- Automatic OFF: The lights will automatically turn off when the ambient light level increases at dawn.
- No Manual Operation: There are no manual switches for daily operation. The system is designed for continuous automatic functionality.
6. Tiaki
Regular maintenance ensures optimal performance and longevity of your landscape lights.
- Te horoi: Ia wa, horoia nga rama rama ki te ngohengohe, damp cloth to remove dirt, dust, and debris. Ensure the light sensor is clear of obstructions for proper operation.
- Tirotiro: Regularly inspect cables and connections for any signs of wear, damage, or loose connections. Replace any damaged components immediately.

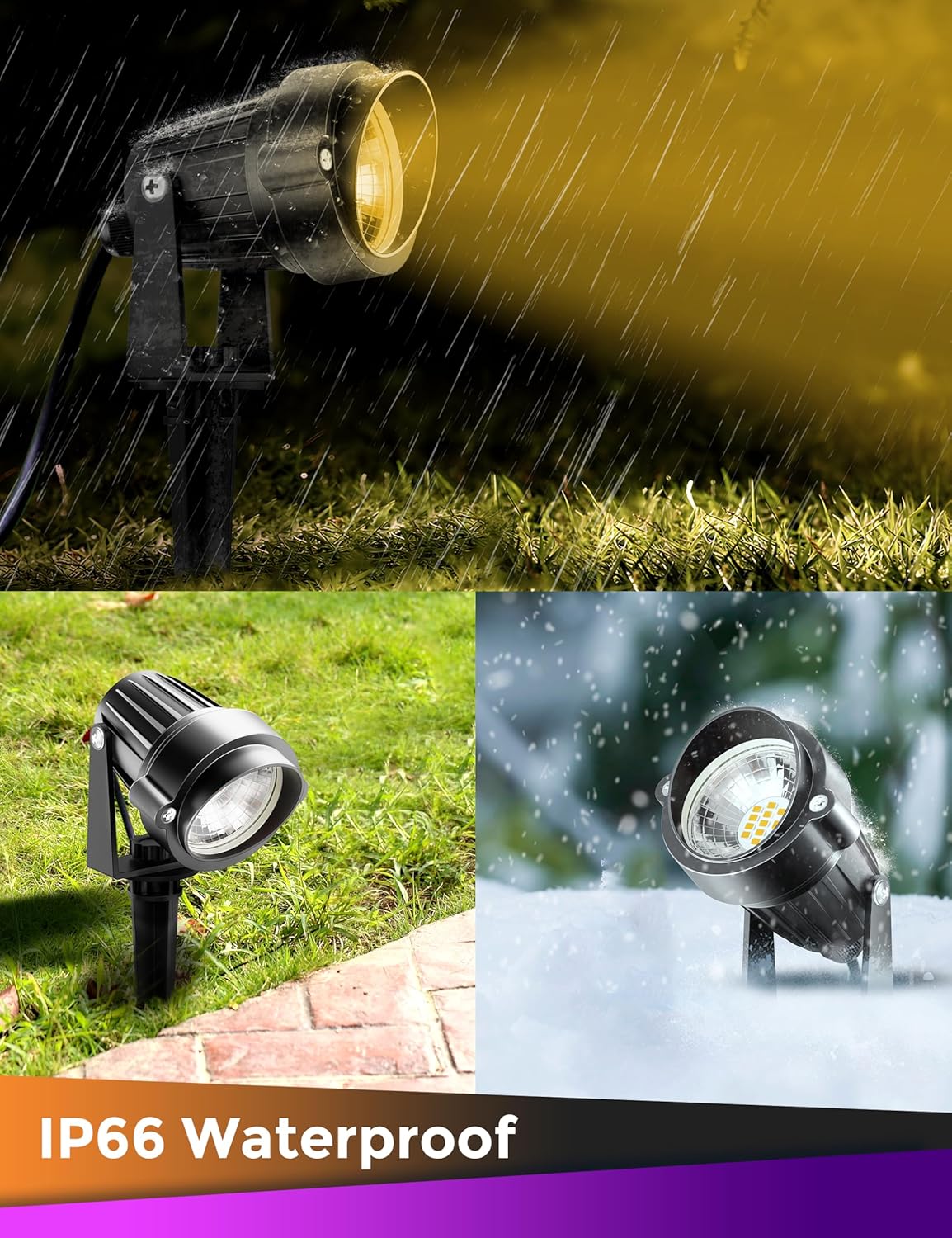

- Ātete huarere: The lights are IP65 waterproof, designed to withstand rain and snow. However, avoid submerging them in water.
7. Te Raru
If you encounter issues with your landscape lighting, refer to the following common problems and solutions:
| Raruraru | Take pea | Rongoā |
|---|---|---|
| Lights do not turn on at dusk. | 1. Power adapter unplugged. 2. Nga hononga wetekina. 3. Light sensor obstructed or faulty. 4. Te pōuri kore e ranea. | 1. Ensure power adapter is securely plugged into a working outlet. 2. Check all twist connectors for tightness. 3. Clear any debris from the light sensor. Ensure it's not under a bright light source. 4. Wait for darker conditions. |
| Ka kemo, ka ngoikore rānei ngā rama. | 1. Nga hononga wetekina. 2. Insufficient power from adapter. 3. Damaged cable or light. | 1. Re-check all connections. 2. Ensure the power adapter is functioning correctly. 3. Inspect cables and lights for visible damage. Replace if necessary. |
| Lights remain on during the day. | 1. Light sensor obstructed or faulty. 2. Kāore i te rawaka te māramatanga o te taiao. | 1. Clear any debris from the light sensor. Ensure it's exposed to daylight. 2. Ensure the sensor is not in a shaded area that mimics nighttime conditions. |
8. Whakatakotoranga
| Āhuahira | Whakatakotoranga |
|---|---|
| Tau tauira | C-SD00102DUS |
| Waitohu | JandCase |
| Voltage | 12 Volts (Vorata ititage) |
| Wattage | 20 Watts (Total for 4 lights) |
| Momo Puna Maama | LED |
| Tae Maama | Mahana Ma |
| Te Paemahana Tae | 3000 Kelvin |
| Tirohanga | 2000 Rumeni |
| Rauemi | Aluminum (Fixture), Plastic (Stakes) |
| Taumata Atete Wai | IP65 parewai |
| Tikanga Mana | Pouri ki te Awatea Pūoko |
| Hunga Hua | 6.2"L x 3"W x 2.3"H (per light) |
| Momo Tāuta | Stake/Ground Mount |
9. Pūtāhui me te Tautoko
For warranty information or technical support, please refer to the documentation included with your purchase or contact JandCase customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
Kaihanga: JandCase
For further assistance, please visit the official JandCase store or contact their support channels as provided at the time of purchase.
