BLUE STAR VC600CD 568 Liter Double Door Visi Cooler User Manual

1. Kupu Whakataki

Thank you for choosing the BLUE STAR VC600CD 568 Liter Double Door Visi Cooler. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new appliance. Please read these instructions thoroughly before using the visi cooler and retain them for future reference.

The VC600CD model is designed to maintain a cooling temperature range of 1 to 10 degrees Celsius, ensuring optimal preservation of your products. It features an eco-friendly R290 refrigerant, double doors, five adjustable shelves, a locking mechanism, and self-closing doors for energy efficiency. The pre-coated metallic inner and outer cabinet ensures durability and enhanced cooling performance. A digital controller provides temperature display, and LED lighting illuminates the interior.

2. Nga korero haumaru

Hei whakarite i te haumaru o te mahi, me whai tonu i ngā mahi whakatūpato haumaru e whai ake nei:

• Haumaru Hiko: Ensure the visi cooler is connected to a grounded 220 Volts (AC) power outlet. Do not use extension cords or adapters.
• Whakahau: Maintain adequate clearance around the unit for proper air circulation to prevent overheating.
• Rauemi mura: Kaua e rokirokia nga matū pahū me nga mea muramura ki roto, tata atu ranei ki te taputapu.
• Rereere: This unit uses R290 refrigerant. Servicing should only be performed by qualified personnel. Do not damage the refrigerant circuit.
• Te horoi: Momotuhia te pūnaha hiko i mua i te horoi, i te mahi rānei i tētahi mahi tiaki.
• Tamariki: Tiakina nga tamariki mai i te taputapu, kaua hoki e tukua kia takaro.
• Tāutatanga: The appliance must be installed on a stable, level surface.

3. Ihirangi mokete

I te wetewete, tirohia kei te noho katoa nga waahanga me te kore e pakaru:

• 1 x BLUE STAR VC600CD Visi Cooler Unit
• 5 x Papainga
• Pukapuka Tohutohu (tenei tuhinga)

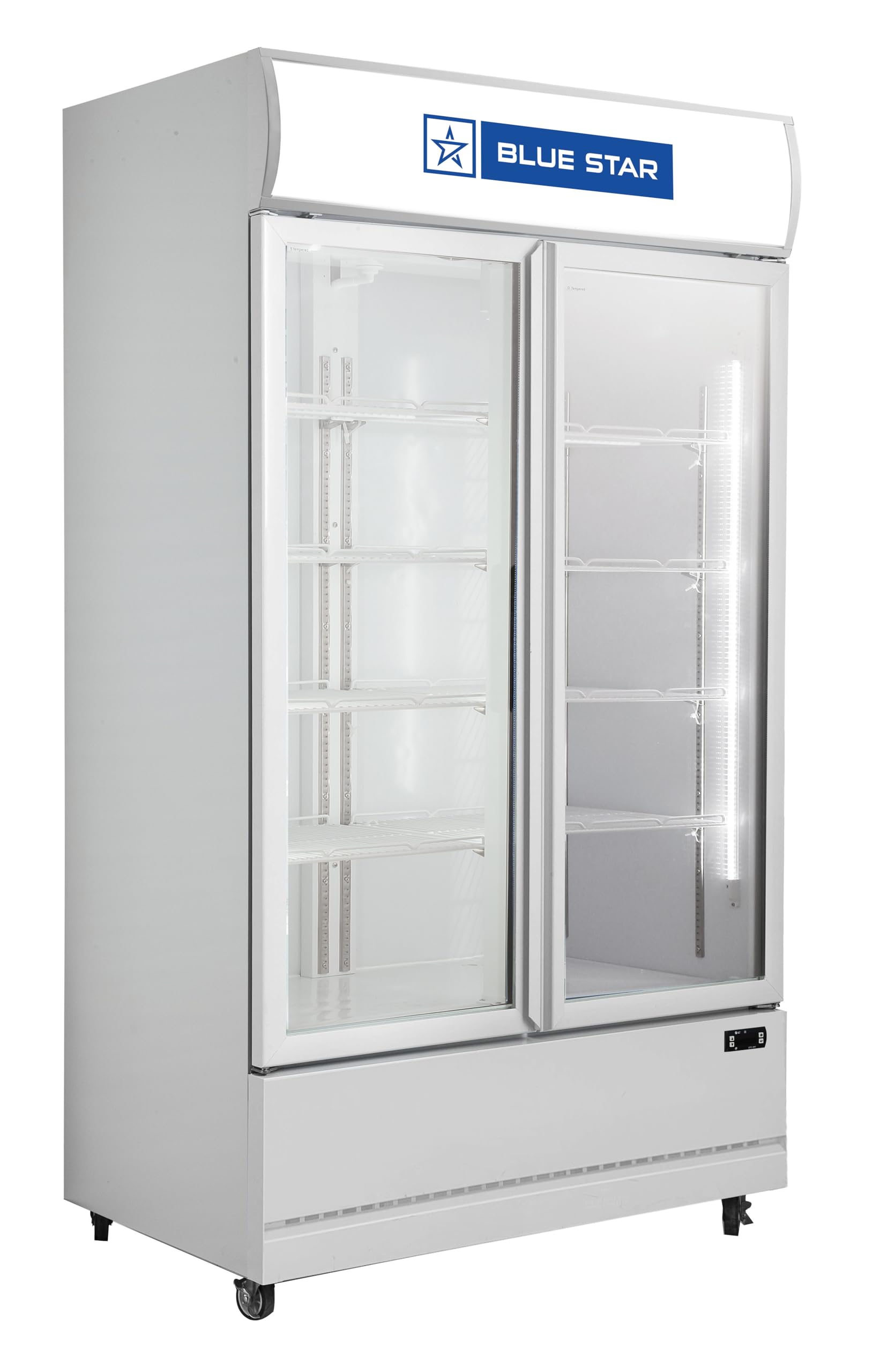

Figure 1: BLUE STAR VC600CD 568 Liter Double Door Visi Cooler. This image shows the complete visi cooler unit with its double glass doors and internal shelving visible.

4. Tatūnga

4.1. Whakanoho

• Place the visi cooler on a firm, level surface capable of supporting its weight when fully loaded.
• Ensure there is at least 10 cm (4 inches) of space at the back and sides for proper ventilation.
• Avoid direct sunlight or proximity to heat sources (e.g., ovens, radiators) to optimize cooling efficiency.
• The product dimensions are approximately 61D x 88W x 197H Centimeters. Plan your space accordingly.

4.2. Whakapai Tuatahi

Before first use, clean the interior and exterior of the visi cooler with a soft cloth dampened with mild detergent and warm water. Rinse thoroughly and dry completely.

4.3. Hononga Mana

• Allow the unit to stand upright for at least 2-4 hours before plugging it in, especially if it was transported horizontally. This allows the refrigerant to settle.
• Connect the power cord to a dedicated, grounded 220 Volts (AC) electrical outlet.
• Kaua e utaina te ara iahiko.

4.4. Tāutanga Papa

Insert the five shelves into the desired positions using the adjustable shelf holders. Ensure shelves are securely seated before placing items on them.

5. Nga Tohutohu Whakahaere

5.1. Te Whakamatao Tuatahi

After connecting power, allow the visi cooler to operate empty for approximately 2-3 hours to reach its set temperature before loading products.

5.2. Te Mana Mana

• The visi cooler is equipped with a digital controller for temperature display and adjustment.
• The factory preset temperature range is typically between 1°C and 10°C.
• Refer to the digital controller's specific instructions (usually provided on the unit or a separate leaflet) for detailed steps on how to adjust the temperature settings.

5.3. Loading Products

• Distribute products evenly on the shelves to ensure proper air circulation.
• Do not block the internal air vents.
• Kaua e whakakī i ngā whata ki runga ake i tōna taumaha.

5.4. Te Whakahaere i te Kūaha

• The visi cooler features self-closing doors to minimize cold air loss. Ensure doors close completely after each use.
• A locking mechanism is included for added security. Use the provided key to lock and unlock the doors as needed.

5.5. Rarama LED

The interior LED lighting enhances product visibility. This lighting typically operates automatically when the doors are opened or can be controlled via a switch, if present (refer to unit for specific switch location).

6. Tiaki

Regular maintenance ensures optimal performance and longevity of your visi cooler.

6.1. Te horoi o roto

• Momotuhia te hiko hiko i mua i te horoi.
• Tangohia ngā hua me ngā whata katoa.
• Clean the interior surfaces with a soft cloth and a mild, non-abrasive detergent.
• Horoihia ki te wai ma, ka maroke rawa.
• Clean the shelves separately.

6.2. Te horoi i waho

• Wipe the exterior surfaces, including the pre-coated metallic cabinet, with a soft, damp kakahu.
• For stubborn marks, use a mild detergent. Avoid abrasive cleaners or solvents.
• Clean the glass doors with a glass cleaner.

6.3. Te Whakakoretanga

This model features a manual defrost system. When ice buildup on the evaporator coils becomes excessive (typically 5-6mm thick), manual defrosting is required:

1. Disconnect the visi cooler from the power supply.
2. Remove all products and store them in another refrigerated unit.
3. Leave the doors open to allow the ice to melt naturally. Place towels at the bottom to absorb water.
4. Kaua e whakamahia ngā mea koi, ngā taputapu whakamahana rānei hei tere ake te whakarewa, nā te mea ka kino pea te mīhini.
5. Kia rewa katoa nga hukapapa, horoia, ka whakamaroketia te roto.
6. Reconnect power and allow the unit to cool down before reloading products.

6.4. Condenser Coil Cleaning

Periodically (every 3-6 months), clean the condenser coils located at the back or bottom of the unit. Dust and debris can accumulate, reducing efficiency. Use a soft brush or vacuum cleaner to gently remove buildup. Ensure the unit is unplugged before cleaning the condenser coils.

7. Te Raru

I mua i te whakapā atu ki te ratonga, review nga take me nga otinga noa e whai ake nei:

Mena kei te haere tonu te raru i muri i te whakamatau i enei otinga, tena koa whakapā atu ki te tautoko a te kaihoko.

8. Whakatakotoranga

9. Pūtāhui me te Tautoko

9.1. Nga Korero Whakaputanga

The BLUE STAR VC600CD Visi Cooler comes with a 1 Year Comprehensive Manufacturer's Warranty mai i te rā i hokona ai. Ka hipokina e tēnei pūtāhui ngā hapa hanga me ngā hapa i raro i te whakamahinga noa. Puritia tō rīhiti hoko hei tohu pūtāhui.

For detailed terms and conditions of the warranty, please refer to the warranty card included with your product or contact BLUE STAR customer service.

9.2. Tautoko Kiritaki

For any technical assistance, service requests, or warranty claims, please contact BLUE STAR customer support:

• Raina Awhina Ratonga Kiritaki: 18002091177
• Wāhitau Kaihanga: Blue Star Ltd, Kasturi Building, Mohan T Advani Chowk, Jamshedji Tata Road, Mumbai, Maharashtra, 400020, India.

When contacting support, please have your model number (VC600CD) and purchase details readily available.
