Brondi Stallion HEAVY DUTY Mobile Phone User Manual

Kupu Whakataki

This manual provides essential information for the safe and efficient use of your Brondi Stallion HEAVY DUTY mobile phone. The Brondi Stallion is a rugged device designed for durability, featuring IP68 certification for total water and dust protection, dual SIM capability, and a 2.4-inch display. Please read this manual thoroughly before operating your device.

Tatūnga

Ihirangi mokete

I mua i to tiimata, whakarite kei roto katoa nga mea kei roto i te kete:

• Brondi Stallion Mobile Phone
• Pūhiko
• Nga taringa
• Charger (USB cable and power adapter)

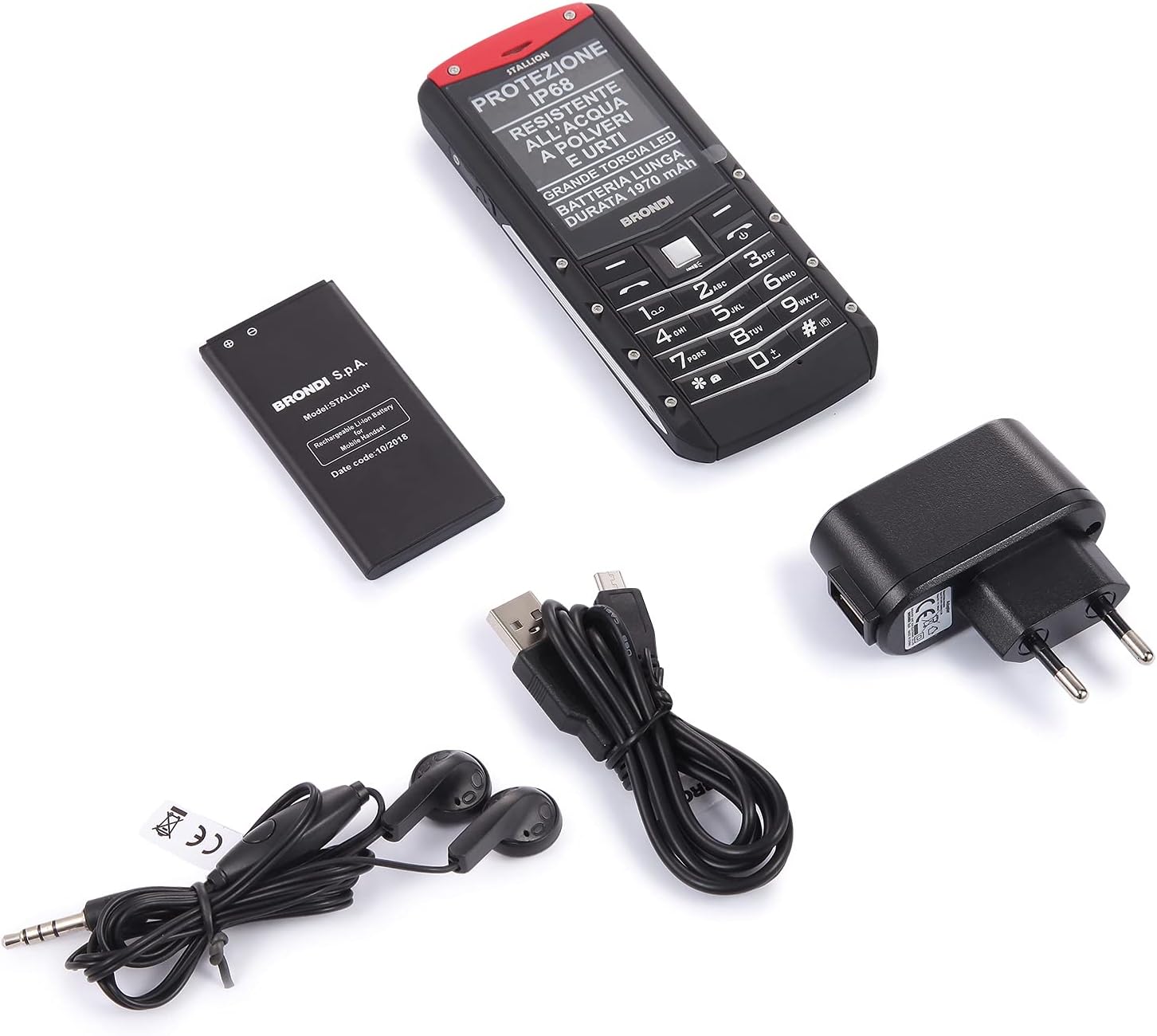

Image: Contents of the Brondi Stallion HEAVY DUTY package, including the phone, battery, charger, and earphones.

Inserting the SIM Card(s) and Battery

1. Ata tango i te uhi o muri o te waea.
2. Insert your SIM card(s) into the designated slot(s). This device supports Dual SIM functionality.
3. Whakauruhia te pākahiko ki roto i tana waahanga, kia tika te hono o nga hoapaki.
4. Replace the back cover, ensuring it is securely fastened to maintain the IP68 seal.

Te utu i te Pūrere

1. Connect the micro-USB end of the charging cable to the phone's charging port.
2. Connect the USB power adapter to a wall outlet.
3. Allow the phone to charge fully before initial use. The charging indicator will show the battery status.

Te Hia/Weto

• Hei whakakā: Pēhia me te pupuri i te pātene Mana kia mārama ra ano te mata.
• Hei whakaweto: Pēhia me te pupuri i te pātene Mana, kātahi ka tīpako i te 'Whakaweto' mai i ngā kōwhiringa.

Nga Tohutohu Whakahaere

Whakaahua: Mua me muri view of the Brondi Stallion HEAVY DUTY mobile phone, showcasintōna hoahoa pakari.

Nga Mahi Taketake

• Waeatanga: Enter the phone number using the keypad and press the Call button.
• Whakautu Waea: Press the Call button when the phone rings.
• Tuku Karere: Navigate to the 'Messages' menu, select 'New Message', enter your text, and send to the desired contact.
• Sim Tuarua: The phone supports two SIM cards. You can select which SIM to use for calls or messages from the phone's settings or during the action.

Kāmera

The Brondi Stallion features a 1.3 MP rear camera. To use the camera:

1. Navigate to the 'Camera' application from the main menu.
2. Frame your subject on the display.
3. Press the designated button to capture a photo.

Tohu LED

The phone is equipped with a large LED torch. Access this feature from the shortcuts or the main menu to activate/deactivate the light.

Āhuatanga Ororongo

• Kaikorero: The phone includes a loudspeaker for hands-free calls or media playback.
• Taringa: Connect the included earphones to the 3.5mm jack for private listening or hands-free communication.
• Nihokikorangi: Enable Bluetooth in the settings to connect to compatible wireless accessories.
• Radio Irirangi: The phone has a built-in FM radio function, which can often be used without earphones.

Te tiaki

Whakaahua: Rear view of the Brondi Stallion HEAVY DUTY, highlighting the IP68 water and dust resistance rating.

Atete Wai me te Puehu (IP68)

The Brondi Stallion is IP68 certified, meaning it is protected against dust ingress and can withstand immersion in water up to 1.5 meters for 30 minutes. To maintain this protection:

• Ensure all port covers (charging port, earphone jack) are securely closed before exposing the phone to water or dust.
• Do not intentionally submerge the phone in water beyond the specified depth or duration.
• If the phone gets wet, dry it thoroughly with a clean cloth before charging or opening any ports.

Te horoi

Use a soft, dry cloth to clean the phone's exterior. Avoid using harsh chemicals or abrasive materials, which can damage the device's surface or compromise its water resistance.

Tiaki Pūhiko

• A ape i te tuku i te pākahiko ki te wera nui.
• Use only the original charger provided with the device.
• Ki te kore te waea e whakamahia mo te wa roa, utuhia te pākahiko ki te 50% i mua i te penapena.

Ngā Taupoki Tauranga

The protective rubber covers for the charging port and earphone jack are crucial for maintaining the phone's IP68 rating. Handle them with care, as they can be fragile. Ensure they are always properly sealed when not in use.

Raparongoā

Nga take me nga otinga noa

• Kaore te waea e whakaka ana: Me whakarite kia tika te whakauru me te utu o te pākahiko. Honoa te rihi ka ngana anō.
• Karekau he tohu whatunga: Check if the SIM card is properly inserted. Verify that you are in an area with network coverage. Restart the phone.
• Kāore e taea te waea/te whiwhi waea: Check your SIM card balance or subscription status. Ensure the phone is not in airplane mode.
• Ngā take oro: Check the volume settings. Ensure earphones are properly connected if in use. Clean the speaker grille if it appears blocked.

ILIAD SIM Card Specific Setup

If you are using an ILIAD SIM card and experience connectivity issues, particularly if the phone does not connect to the network automatically, follow these steps:

1. Insert the ILIAD SIM card into a 4G-compatible smartphone.
2. In the smartphone's network settings, manually select the network type to 3G or GSM.
3. Perform a manual network search and select ILIAD mai i nga whatunga e waatea ana.
4. Once the ILIAD SIM card has successfully connected to the network in the smartphone, reinsert it into your Brondi Stallion. It should now connect to the ILIAD network.

Whakatakotoranga

Whakaahua: Taha view of the Brondi Stallion HEAVY DUTY mobile phone, showing its robust profile.

Nga korero Whakaputanga

The Brondi Stallion HEAVY DUTY mobile phone comes with a 2-tau pūtāhui from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized repairs, or failure to follow the instructions in this manual.

Tautoko

For further assistance, technical support, or warranty claims, please refer to the contact information provided with your product packaging or visit the official Brondi website. Ensure you have your product model and serial number ready when contacting support.
