Veitorld BL-XZJ-1 Battery Lopper Instruction Manual

1. Fampidirana

The Veitorld BL-XZJ-1 Battery Lopper is an electric pruning shear designed for efficient and effortless garden maintenance. Featuring a powerful brushless motor and durable SK5 blades, it is capable of cutting branches up to 30mm in diameter. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your battery lopper.

Image: Before and after pruning with the Veitorld Electric Lopper, demonstrating its cutting capability.

2. Torolàlana momba ny fiarovana

Always prioritize safety when operating power tools. Read and understand all safety warnings and instructions before use.

• Manao fitaovam-piarovana: Always wear safety glasses, gloves, and appropriate clothing to protect against flying debris and potential cuts.
• Hazavao ny tanana: Never place hands or fingers near the blades when the lopper is powered on or connected to a battery.
• Secure Activation: The lopper features a child-safe double-click activation system. After pressing the ON switch, the blades will only become active after the trigger is pressed three times in a row.
• Fanakatonana mandeha ho azy: The lopper automatically locks after 1 minute of inactivity to prevent accidental operation.
• Fiarovana ny bateria: Use only the specified batteries and charger. Do not expose batteries to extreme temperatures or moisture. Remove the battery when not in use or during maintenance.
• Toeram-piasana: Keep your work area clean and well-lit. Avoid operating the lopper in wet conditions or near flammable liquids or gases.
• fitahirizana: Store the lopper and batteries in a dry, secure location out of reach of children.

Image: Safety features of the Veitorld Electric Lopper, illustrating the physical battery lock switch, double-click activation, and 60-second auto-off function.

3. Vokatra singa

The Veitorld BL-XZJ-1 Battery Lopper package typically includes the following items:

• Electric Pruning Shears (Lopper)
• 2 x Lithium-Ion Batteries (2000 mAh, 21V)
• Battery Charger
• Spare SK5 Blade
• Vato maranitra
• Lubricating Oil Bottle
• Tool Kit (for blade replacement)
• Carrying Case

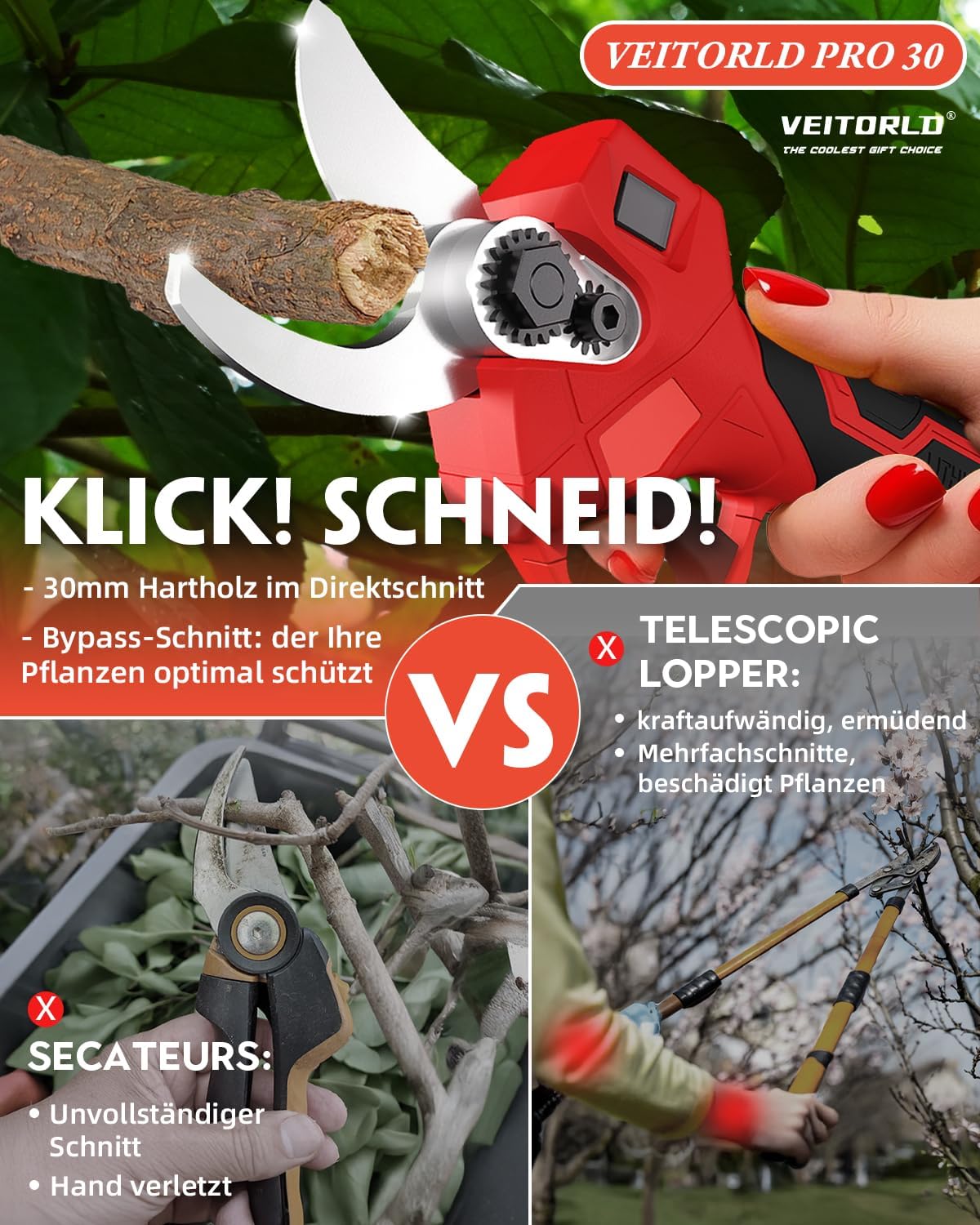

Image: The Veitorld Pro 30 Electric Lopper in use, demonstrating its direct cutting action on hardwood.

Image: Two 2000 mAh Lithium-Ion batteries, providing extended operating time for the lopper.

4. Fametrahana

4.1 Famandrihana bateria

1. Ampidiro ao anaty charger ny bateria.
2. Ampidiro amin'ny fivoahana herinaratra mahazatra ny charger.
3. Allow the battery to charge fully before first use. The indicator light on the charger will change to indicate a full charge.

4.2 Fametrahana bateria

1. Ensure the lopper is powered off and the physical battery lock switch is disengaged.
2. Align the charged battery with the battery slot at the base of the lopper handle.
3. Atsofohy mafy amin'ny toerany ny bateria mandra-pikitsokany, midika izany fa mihidy tsara izy io.

4.3 Blade Check

Before each use, visually inspect the blades to ensure they are clean, sharp, and securely fastened. Refer to the Maintenance section for blade replacement instructions if necessary.

5. Fampandehanana

5.1 Mamelona

1. With the battery installed, press and hold the physical battery lock switch for approximately 3 seconds to power on the lopper.
2. The LED display will illuminate, showing battery status and the cutting counter.

5.2 Activating Blades

For safety, the blades require activation after powering on:

• Rapidly press the trigger three times in a row. The blades will open, indicating they are ready for use.

5.3 Fomba fanapahana

1. Position the branch to be cut between the open blades. Ensure the branch diameter does not exceed 30mm.
2. Press the trigger to close the blades and make the cut. Release the trigger to open the blades.
3. The integrated LED cutting counter will track the number of cuts made.

5.4 Blade Size Adjustment (25mm/30mm)

The lopper may offer adjustable cutting modes for 25mm or 30mm. Consult the device's specific controls for how to switch between these modes, typically by holding the trigger for a few seconds to cycle through settings.

Image: The Veitorld Electric Lopper highlighting its 30mm maximum cutting capacity and the inclusion of an additional SK5 blade.

5.5 Famonoana herinaratra

The lopper will automatically power off after 60 seconds of inactivity. To manually power off, press and hold the physical battery lock switch for 3 seconds.

6. Fikojakojana

Regular maintenance ensures optimal performance and extends the lifespan of your lopper.

• Fanadiovana Blades: After each use, ensure the lopper is powered off and the battery is removed. Use a clean cloth to wipe sap and debris from the blades.
• fanosorana: Apply a few drops of the provided lubricating oil to the blade pivot point and cutting surfaces regularly to ensure smooth operation and prevent rust.
• Blade Sharpening: Use the provided sharpening stone to maintain blade sharpness. Follow the angle of the original blade edge.
• Fanoloana lelafo: If blades become dull or damaged beyond sharpening, replace them using the spare SK5 blade and the included tool kit. Ensure the lopper is powered off and the battery is removed before attempting blade replacement.
• fitahirizana: Store the lopper in its carrying case in a dry, cool place, away from direct sunlight and moisture. Remove batteries before long-term storage.

7. Famahana olana

If you encounter issues with your Veitorld Battery Lopper, refer to the following common problems and solutions:

8. Famaritana

Technical specifications for the Veitorld BL-XZJ-1 Battery Lopper:
