Sava lalana
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Senlesen Widespread Bathroom Sink Faucet (Model B0CSMY9ZFH). Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure optimal performance and longevity of your faucet.
Vita ny vokatraview
The Senlesen Widespread Bathroom Sink Faucet features an Oil Rubbed Bronze finish, designed for 3-hole, 8-inch widespread sink installations. It includes a 2-handle mixer tap and a pop-up drain for convenience.
- Fampiasana: Widespread bathroom faucet suitable for 3-hole, 4 or 8-inch sinks.
- vita: Oil Rubbed Bronze finish for corrosion and rust resistance.
- Mitantana: Two-handle design for precise control of water temperature and flow.
- Valve Technology: Equipped with ceramic disc valve technology for reliable, drip-free performance.
- Tatatra: Includes a matching pop-up drain.
- Adjustable fametrahana: The installing distance can be adjusted to meet specific requirements.

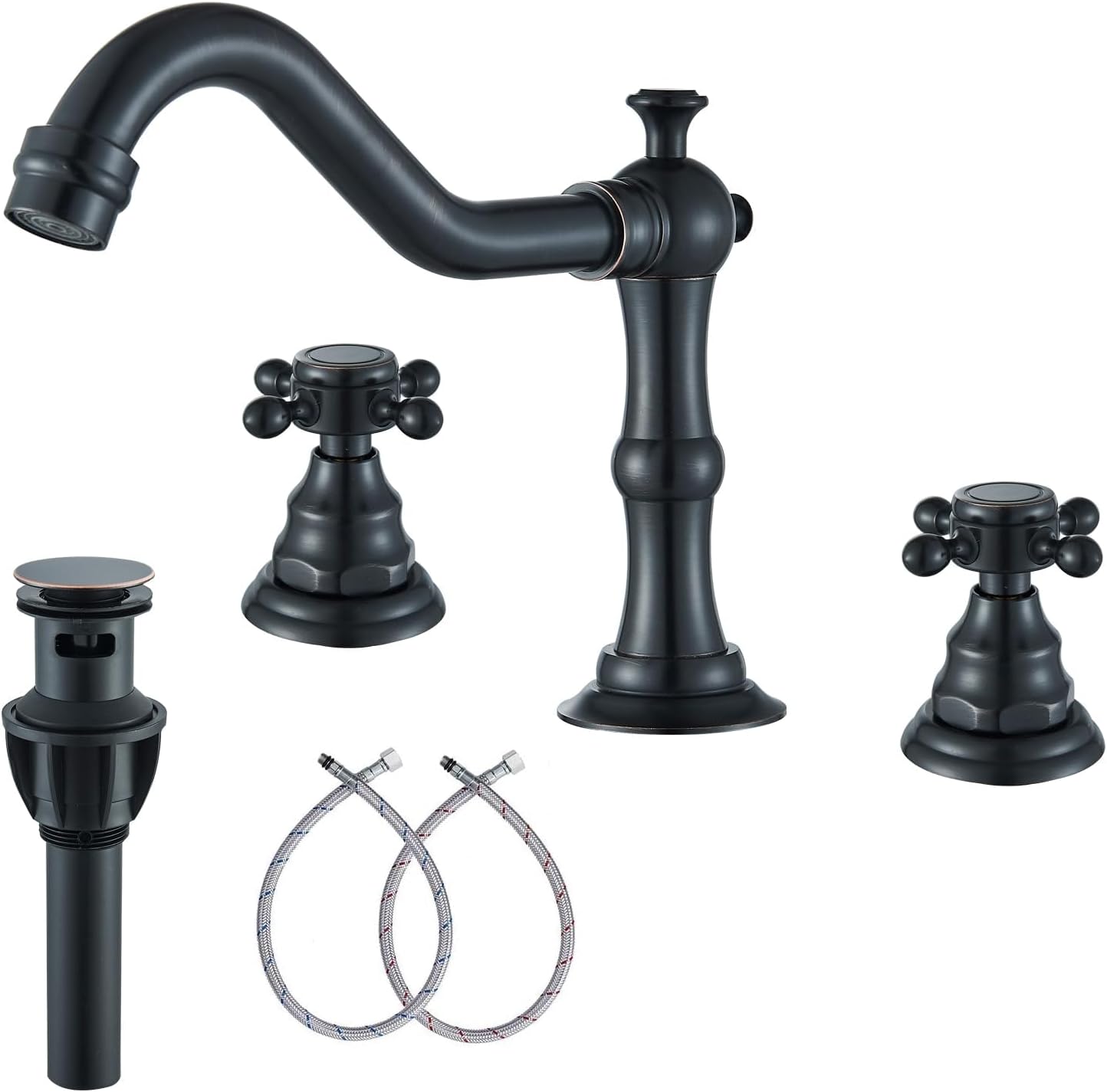

Sary 1: All components of the Senlesen Widespread Bathroom Sink Faucet, including the main spout, two handles, pop-up drain, and connection hoses.
Information momba ny fiarovana
- Vonoy foana ny famatsian-drano lehibe alohan'ny hanombohan'ny fametrahana na fikojakojana.
- Manaova fitaovana fiarovana manokana, toy ny solomaso fiarovana sy fonon-tanana.
- Raha tsy azonao antoka ny ampahany amin'ny fizotran'ny fametrahana, dia miresaha amin'ny plumber mahay.
- Ataovy azo antoka ny fifandraisana rehetra mba hisorohana ny fivoahana.
Torolàlana fametrahana
This faucet is designed for deck-mount installation on a 3-hole sink with an 8-inch widespread configuration. Hole size should be between 28-35mm (1.1-1.37 inches), with a maximum deck thickness of 40mm (1.57 inches).
- Omano ny lavenona (Prepare the Sink): Ensure the sink surface is clean and dry. Confirm the three mounting holes are correctly spaced for an 8-inch widespread faucet.
- Mametraka ny Vatan'ny Paompy: Insert the main faucet body into the center hole of the sink. Secure it from underneath the sink using the provided washer and mounting nut. Tighten firmly but do not overtighten.
- Mametraka tantana: Place the hot and cold water handles into their respective side holes. Secure them from underneath with their washers and mounting nuts. Ensure the handles are oriented correctly for operation.
- Connect Water Lines: Attach the hot and cold water supply lines to the corresponding inlets on the faucet body and to your home's water supply valves. Use thread sealant tape on all threaded connections.
- Mametraka tatatra Pop-Up: Follow the manufacturer's instructions for installing the pop-up drain assembly into the sink drain hole. Ensure a watertight seal using plumber's putty or silicone sealant.
- Fitsapana ho an'ny leak: Once all components are installed and tightened, slowly turn on the main water supply. Check all connections for any signs of leaks. If leaks occur, tighten the connections as needed.
Sary 2: The Senlesen Widespread Bathroom Sink Faucet with its two handles and pop-up drain, installed on a bathroom vanity.
hetsika
To operate your Senlesen faucet:
- Fikorianan'ny rano: Turn the handles to control the water flow.
- Fanaraha-maso ny maripana: The left handle typically controls hot water, and the right handle controls cold water. Adjust both handles to achieve the desired water temperature.
- Pop-Up Drain: Press the center of the drain cover to close it and retain water in the sink. Press again to open it and allow water to drain.
Fikojakojana sy fikarakarana
To maintain the appearance and functionality of your Oil Rubbed Bronze faucet:
- Fanadiovana: Diovy tsy tapaka ny faucet amin'ny malefaka, damp cloth. Avoid abrasive cleaners, harsh chemicals, or polishes that can damage the finish.
- Finish Protection: The superior corrosion and rust-resistant finish helps prevent dirt from sticking. Gentle cleaning is usually sufficient.
- Valva kapila seramika: The ceramic disc valve technology is designed for long-lasting, reliable performance and typically requires no maintenance.
Fanamboarana
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Iva ny rano | Aerator clogged, supply lines kinked, or water pressure issue. | Clean or replace aerator. Check supply lines for kinks. Verify home water pressure. |
| Mitsoka avy amin'ny Faucet Base | Loose mounting nuts or worn seals. | Tighten mounting nuts. Inspect and replace seals if necessary. |
| Faucet mitete | Worn ceramic disc cartridge. | Replace the ceramic disc cartridge. |
| Henjana na sarotra ahodina ny tahony | Mineral buildup or worn cartridge. | Clean around handles. Replace cartridge if cleaning does not resolve the issue. |
If you encounter any broken problems or require a longer part for countertop installation, please contact the seller for assistance.
fepetra arahana
- marika: Senlesen
- Anaran'ny modely: Faucet efitra fandroana
- ASIN: B0CSMY9ZFH
- Fampiasana soso-kevitra: efitra fandroana
- Karazana fametrahana: Deck Mount
- Karazana famaranana: Bronze (Oil Rubbed Bronze)
- Fitaovana: Inôksa
- Isan'ny tantana: 2
- Anisan'ny singa: Faucet, Handles, Pop Up Drain, Hose
- Isan'ny lavaka: 3 (for widespread installation)
- Endri-javatra manokana: Pop Up Drain
- Style: Faucet miparitaka be
- Karazana fametrahana: Surface-mounted
- Mitantana fitaovana: Inôksa
- Toerana mitantana: Havia, havanana
- Spout Design: Arching or Gooseneck
- Haben'ny vokatra: 12" D x 6" W x 8" H
- Lanja entana: 1.5 kg
Warranty sy fanohanana
For warranty information, replacement parts, or technical support, please contact the Senlesen customer service directly through your purchase platform or the official Senlesen website. Please have your model number (B0CSMY9ZFH) and purchase date available when contacting support.
